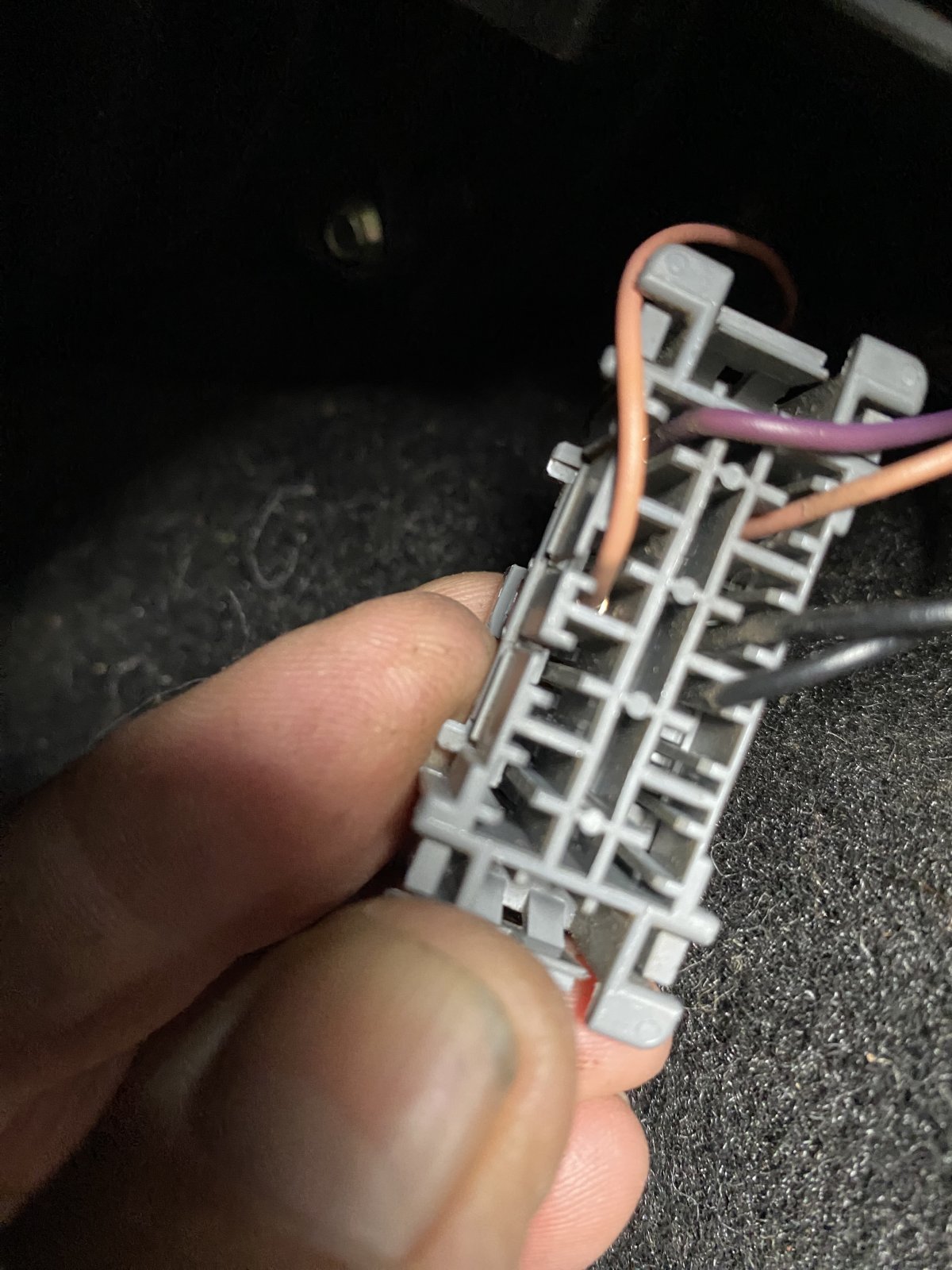

Good morning all. I have just inherited another free lander but this is the td4 convertible style (ironic given the weather at the moment). Any way my question is why have I got no power at the obd point. I have taken a pic of the wires coming in and wonder if someone knows what does what. Only want to know as I have a few minor issues that might come up on the icar reader hopefully. Any help greatly received
Richard.Wagner
Member
I think you need to look up the electrical diagram to confirm the number of wires on the back of the connector. The ECU uses a 1 wire K-line communications so there really aren't that many wires.
It start by looking up the obd2 connector online, it will tell you which pins are supposed to be +12V/GND then get a meter on it. Could be something as simple as a blown fuse.
It start by looking up the obd2 connector online, it will tell you which pins are supposed to be +12V/GND then get a meter on it. Could be something as simple as a blown fuse.
andyfreelandy
Well-Known Member

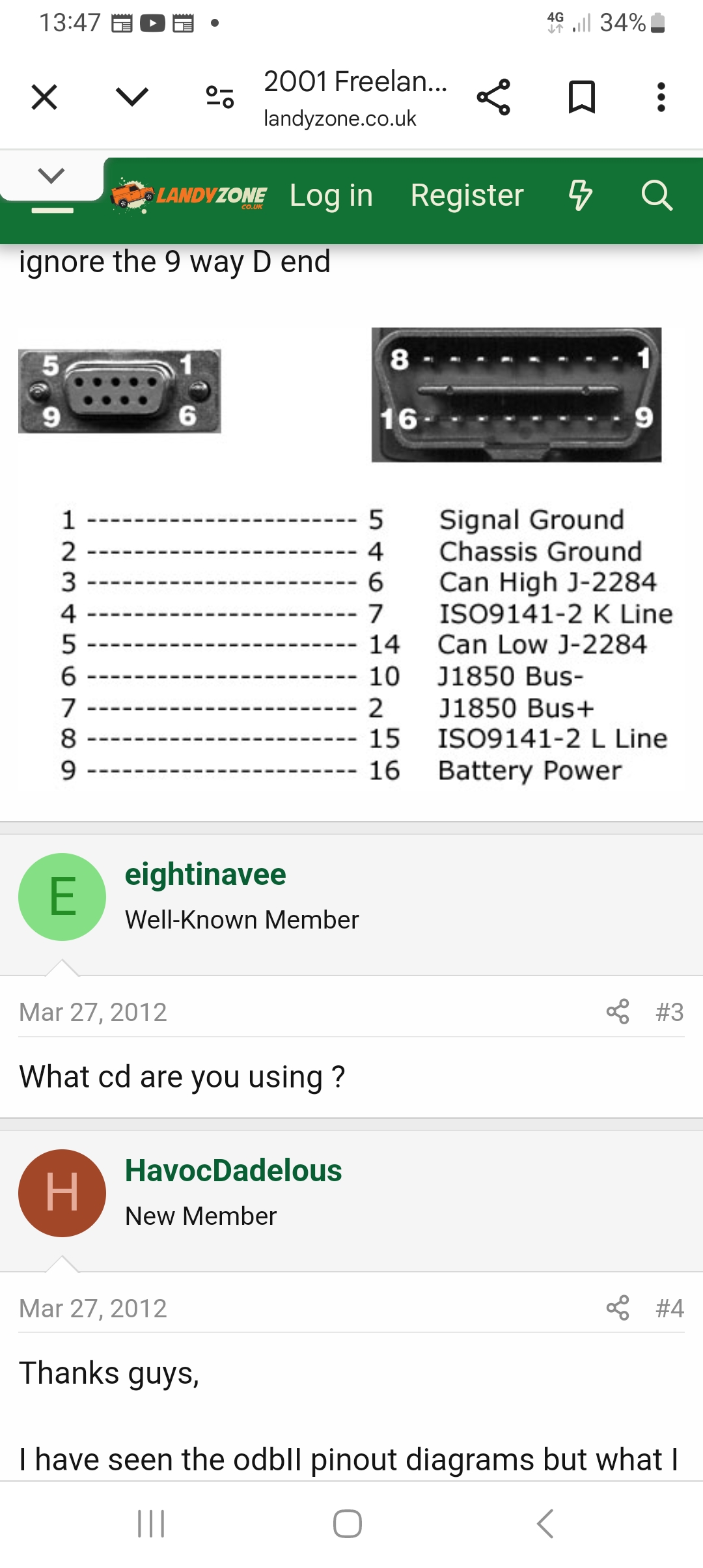

Like this
