Ey up,

Set off today in my 110 and got no drive. There was no bang or anything, just a grinding noise that sounds like it's coming from around my left foot.

In diff lock, I get drive in both high and low. With the centre diff in neutral and the gearbox in gear, no shafts spin which is what's confusing me.

Could the transfer box be lunched?

I'd be very grateful for any advice. Thank you



mick 1986

Well-Known Member

• Aug 11, 2021

• #2

Jefinabox said:

Ey up,

Set off today in my 110 and got no drive. There was no bang or anything, just a grinding noise that sounds like it's coming from around my left foot.

In diff lock, I get drive in both high and low. With the centre diff in neutral and the gearbox in gear, no shafts spin which is what's confusing me.

Could the transfer box be lunched?

I'd be very grateful for any advice. Thank you

Click to expand...

You won’t get drive if the transfer box is in neutral.

Put the transfer box back to just high or low, not diff lock. Put it into first, and get someone to slowly release the clutch. Have a look at which prop shaft is spinning, thats the area the fault is in.



tottot

Well-Known Member

• Aug 11, 2021

• #3

Hello and welcome to forum, head off to the introduce your self section and give a bit of info about yourself and the vehicle you drive, model, year, engine and what you use it for.
In the mean time transfer in neutral and shafts will not turn, it is in neutral after all.
Probably a broken half shaft or drive flange stripped.



J

Jefinabox

New Member

• Aug 11, 2021

• #4

Thank you, I was being a bit thick.

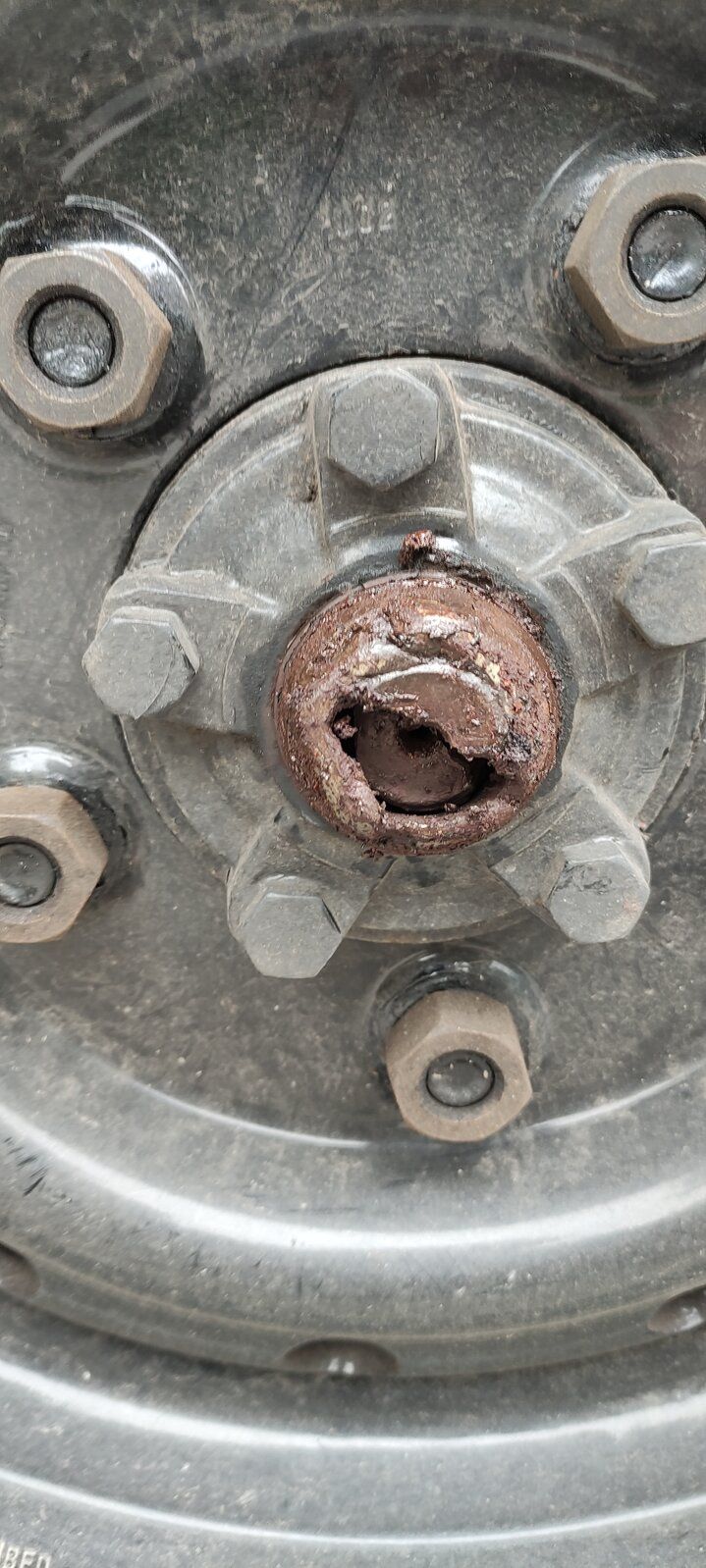

The rear shaft spins, it's a Salisbury, so I'm guessing it's a half shaft?

Just had a look..



Thank you



Attachments

•

  239.1 KB · Views: 202
•

  204 KB · Views: 204

Last edited: Aug 11, 2021

payydg

Well-Known Member

• Aug 11, 2021

• #5

They look rank. Yeh half shaft or drive flange. Easy fix. If the splines have failed its likely the splines on it mate are also significantly worn.



J

Jefinabox

New Member

• Aug 11, 2021

• #6

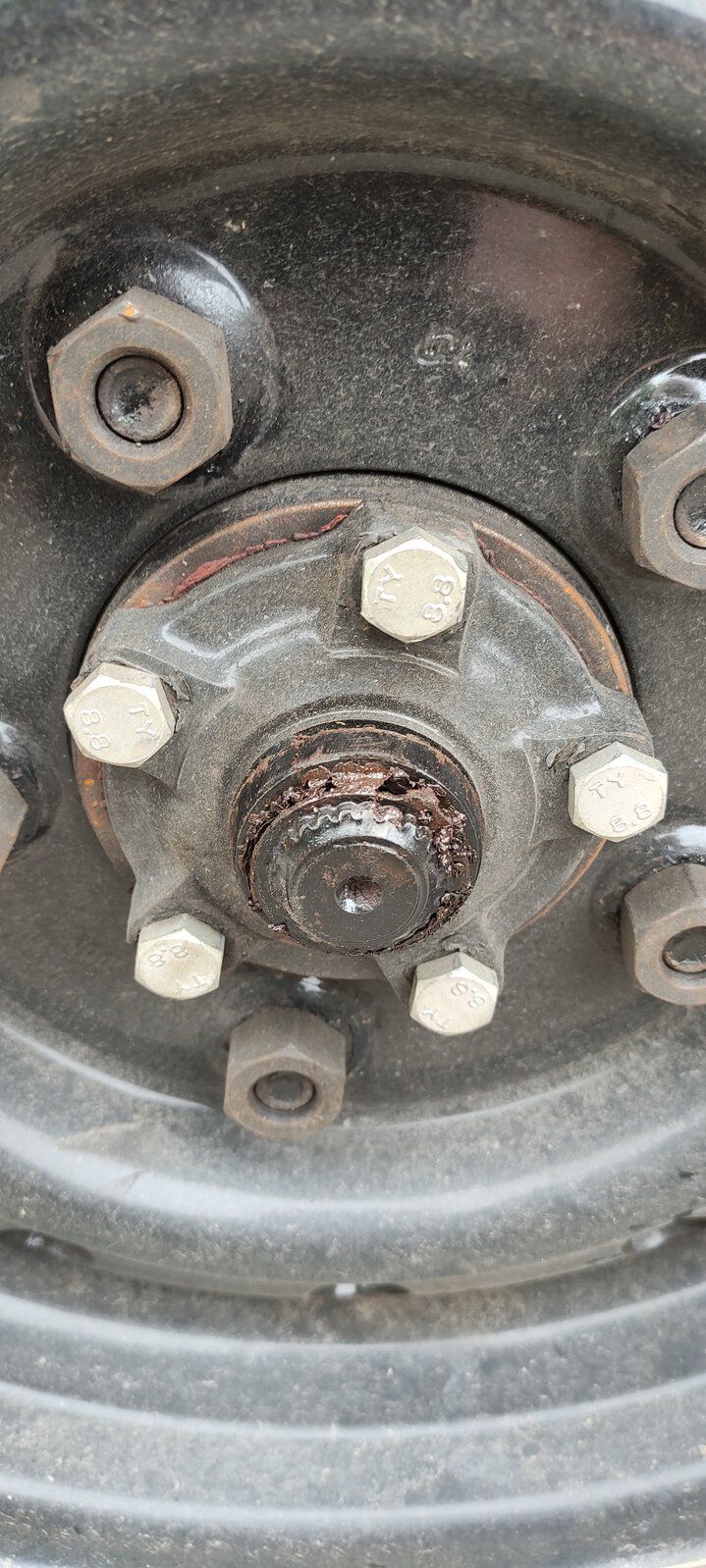

Hard to see on the picture, but it looks like one of the shafts is too short and has been welded to the flange.

Thanks for advice, I'll make a hello thread tonight



tottot

Well-Known Member

• Aug 11, 2021

• #7

That does look like some sort of cobble up, undo the 5 bolts and pull the half shaft for a good look at both ends.



tottot

Well-Known Member

• Aug 15, 2021

• #8

Any more on this jefinabox ?



J

Jefinabox

New Member

• Aug 15, 2021

• #9

tottot said:

Any more on this jefinabox ?

Click to expand...

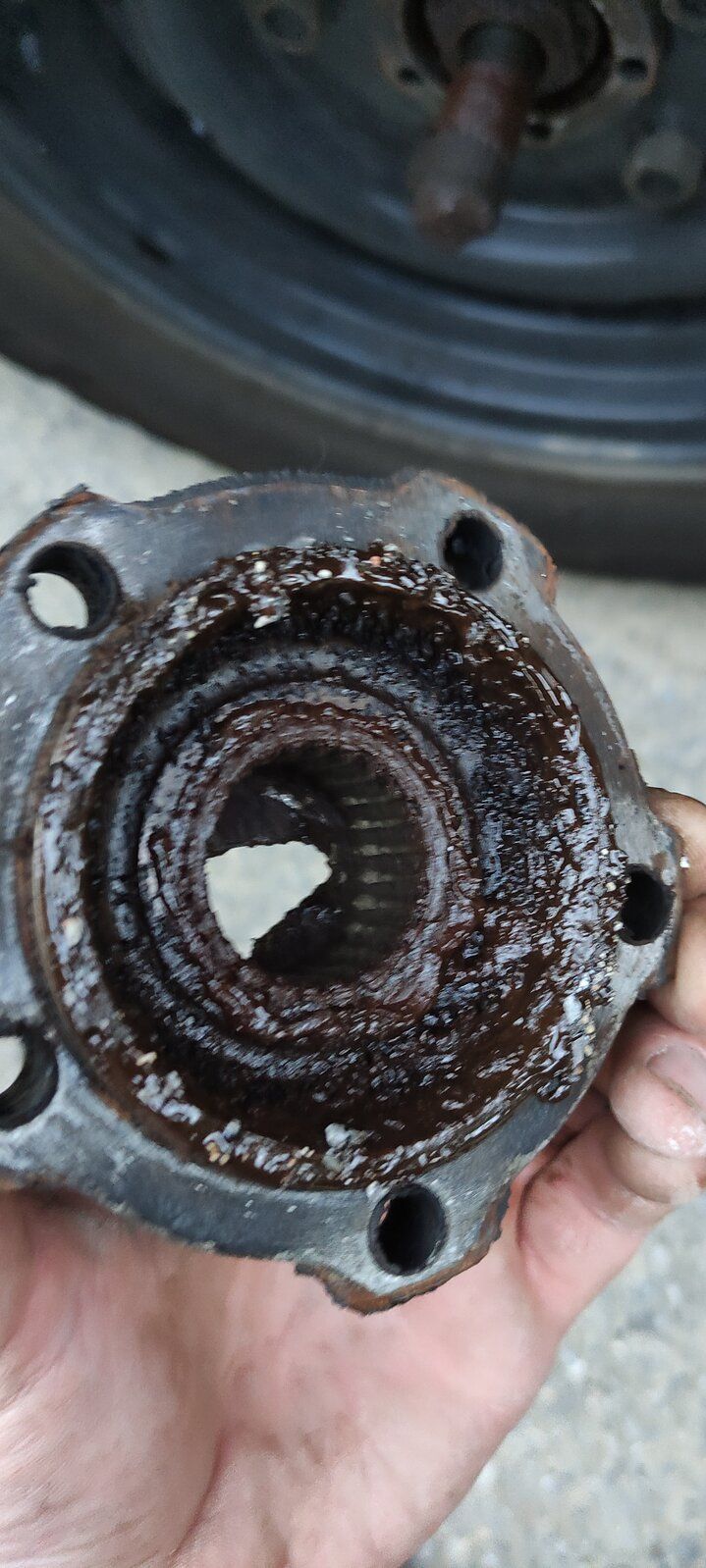

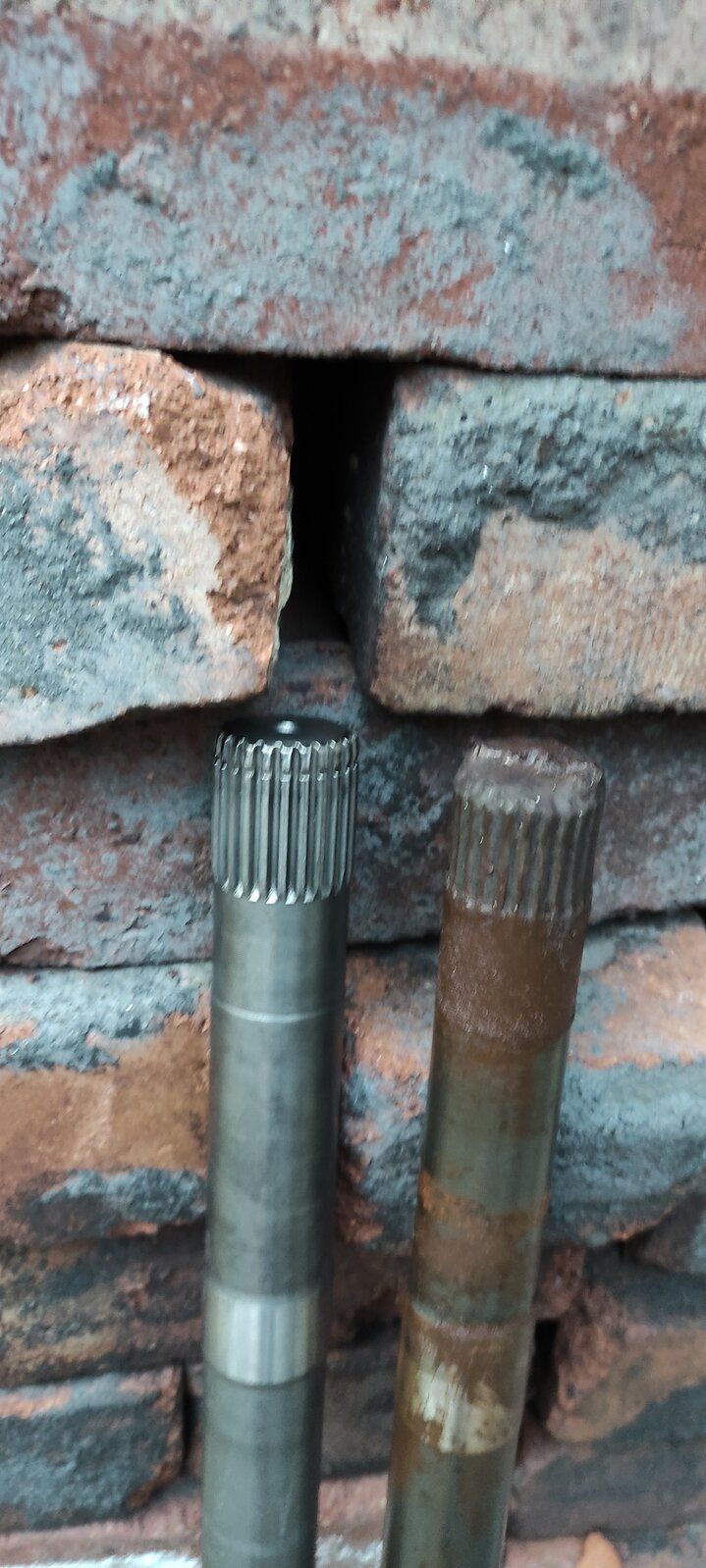

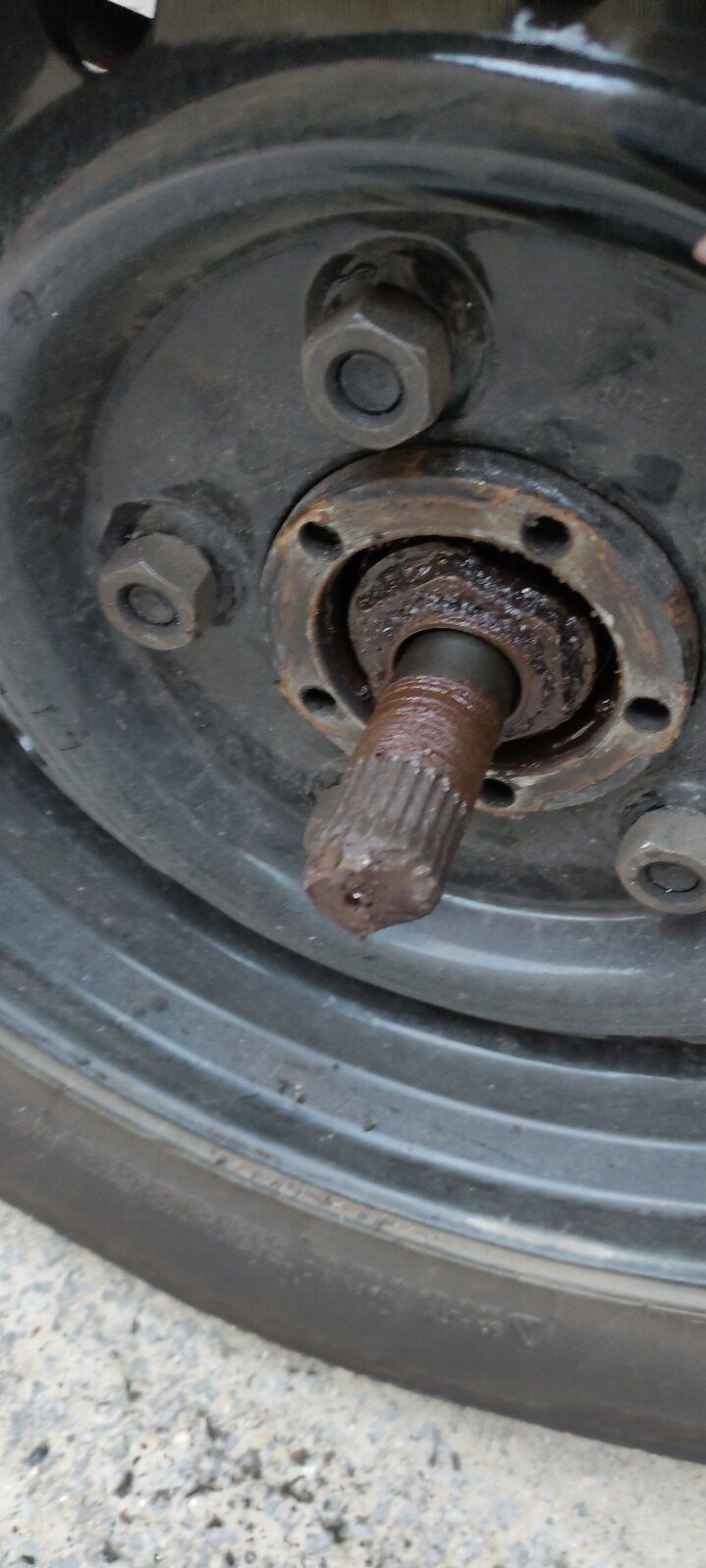

Yes, thank you everybody for the advice. You can see what I found in the pictures, swapped the lot over and I'm back on the road again



Attachments

•

  184.8 KB · Views: 134
•

  130.5 KB · Views: 138
•

  181.9 KB · Views: 130

kevstar

Well-Known Member

Full Member

• Aug 16, 2021

• #10

Jefinabox said:

Yes, thank you everybody for the advice. You can see what I found in the pictures, swapped the lot over and I'm back on the road again

Click to expand...

wtf is going on in pic 2 ?? around the wheels nuts someone fitted alloy nuts or is it the way the pic
is taken.
