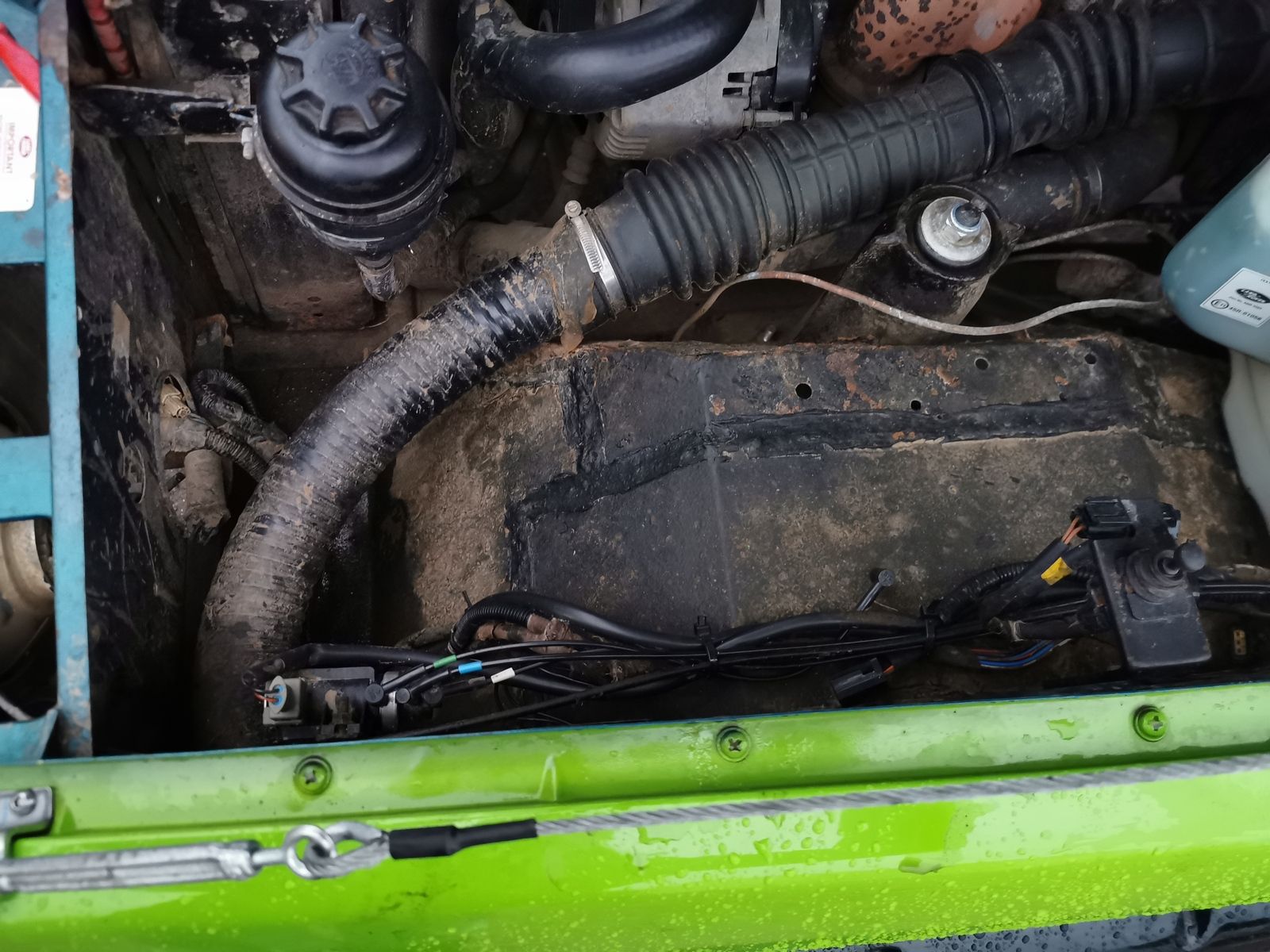

My Disco 300tdi It has what looks like a homemade botched snorkel fitted with no Air Filter fitted as there is no Box as in first pic.. But I want to put it back to normal with standard box and Filter.

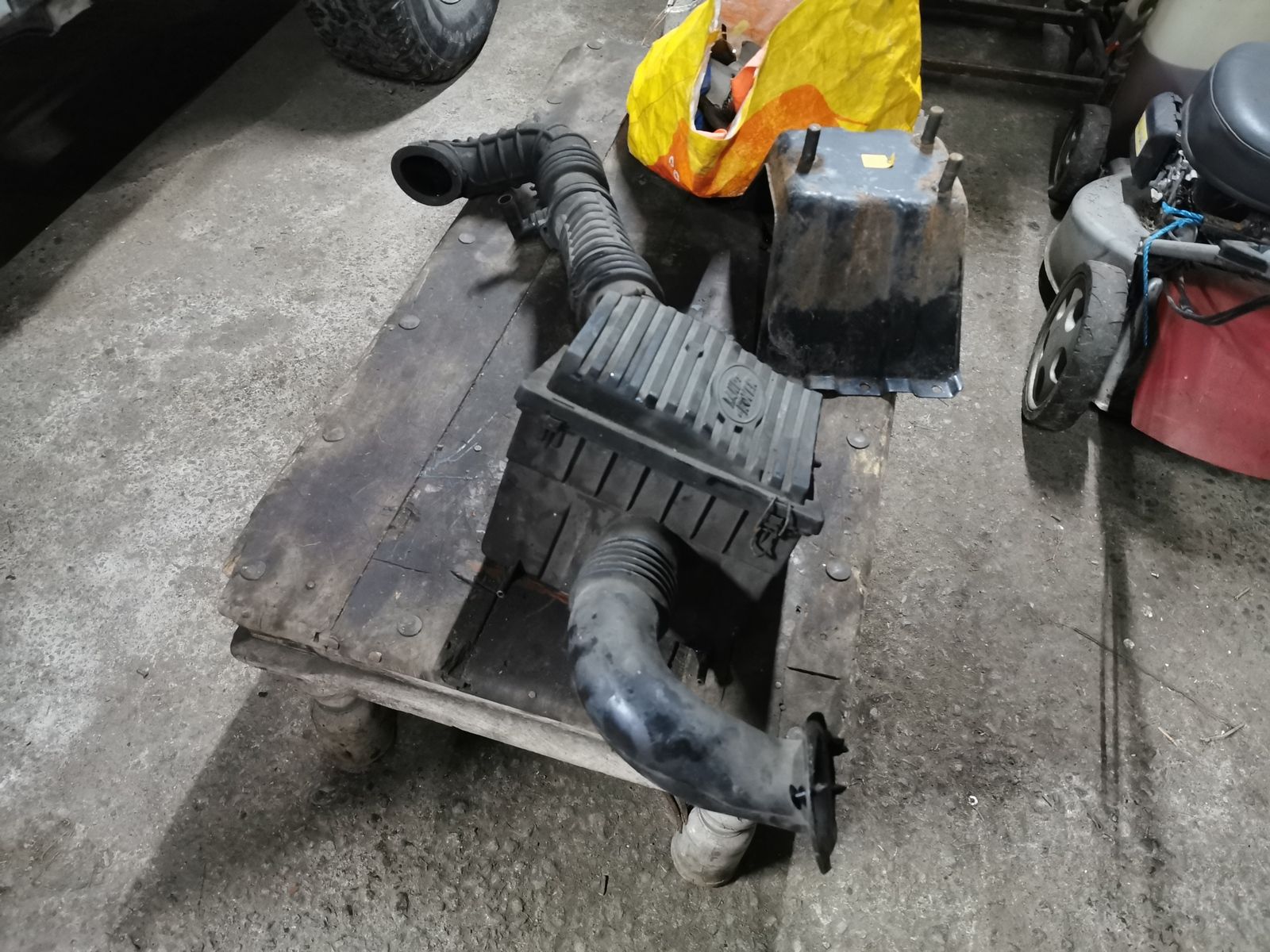

I have spare box that is for my Defender rebuild so will use it for now.

Thing is there is no bracket with the 2 holes in that the 2 points on box go in to hold it on place. Also not sure which direction the front piece of pipe goes to.

Really need to go have a look at one with Standard air box, to know exactly where to put mine. but was gonna have a go tomorrow.

Anyone got any pics of there 300tdi engine bay with standard set up ??

Thanks

Hope this works...

https://i.ebayimg.com/00/s/Njg0WDEwMjQ=/z/IY4AAOSwBxFc5mCQ/$_86.JPG

https://junkmailimages.blob.core.windows.net/large/18f5b2079c144b85ae6312da7a5be485.jpg

swisstoe said:

Hope this works...

https://i.ebayimg.com/00/s/Njg0WDEwMjQ=/z/IY4AAOSwBxFc5mCQ/$_86.JPG

https://junkmailimages.blob.core.windows.net/large/18f5b2079c144b85ae6312da7a5be485.jpg

Click to expand...

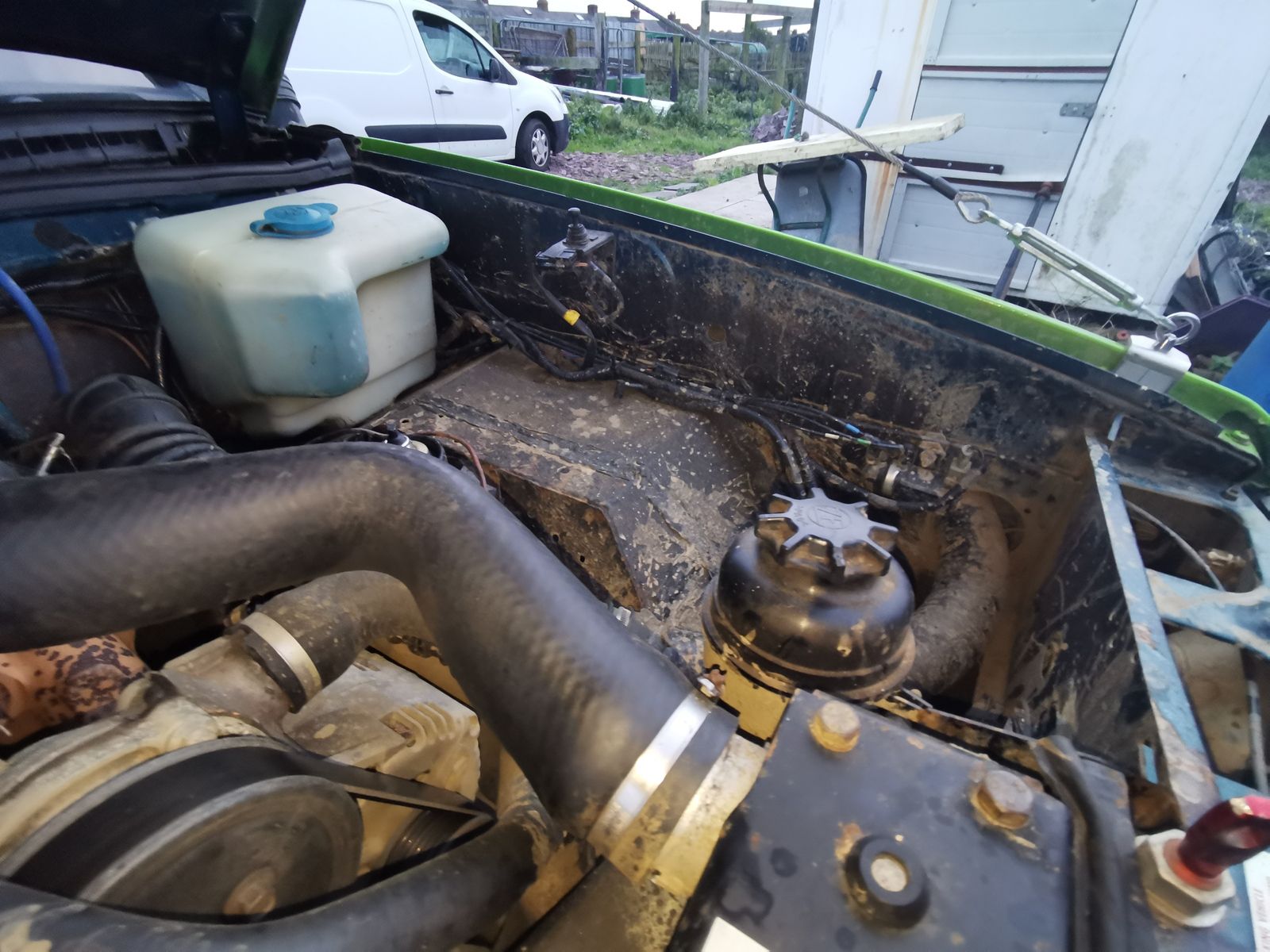

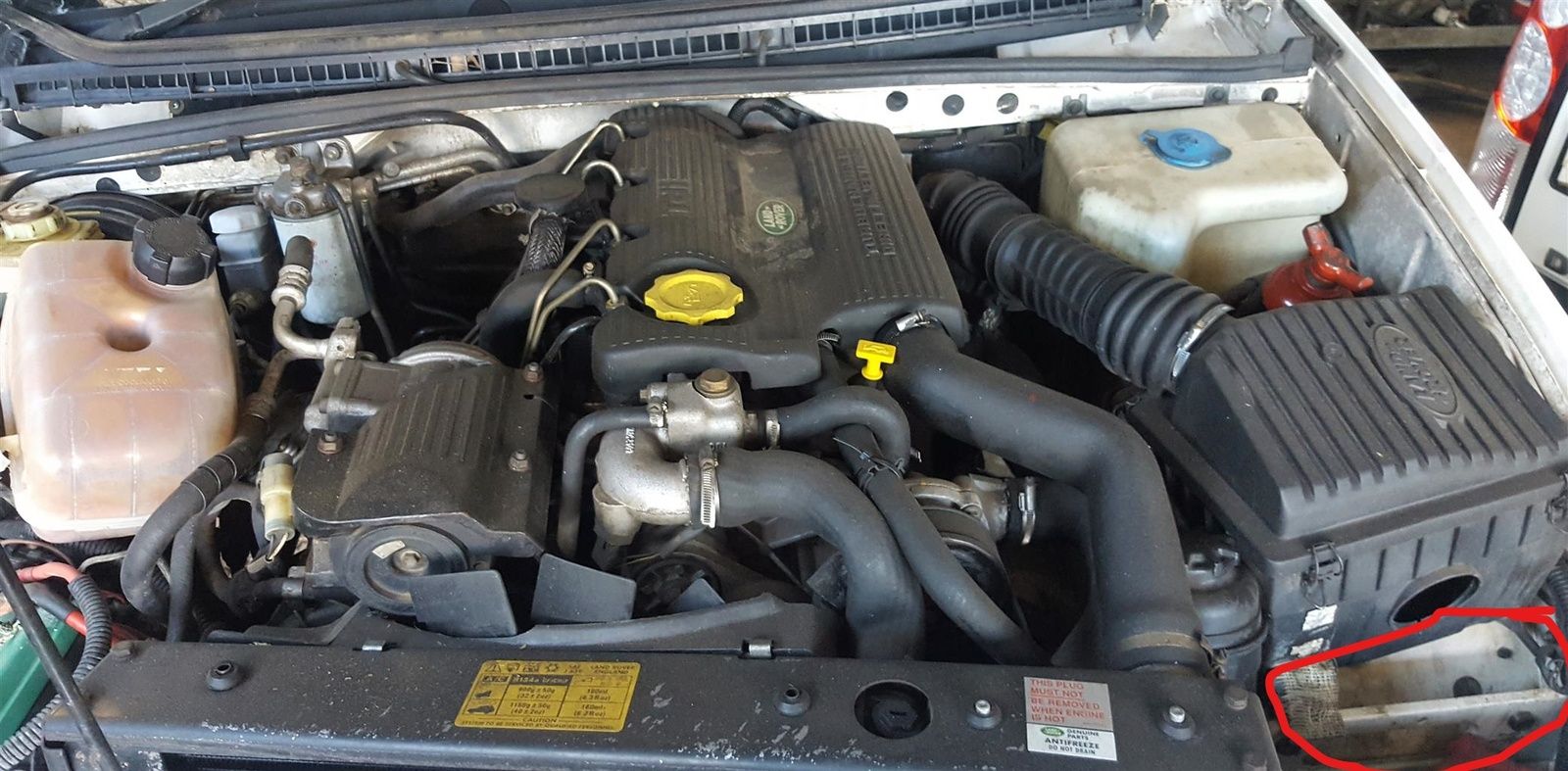

There Spot on Mate, Cheers. Now I know where to place it but I have this bracket circled in red Missing frpm mine, it is where box clips in to . Will have to make something for box to sit on. Second pic is Mine with bracket missing

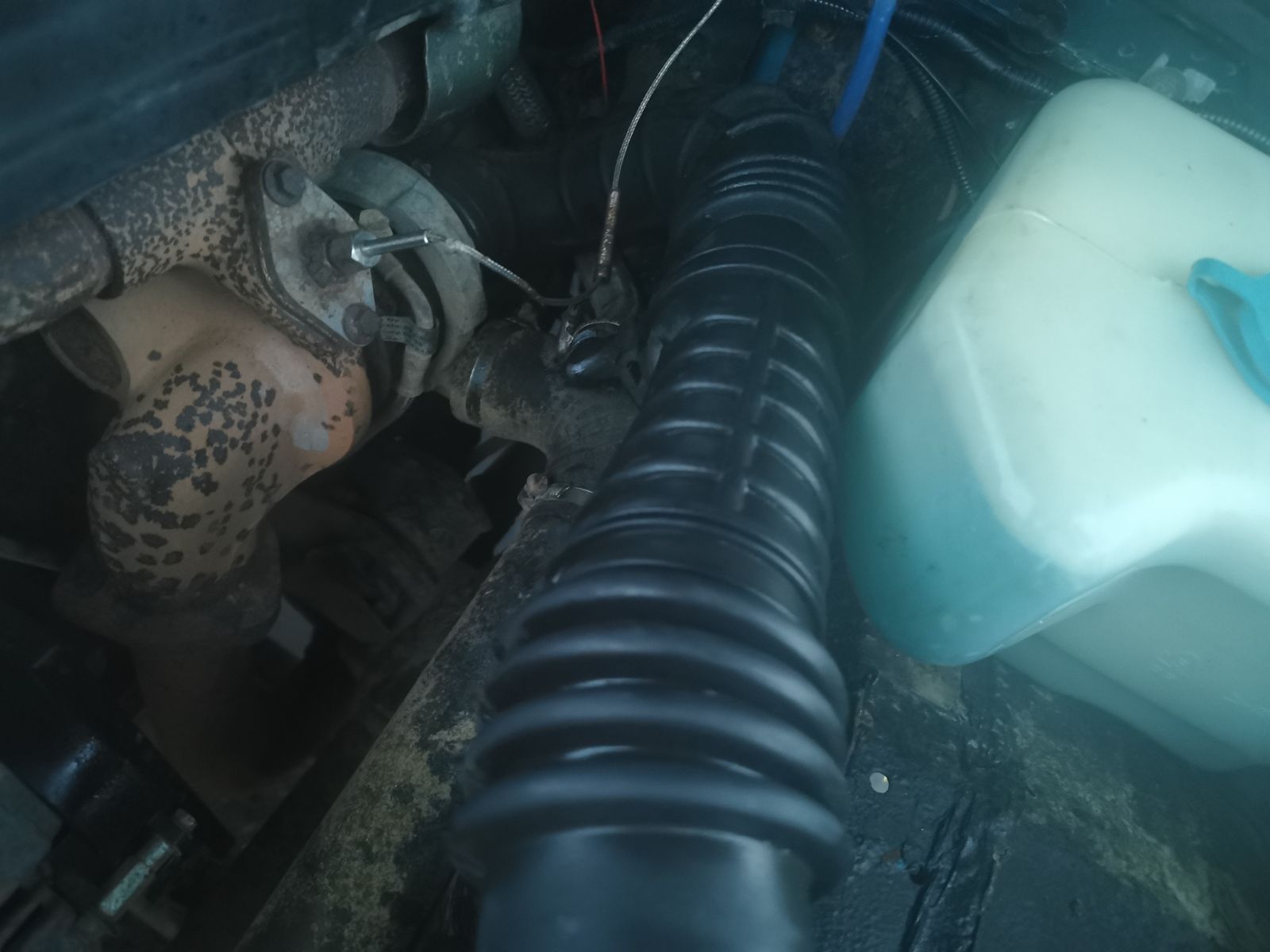

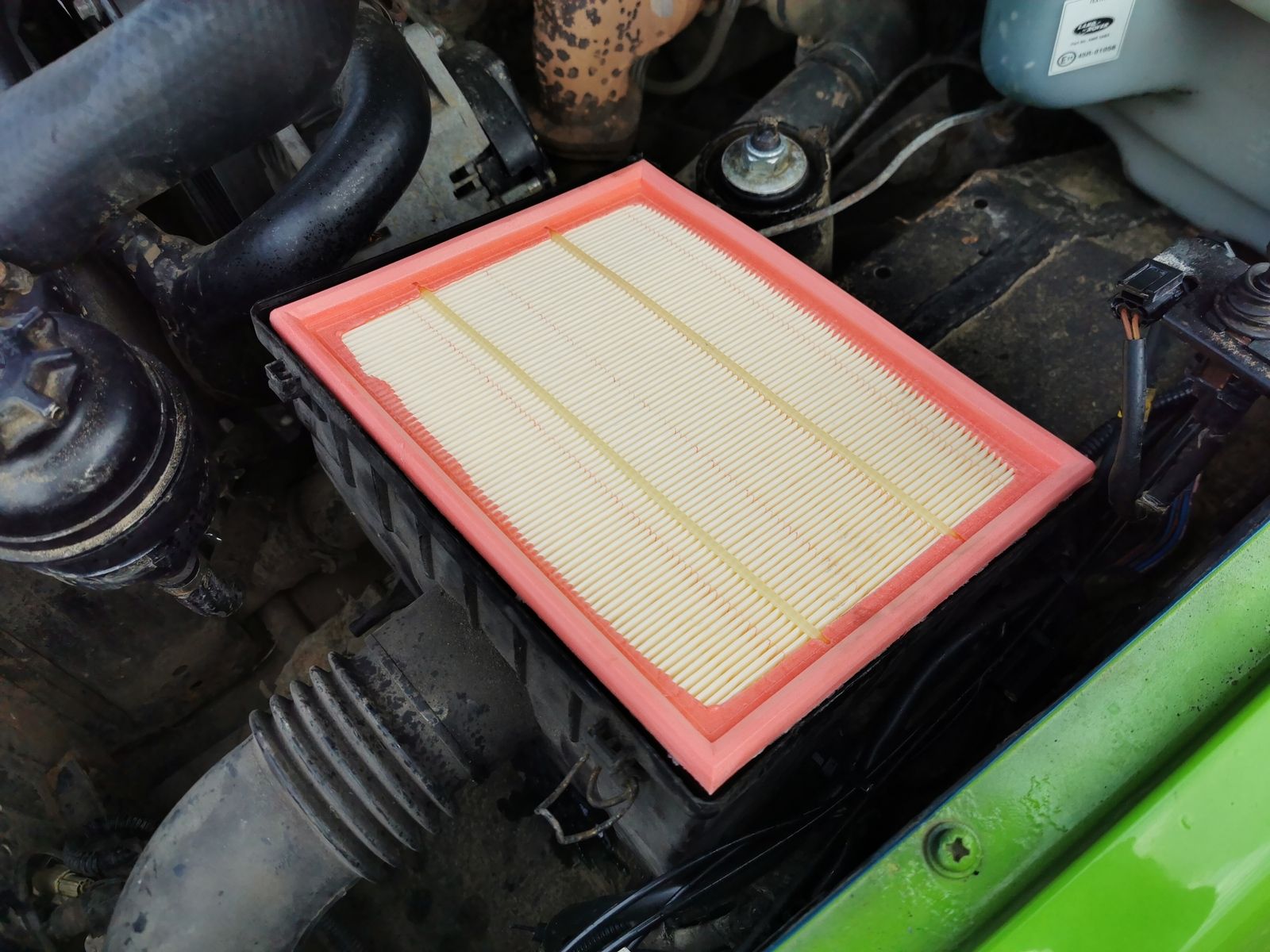

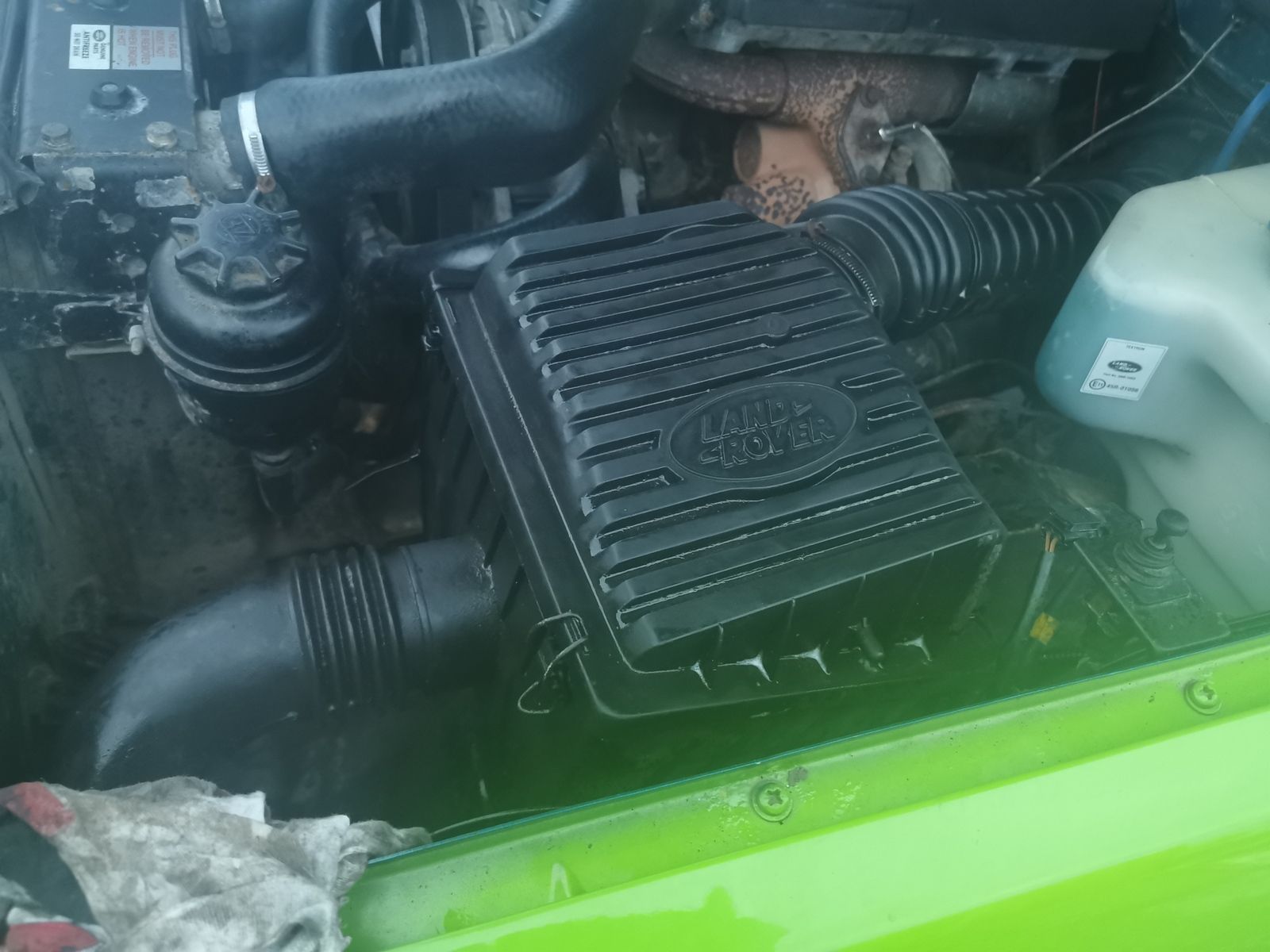

Easier then I thought it would be. Back to normal now with nice clean air filter.
Changed oil and fuel filter and fresh oil to while I was on.
