mdfenemer · May 12, 2013

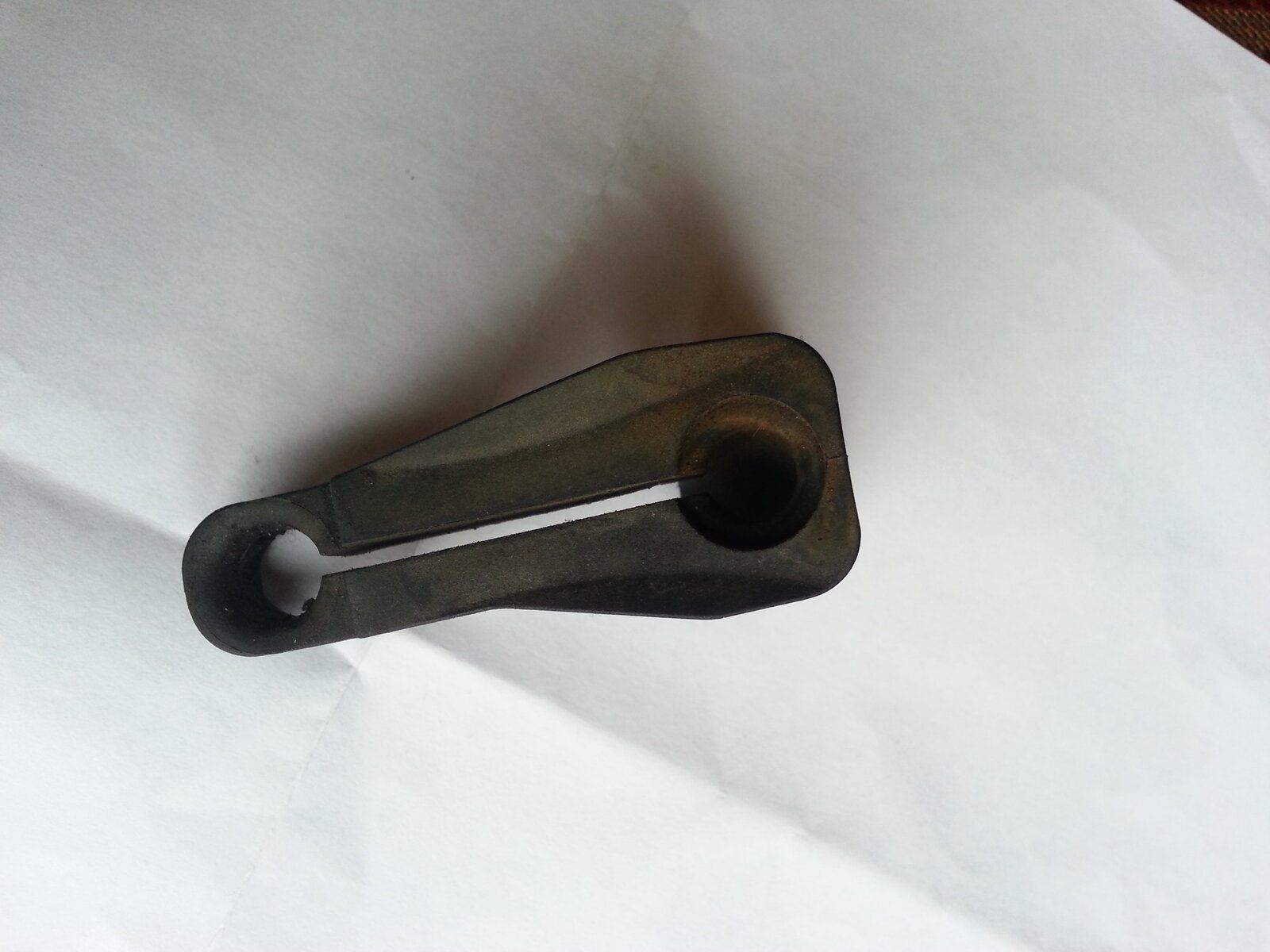

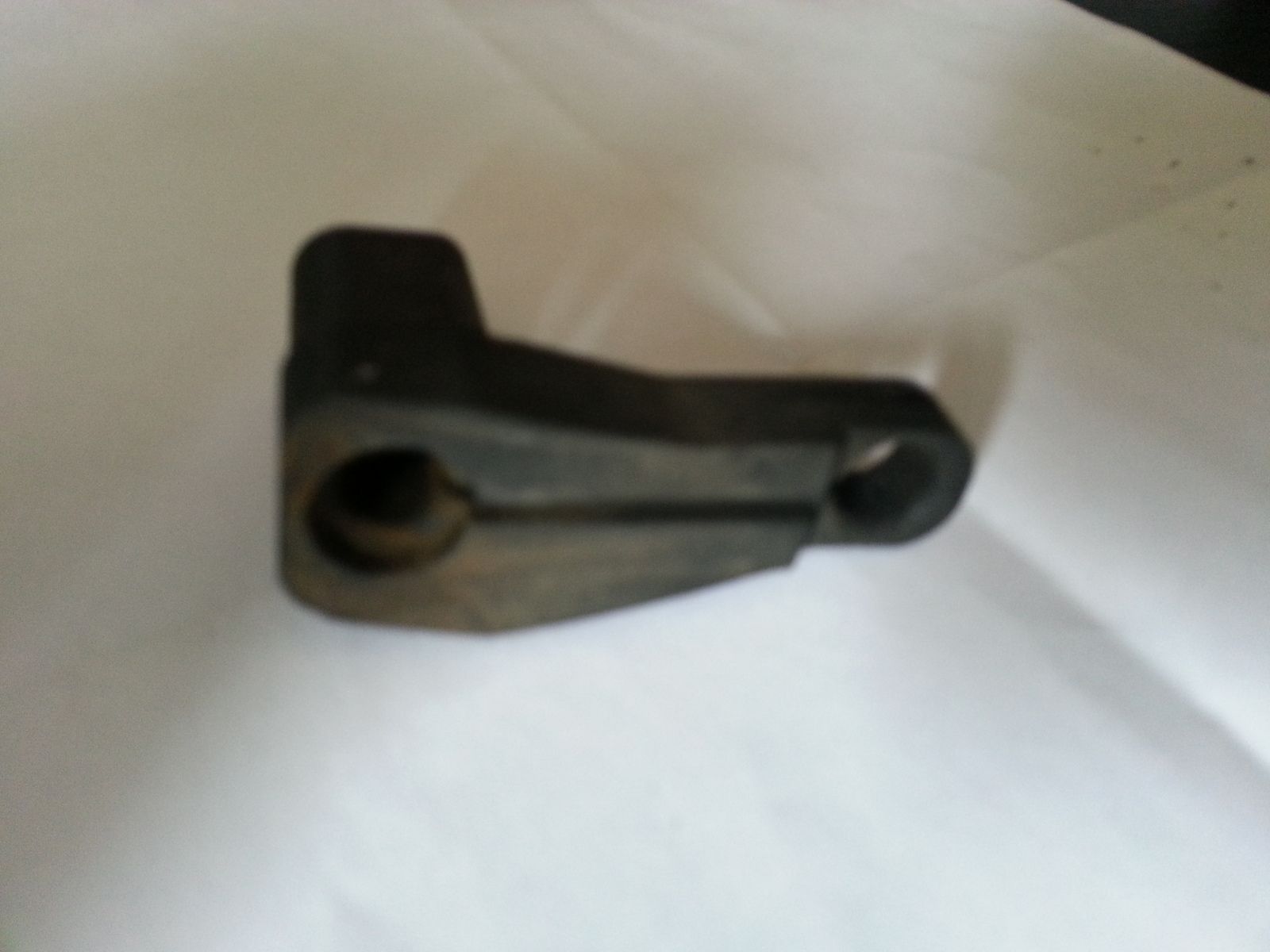

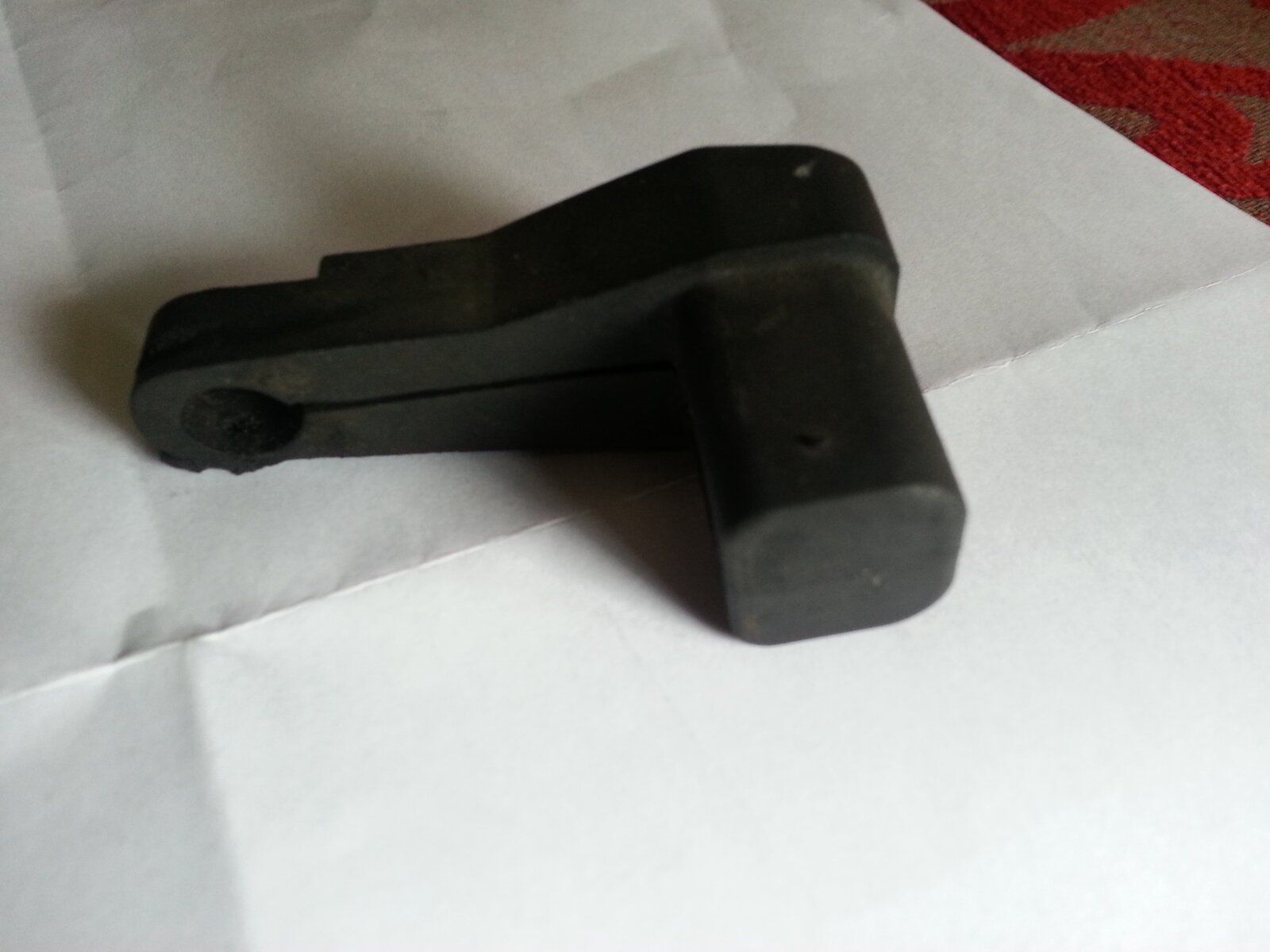

Hi all, I pulled back on the drive yesterday to find a rubber part on the drive, I am not sure if it off my 2002 Disco 2 or weather is has just been flicked off the road... Has anybody seen this item before and is it of my car, if so where?. Please take a look a the pictures supplied, many thx.

Pikey · May 12, 2013

Exhaust hanger??? buffer of some sort But fook knows what??

blackvulcan100 · May 12, 2013

That bit fits into the rear door catch where it locates the rear door catch to the body. malc

derwendolly · May 12, 2013

I have also got that bit of rubber! I found it about eight years ago on the boot floor inside my 2000 disco 2! I have never found a home for it and everything seems to have got on fine without it.

mdfenemer · May 12, 2013

Thx for your replies as I has been having a problem with the rear door strap jumping off the lug when i opened the door, it now seems obvious that it would be something to do with the arse end...many thanks malc, when the rain stops I will go and investigate.. Tyhx again all.

PaulMc · May 12, 2013

mdfenemer said:
Hi all, I pulled back on the drive yesterday to find a rubber part on the drive, I am not sure if it off my 2002 Disco 2 or weather is has just been flicked off the road... Has anybody seen this item before and is it of my car, if so where?. Please take a look a the pictures supplied, many thx.

That's the seal off of the rear door latch striker, part number FRN100000

Callout #22, here -

.

mdfenemer · May 12, 2013

Many thx, can't get a better response than that, brilliant reply. Don't even have to scratch my head to see where it goes, thx again.

spanishlair · May 12, 2013

PaulMc said:
That's the seal off of the rear door latch striker, part number FRN100000

Callout #22, here -

.[/Hi Paul.
Is there a part number for 23. I have been looking for one since mine fell to bits.
Paul.quote]

PaulMc · May 12, 2013

spanishlair said:
PaulMc said:

That's the seal off of the rear door latch striker, part number FRN100000

Callout #22, here -

.[/Hi Paul.
Is there a part number for 23. I have been looking for one since mine fell to bits.
Paul.quote]

Click to expand...

Yes, it's part number - BHK700030

All the part numbers for that illustration are here - Land Rover parts

All part numbers for all vehicles (except Evoque) are here - Land Rover parts

.

spanishlair · May 12, 2013

PaulMc said:
spanishlair said:

Yes, it's part number - BHK700030

All the part numbers for that illustration are here - Land Rover parts

All part numbers for all vehicles (except Evoque) are here - Land Rover parts

Priceless !
Thank you.
Paul

Click to expand...

Billy B · May 12, 2013

:nothingtoadd:

Handy little parts list
