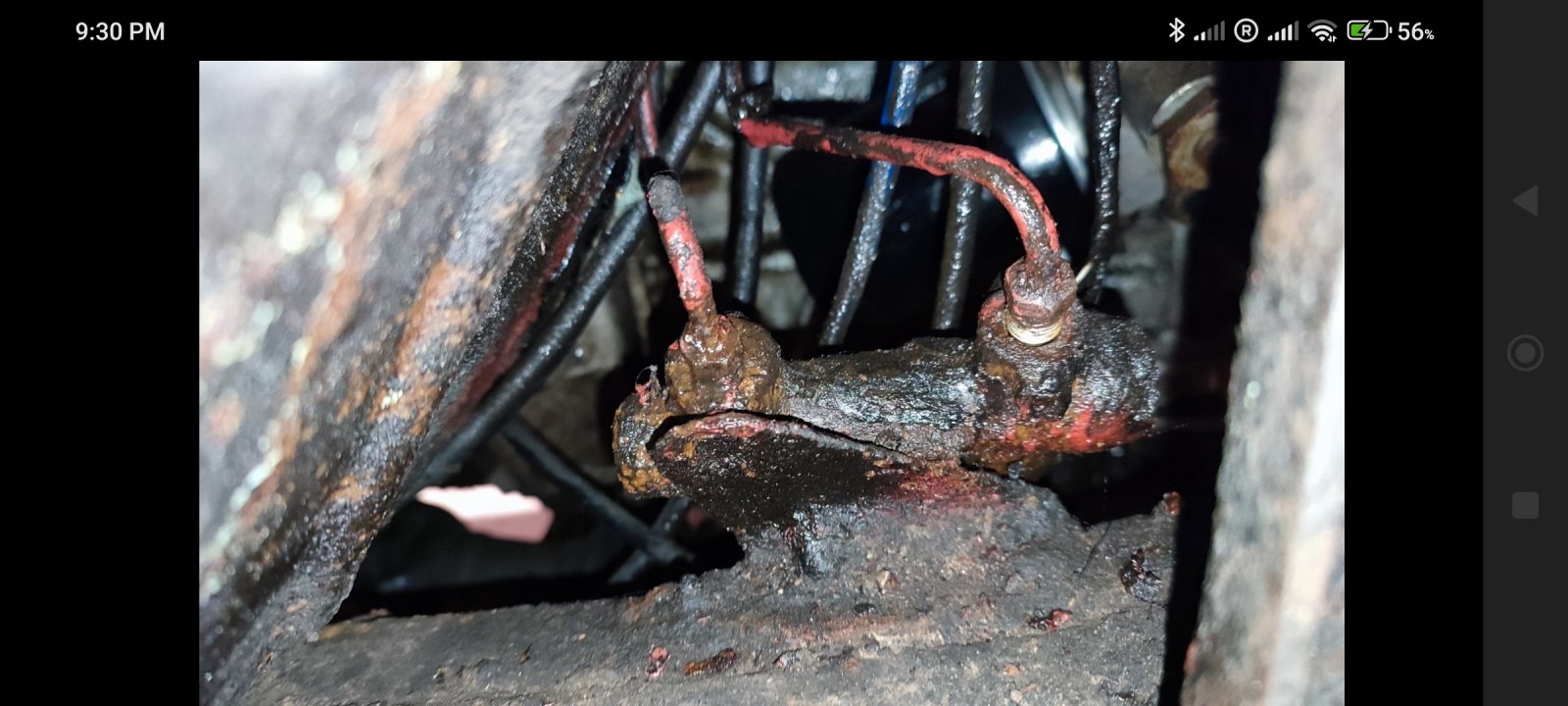

Where does the series 3 brake failure switch mount?



Attachments

•

  332 KB · Views: 99

W

Wildefalcon

Well-Known Member

• Nov 22, 2023

• #2

RHD? Under the brake pedal, bolted to a bracket on the chassis, beside the steering box upright.



A

Angus Murphy

New Member

• Nov 22, 2023

• #3

Wildefalcon said:

RHD? Under the brake pedal, bolted to a bracket on the chassis, beside the steering box upright.

Click to expand...

Affirmative, RHD. Thanks for that. I’ve got a new chassis and fitted the original (re-furbished)
upright. Was worried I’d welded in a patch on the upright and missed the bracket. Just to confirm, outboard on the chassis below the brake pedal is where the switch should be fitted.
Thanks very much.
Angus



W

Wildefalcon

Well-Known Member

• Nov 22, 2023

• #4

Inboard.



BikerB

Well-Known Member

• Nov 22, 2023

• #5

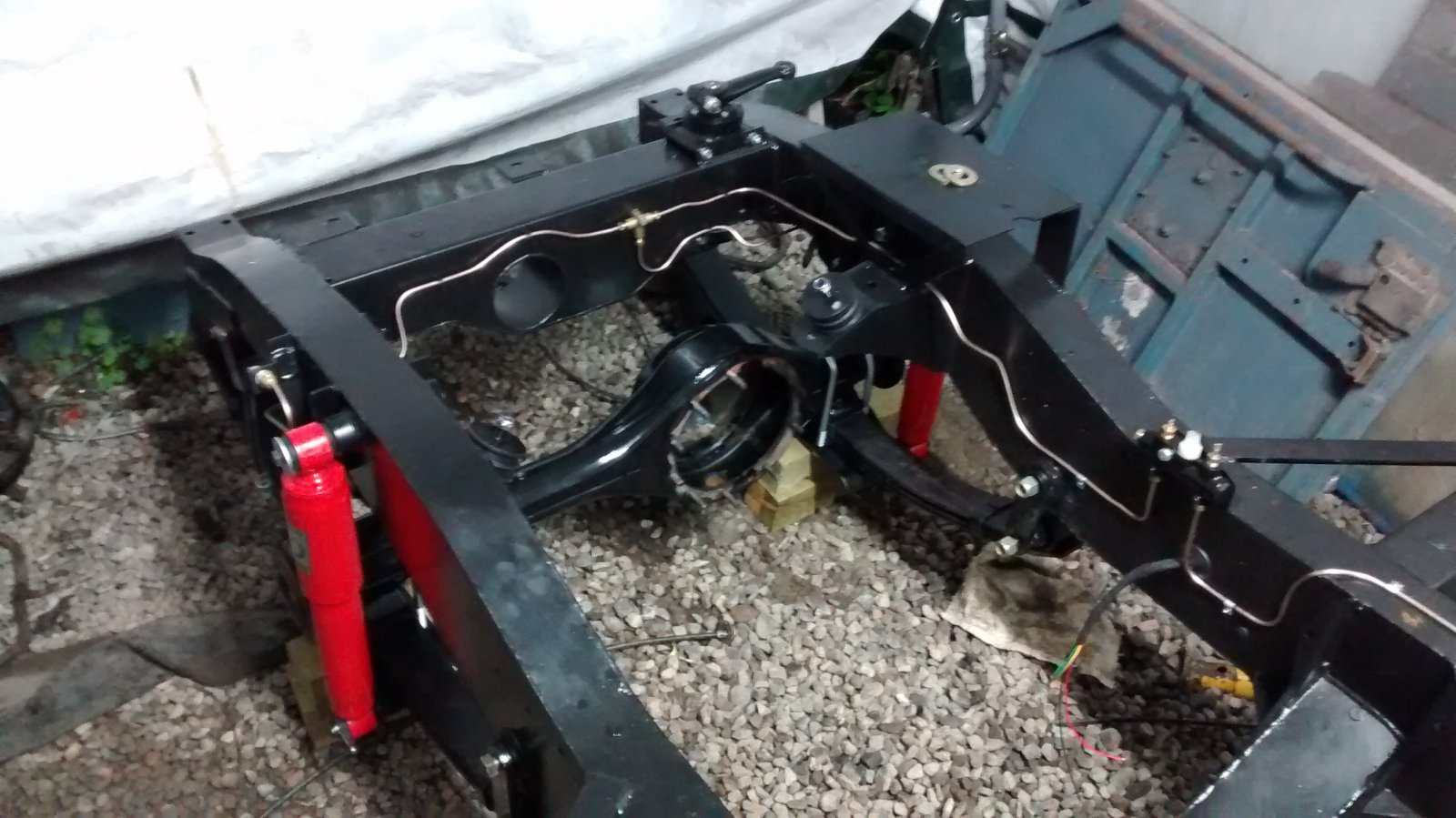

If you have a look at my six pot rebuild thread you will see where it is mounted and which way up. I had to make the bracket as I had chucked it when disposing of the chassis. This is the way and position it was mounted on the vehicle originally



Last edited: Nov 22, 2023

W

Wildefalcon

Well-Known Member

• Nov 22, 2023

• #6

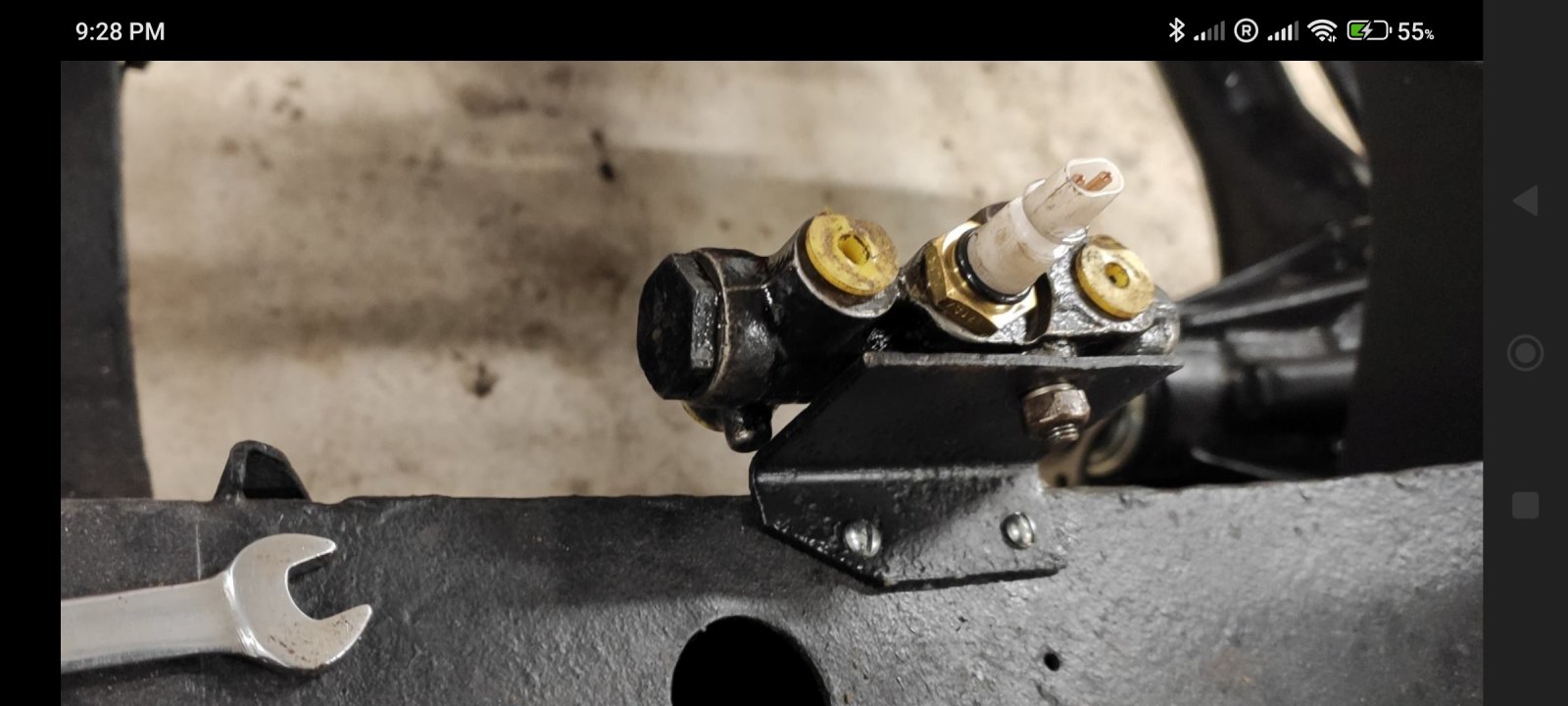

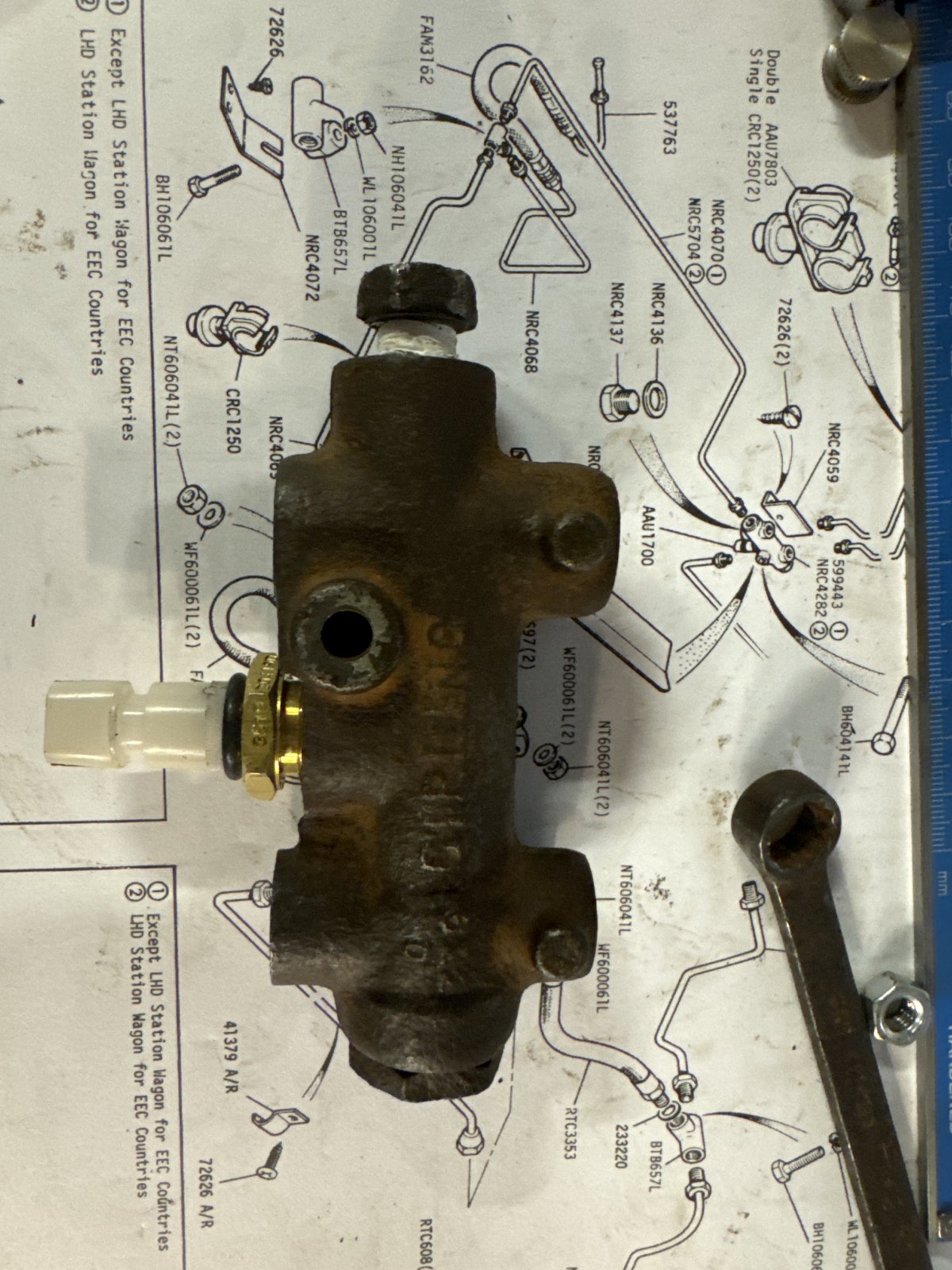

Either way around



Attachments

•

  172.3 KB · Views: 73
•

  494.7 KB · Views: 87
•

  130.4 KB · Views: 77
