Hi All,

Freelander 1 TD4 SE 2005

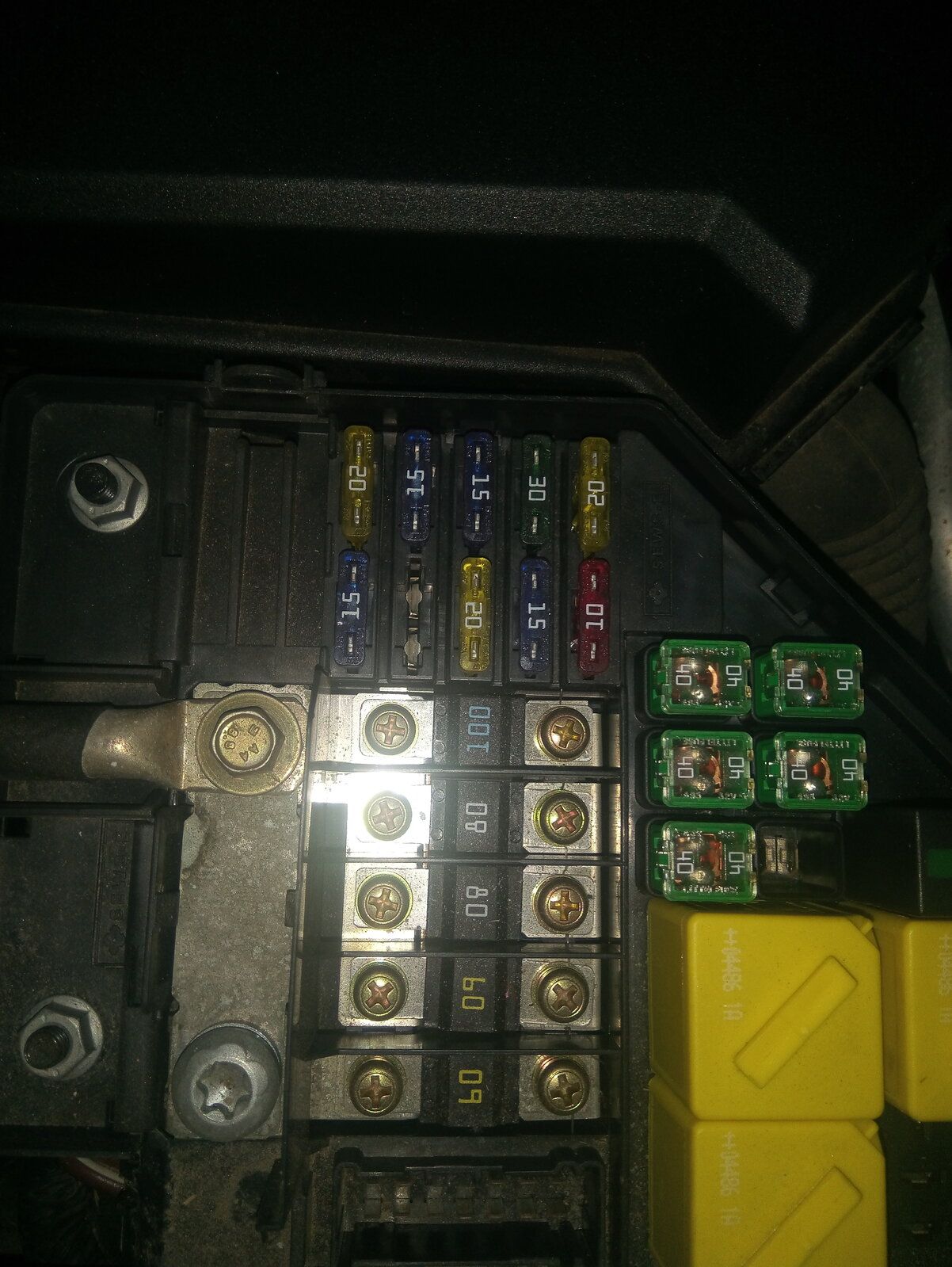

Currently diagnosing.an A/C issue with it not working even after re-gas which lead me to checking fuses and I noticed this fuse is missing which seems to be engine management?

I've not had any issues with the car engine wise, so either this was a cover up for an underlying issue which is yet to come or it's not needed on my year or an oversight. Can anybody please advise before I re-fit a fuse.

Thanks



Attachments

•

  265.3 KB · Views: 201

Nodge68

Well-Known Member

• Mar 31, 2021

• #2

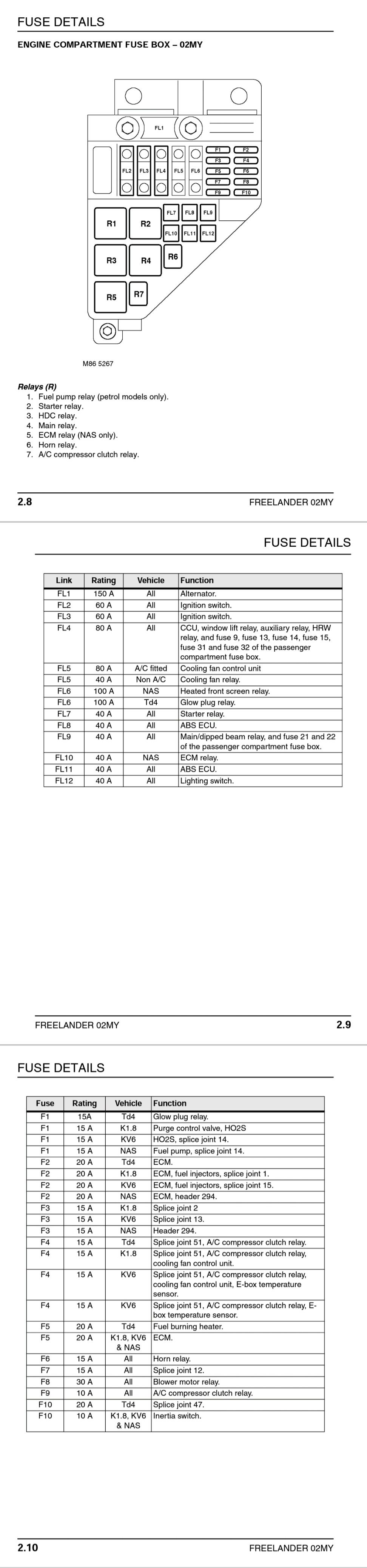

Is it fuse 5, check the diagram on the lid to confirm.

If it's fuse 5, then it's for the FBH, which has been removed to stop it running.

If the missing fuse is F4, then that's for the AC, and should be a 15A fuse.

However it looks like it's F3 that's missing, which is actually supposed to missing on the TD4.



Last edited: Mar 31, 2021

andyfreelandy

Well-Known Member

• Mar 31, 2021

• #3

Fuse 3 is the missing one.

Some vehicles have unused fuse slots.
I can't find fuse 3 on the Td4 circuits at the moment.



andyfreelandy

Well-Known Member

• Mar 31, 2021

• #4

Nodge68 said:

However it looks like it's F3 that's missing, which is actually supposed to missing on the TD4.

Click to expand...

That's probably why I can't find it!!! I'll stop looking.



Nodge68

Well-Known Member

• Mar 31, 2021

• #5

andyfreelandy said:

That's probably why I can't find it!!! I'll stop looking.

Click to expand...

It's the fuse box layout Andy.



andyfreelandy

Well-Known Member

• Mar 31, 2021

• #6

Yes I could see it was fuse 3. Was trying to find it in the circuits but, as you say, TD4 don't have a F3!! Thanks.



onza120

Member

• Mar 31, 2021

• #7

Thanks for the replies all



andyfreelandy

Well-Known Member

• Apr 1, 2021

• #8

Going back to the original post, best test is to listen, with engine running, when you press the air con button you should hear the air con clutch click in. Make sure you are not on demist first as that puts air con on when selected.

If it is not clicking and system pressure is good it is worth checking the clutch electro magnet and the pressure switch.



onza120

Member

• Apr 1, 2021

• #9

g



Last edited: Apr 1, 2021

onza120

Member

• Apr 1, 2021

• #10

andyfreelandy said:

Going back to the original post, best test is to listen, with engine running, when you press the air con button you should hear the air con clutch click in. Make sure you are not on demist first as that puts air con on when selected.

If it is not clicking and system pressure is good it is worth checking the clutch electro magnet and the pressure switch.

Click to expand...

Thanks Andy. I am tempted to test the AC fan relay as-well I am wondering is it okay to bridge the littelfuse (FL5) to check the fans spin up?

Also I notice a very slight engine noise and rpm change when AC switch is pressed, though no click can be heard so will check AC clutch next.
