Just opened myself a can of for myself
Anyone got a parts illustration of the military type oil cooler please ?
Like the complete system, cooler, pipes, flexibles. mountings, spacer blocks, sump.
I believe that they were also offered as an optional extra for civvy vehicles
I've got a cooler that's been promised to me, but it's just the bare cooler, no fittings, pipes etc.



Gun7354

Well-Known Member

• Yesterday at 20:45

• #2

https://pablanchard.co.uk/index.php?route=product/search&search=oil cooler will be a good starting point

Rich



G

grewth

Member

• Yesterday at 20:56

• #3

Gun7354 said:

https://pablanchard.co.uk/index.php?route=product/search&search=oil cooler will be a good starting point

Rich

Click to expand...

Many thanks !



kermit_rr

Very

Full Member

• Yesterday at 21:12

• #4

Hope this helps



G

grewth

Member

• Yesterday at 21:21

• #5

kermit_rr said:

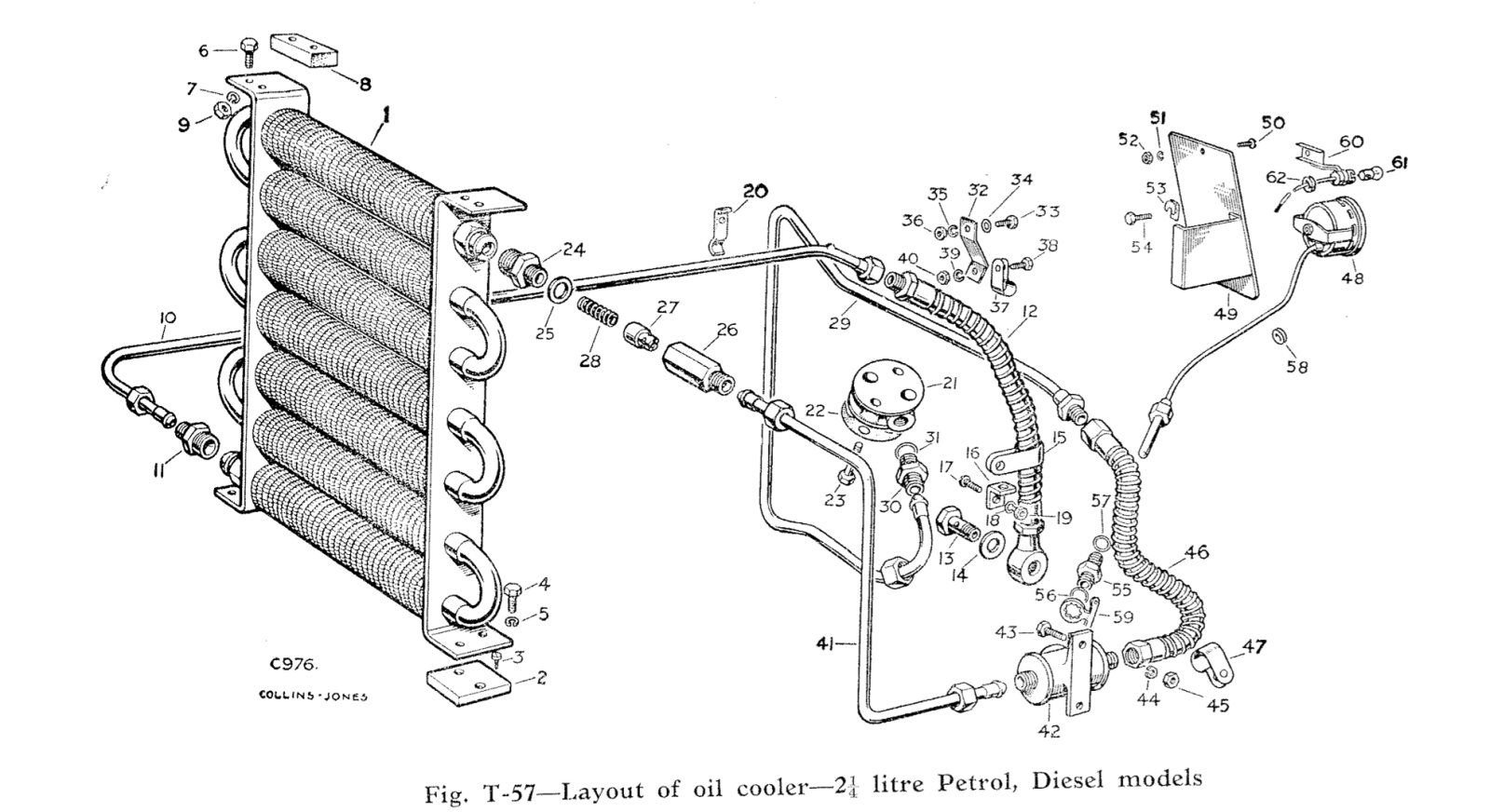

View attachment 327604

Hope this helps

Click to expand...

Excellent. Thank you !
I had all that stuff a while ago.
No idea where it all disappeared to.
I suspect auto jumbles will be the best way to pick up all the bits.
I never realised that there were so many parts



W

Wildefalcon

Well-Known Member

• Today at 07:15

• #6

I think there were a couple of different layouts. When I was trying to fit mine to the lightweight it all got complicated.



G

grewth

Member

• Today at 08:23

• #7

Wildefalcon said:

I think there were a couple of different layouts. When I was trying to fit mine to the lightweight it all got complicated.

Click to expand...

I'm just wondering if I can fit the oil cooler with the civvy bonnet catch and grill.
Military Land Rovers (except the lightweight) all had the series one type sprung hooks on the wing tops, and a plate riveted over the bonnet catch apparture
