arc

Active Member
These were bought from ebay for about £30 a few years back and have been sat in the loft since.
Having spent a couple of weeks with an MGF (selling it for my mum) I found the seats particulatly good:

  • they've got thin bases
  • they've got good bolsters but not bucket like
  • they've got simple mountings
  • they've got integral MG/Rover seatbelt clips fitted which move with seats
  • half heather is the best of both
  • they're cheap
fitting consisted of grinding off the rear mounts, calculating the best height and then making a new rear mount. I decided to make the seats 'quick release' for box access. The back mountings just slot in then there are two M10 nuts at the front. Whole seat out in 40 seconds!

The MGF seats give me 22cm of movement forward & back.

So far pretty happy. Hope this helps anyone thinking of a swap.

Original mountings:


planned rear mounts:


New stainless rear mount pin:


Stainless mount fitting:


Rear in place:


Front mount slightly re-inforced to stop bending:


To the back:
To the front:


Both fitted:

Last edited:
very nice work mate ...:)

i'm still on with the basics on mine, but i fancy doing the same with a pair of audi a2 seats in the future, very slim and comfortable :)

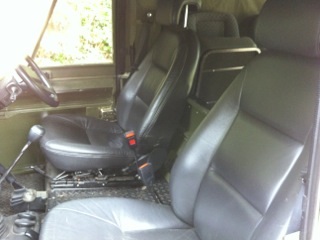

The gentleman I got my MOD 90 from installed used Saab seats.. and they are great, comfortable and bolted right on..


Attachments

  • Roger 7.jpg
    Roger 7.jpg
    26.1 KB · Views: 1,073
Ive been playing about with seats for my build - So far have a set of MGF - Alfa - Defender and Discovery .
I reakon I can get all in but want to use in the back as well so MGF are looking favourite .
Thanks for the info and the drawings - I will be using that if you dont mind .
