Corne215

Member

• Dec 17, 2024

• #1

Hi guys
My gearbox run without oil my bad, so it packed up.
Got new one R380 gearbox put new clutch new fork and everything so i fit the new gearbox put everything back but now it does not want to select gear when idling, its select's when the motor is off or when trance Ver case is in neutral.
if the disco is off and u put it in gear and press the clutch in the Landy jumps forward
I removed the gearbox again to check if i did something wrong but did not see anything wrong can it be that my clutch is
can anyone please help
I have a video i can send to someone that can provide me with a cell number



E

Eldon

Member

• Dec 17, 2024

• #2

Clutch drag, check and adjust to suit assuming you've assembled the clutch correctly using the right parts.

In effect your clutch isn't fully clearing when operated.



Corne215

Member

• Dec 17, 2024

• #3

Eldon said:

Clutch drag, check and adjust to suit assuming you've assembled the clutch correctly using the right parts.

In effect your clutch isn't fully clearing when operate

Click to expand...



Corne215

Member

• Dec 17, 2024

• #4

Thank you for the reply how would one go to check this



Corne215

Member

• Dec 17, 2024

• #5

How do you check the clutch drag and how do you adjust it?



kermit_rr

Very

Full Member

• Dec 17, 2024

• #6

Eldon said:

Clutch drag, check and adjust to suit assuming you've assembled the clutch correctly using the right parts.

In effect your clutch isn't fully clearing when operated.

Click to expand...

Or it's not been put together correctly



Corne215

Member

• Dec 17, 2024

• #7

kermit_rr said:

Or it's not been put together correctly

Click to expand...

I'm working with the manual and I followed it step by step 1 to 84 to make sure I did every step correctly i took the gearbox out again to make sure but still does the same.

but the clutch feels soft



Corne215

Member

• Dec 17, 2024

• #8

Corne215 said:

I'm working with the manual and I followed it step by step 1 to 84 to make sure I did every step correctly i took the gearbox out again to make sure but still does the same.

but the clutch feels soft

Click to expand...



Corne215

Member

• Dec 17, 2024

• #9

Corne215 said:

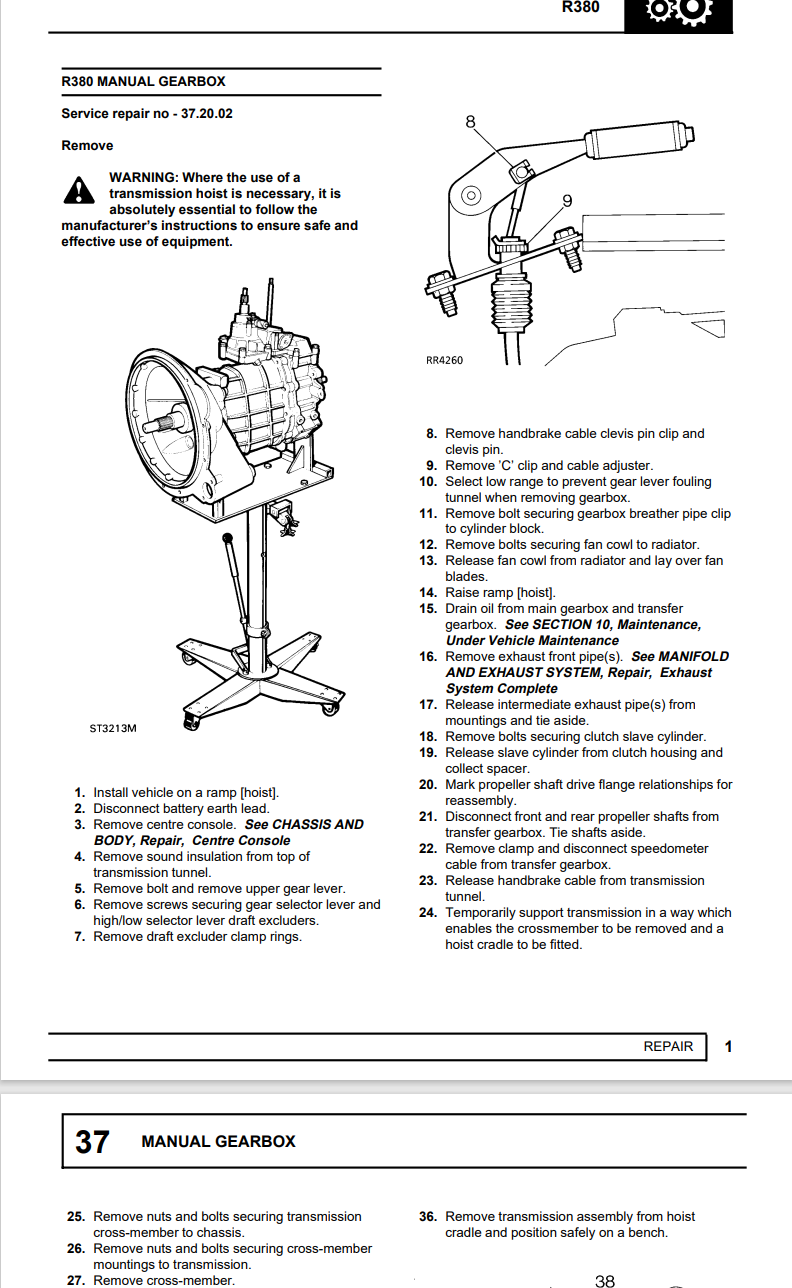

View attachment 331903View attachment 331903

Click to expand...

this is what I used to remove and put it back together



E

Eldon

Member

• Dec 18, 2024

• #10

How much free play is there at the clutch pedal i.e. pushing fresh air before it appears to be operating something?

You did use the correct fork didn't you?
Post the part numbers of the items used so someone can check or confirm for you?



freelance

Well-Known Member

• Dec 18, 2024

• #11

Clutch plate fitted wrong way, or splines need a little lube so clutch can release



Stanleysteamer

Well-Known Member

Full Member

• Dec 18, 2024

• #12

Bleed the clutch again?



Corne215

Member

• Thursday at 10:19

• #13

Stanleysteamer said:

Bleed the clutch again?

Click to expand...

I did bleed the clutch a couple of times but still no luck



Corne215

Member

• Thursday at 10:21

• #14

freelance said:

Clutch plate fitted wrong way, or splines need a little lube so clutch can re

Click to expand...

No i made sure that the clutch plate was in the right way



miktdish

Guns n Chainsaws

Full Member

• Thursday at 10:27

• #15

Is it an LOF clutch ?



Corne215

Member

• Thursday at 10:40

• #16

miktdish said:

Is it an LOF clutch ?

Click to expand...

no its a Veleo clutch part number STC8358AP



Corne215

Member

• Thursday at 10:49

• #17

Eldon said:

How much free play is there at the clutch pedal i.e. pushing fresh air before it appears to be operating something?

You did use the correct fork didn't you?
Post the part numbers of the items used so someone can check or confirm for you?

Click to expand...

clutch kit STC8358AP
Clutch fork FTC2957G
push rod FTC3912
Clutch release bearing FTC5200G
