scottonthefen

Well-Known Member

• Sep 20, 2020

• #1

Long story short.. I got the main beam warning light working in my dash today, but I can't see it through the blue lens in the instrument panel. I watch carefully as I insert the bulb into the back of the panel and I can see it is still shining as it goes in. It's not going off as far as I can tell. Is that blue lens known to go dark over time (S2A, 50 years old)? My other dash lights are plenty visible. Seems very odd.



C

Colthebrummie

Well-Known Member

• Sep 20, 2020

• #2

My blue lens is ok, the light is quite visible at night but not clear in daylight.

Col



andyfreelandy

Well-Known Member

• Sep 20, 2020

• #3

Interestingly, mine was out too. I removed the lmp holder with bulb and pressed it, it lit. The solder pad on the bulb had worn away making it intermittent.
Maybe yours is actually going out when pressed into the lens??

My glow lamp is useless, glow is the definition!!! Am going to try a 6v lamp as the volt drop on the dropper seems to be about 5v dropping to 4v.



scottonthefen

Well-Known Member

• Sep 20, 2020

• #4

My old bulb wasn't working for exactly the same reason, the solder pad on the bulb had work away. When I screwed a new one in it worked fine. I watch the light from it on the inside of the holder as I insert it as far as I can and I'm 99% sure it's not going out.

I'll have a look later when it's dark as Col says his isn't clear in daylight.

What do you mean by glow lamp andy?



C

Colthebrummie

Well-Known Member

• Sep 20, 2020

• #5

You can replace the dash lamps with brighter LED bulbs but don't replace the red ignition light cos it will affect the charge output.

Col



scottonthefen

Well-Known Member

• Sep 20, 2020

• #6

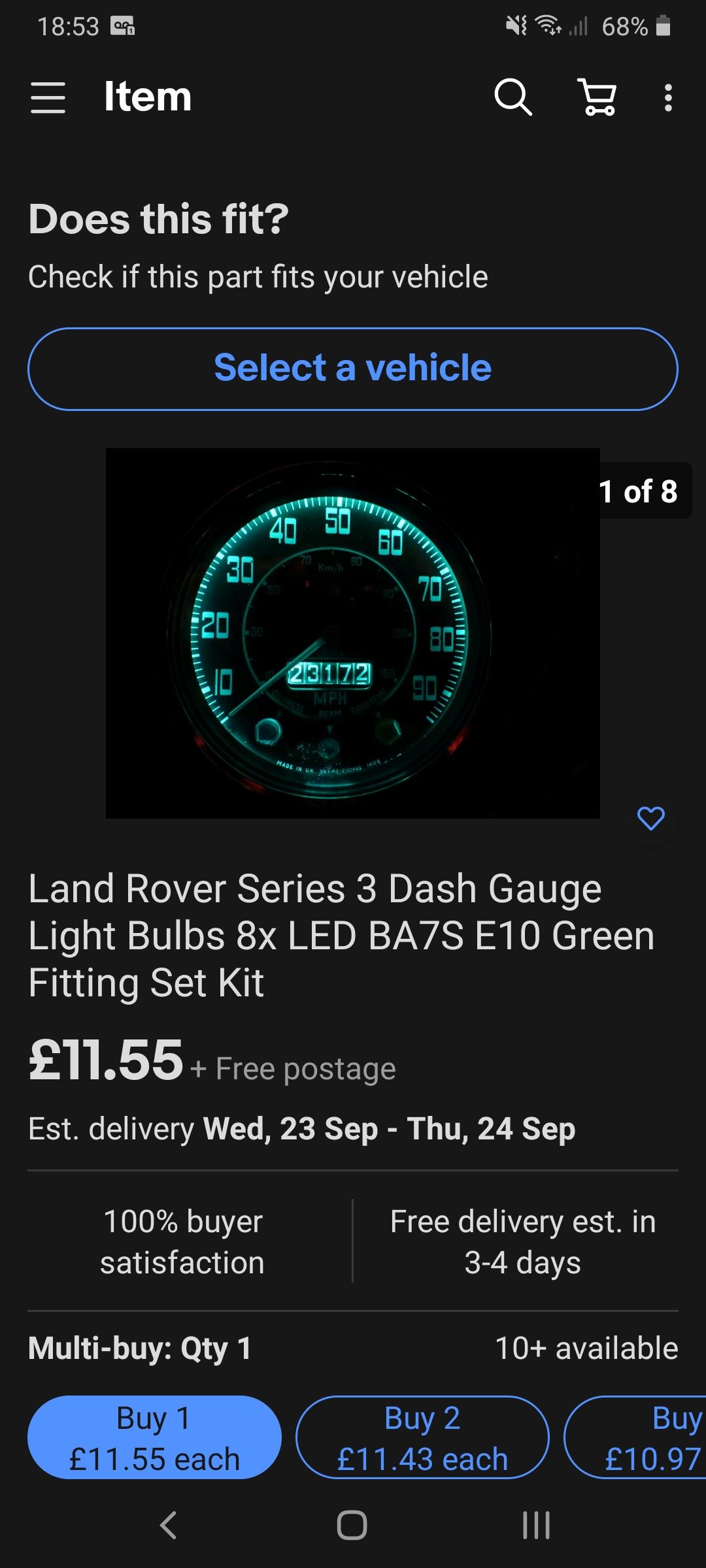

A set of these Col? https://www.ebay.co.uk/itm/Land-Rov...-BA7S-E10-Green-Fitting-Set-Kit-/272736819708

They all just screw into the original bulb holders do they?



Marmaduke

Well-Known Member

• Sep 20, 2020

• #7

Yak What's wrong with the barely glowing originals?

I'm sure mine glows red



scottonthefen

Well-Known Member

• Sep 20, 2020

• #8

The LEDs are not entirely my thing but if I go out tonight and still can't see the main beam one through the lens I might fit an LED bulb to that one.



Marmaduke

Well-Known Member

• Sep 20, 2020

• #9

scottonthefen said:

The LEDs are not entirely my thing but if I go out tonight and still can't see the main beam one through the lens I might fit an LED bulb to that one.

Click to expand...

Are your headlights that crap you can't tell the difference without seeing a little blue light coming on? Is your tell light in the same place as mine?



scottonthefen

Well-Known Member

• Sep 20, 2020

• #10

I don't like things that don't work.

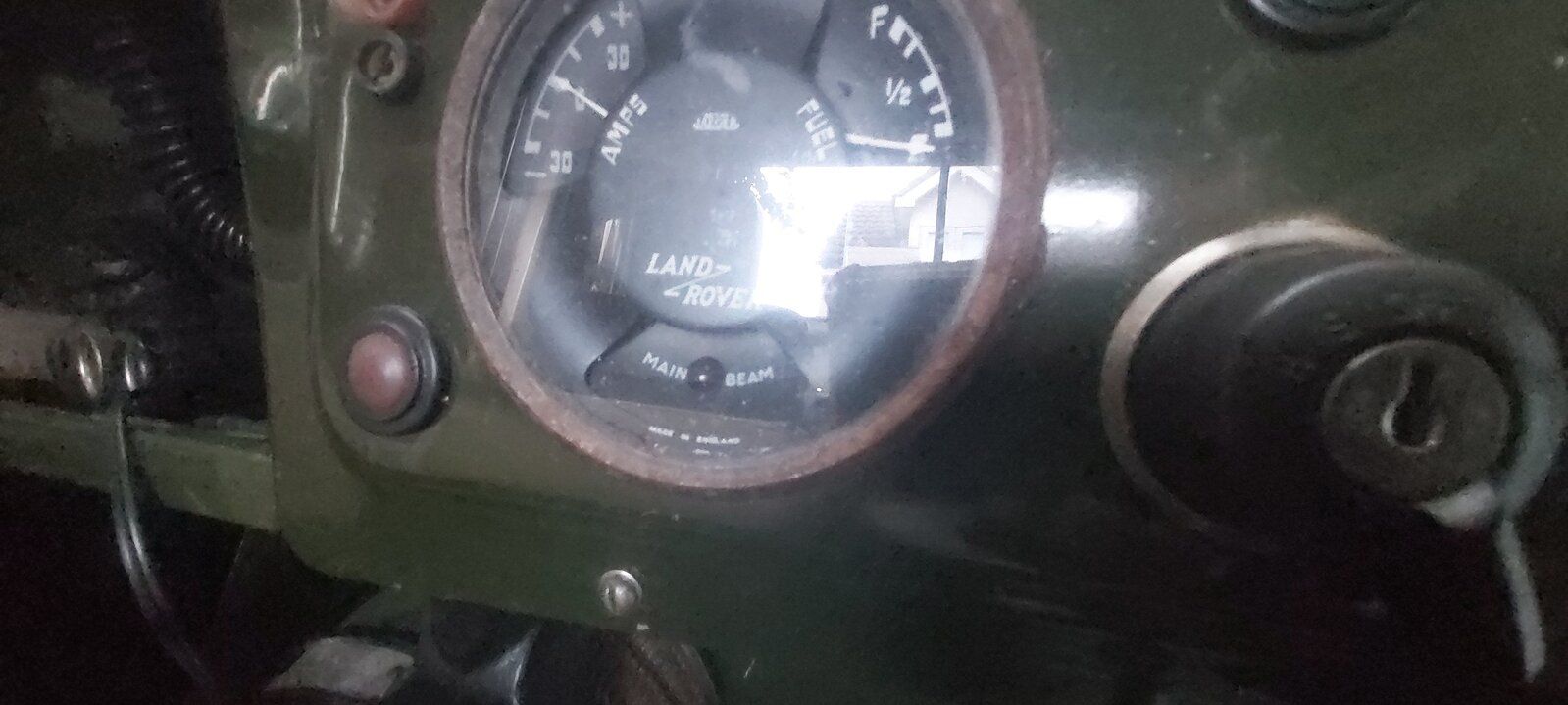

No, my lamp is between my COLD choke light and another on my right hand instrument panel.

When I've wired up my headlights and driven the thing on the road I'll tell you!



Marmaduke

Well-Known Member

• Sep 20, 2020

• #11

scottonthefen said:

I don't like things that don't work.

No, my lamp is between my COLD choke light and another on my right hand instrument panel.

When I've wired up my headlights and driven the thing on the road I'll tell you!

Click to expand...

Ah I see, tis like the gauges on a series 3



scottonthefen

Well-Known Member

• Sep 20, 2020

• #12

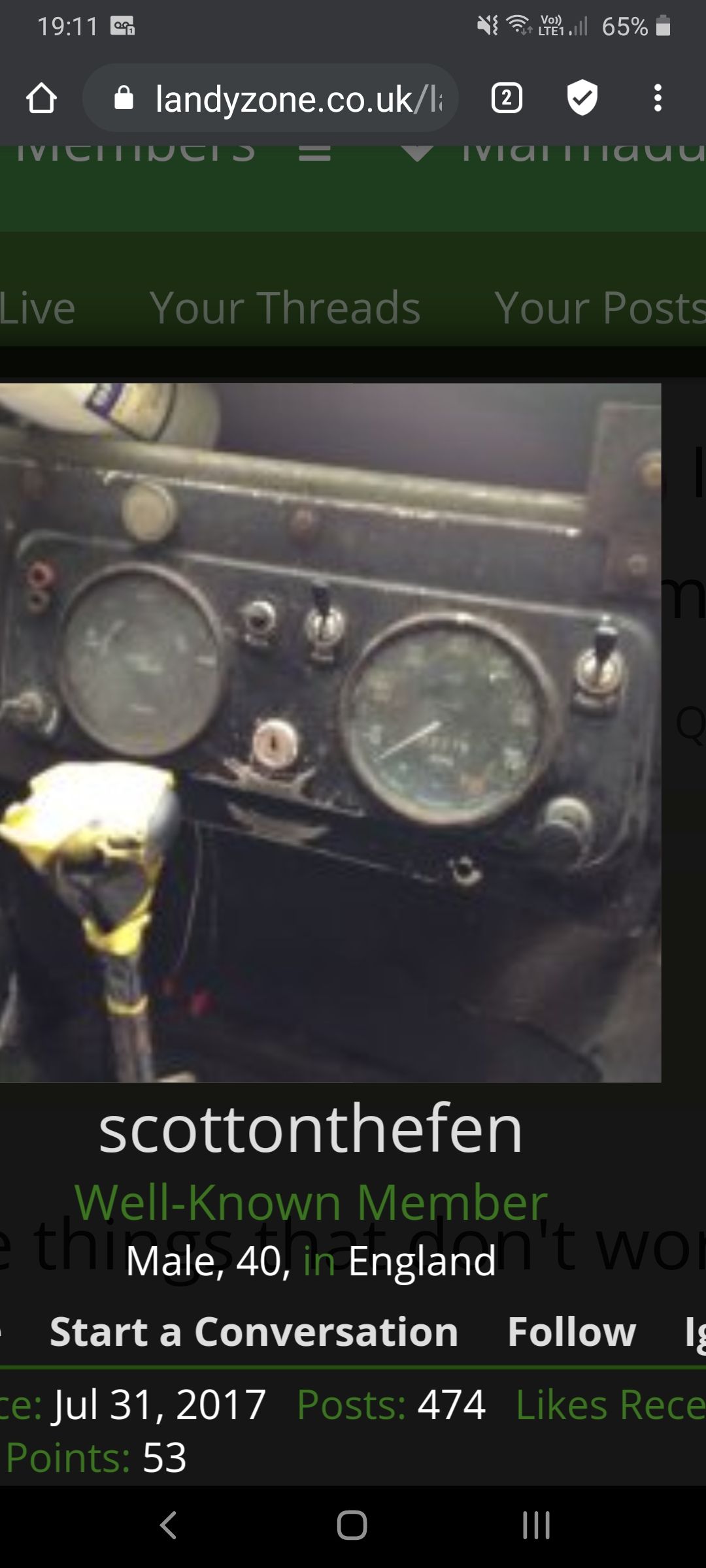

I actually stopped drinking my beer for a moment there and thought "How has he got a photo of my dash!?"

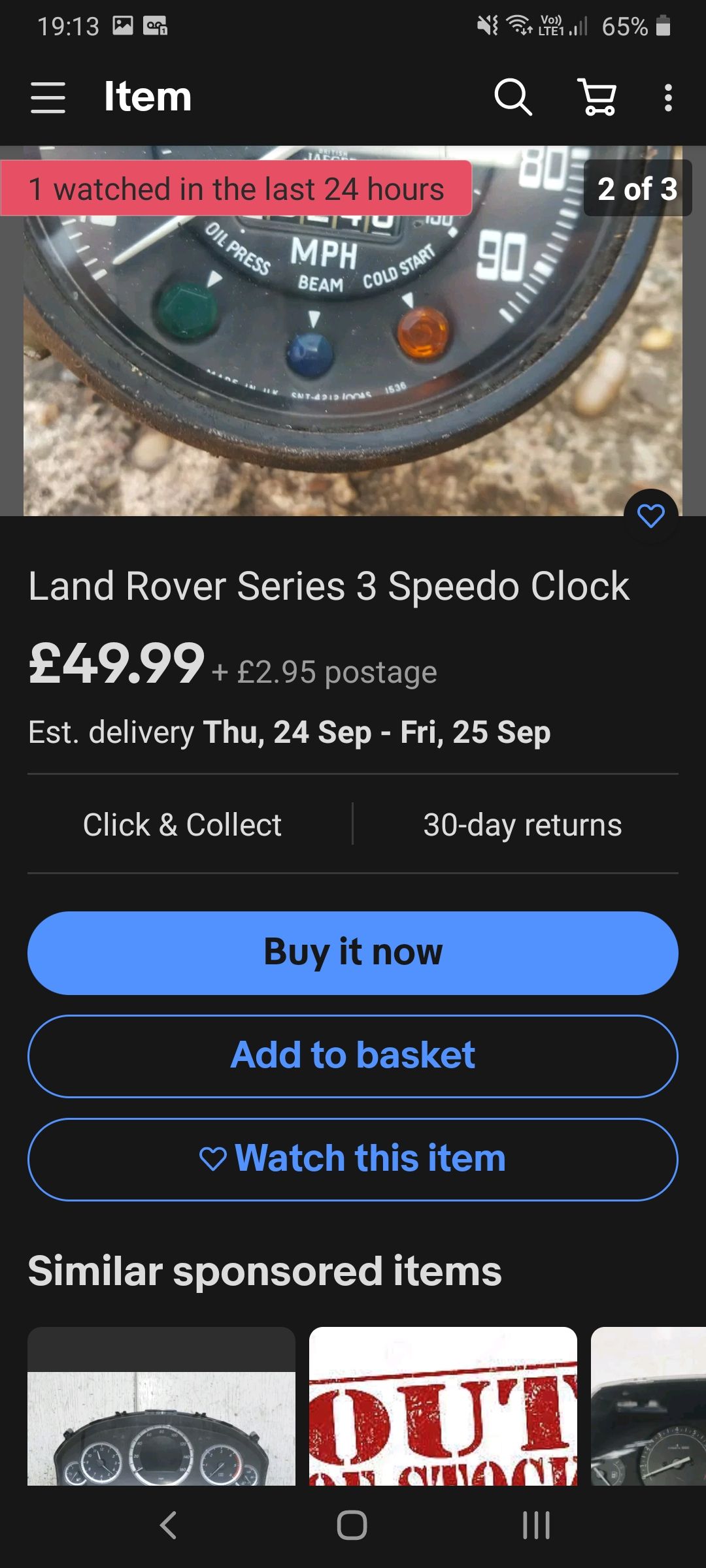

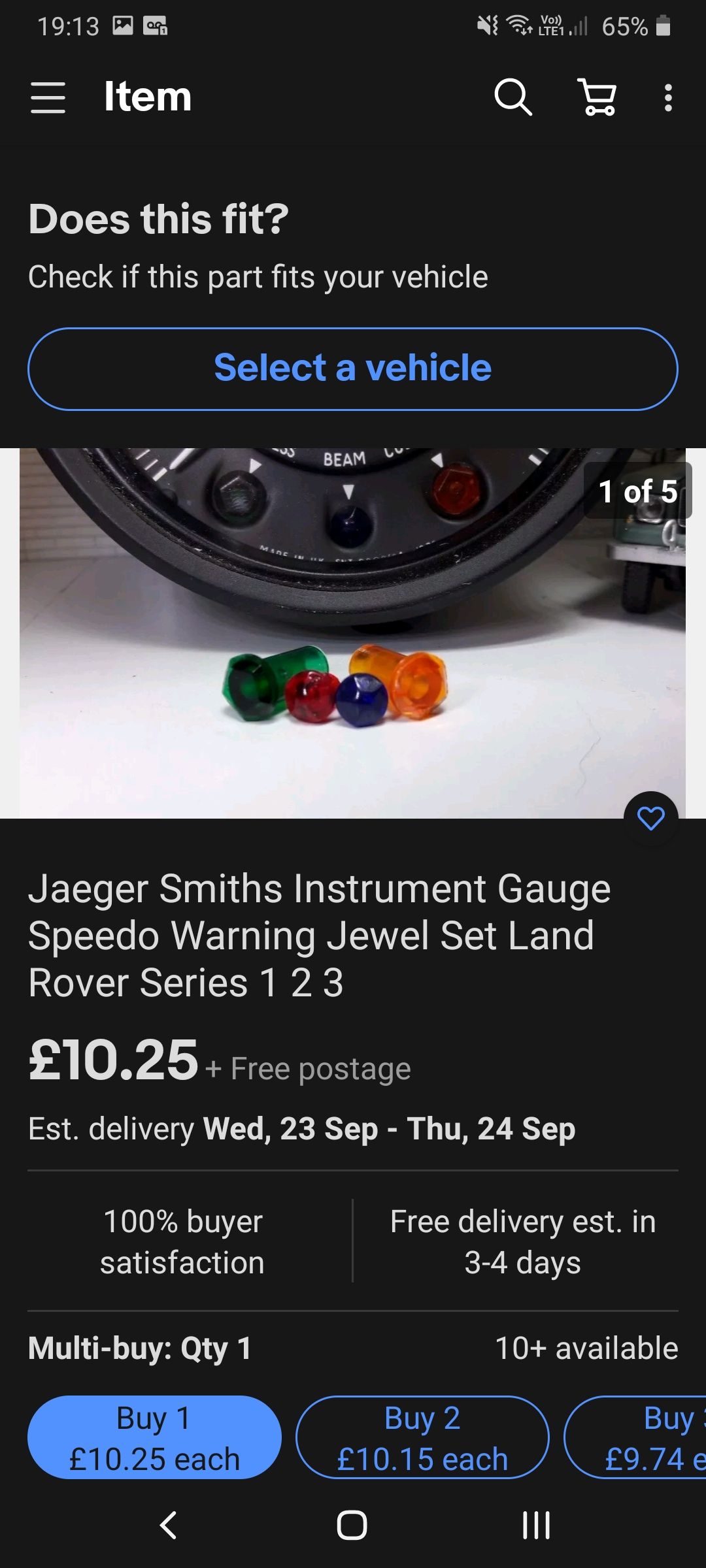

Yeah. Looks like the jewel set would fit. Not sure I need to drop 50 on a new speedo though.. although I might find that's broke too when I drive the thing.

When the boy's in bed I'm off to the garage to see if it's visible in the dark. Don't need to see it in the day after all..



scottonthefen

Well-Known Member

• Sep 20, 2020

• #13

I’ve been out and It’s visible in the dark. That’ll do for me it’s working after all. I’ll bear the led bulbs and jewel sets in mind but until I’ve eveb driven the thing in daylight it’s a way down the list. Cheers guys.



Marmaduke

Well-Known Member

• Sep 20, 2020

• #14

scottonthefen said:

I’ve been out and It’s visible in the dark. That’ll do for me it’s working after all. I’ll bear the led bulbs and jewel sets in mind but until I’ve eveb driven the thing in daylight it’s a way down the list. Cheers guys.

Click to expand...

Very good
Is the gear knob still held on with tape?



scottonthefen

Well-Known Member

• Sep 20, 2020

• #15

Haha no it’s not. ‍



Blackburn

Well-Known Member

• Sep 20, 2020

• #16

The guage has some tubes inside so the backlight of the speedometer does not shine through the indicator bulb these are easily damaged if the gauge has been dismantled , had two to pieces recently and the main beem has a short piece of soft white tubingh which had fouled on the other piece attached to casing. replaced the white tubing with some 6mm od nylon tubing.



andyfreelandy

Well-Known Member

• Sep 20, 2020

• #17

scottonthefen said:

What do you mean by glow lamp andy?

Click to expand...

On my diesel I have a glow plug lamp wired across the glow plug ballast resistor. It glows until the plugs warm and increase in resistance then it goes out. The plugs are in series at about 2V each. 5V across resistance when plugs cold. A 12V bulb hardly lights at all.
