Hi all, I have only had my D2 a couple of months and I am enjoying it and its quirks. lots!!!!
Now, I have bought a dirty old green trailer and realised my tow bar electrics are not working. Tonight I traced the wires to a loose end of crimp contacts, removed from the back of the plug!! I take it they go to the plug behind the rear OS tail light? However the wires are not colour coded the same. Assuming I am in the correct place does anyone have a wiring diagram? Thanks again.



sierrafery

Well-Known Member

• Aug 20, 2012

• #2

they are not the same coloures from the beginning(i can't imagine what LR thought)....pin 3 on the socket is earth



Attachments

•

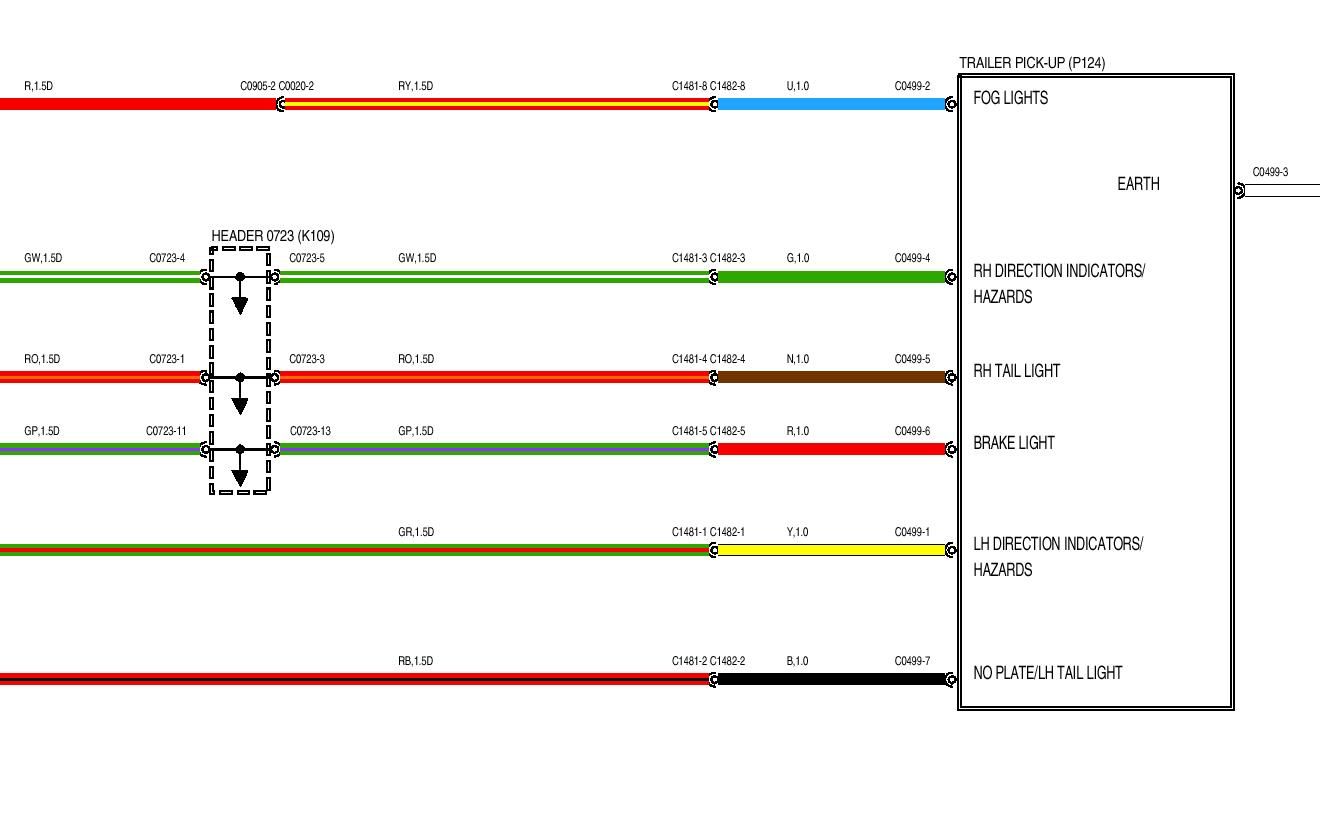

  Trailer socket.JPG

  66.6 KB · Views: 3,275
•

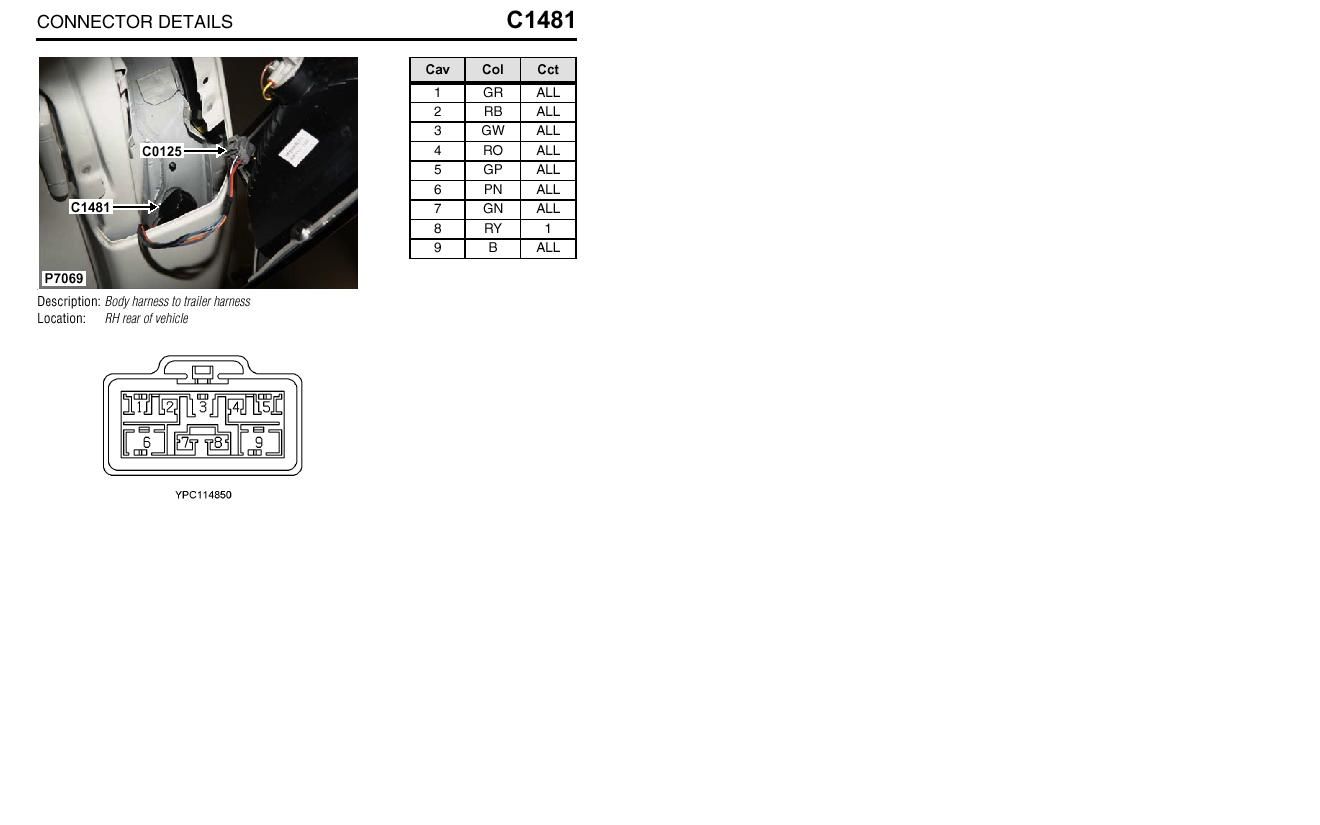

  Trailer connector.JPG

  49.3 KB · Views: 520

D

DaveDisco2

Active Member

• Aug 21, 2012

• #3

Well, there is my job for the weekend. Plus the drivers door central locking that decided not to unlock today!!!



Ahaggar

Active Member

• Aug 22, 2012

• #4

DaveDisco2 said:

Well, there is my job for the weekend. Plus the drivers door central locking that decided not to unlock today!!!

Click to expand...

Good luck with the door lock. Not really cheap these parts.



D

DaveDisco2

Active Member

• Aug 23, 2012

• #5

I can still hear the mechanism trying to work inside, maybe it can be persuaded back together?!



sierrafery

Well-Known Member

• Aug 23, 2012

• #6

the door lock repair is this kind of job(no matter which one, the internals are the same) Door lock actuator Rebuilt - Land Rover Forums : Land Rover and Range Rover Forum



S

Stormtrooper

New Member

• Aug 25, 2012

• #7

My drivers door lock was not unlocking for 6 months. so scoured scrap yards for a while with no joy.
Last week, unlocked!! has been perfect ever since. 8days and counting!

I know i am lucky for the moment, but fingers crossed.



D

DaveDisco2

Active Member

• Sep 28, 2012

• #8

Stormtrooper said:

My drivers door lock was not unlocking for 6 months. so scoured scrap yards for a while with no joy.
Last week, unlocked!! has been perfect ever since. 8days and counting!

I know i am lucky for the moment, but fingers crossed.

Click to expand...

You can always rely on a landrover!!
