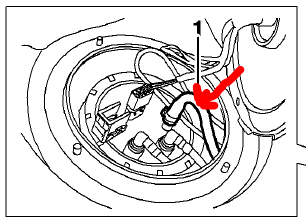

I can tell you this one is for the FBH. Still looking for the other 2.

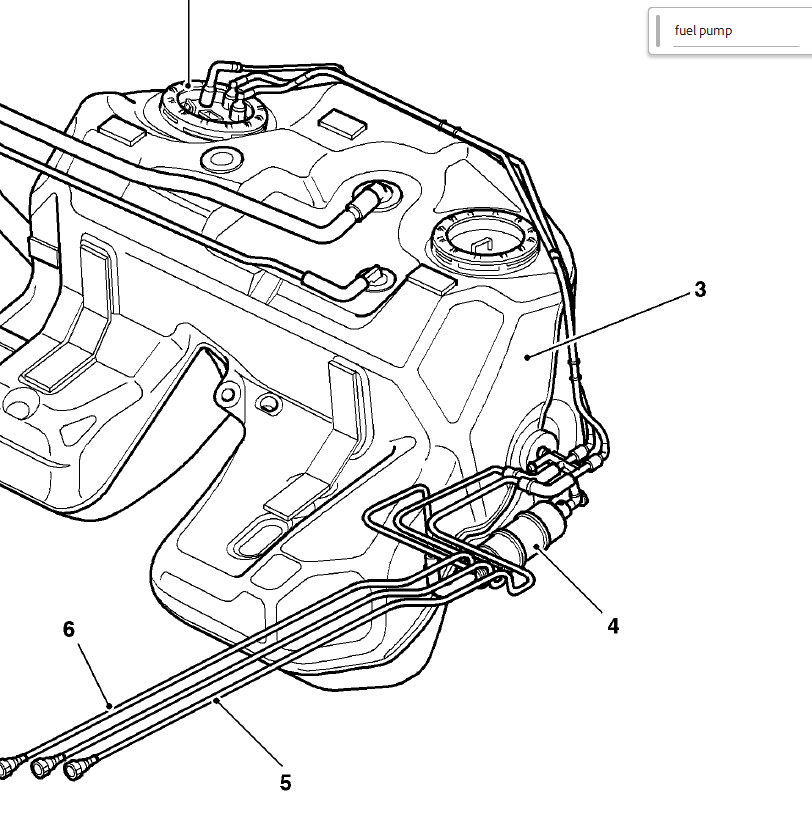

Looking at this. Top is return. Middle is delivery via the secondary pump.
Should have asked what's the issue please?
Thanks backinblack for the super rapid reply!

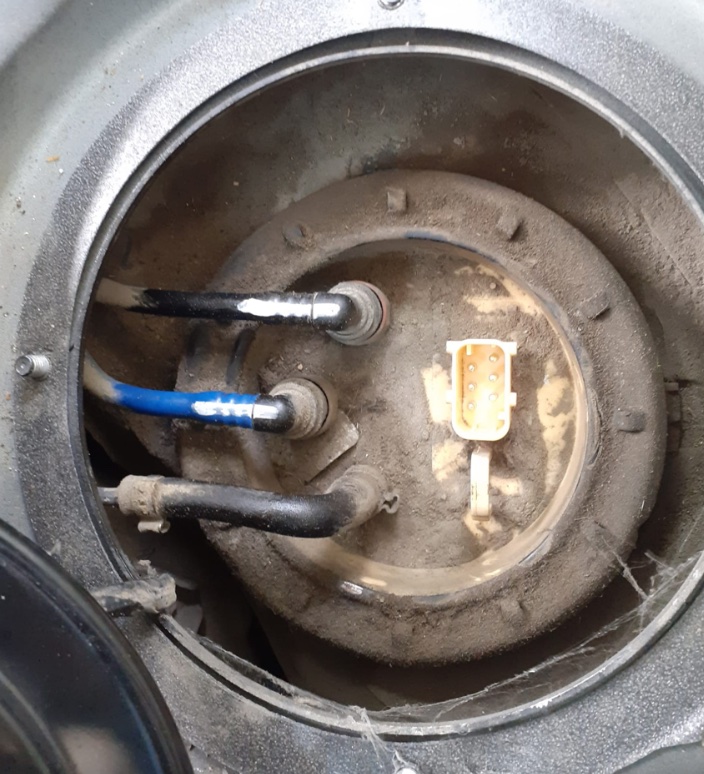

So just to confirm, on my photo; the top (black) hose is the return, the middle (blue) is the delivery to the secondary pump and the bottom (black) is the FBH (fuel burning heater?).
When I turn the ignition I think I hear the pump running but there's no fuel emerging from the middle (delivery) line.
So just to confirm, on my photo; the top (black) hose is the return, the middle (blue) is the delivery to the secondary pump and the bottom (black) is the FBH (fuel burning heater?).
When I turn the ignition I think I hear the pump running but there's no fuel emerging from the middle (delivery) line.
The issue is healthy cranking but no start. I see air bubbles running through the transparent hose from the filter to the high pressure system. I get FUEL INJECT SYSTEM message on the dash. I've replaced both low pressure pumps but still the same issue. (No helpful error messages from my icarsoft diagnostics.)

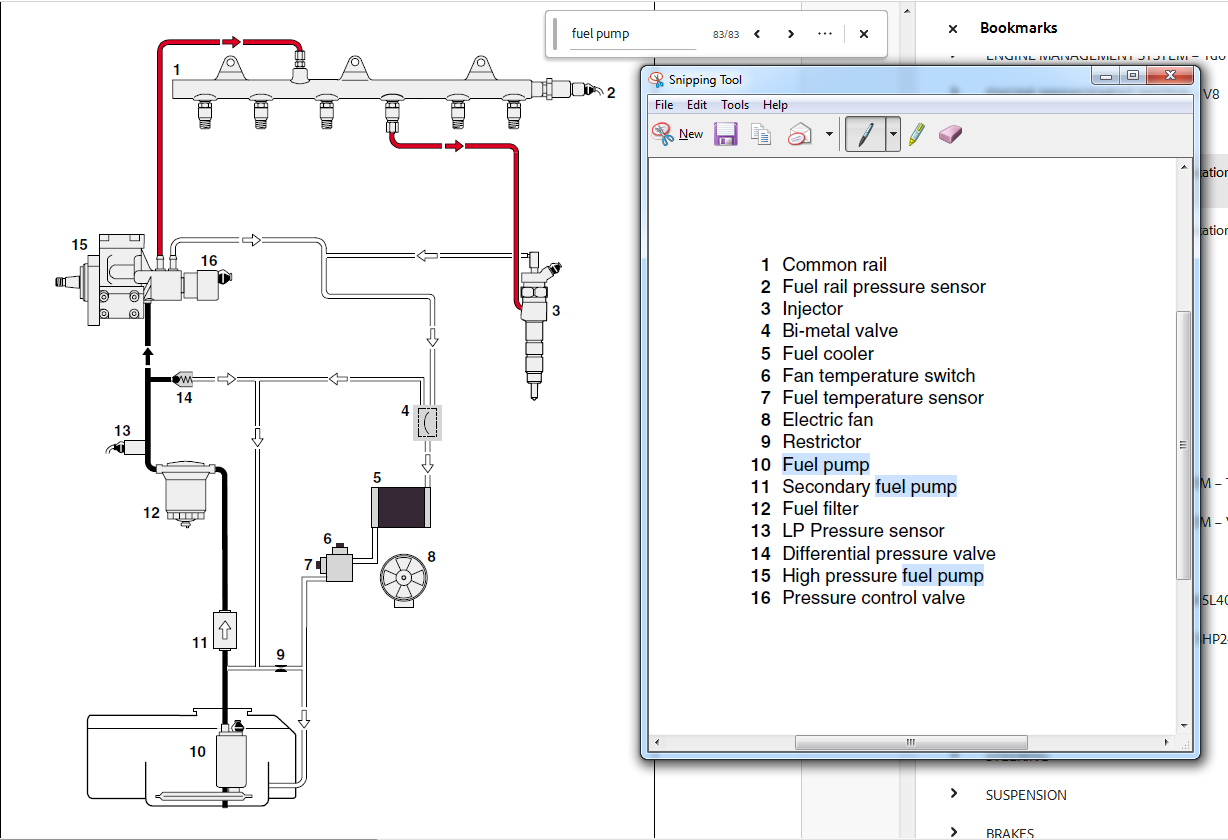

Looking at the diagram yes. I'm looking to see if I have a picture of the secondary pump when I replaced it to see if the pipe is blue.
Have you replaced the fuel filter?
Have you disconnected the feed pipe and cranked it to see if fuel comes out, obviously into a container ?
Does the icarsoft give you fuel pressures?
The low pressure system pressure is approx. 1.5 bar to 5 bar and return end < 0.6 bar. The pressure in the high
pressure end is 200 bar to 1350 bar.
Does it start with easy start sprayed in the intake?

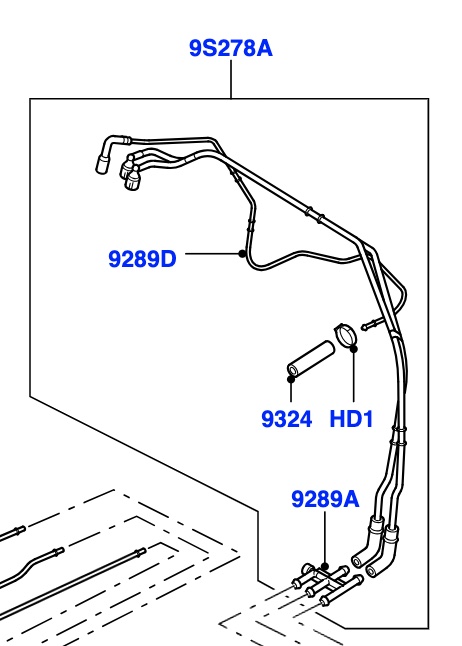

The secondary pump intake fits onto a 5 way connector (9289A) in the attached diagram. So it's difficult to see if there's a blue hose there.Looking at the diagram yes. I'm looking to see if I have a picture of the secondary pump when I replaced it to see if the pipe is blue.
Have you replaced the fuel filter?
Have you disconnected the feed pipe and cranked it to see if fuel comes out, obviously into a container ?
Does the icarsoft give you fuel pressures?
The low pressure system pressure is approx. 1.5 bar to 5 bar and return end < 0.6 bar. The pressure in the high
pressure end is 200 bar to 1350 bar.
Does it start with easy start sprayed in the intake?
I haven't changed the filter because I changed it about 2000 miles ago when I did a service.
I did disconnect the feed pipe to the filter and fuel does flow out of it, but I think it's got air in it at this stage because I also hear the secondary pump buzzing as well as the fact that I see air in the transparent pipe that comes out of the filter.
The icarsoft doesn't give me pressures.
When I spray easystart over the air filter intake it does try to fire up.
Attachments
looking at this you could be getting air in from a few places.
When I had the same symptoms but without the air bubbles it was a combination of the HP fuel pump and the pressure control valve. Although once it started with easy start it carried on running.
