ExecutiveOutcomes · Jul 6, 2023

Is there anything I can look for to determine the age of the belt on the D4. Service history was lost by the wife.

Badger688 · Jul 6, 2023

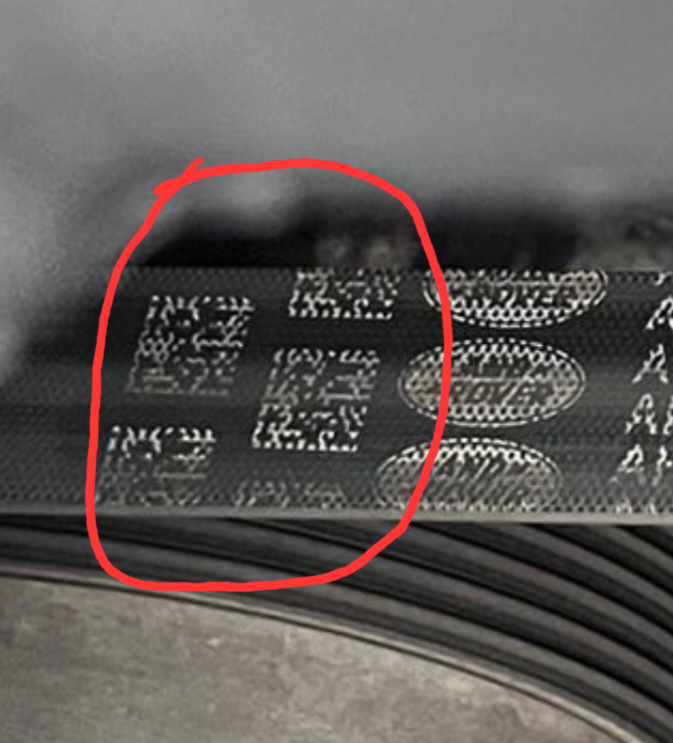

You may be able to use the QR code on the belt!!

Kev

lynall · Jul 6, 2023

ExecutiveOutcomes said:

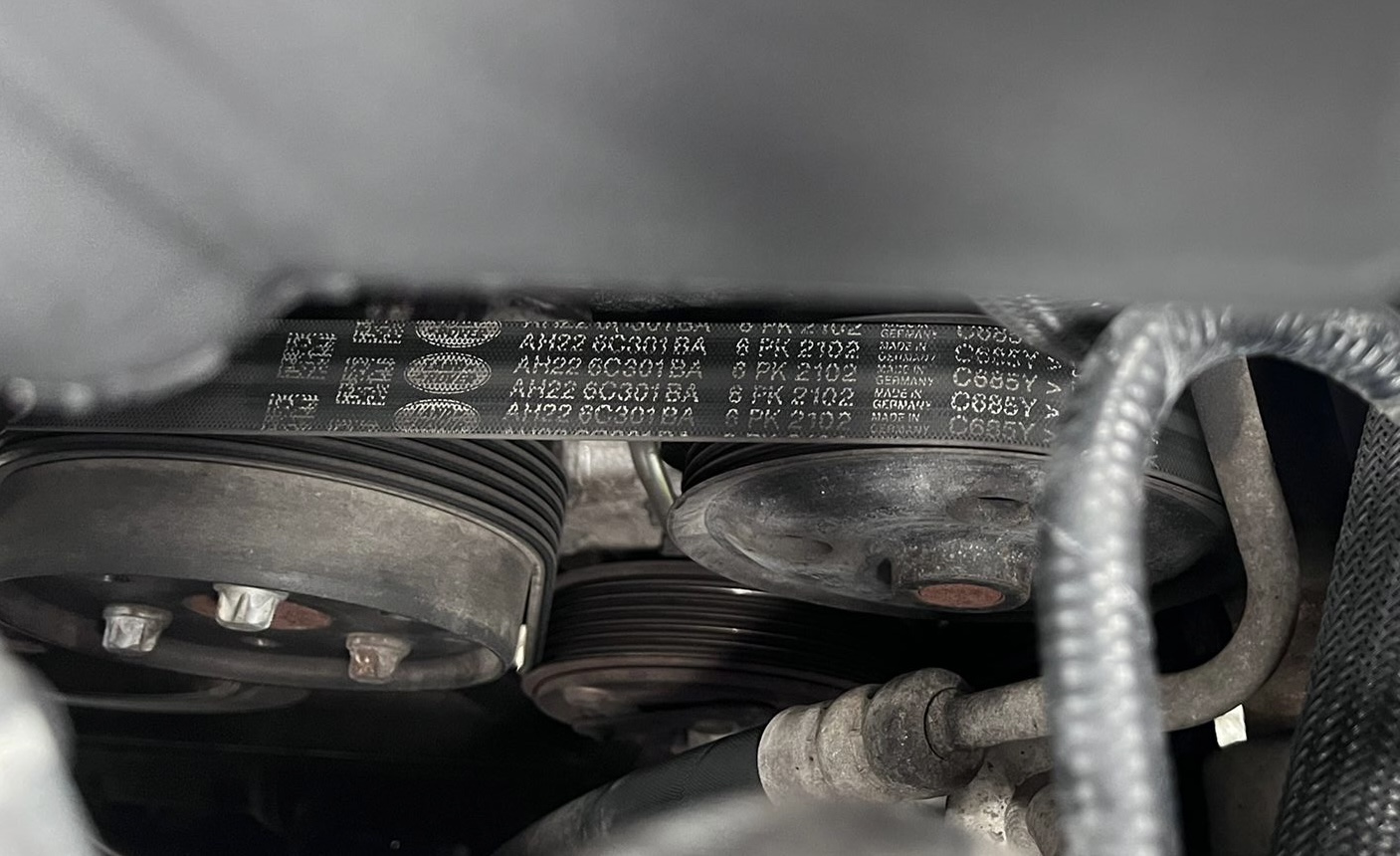

View attachment 292258
Is there anything I can look for to determine the age of the belt on the D4. Service history was lost by the wife.

That is the fan belt, also known as the auxiliary belt.

ExecutiveOutcomes · Jul 6, 2023

Badger688 said:
You may be able to use the QR code on the belt!!

Kev

Thanks.

ExecutiveOutcomes · Jul 6, 2023

lynall said:
That is the fan belt, also known as the auxiliary belt.

Thanks mate. I’ll have another look to see if I can find the timing belt.

lynall · Jul 6, 2023

ExecutiveOutcomes said:
Thanks mate. I’ll have another look to see if I can find the timing belt.

You cannot see it, it is buried behind the cover behind the fan belt.
Not hard, but a lot of parts to remove to get there.

Firebobby1 · Jul 6, 2023

Get it changed, if there's no history, showing that it's been changed.
I wouldn't want to risk it.

discool · Jul 7, 2023

In the trade sometimes called a Serp belt… Serpentine.
If you can see the ’ribbed ‘ side and there are splits in the ribs then the belt it‘s due for replacing.

Google for photos of iffy serp. belts.

Stanleysteamer · Jul 7, 2023

Firebobby1 said:
Get it changed, if there's no history, showing that it's been changed.
I wouldn't want to risk it.

+1

gstuart · Jul 7, 2023

Plus 1 ^^^^

would also get the fuel pump belt changed at the same time , sits at the back of the engine and can be done with the body on

plus not forgetting the rear belt is timed on the D4
