Hi all, I’m hoping I have the right forum this time.
I’m currently in the middle of a project, I have a 97 Disco that with the assistance of an auto sparkie have removed all the ecu’s and added a complete new non genuine loom ( original damaged ) everything is running off relays etc. my problem is the 300tdi instrument panel is now not usable, I have a 1992 instrument panel but cannot for life of me find the designation of the wiring in regards to the plugs on the panel eg….glow plug light “pin” 5 I used to have the list of what wire goes where but my computer updated and dropped it.
Does anyone know the wiring at all?
Thank you for your time.

I have a copy of a Disco 1 electric its to big to post , PM me with your email address

frostythor said:

I have a copy of a Disco 1 electric its to big to post , PM me with your email address

Click to expand...

craigeason18@gmail.com
Thanks a heap mate!

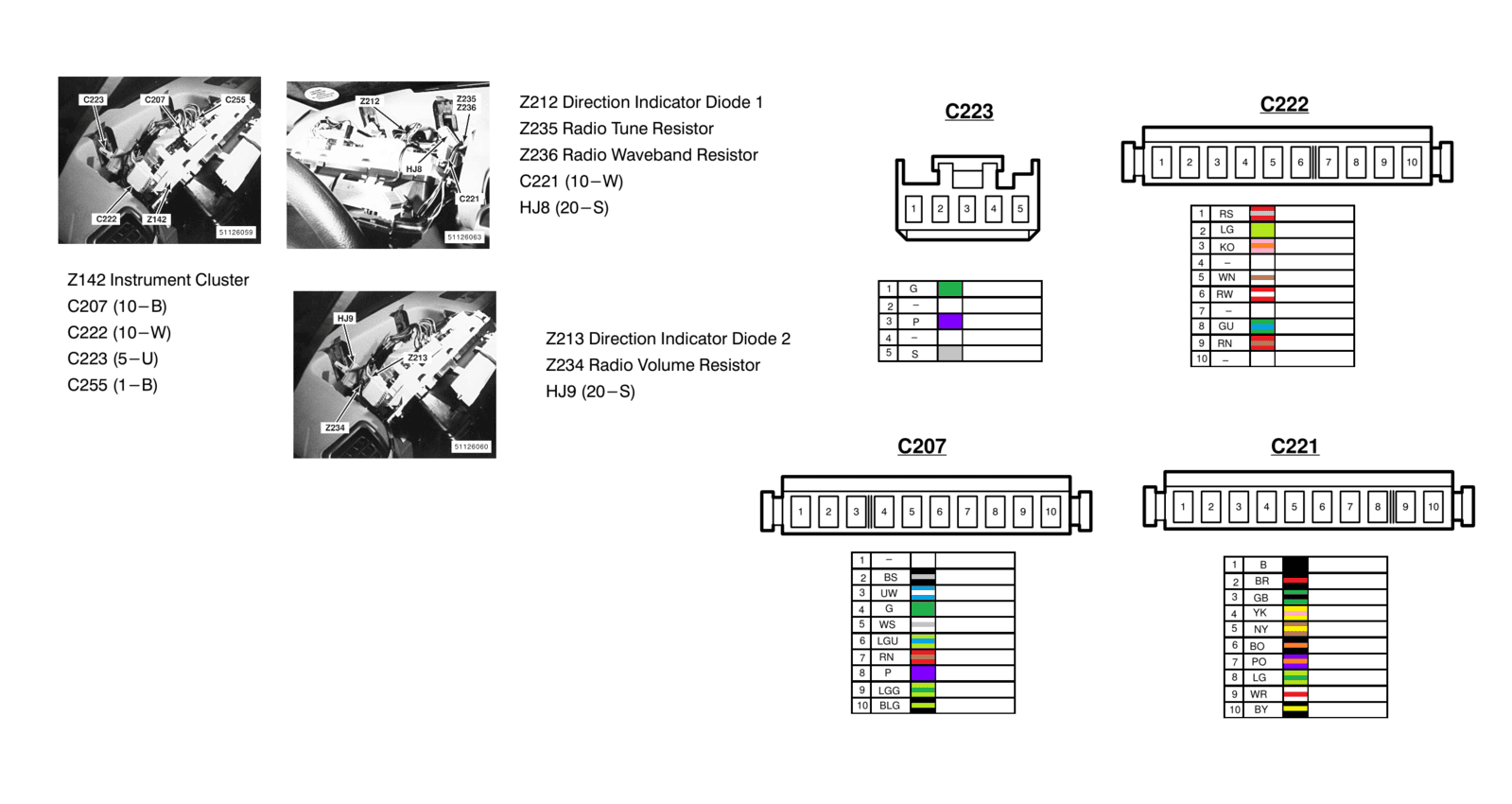

Try this https://cardiagn.com/1997-land-rover-discovery-1-electrical-troubleshooting-manual/ identify the connector number in the diagram then go to "connector views" click on it's number and you'll see where the wires are going... read "introduction" for wire colour codes

Good luck with that… The 200 series electrical system is completely different from the 300 series (1995MY on) you will save yourself a lot of time & trouble with fitting the correct dash.

View attachment 248553
