has anyone have a pic or could take pic off ignition barrel and where wires go



gstuart

D3 Grandad

Full Member

• Dec 24, 2017

• #2

Evan farmer said:

has anyone have a pic or could take pic off ignition barrel and where wires go

Click to expand...

is this any good , it says for a 1995 ??

http://www.4x4community.co.za/forum...0-Defender-ignition-switch-repair-re-assembly



E

Evan farmer

Active Member

• Dec 24, 2017

• #3

gstuart said:

is this any good , it says for a 1995 ??

http://www.4x4community.co.za/forum...0-Defender-ignition-switch-repair-re-assembly

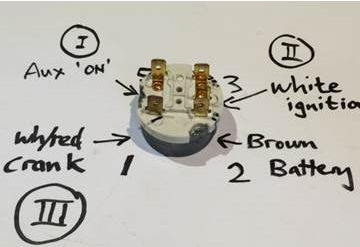

View attachment 137613

Click to expand...

Tried this before no hope



gstuart

D3 Grandad

Full Member

• Dec 24, 2017

• #4

Evan farmer said:

Tried this before no hope

Click to expand...

that’s a shame , assume they changed the ign wiring then

have u tried in the defender section



gstuart

D3 Grandad

Full Member

• Dec 24, 2017

• #5

how about this

http://www.legionlandrover.com/manuales/electrical schemes - defender td5 (1999).pdf



Dippypud

Never Knowingly Understood

Full Member

• Dec 24, 2017

• #6

http://www.seriesdefender.com/manuals/Defender_Electrical_Circuit_Diagrams.pdf

http://www.seriesdefender.com/manuals/Defender_Electrical_Library.pdf

http://www.seriesdefender.com/manuals/Ignition_Switch_spade_wiring.jpg



Dippypud

Never Knowingly Understood

Full Member

• Dec 24, 2017

• #7

http://www.seriesdefender.com/manuals/+Wiring_Diagram-Defender_td5_(1999).pdf



E

Evan farmer

Active Member

• Dec 24, 2017

• #8

Mi

gstuart said:

how about this

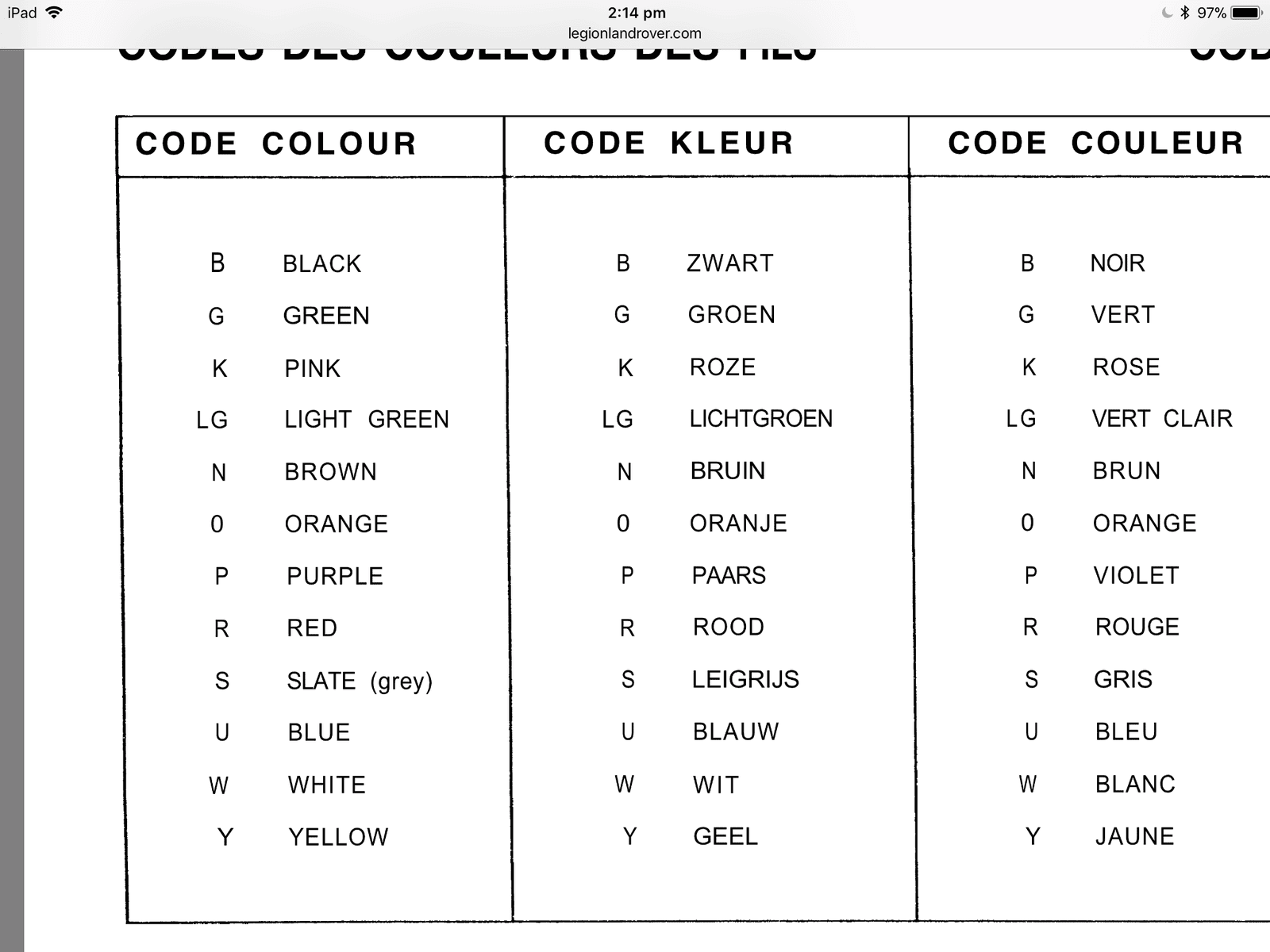

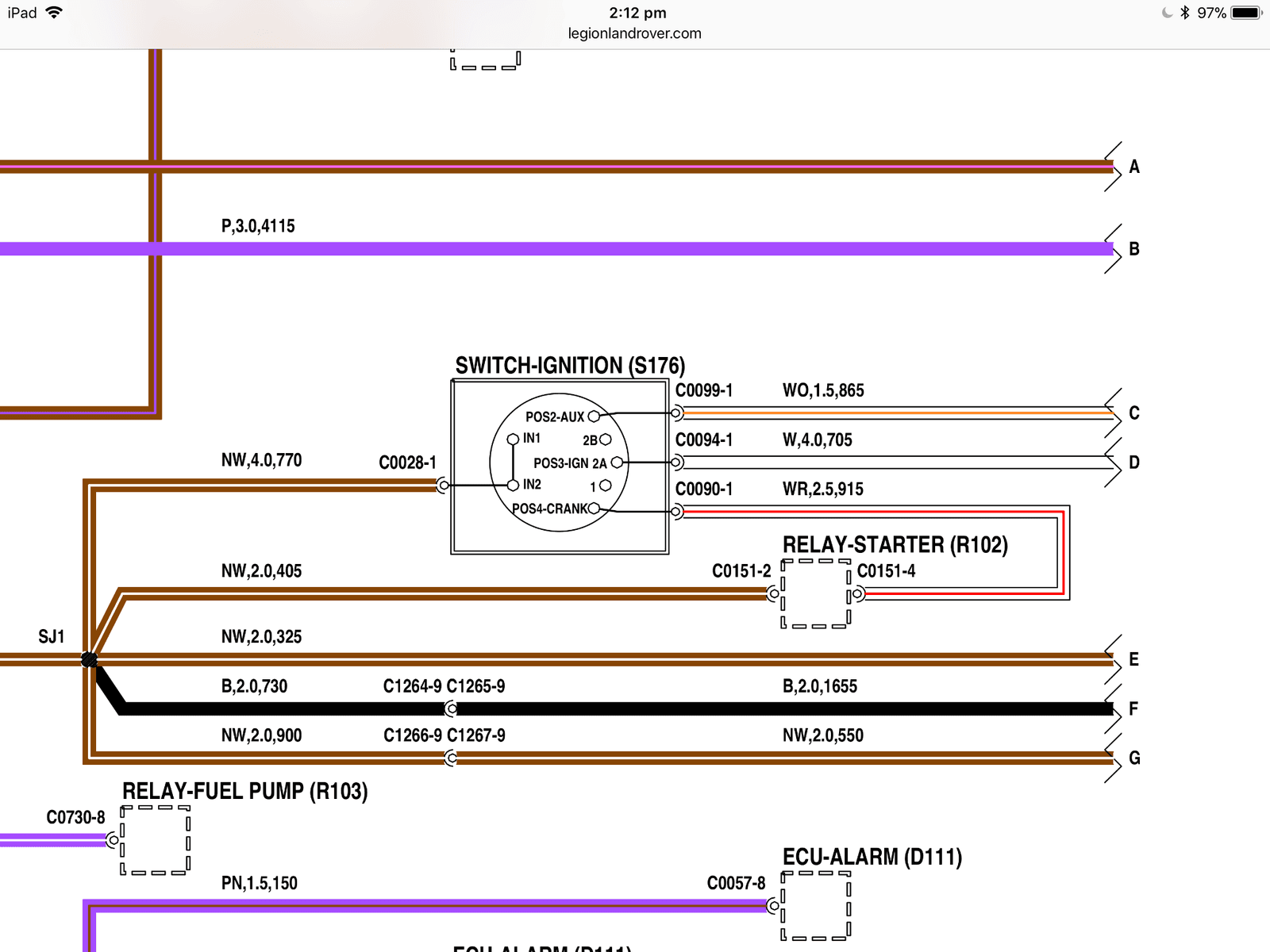

http://www.legionlandrover.com/manuales/electrical schemes - defender td5 (1999).pdf

View attachment 137615

View attachment 137614

Click to expand...

ne only has 5 spade coming out and 4 wires



Dippypud

Never Knowingly Understood

Full Member

• Dec 24, 2017

• #9

Evan farmer said:

Mi

ne only has 5 spade coming out and 4 wires

Click to expand...

Is it an early or late 1999 ? might make it a different leccy regs ...
