t0m1980

Active Member

• Sep 6, 2019

• #1

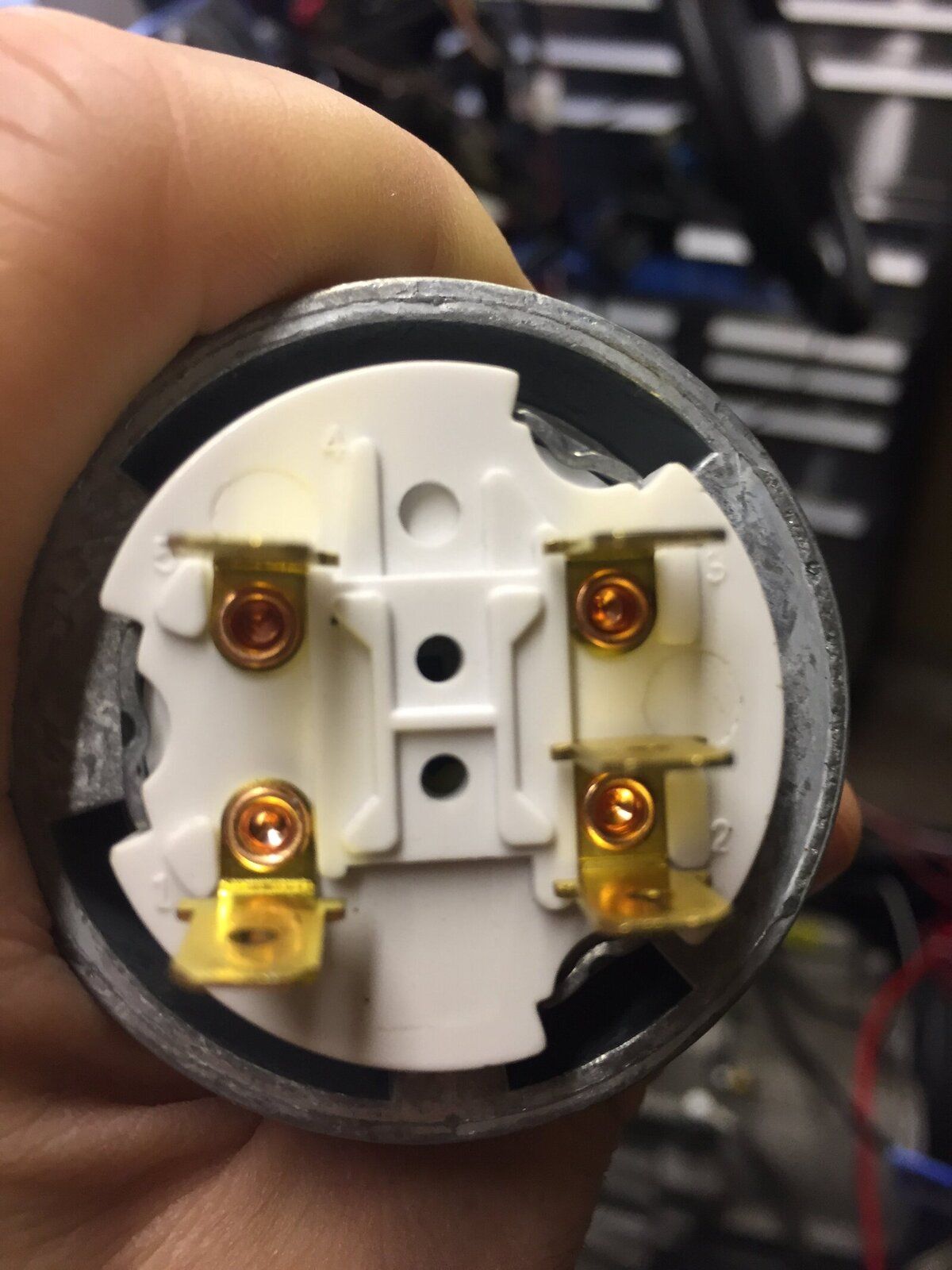

So I have spent the last half hour trying to find a definite answer to no avail.
Can anybody tell me which wire goes on what connection?

I have a small white and red, a small white and orange, a thick brown and a thick white.

Also I don’t like this ignition barrel, is there a better quality one or can anybody recommend a quality push button ignition system, so I can do away with it completely?

Many thanks
Tom



Scooby22

Well-Known Member

• Sep 6, 2019

• #2

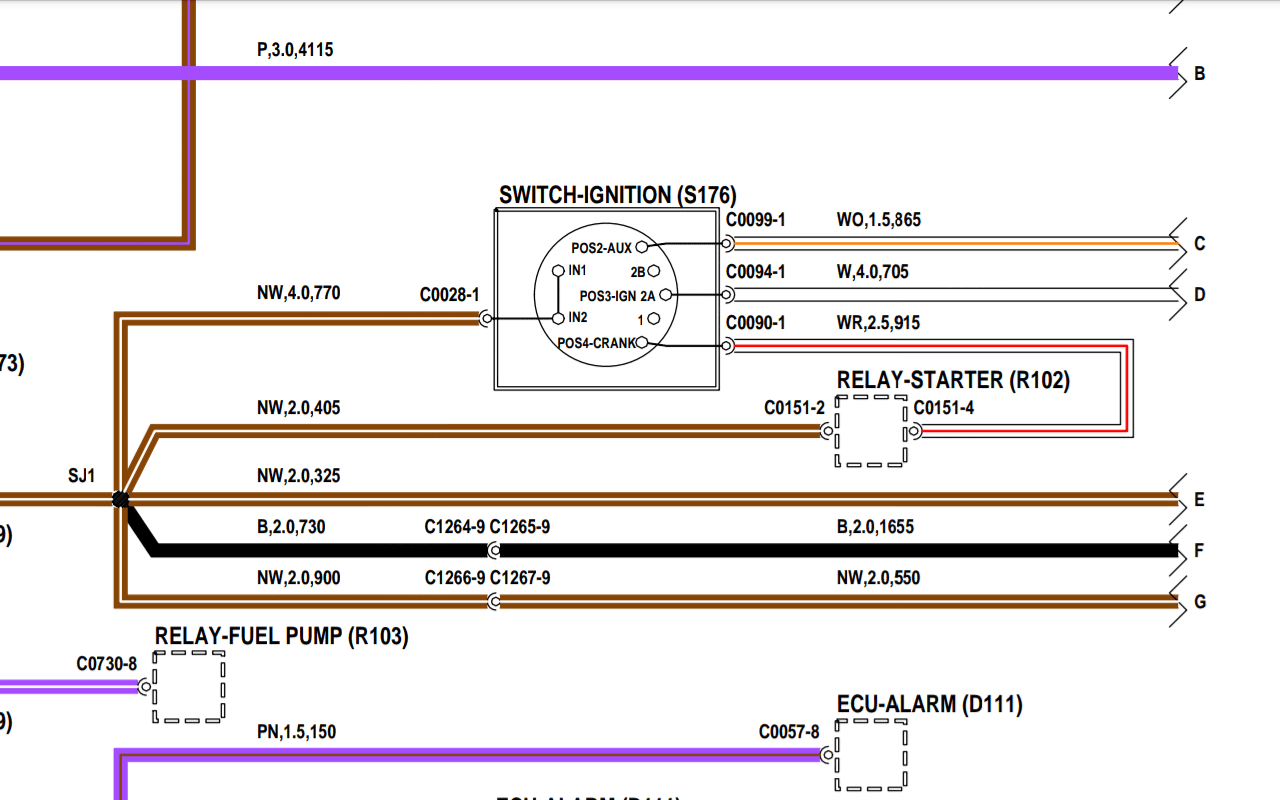

Which model, engine and year Defender. This is a 1999 TD5 layout.



Last edited: Sep 6, 2019

t0m1980

Active Member

• Sep 6, 2019

• #3

Scooby22 said:

Which model, engine and year Defender. This is a 1999 TD5 layout.
View attachment 188891

Click to expand...

Doh, yeah that may help... sorry it’s for a 200tdi



Flossie

Well-Known Member

• Sep 6, 2019

• #4

James Martin posted your answer a while back, maybe a search of his posts will bring it up. I did have it written in the back of my Haynes manual but I threw it away and got another when it got too oily/ tatty to use.



t0m1980

Active Member

• Sep 6, 2019

• #5

Ahh ok thanks I’ll have a look there



mystery

Well-Known Member

• Sep 7, 2019

• #6

THINK ITS



mystery

Well-Known Member

• Sep 7, 2019

• #7

try https://www.12voltplanet.co.uk/chrome-ignition-starter-switch-panel-3-hole.html you could make your own to suite
and also replace toggle switch with or add a key switch



mick 1986

Well-Known Member

• Sep 7, 2019

• #8

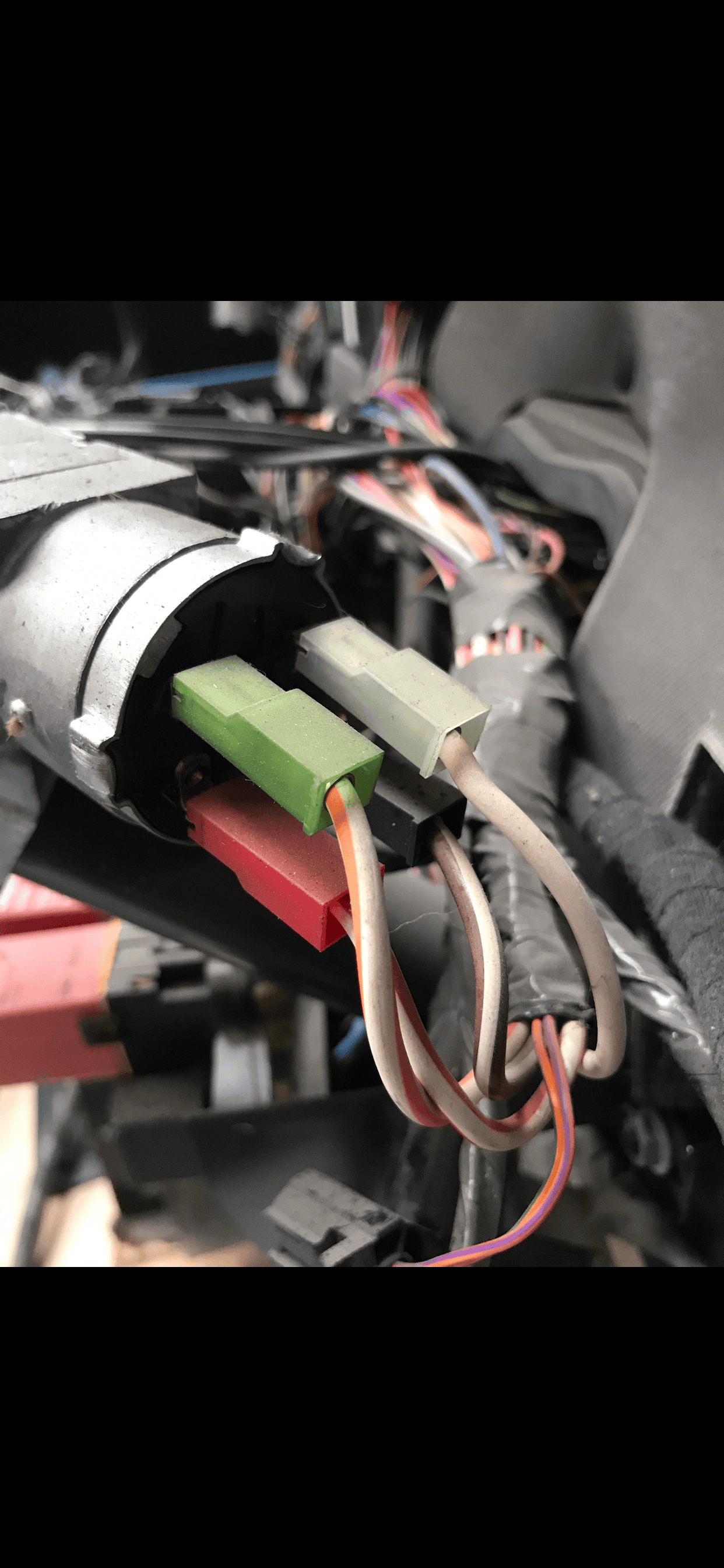

This is my 200tdi ignition wiring.

Ignition barrel is fitted the correct way up, as viewed from standing outside the drivers door.



t0m1980

Active Member

• Sep 7, 2019

• #9

mystery said:

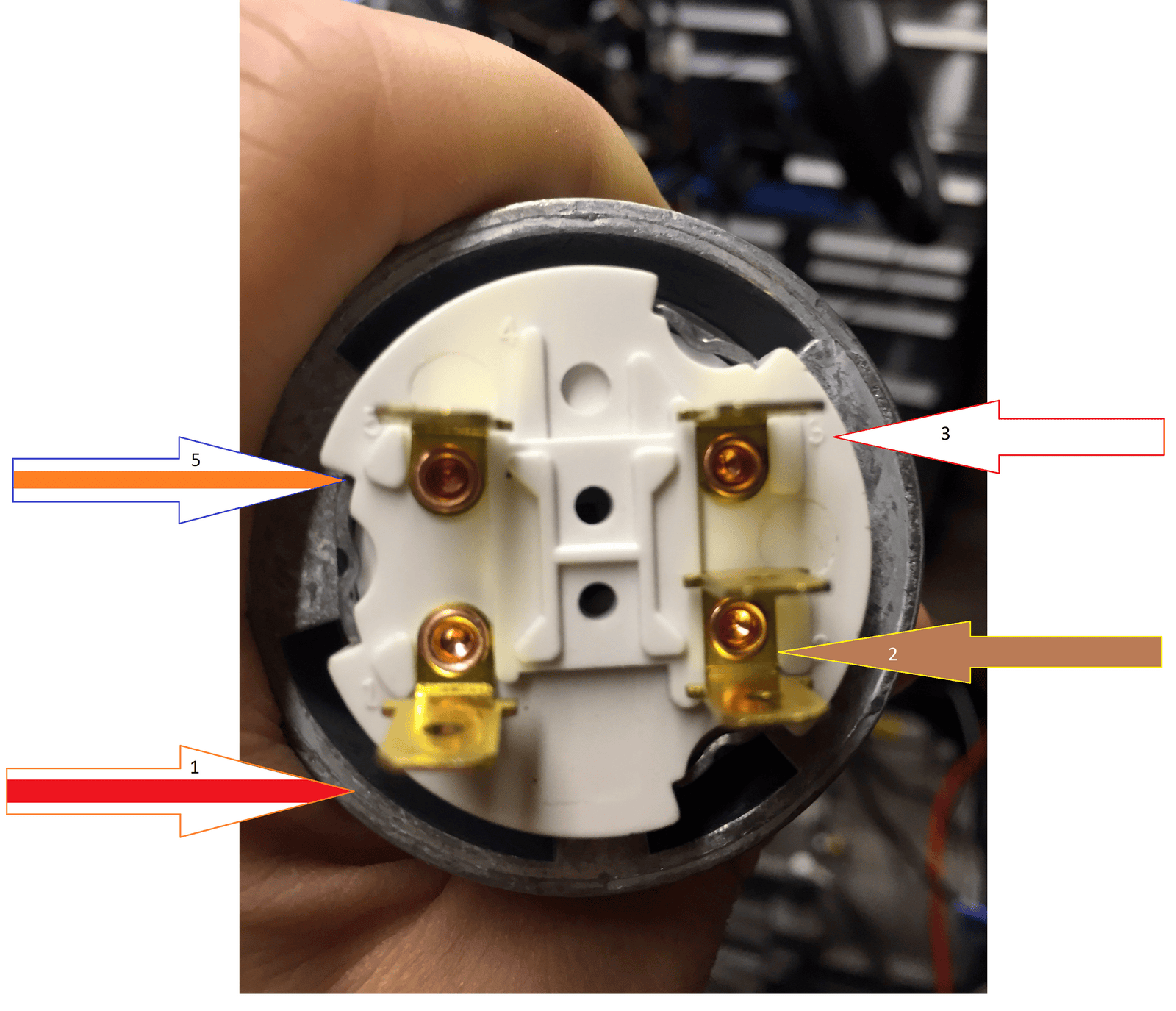

THINK ITS View attachment 188960

Click to expand...

I can confirm you would be correct, I have had running today straight off the ignition today..... so once again many thanks for your help!!

Mick,

I would say that is the same is it not? just a different colour wire... just to double check



mystery

Well-Known Member

• Sep 7, 2019

• #10

BROWN ON YOURS BROWN WHITE MY2002 COLOURS CHANGE WITH YEAR TYPE OF ENGINE YOUR WHITE AND ORANGE COULD BE BROWN NON TURBO
WHITE AND RED COULD BE WHITE AND BLACK ON NON TURBO THE V8 WOULD BE THE SAME



border

Well-Known Member

• Sep 7, 2019

• #11

Sorry to Hijack your Thread Mate, Glad you got it sorted.
While on the subject of Ignition Barrel, I have one in my pile of parts which is connected to full loom, Was going to use it on my rebuild as nearly at the stage to wire everything up But there is no key for it,
Question is, Can Just the barrel itself be changed and swapped for new one with keys?



H

Hicap phill

Well-Known Member

• Sep 8, 2019

• #12

yes. Remove small screws to allow the ignition switch to be removed from the barrel

But Complete barrels are cheap enough to swap wires over though
