I suspected my FL1 rear diff’s front shock-absorber was faulty, having heard knocks when previously driving/gear-changing. Having researched the diff’s noises, which is a common problem, and how to go about replacing the shocks, I decided to visually investigate. I discovered the rubber was indeed broken and rotten-looking. A bit of a mess, really.

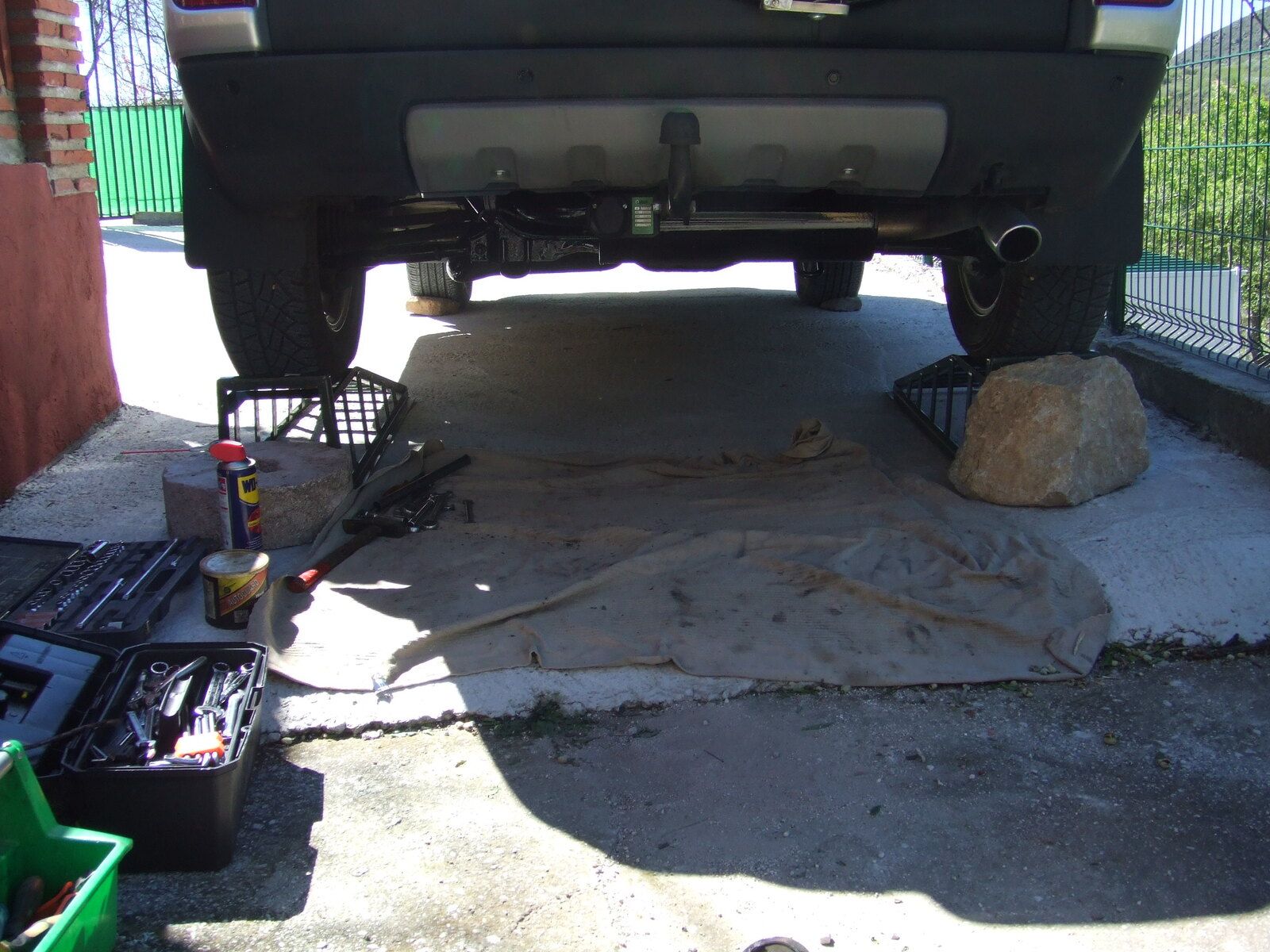

To begin with, the entire operation took me only 45 minutes; my wife was monitoring the job and the time it took. And this included putting our car onto a set of ramps. See the picture. The small and heavy mill-wheel and rock was there to prevent the ramps slipping on the concrete as I revered onto them. They did that perfectly.

Okay, the job of replacement went thus…

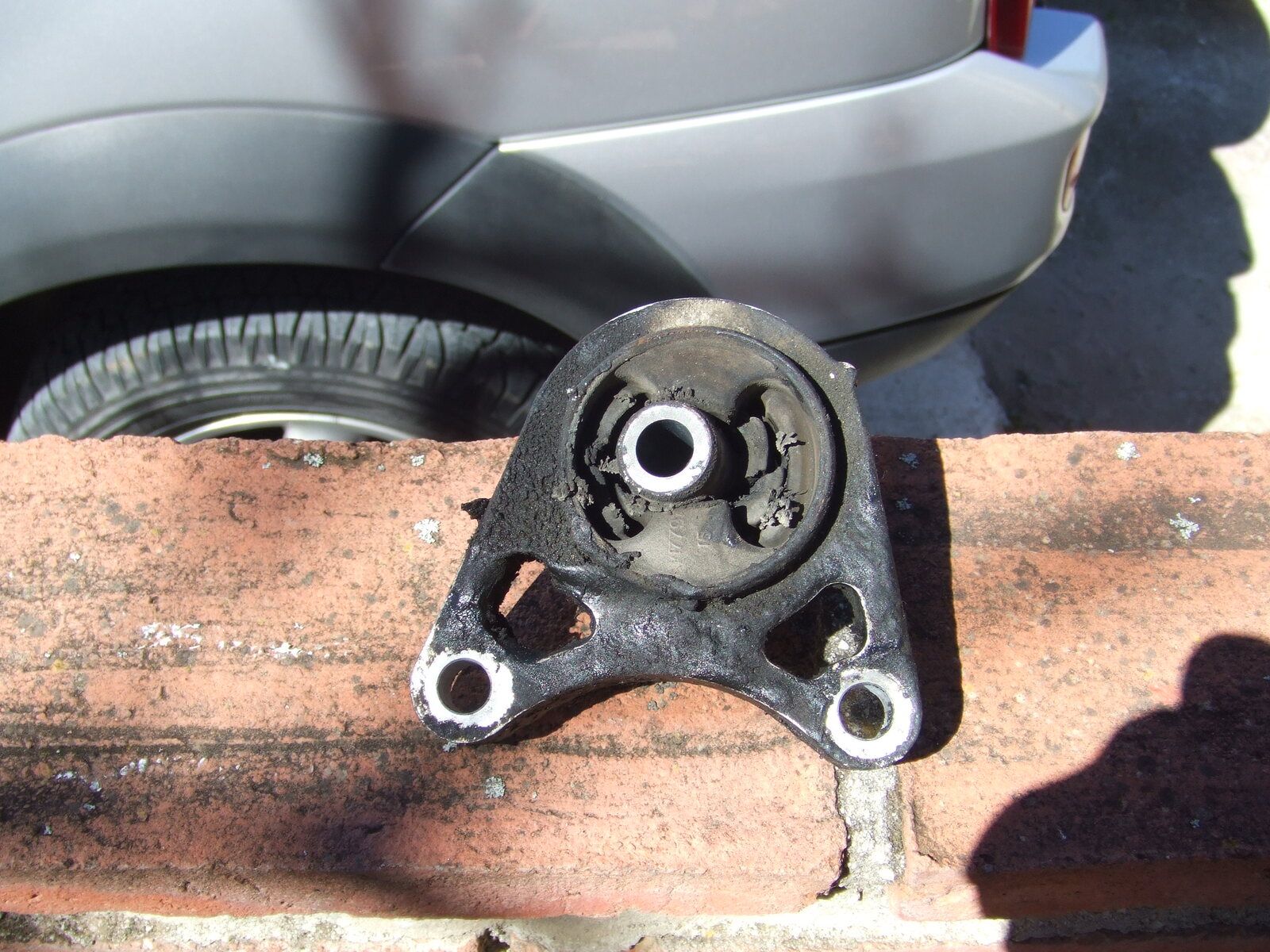

It was only the front shock that needed replacing so that was all I did. I will do the others at a later date. I had intended to remove the rear exhaust, as was shown on a YouTube video as well as mentioned by others who had already done what I intended to do. I decided not to remove the silencer as the clearance provided by my ramps looked adequate enough to carry out the work with all in situ. So that saved some work as well as time.

The three 15mm shock absorber central bolts were removed, and the two 13mm mounting bolts for the front shock, the one being replaced. So, only 5 bolts in total were removed.

Once the 3 central bolts and the two bracket mounting bolts were removed the rear diff was easy to manipulate in order to remove and replace the faulty shock.

Then it was a simple case of fitting the replacement bracket’s 13mm bolts followed by the three 15mm bolts – all greased to aid fitting as well as providing protection.

45 minutes and the job was complete.

Taking the car off the ramps and tidying away the tools took a further 10 minutes.

Then it was a simple lunch in the Spanish sunshine with a nice cold beer.

I wish all the jobs were as easy to do.

Nice job! I was a little thrown by you calling the bush a shock absorber, but I can see what you mean

Nice also that you were able to avoid too much dismantling

Not so much cold beer weather here, more cold rain...

Yeah, I can see what you mean. It is a rubber-mounted bush - of course, while also absorbing the shock.
As for the weather, my wife and I have just enjoyed our first BBQ of 2018, with sunshine galore ( I was wearing shorts) and chilled wine, cold beer and lots of grilled stuff. I would hate to be a pig!
I say stuff - as not to offend any who prefer to graze & fart lots of methane (which is twice as bad as CO2) in consequence.
Did you know that methane is a greenhouse gas that lasts for about 15 years in our atmosphere before cracking into CO2? Then CO2 lasts for another 15 years? Phew!

So, for all you vegetarians, eat meat and cut out the grass crap. You will not only feel and be all the better for it, but our planet's atmosphere will also benefit. As will we all.

It's all down to what the Politicians tell the populace. They spout what they're told to say because it sounds good to the electrolate, while being absolute morons when it comes to knowledge, common-sense and intelligence.
And don't get me started on the diesel/petrol thingy. I could blow the entire question into orbit with the politicions left looking like lumps of merde. Which they all are, of course.
Nuclear is the answer, as is Hydrogen Fuel Cells.
The end.
Not ELECTRIC! That's just stupid!!!!

Its not really a shock absorber - on the basis that there's 3 of them and if they weren't there the diff would fall oft.

Any bush also acts as a shock absorber really - or else you'd just use bolts and hinges!

Quite right, Grumpy, and thanks for keeping me right. Nice one.

Why has this procedure never been posted before?

Seriously, well done mate.
