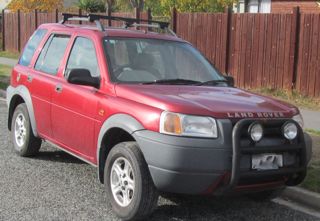

old & new 1.jpg
Well here's my take on owning, driving fixing and mod'ing a 1.8 Freelander.

Things I've done that can help prolong HG life:
  • a careful cleaning of the cooling / heating system - I use a citric acid solution, lots of water after that and an air line of finish up with
  • a good radiator - I renewed mine - update June 2017 New rad' failed no support from LRD so I had to buy another- choose a rad' marketed by Bearmach, bought from LRD.
  • replace coolant and heater hoses
  • replaced that coolant pump along with the cam belt and tensioner
  • relocated the thermostat [PRT] and ‘gut’ the original to allow coolant flow

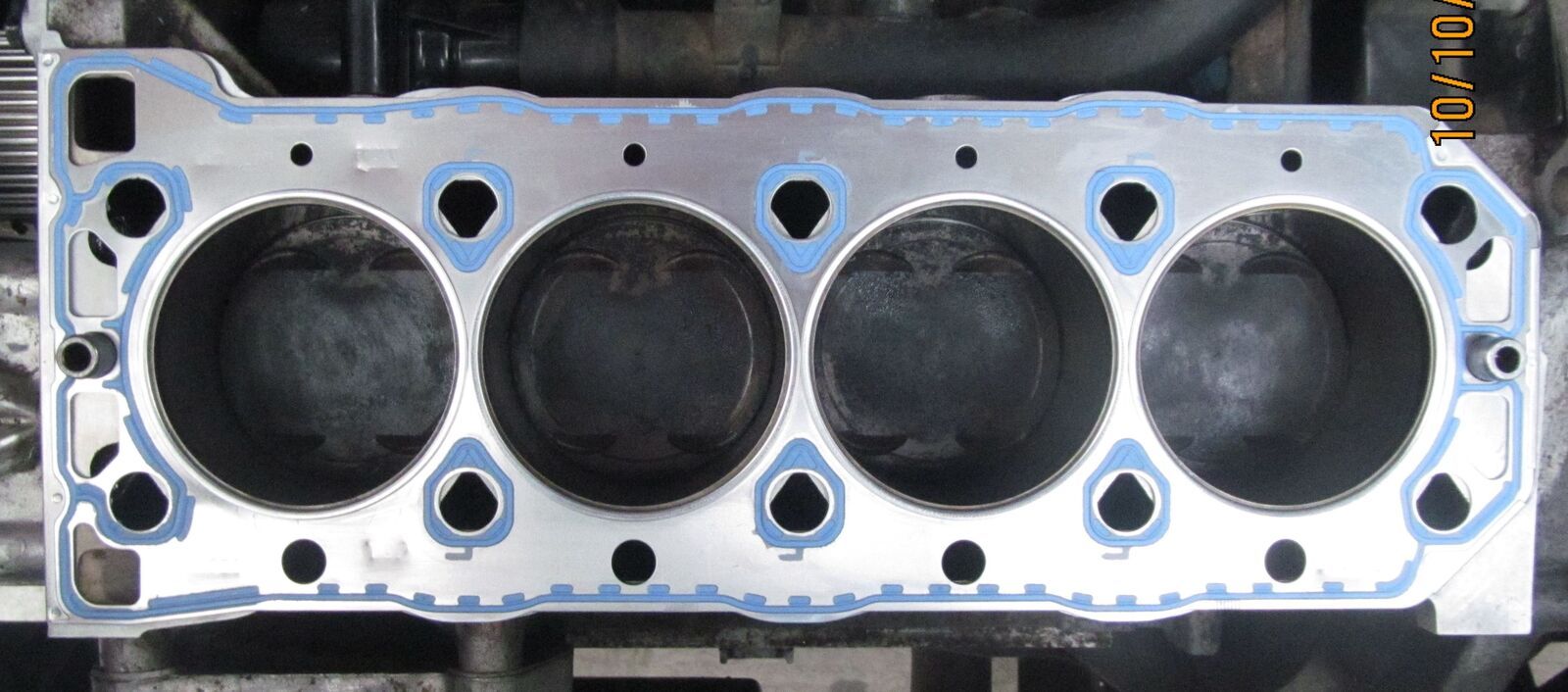

  • my liners were at uneven heights. A asked around and took the advice of fitting a Payen BW750 elastompolimer gasket with metal dowels
  • IMG_2184.jpg

  • new head bolts of course
  • fitted a strengthened bottom oil rail

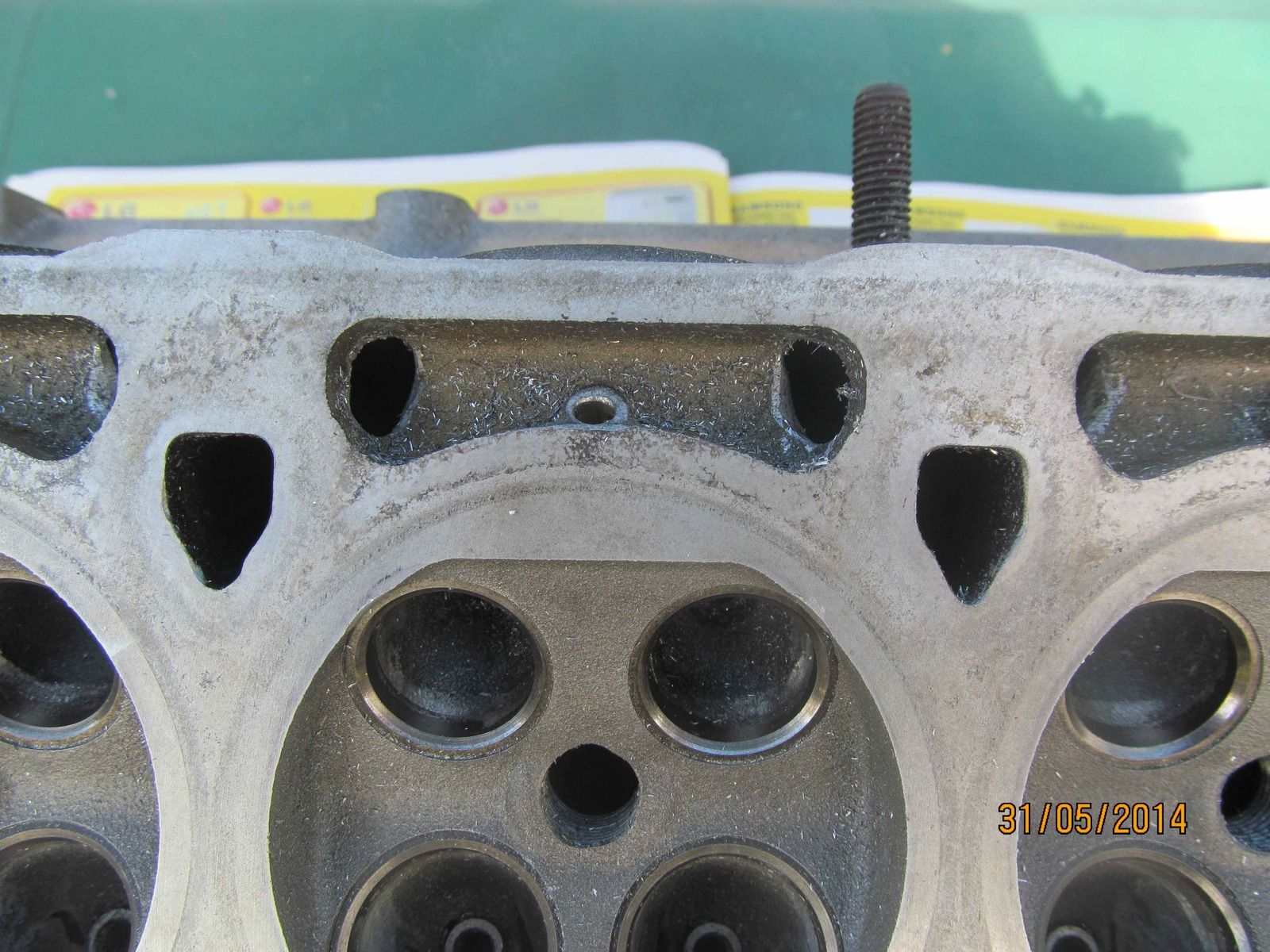

  • I ground out the casting flash… from the coolant passages in the head with my Dremel and a TC burr
  • IMG_1810.jpg

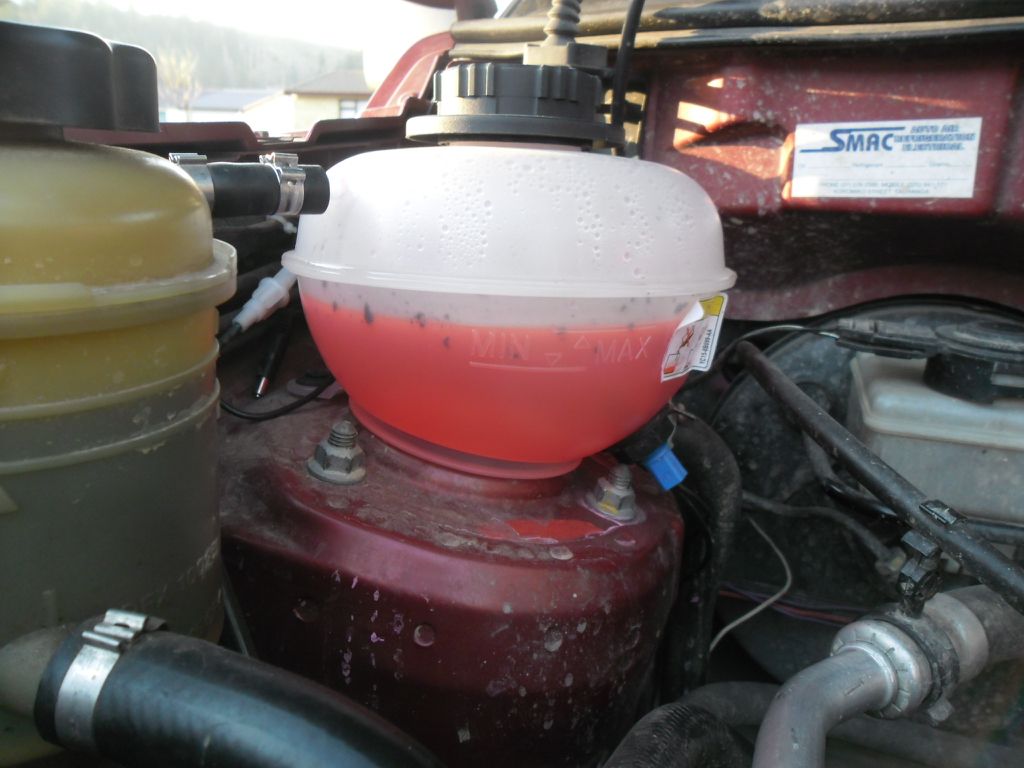

  • replaced the coolant expansion tank and cap. - this is a more recent photo - the black spots were some greasy stuff - prob' remnants from earlier motor work.
    expansion tank black.JPG

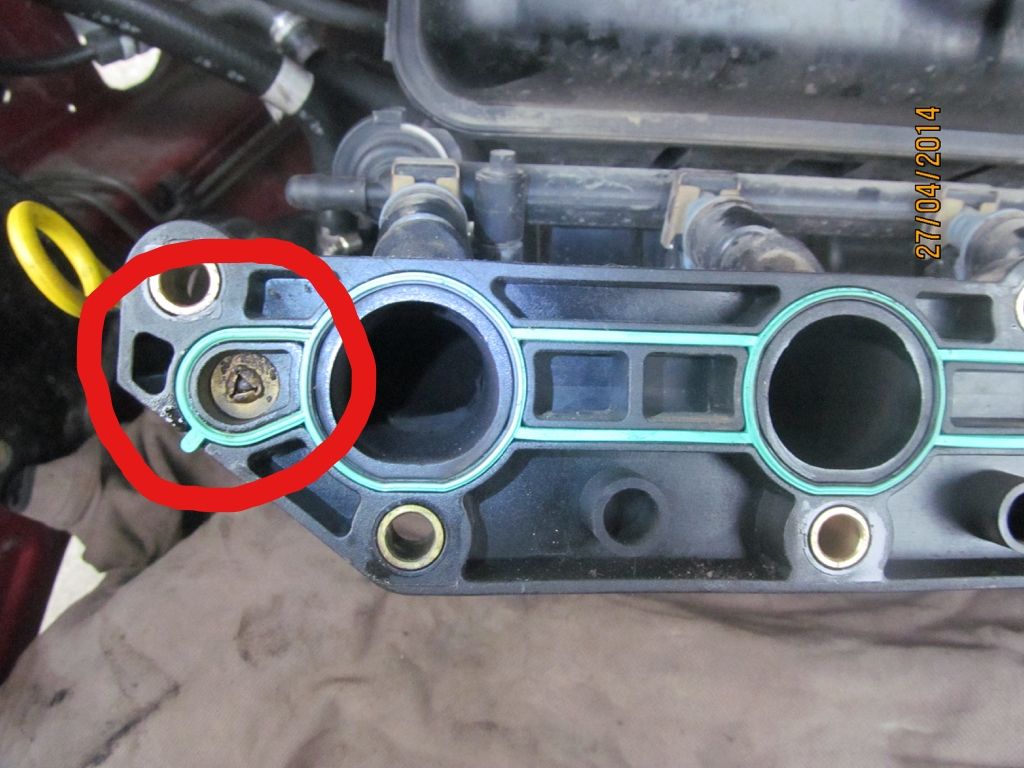

  • put a little sealant around either end of the IMG prior to fitting AND checked that the jiggle valve [circled ] was working.
  • 80c87f1b-be63-432d-ae15-27adc7728f7c.jpg

  • used deionised water for my red OAT coolant mix [50% solution]

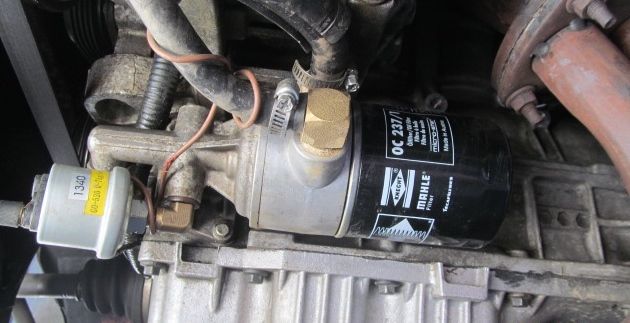

  • fitted an engine oil cooler with a thermostatically controlled take off on the filter mounting - also added an oil pressure sensor to the filter mounting.
  • IMG_2680.jpg

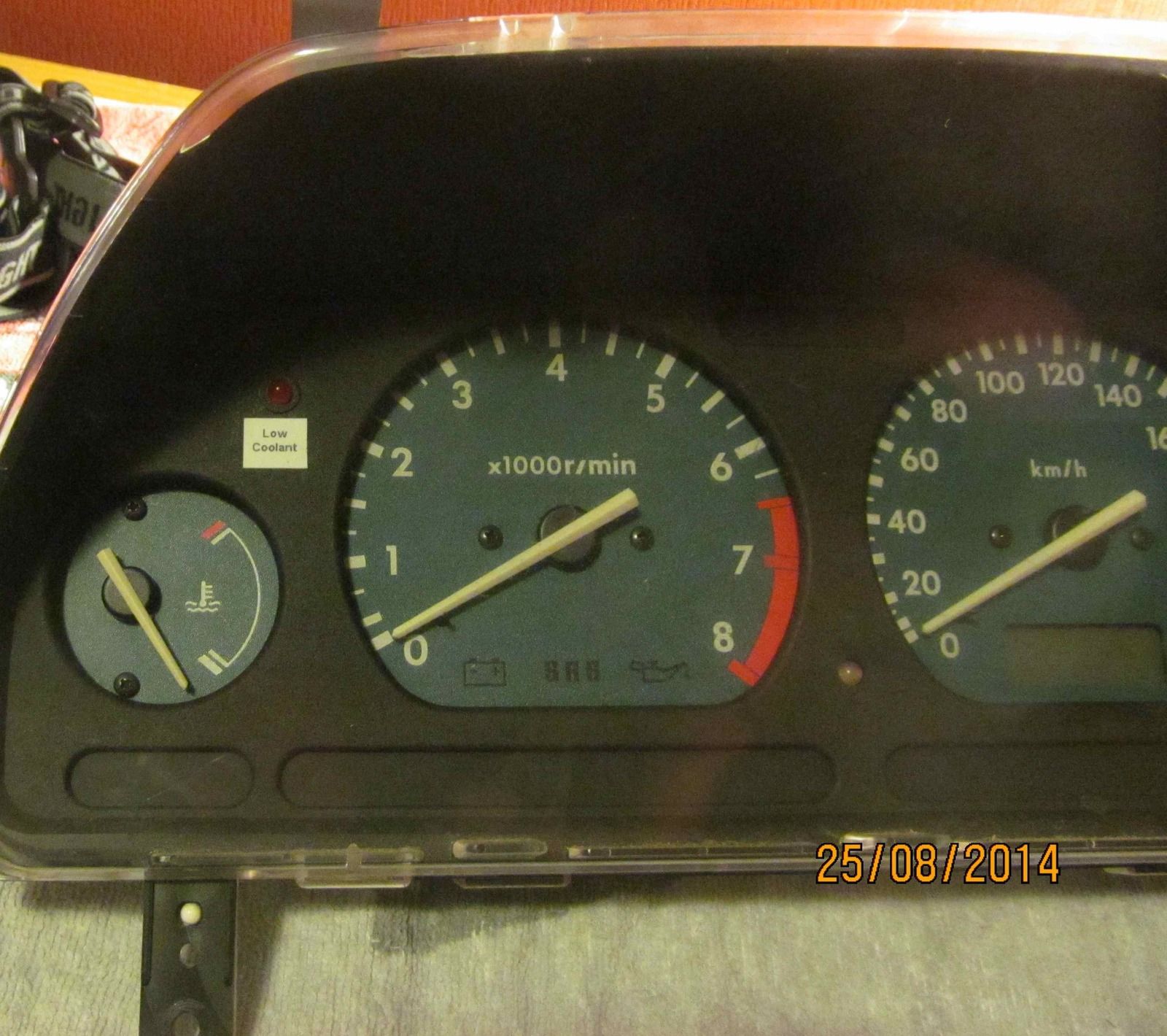

  • Added a low coolant warning LED to dash binnacle - [see Hippo’s threads]
    low coolant lamp 1.jpg

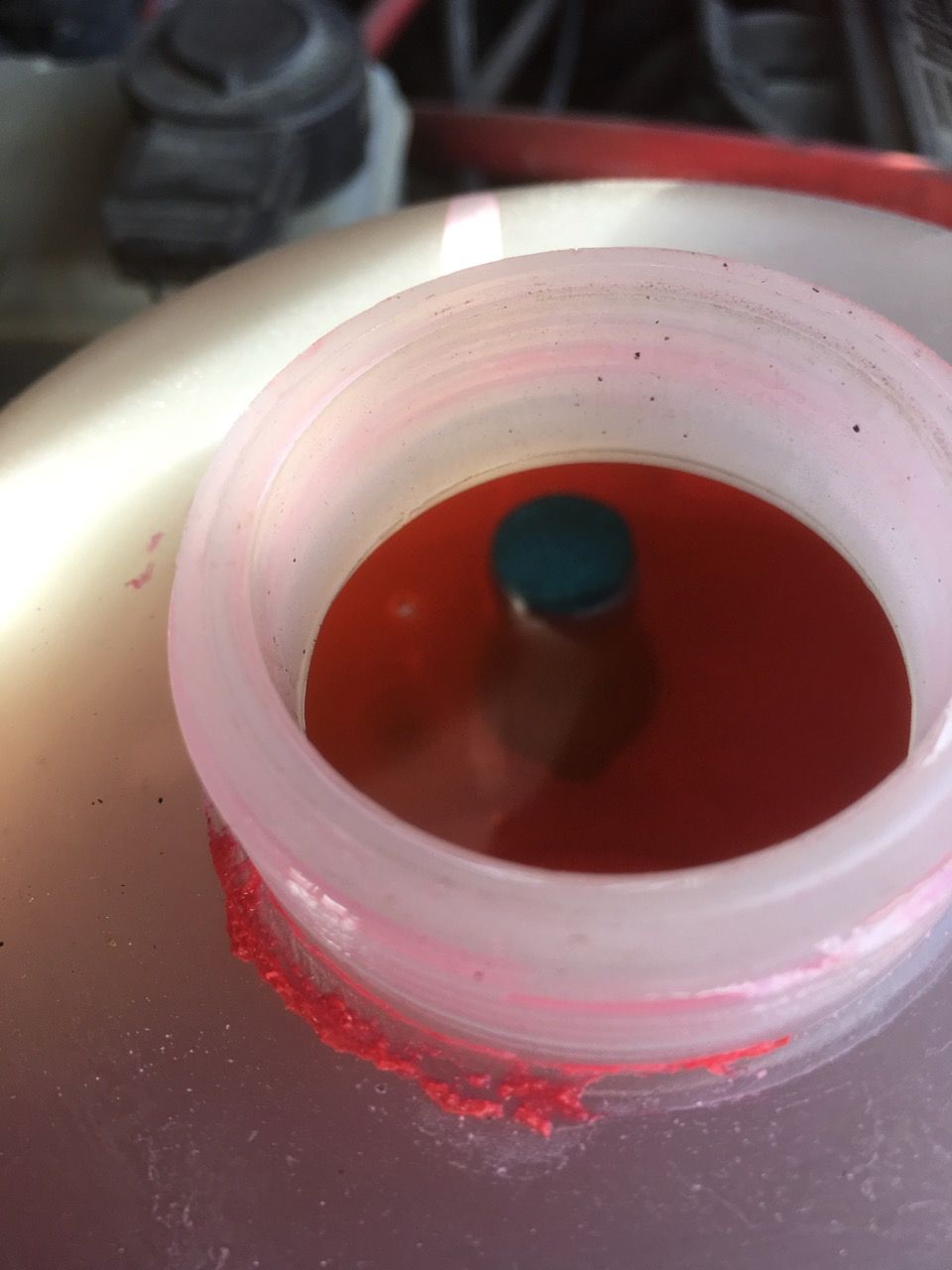

  • I've had to replace two coolant bottles as the newer ones crack / craze around the base of the neck and loose pressure & coolant.

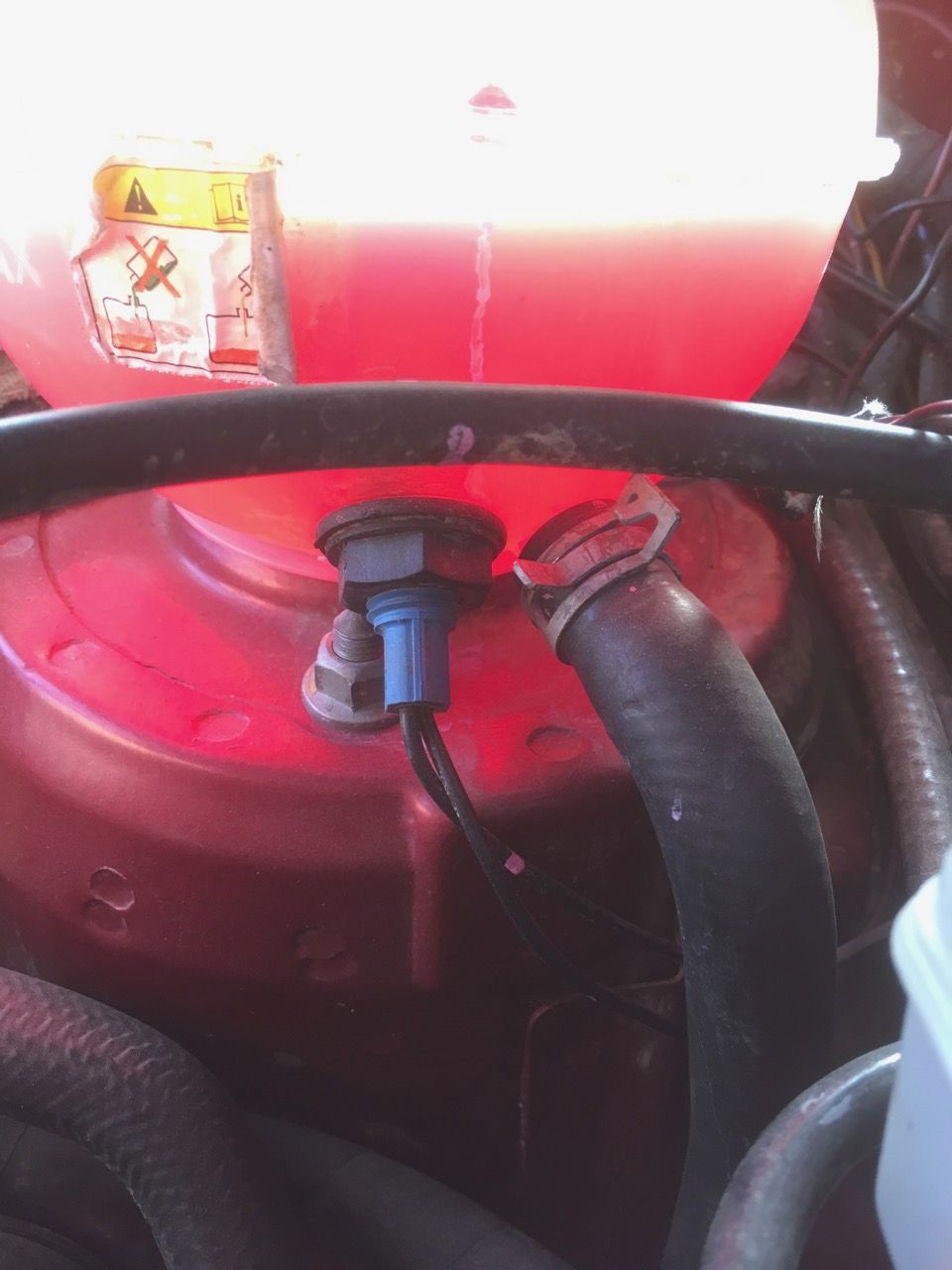

    coolant level switch 2.jpg
    View attachment 145158
    coolant level switch 1.jpg

Other work done:
fitted 5 Bridgestone ATs

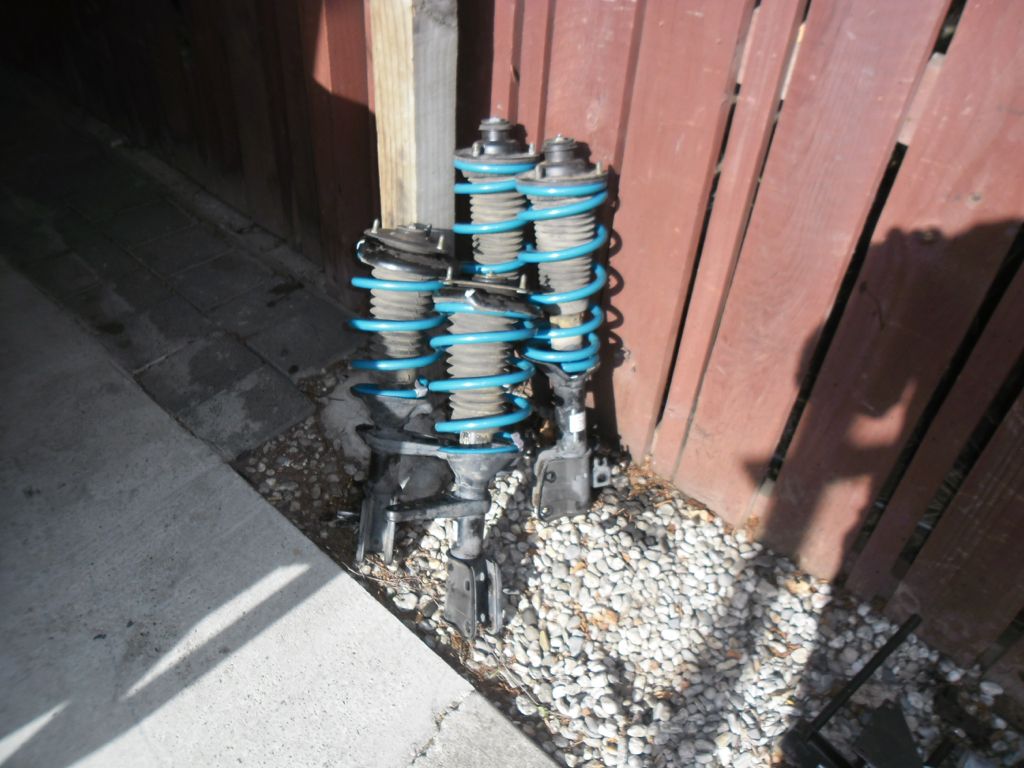

replaced the springs - Dobinsons
new springs.JPG

replaced the diff side seals
replaced disc rotors and pads - put a seal kit in the callipers & replaced fluid

renewed the VCU and bearings
replaced LH drive flange [I managed to bend it!], bearing and seal
replaced LH drive shaft OS

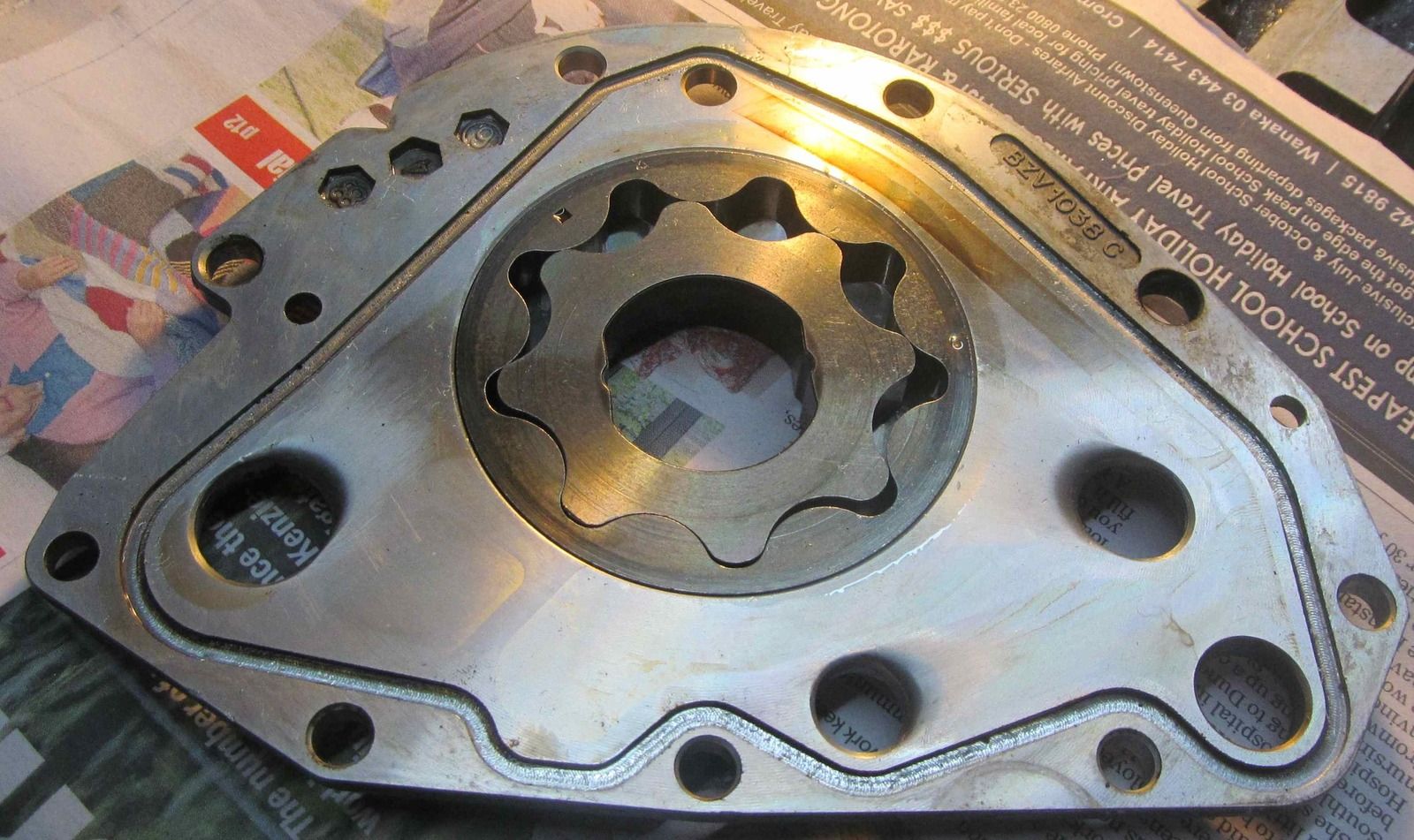

flowed oil pump internals [see the k-engine page for info' on this]
oil pump 3.jpg

de-burred IM
de-burred EM, down pipe
de-catted exhaust
replaced cam belt covers [ they were seriously damaged when the cam belt moved for the previous owner!]

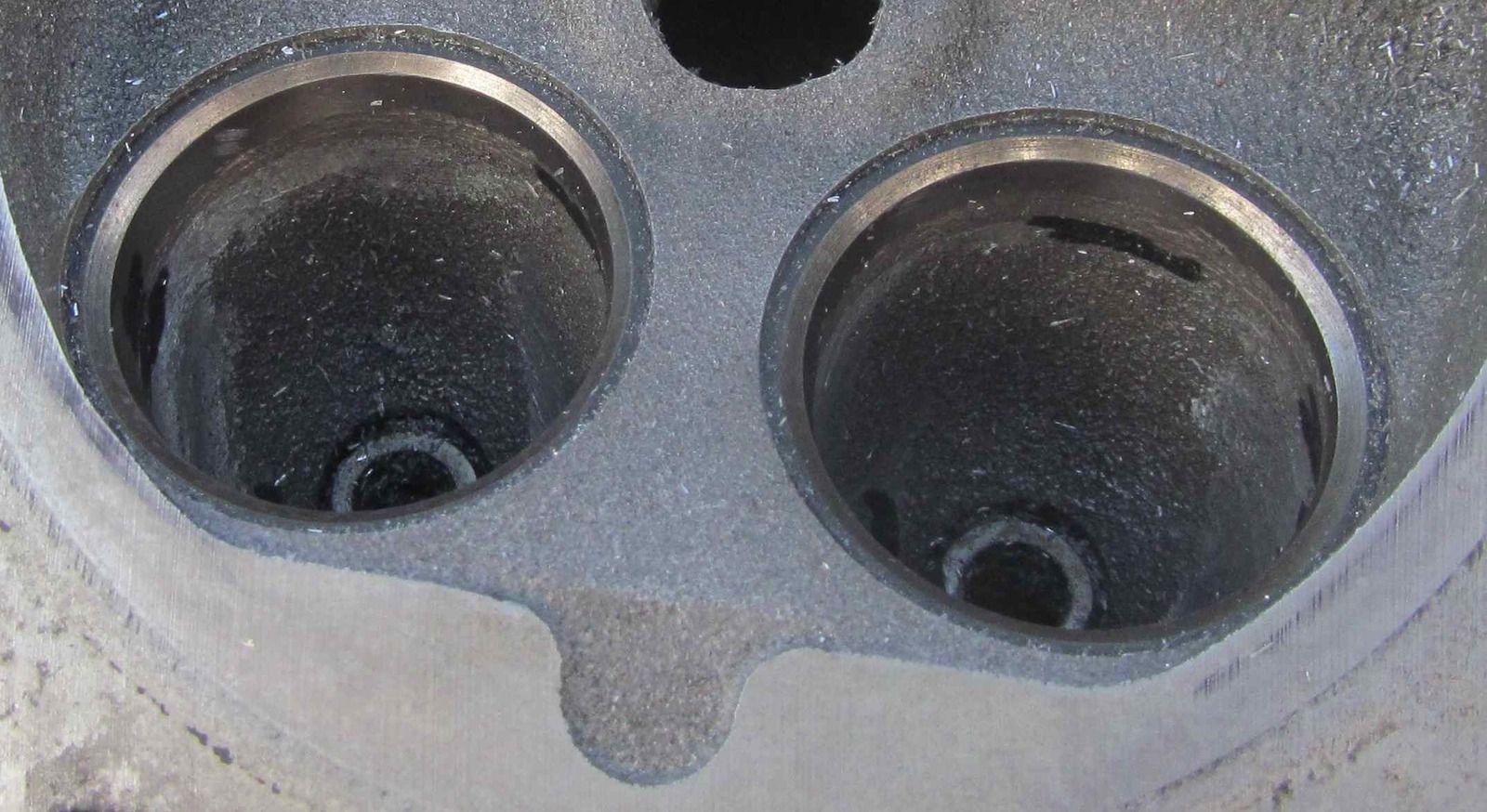

removed ’step’ from lower side of valve seats

smoothed valve guide protrusions

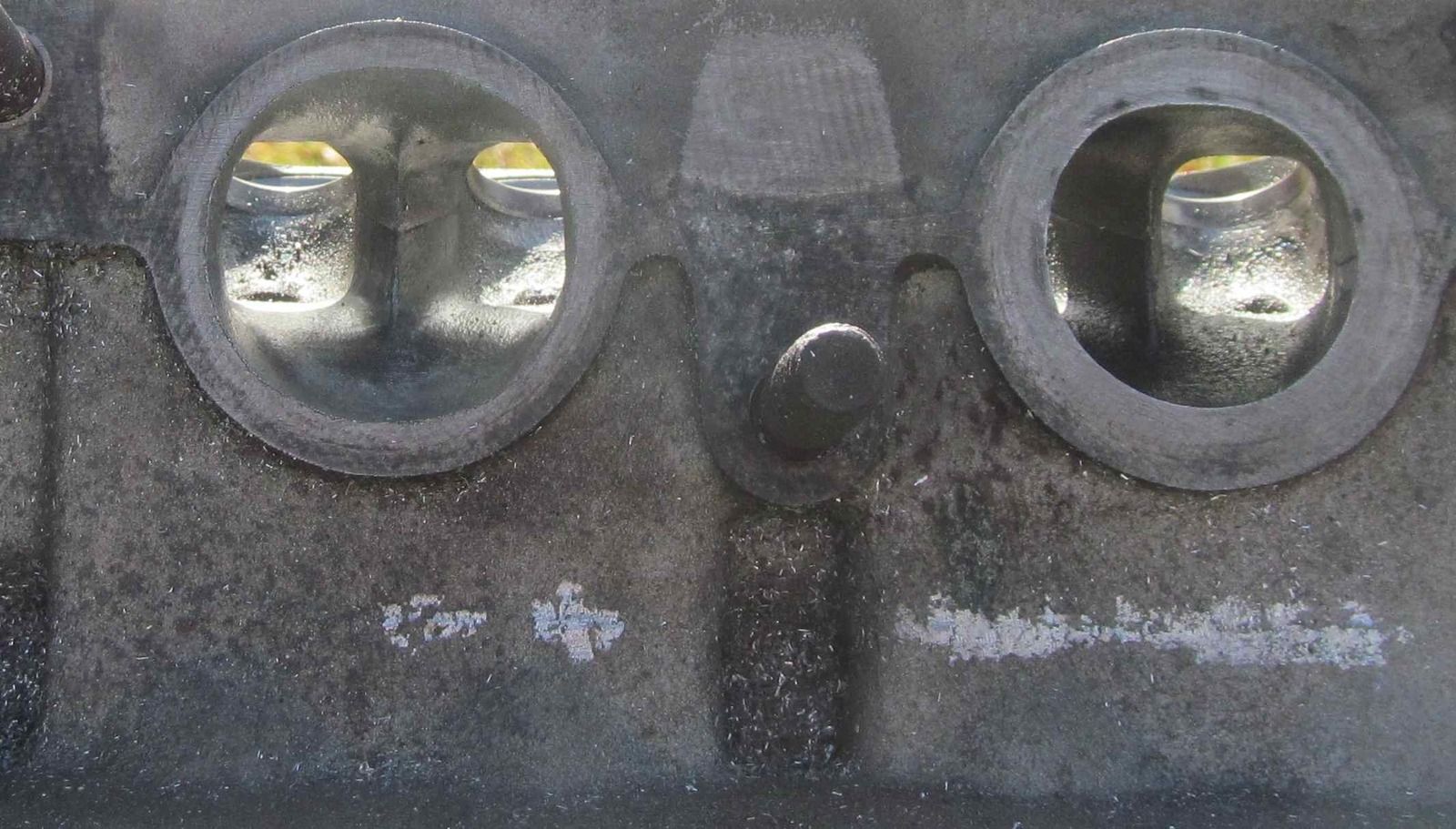

opened up inlet and exhaust runners
inlet 2 3 runner.jpg

replaced the camshaft seals

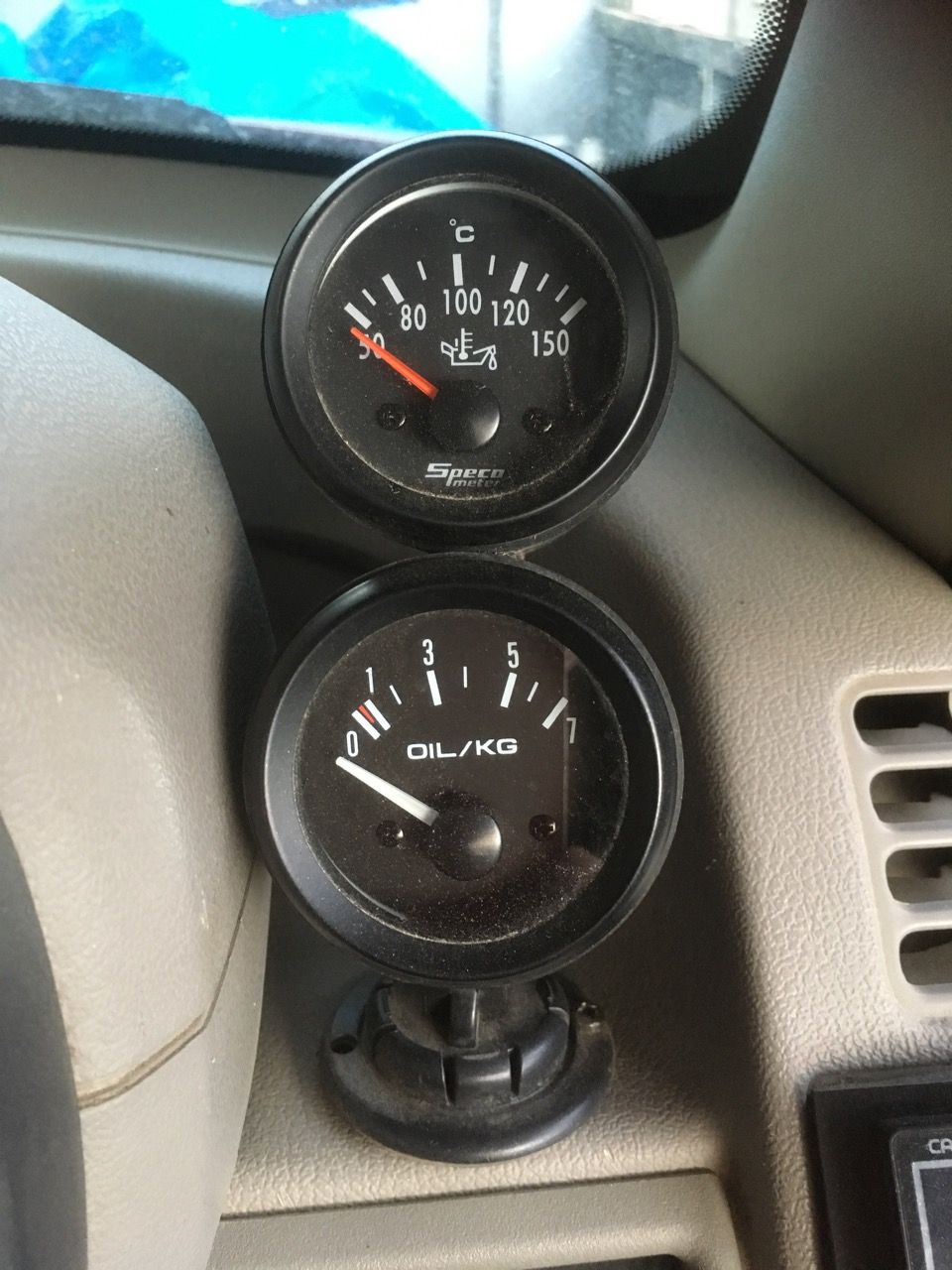

fitted an oil pressure and oil temperature gauge

replaced fuel pump and filter, replaced dist’ cap, rotor and plug leads
fitted an auxiliary fuse box
fitted auxiliary high current power sockets [F & R]
Fitted DRLs [LEDs] and relay
Fitted new play head [ CD -USB- Bluetooth]

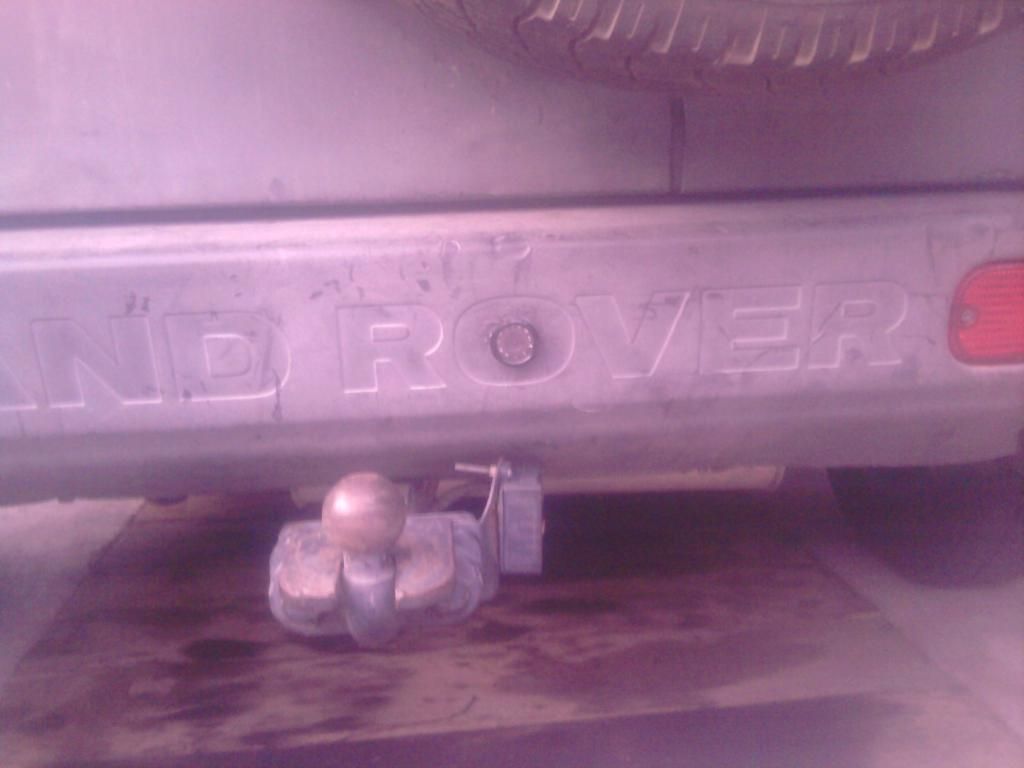

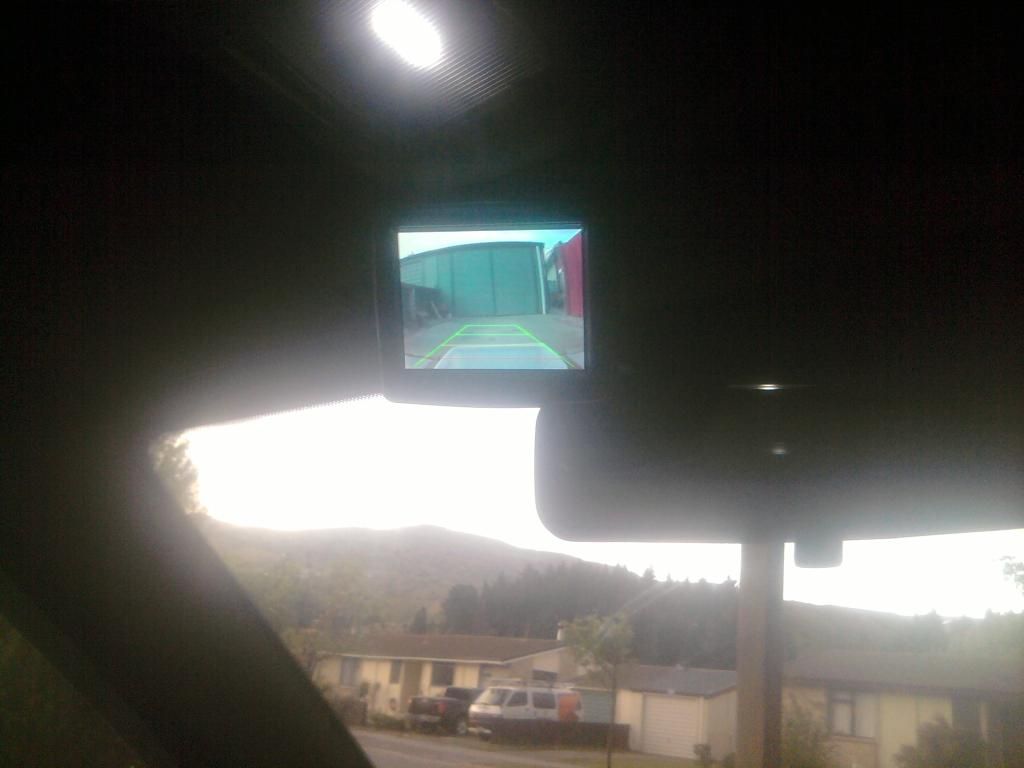

fitted a reverse camera

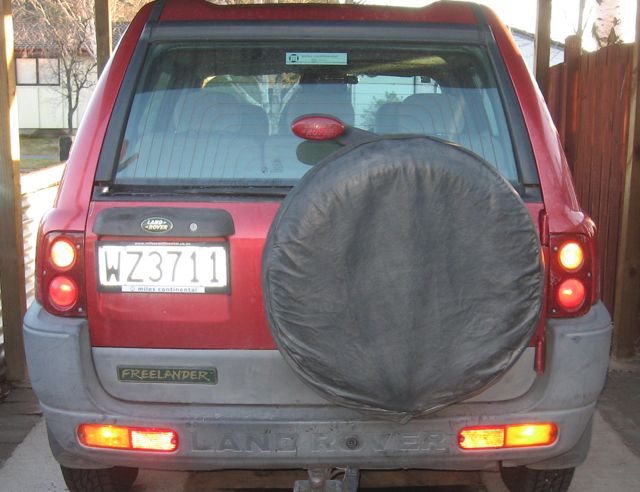

modified rear lamp set-up
rear lamp upgrade.JPG

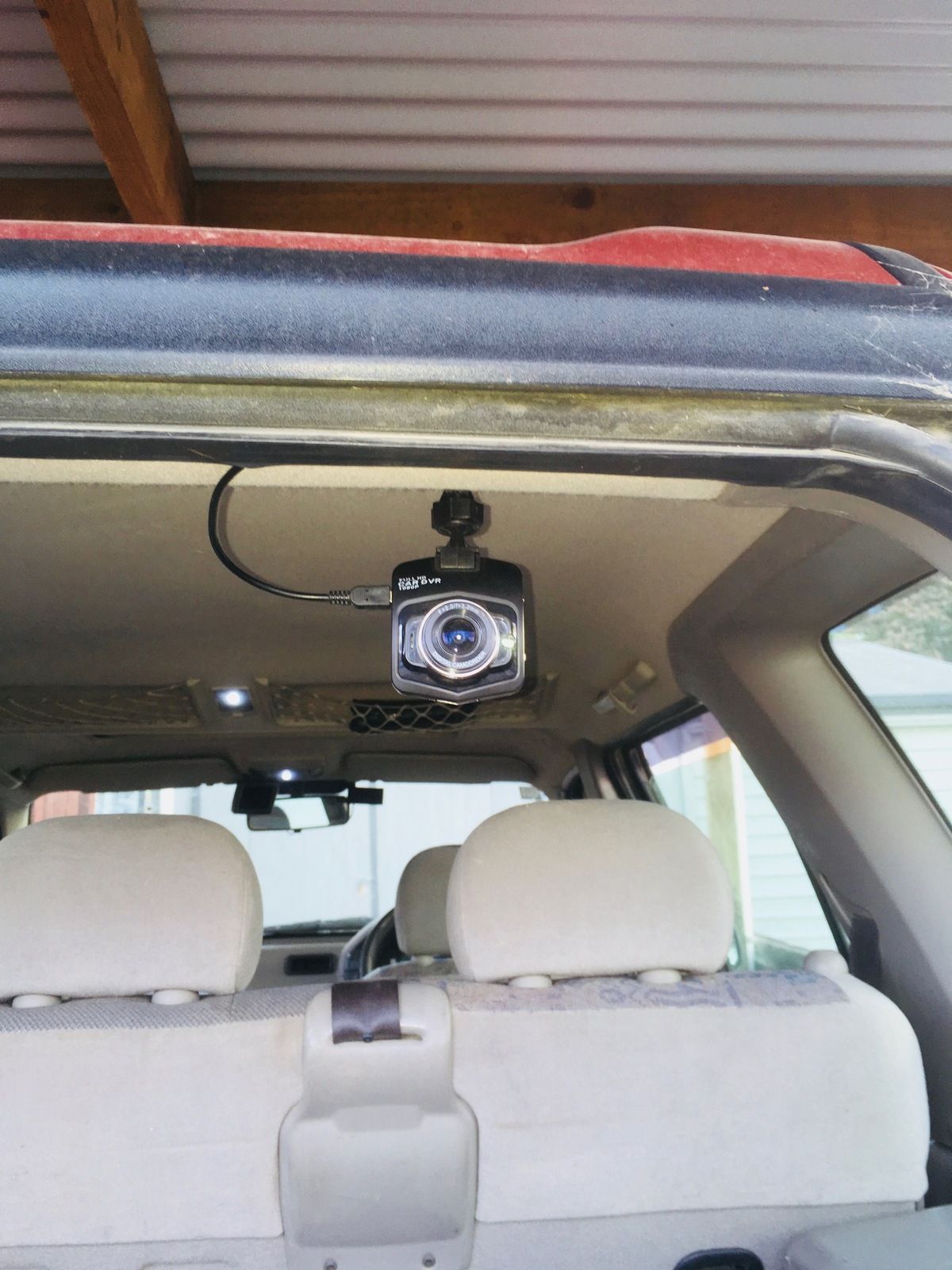

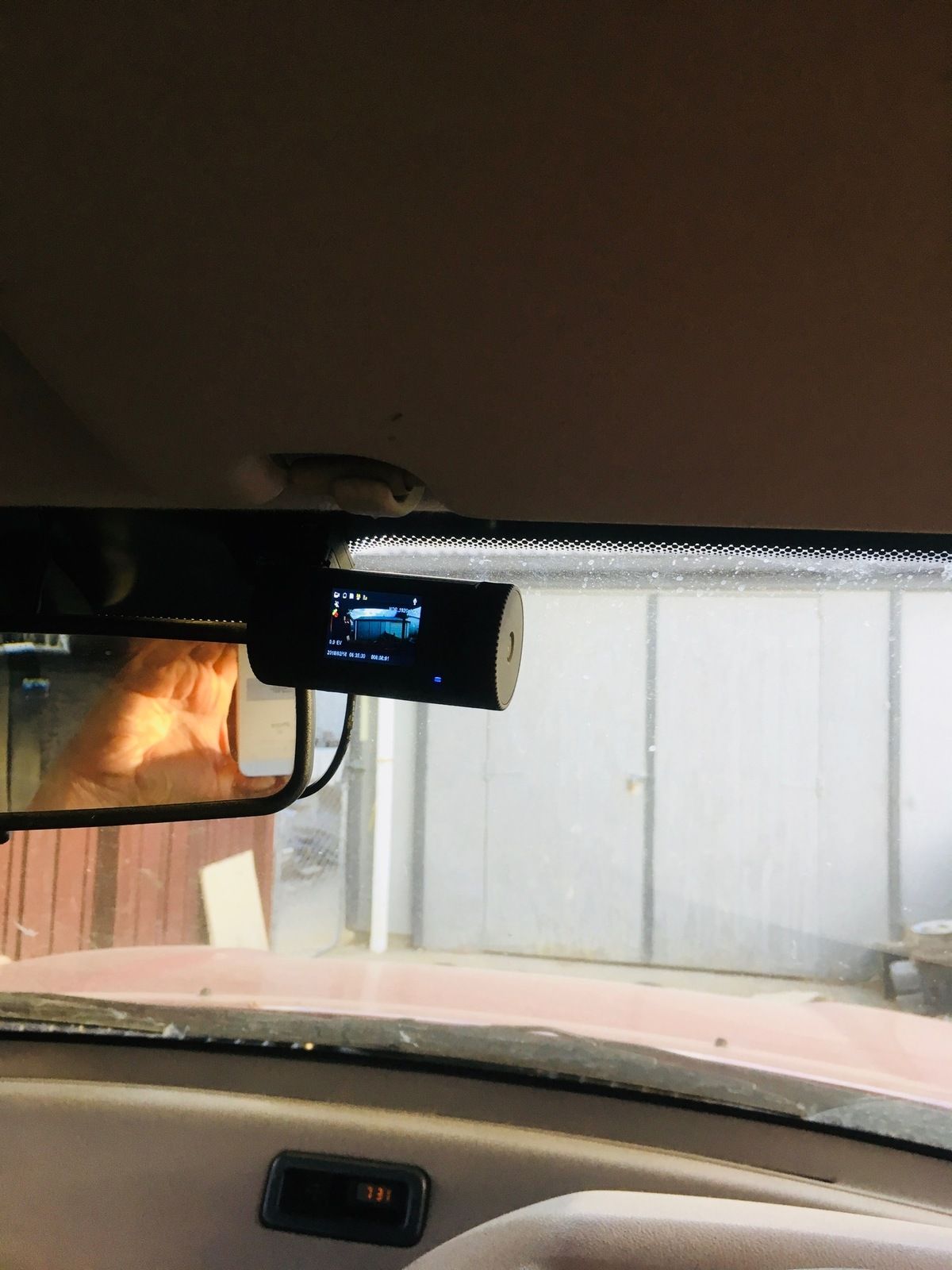

fitted DVRs - front & rear
Rear DVR.jpg

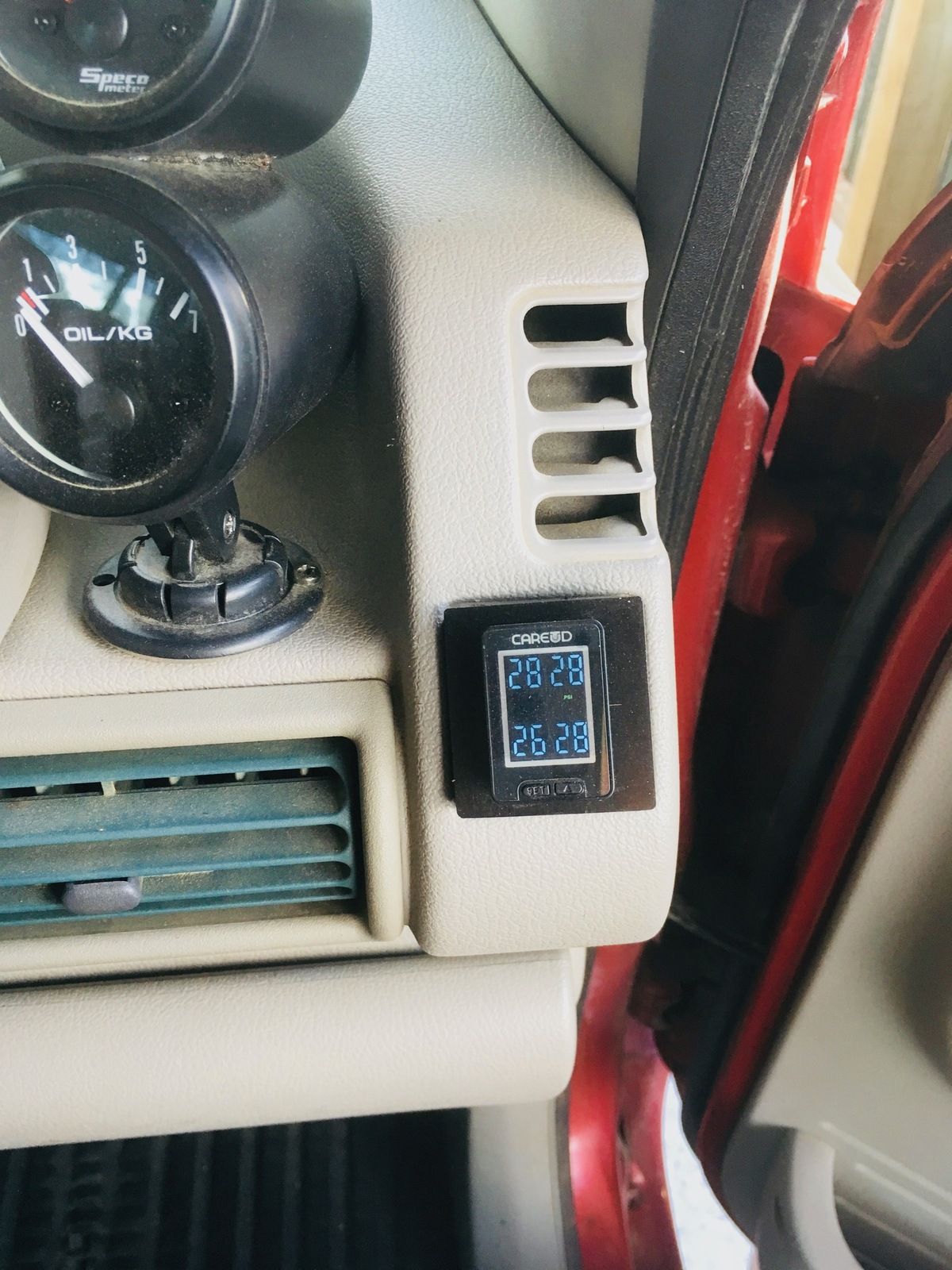

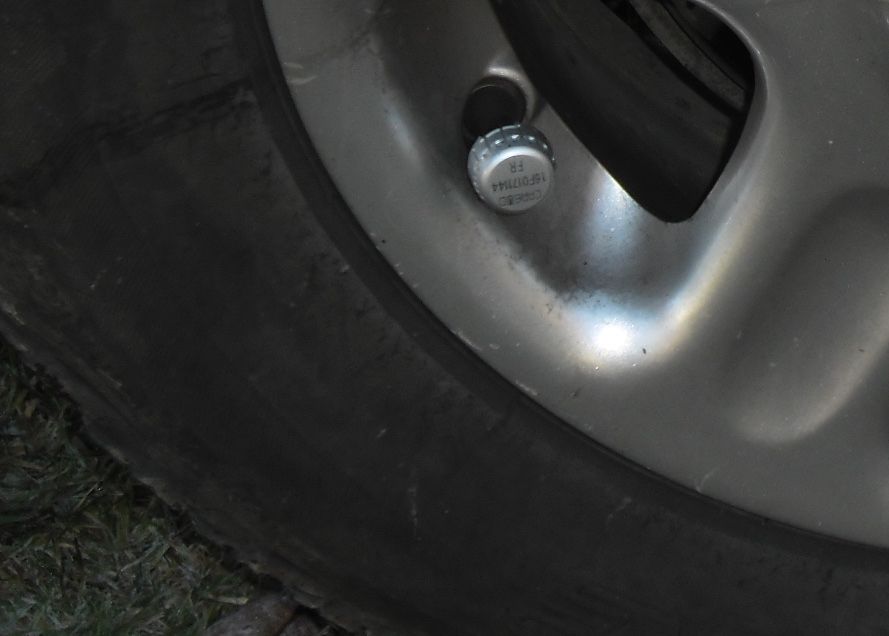

fitted a TPMS
TPMS 3.jpg
View attachment 145170
TPMS 2.jpg

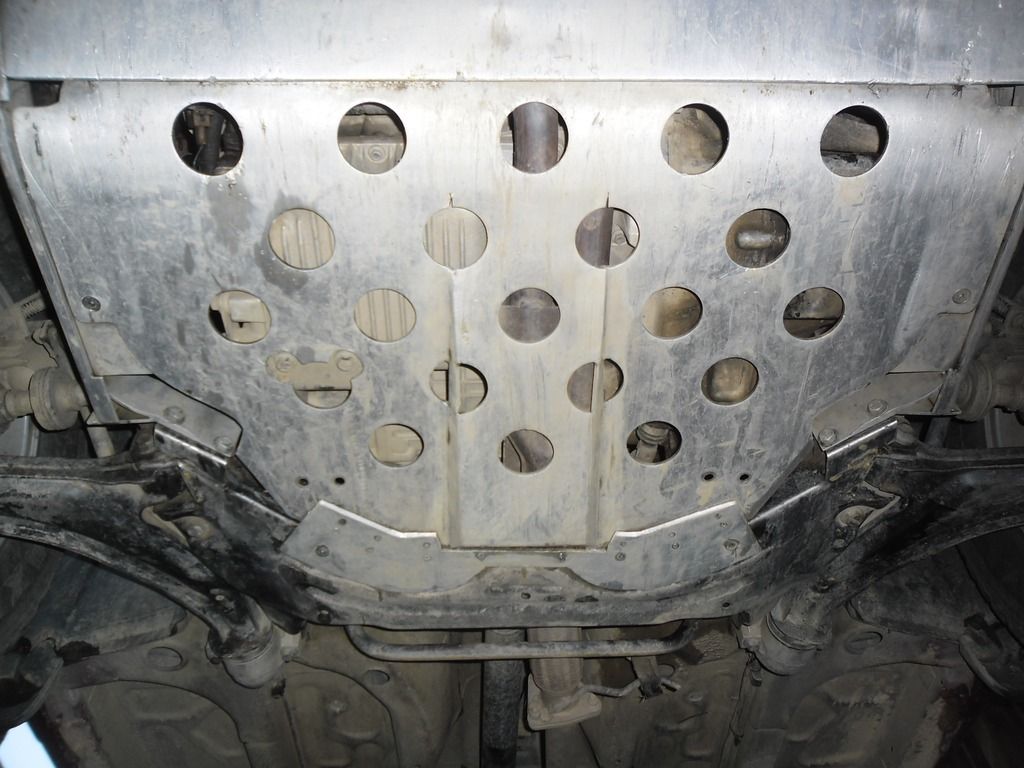

fitted a front alloy sump plate
sump guard in position moded.JPG

fitted a CAF & K&N Apollo AF

removed surface rust spots from leading edge of sills

made drain holes in front mud flaps
replaced mesh on scuttle air intake
fitted LED interior lamps

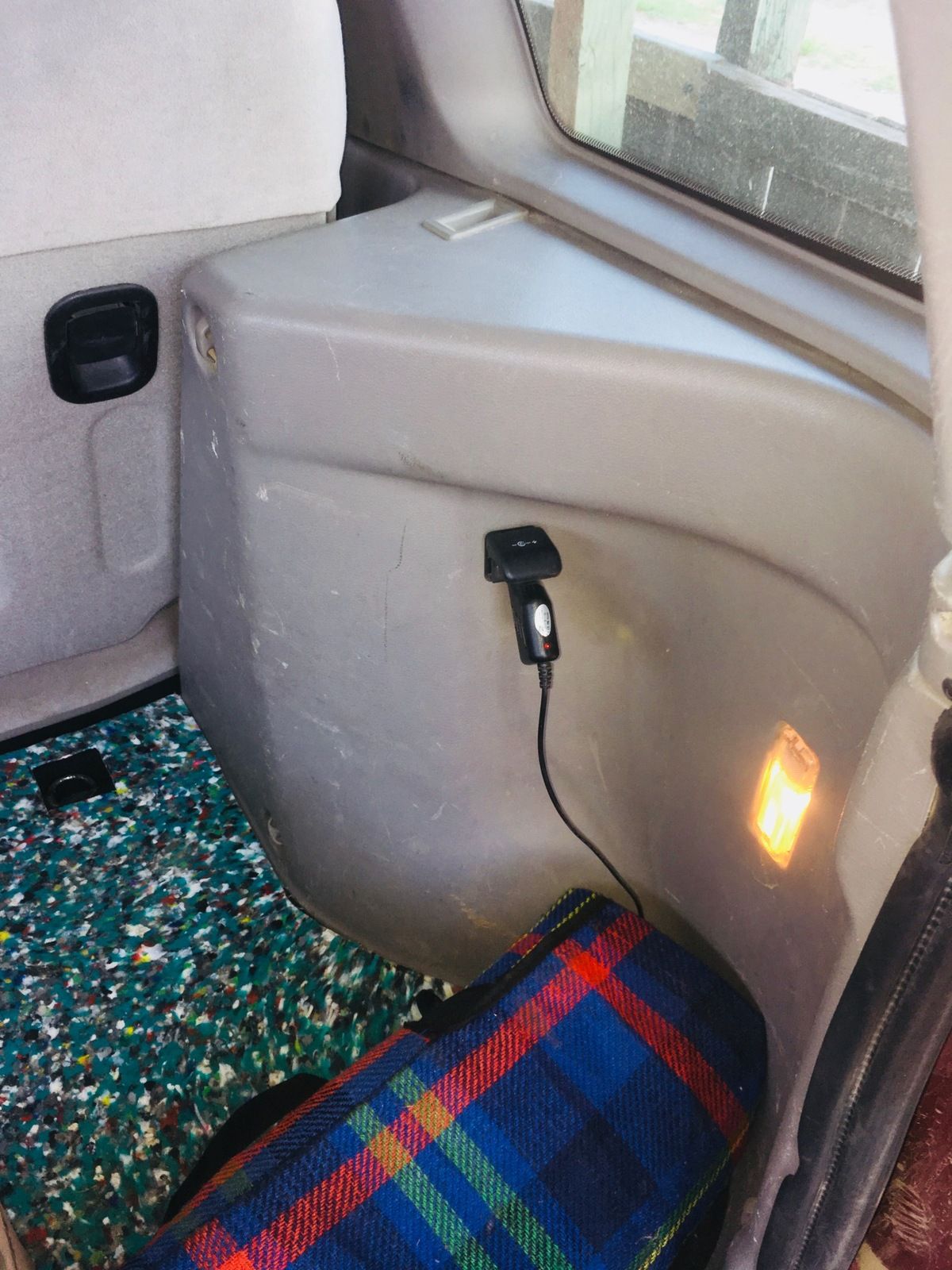

fitted auxillary power socket to load area
aux p-point 2.jpg

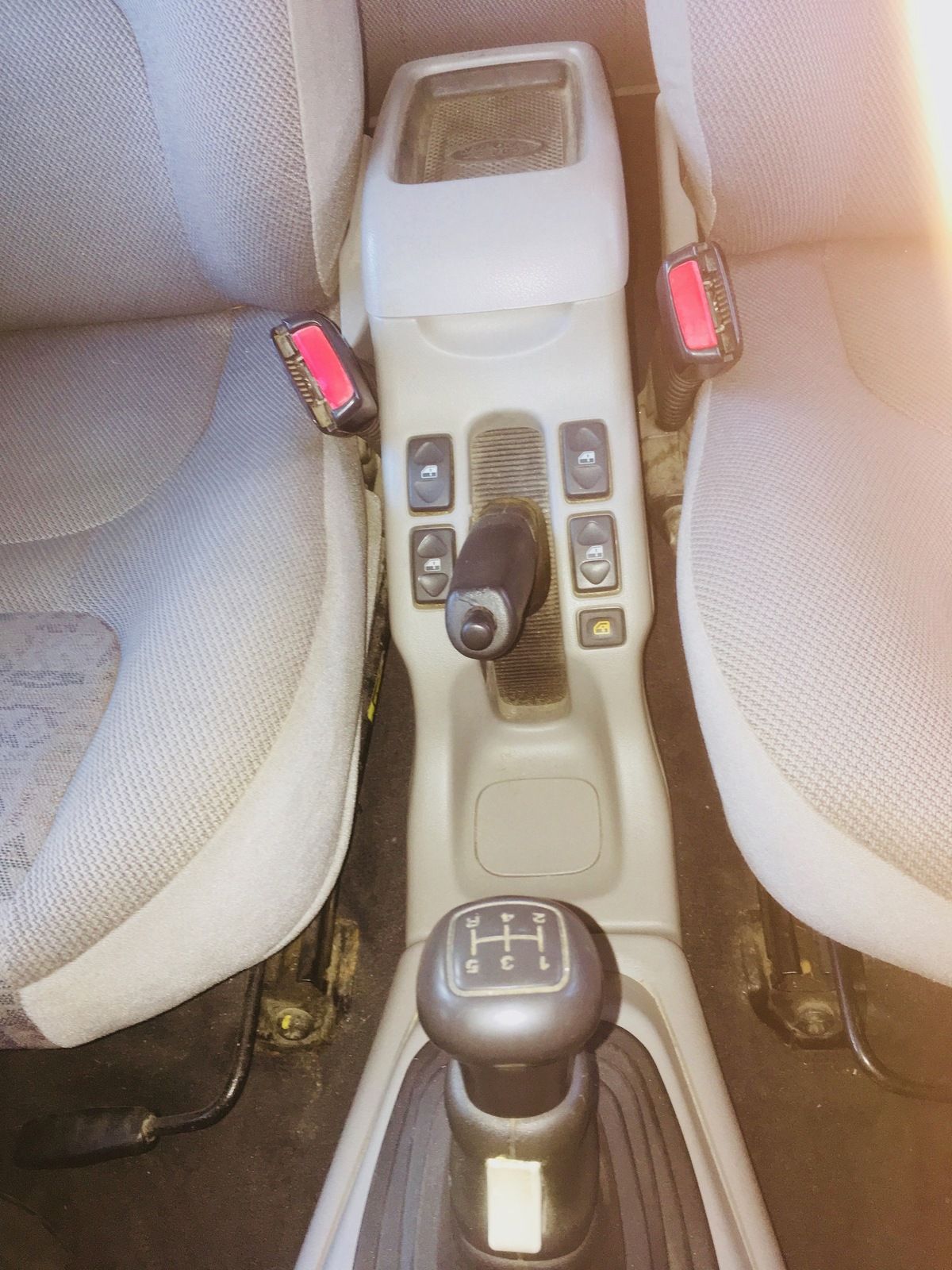

fitted a ‘cubby box’ arm rest to front
cubby box 1.jpg

sealed rusted sunroof frame

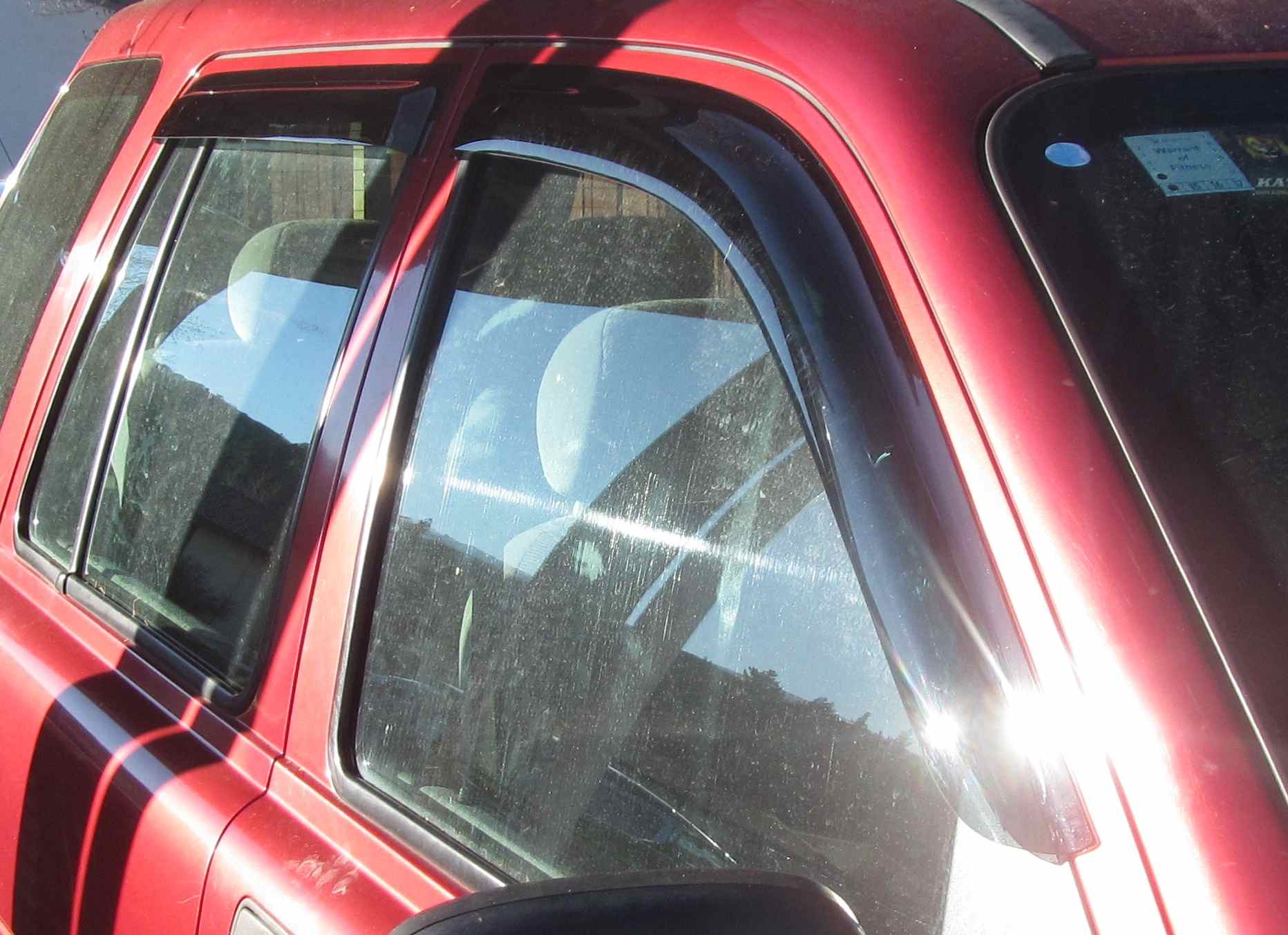

fitted window louvers
louvers 2.jpg

Bought a second set of 15" rims and fitted Maxxis Bravo 215 75 15 Mts

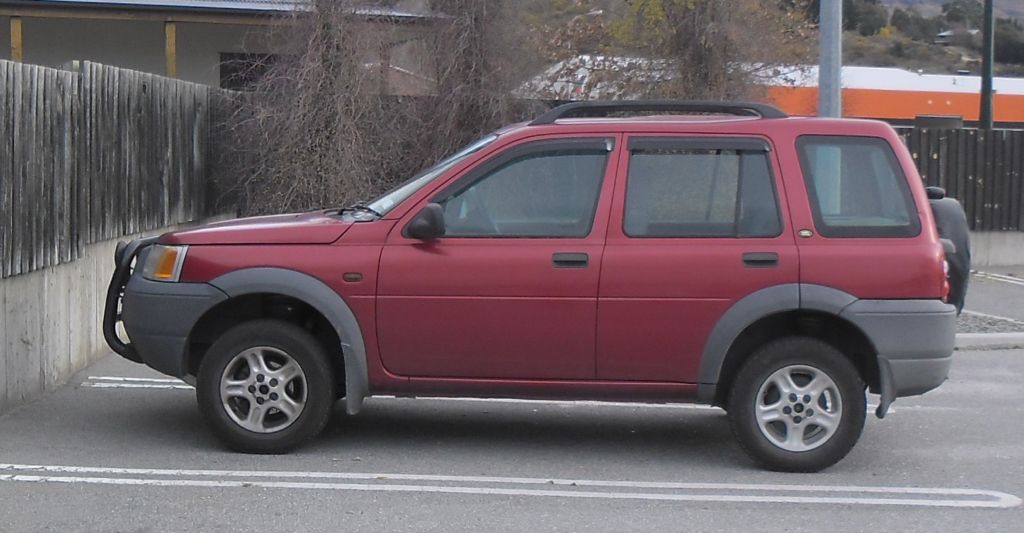

Bridgestone A/Ts 697
old tyres.jpg

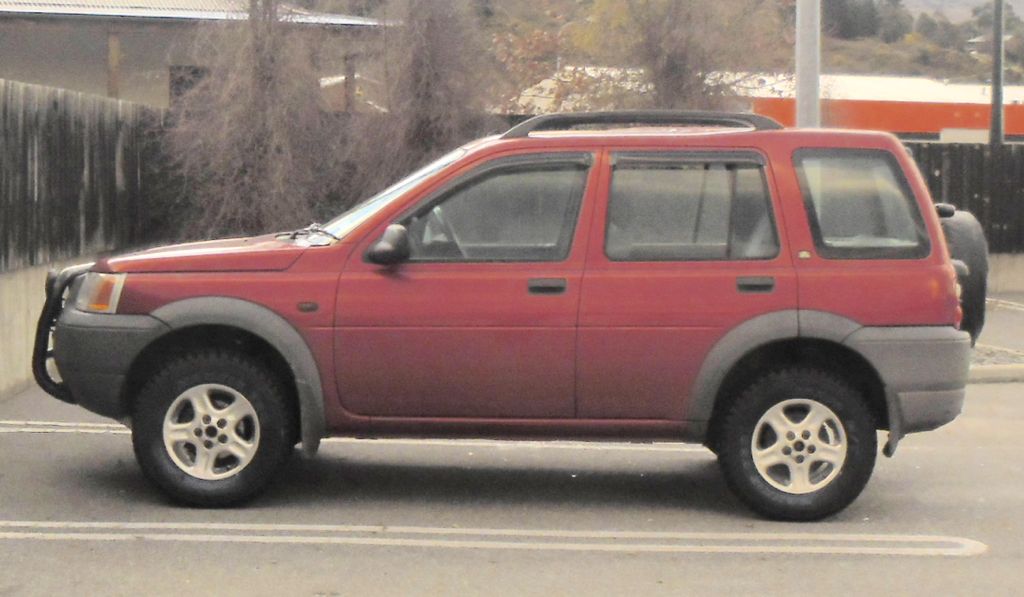

New Maxxis M/Ts
New tyres1.JPG

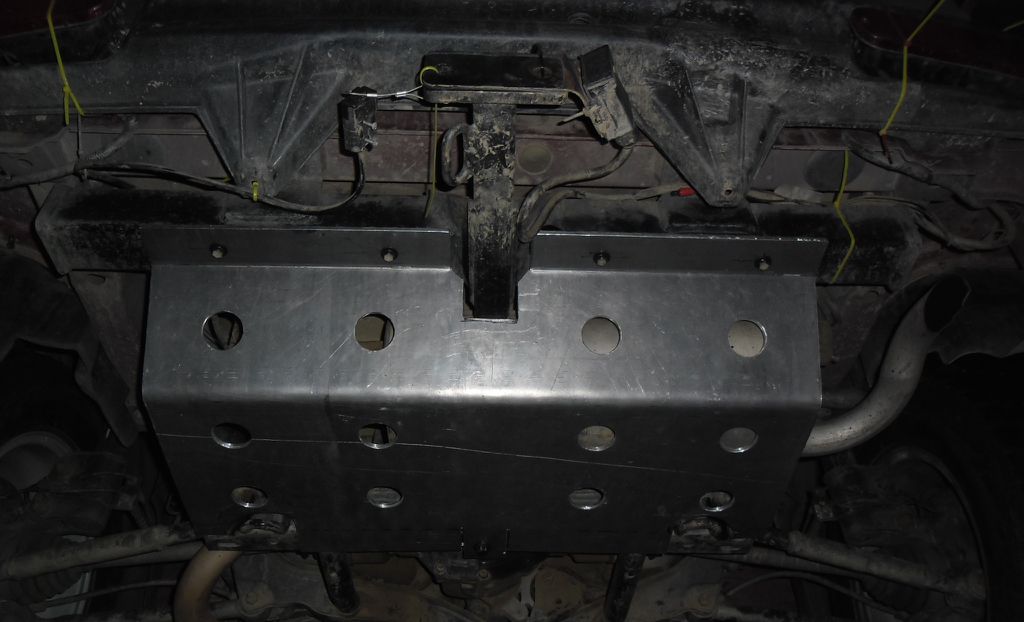

fitted a muffler protection plate.
rear undershield 2.jpg


Work still to do:
replace the front LH drive shaft OS [again!] √ now done along with the driveshaft too.
replace drop links - esp RH side
replace anti roll bar bushes - √ now done.
replace brake hoses all round and brake fluid √ now done.
replace centre diff' mount
replace rear muffler & rubber hangers √ now done
fit a rear facing DVR √ now done
fit 23mm white LEDs as rev' lamps √ now done
fit 23mm Red LED's rear fog 'lamps' √ now done but now removed - WoF fail = MoT
make and fit 40mm lift kit
make and fit bolt on recovery point [unbolt t'ball]
may fit a VVC inlet manifold as plastic ones are a weak point for IMG leaks

colour coded items will be done together - I hope!

Last edited:
You've done a great deal of work there - have you seen noticable improvement?

I like the idea of a coolant level sensor, might have to look in to that myself.

Foz

I'm pretty happy with the fuel usage. I commonly get 31 mpg. On a run I get about 34 and the best I've managed was 37mpg. Power wise it might pull a wee bit better in the lower rev's. Hard to say really as I'd have to drive another to compare!. It's not a powerful motor and does die on the hills a bit or when loaded up.
Those Robinson springs and the MTs do give me more clearance, probably 30mm above factory. I'm in the process of casting my own aluminium lift kit. I think I'll do a 40mm lift.

One prob' I've had is poor quality parts. I use UK suppliers and get OEM or Branded parts [eg Bearmach...] My new coolant expansion tank/bottle cracked in 10 months and I think my one year old radiator is weeping slightly low down on the right hand side as I've noticed a coolant stain in an odd place there. I'll keep an eye on that.

Off road it interesting to drive. You have to keep the rev's up to encourage the front wheels to spin bringing the rears into 'play'. So even in first gear I feel like I'm tackling climbs at quite a speed!
