dan24

New Member
hi all, i got some new ht leads and was good i changed each one, one at a time till i came to the last one when it didnt seem to reach, so i juggled them around so they all reach a plug now but im not sure there in the right place on the dizzy, can anyone tell me the positon of the leads on the dizzy please? its a 96 3.9 efi discovery.

after some research the order seems ok but can anyone confirm off there disco if the clips on the dizzy go between 8, 4 and 5, 7 please?

Last edited:

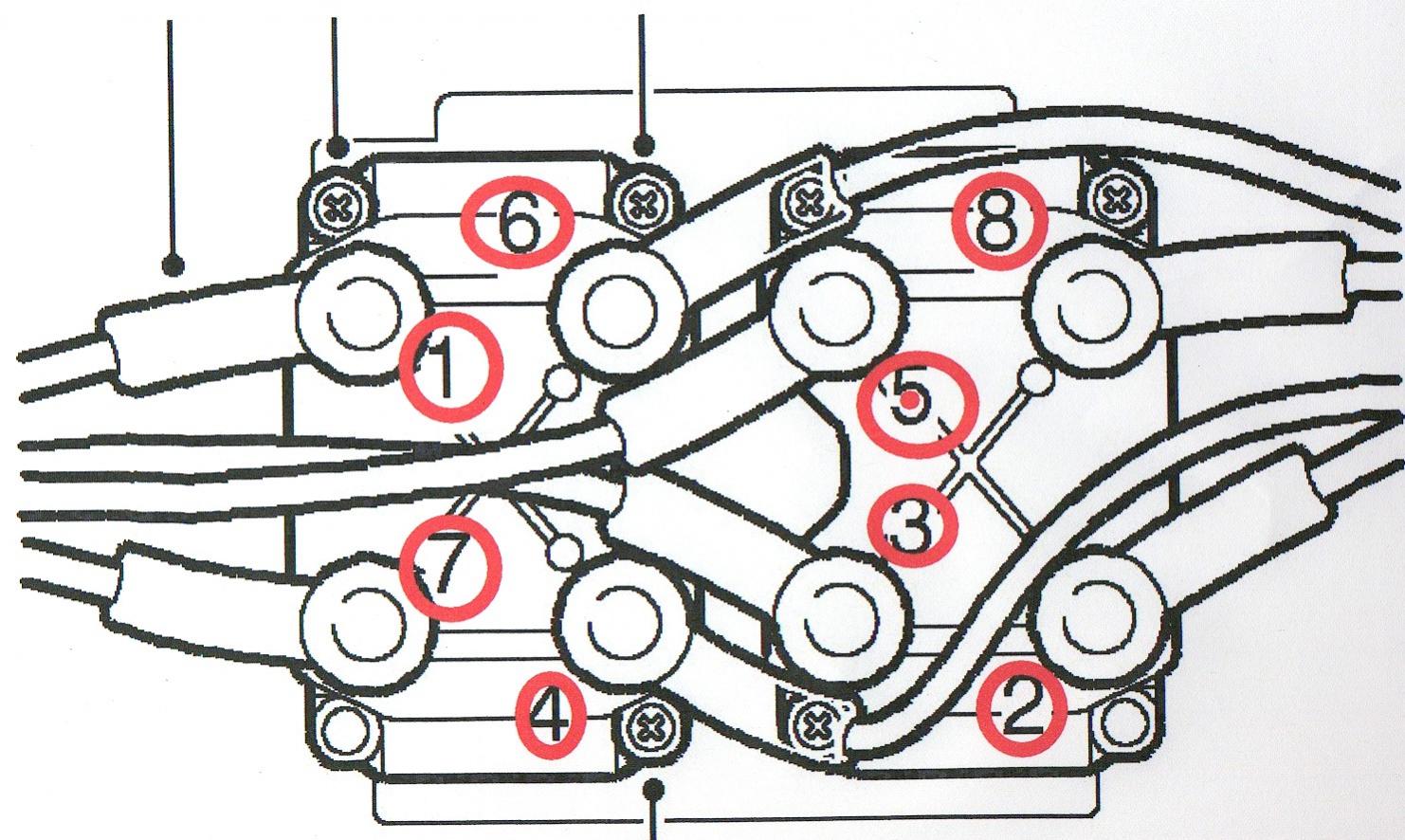

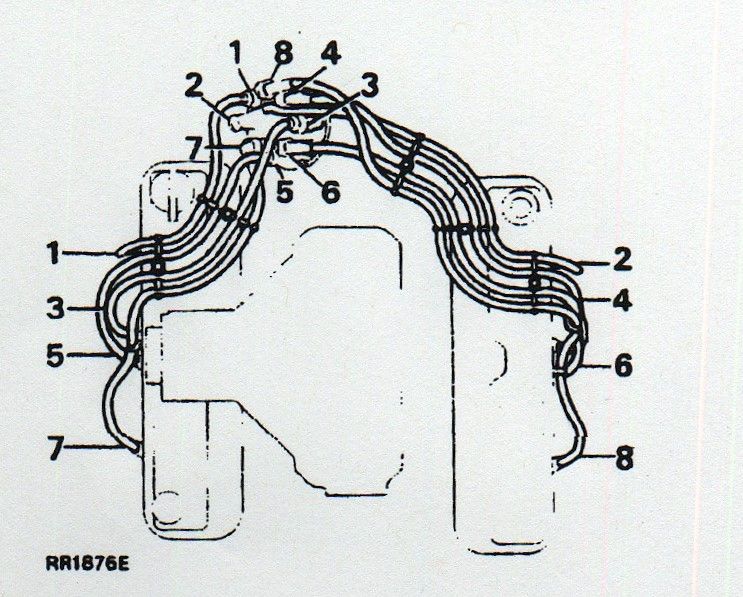

hope it's of help:)


Attachments

  • Scan-100303-0002.jpg
    191.7 KB · Views: 867
  • Scan-100303-0003.jpg
    93.8 KB · Views: 280
Last edited:
