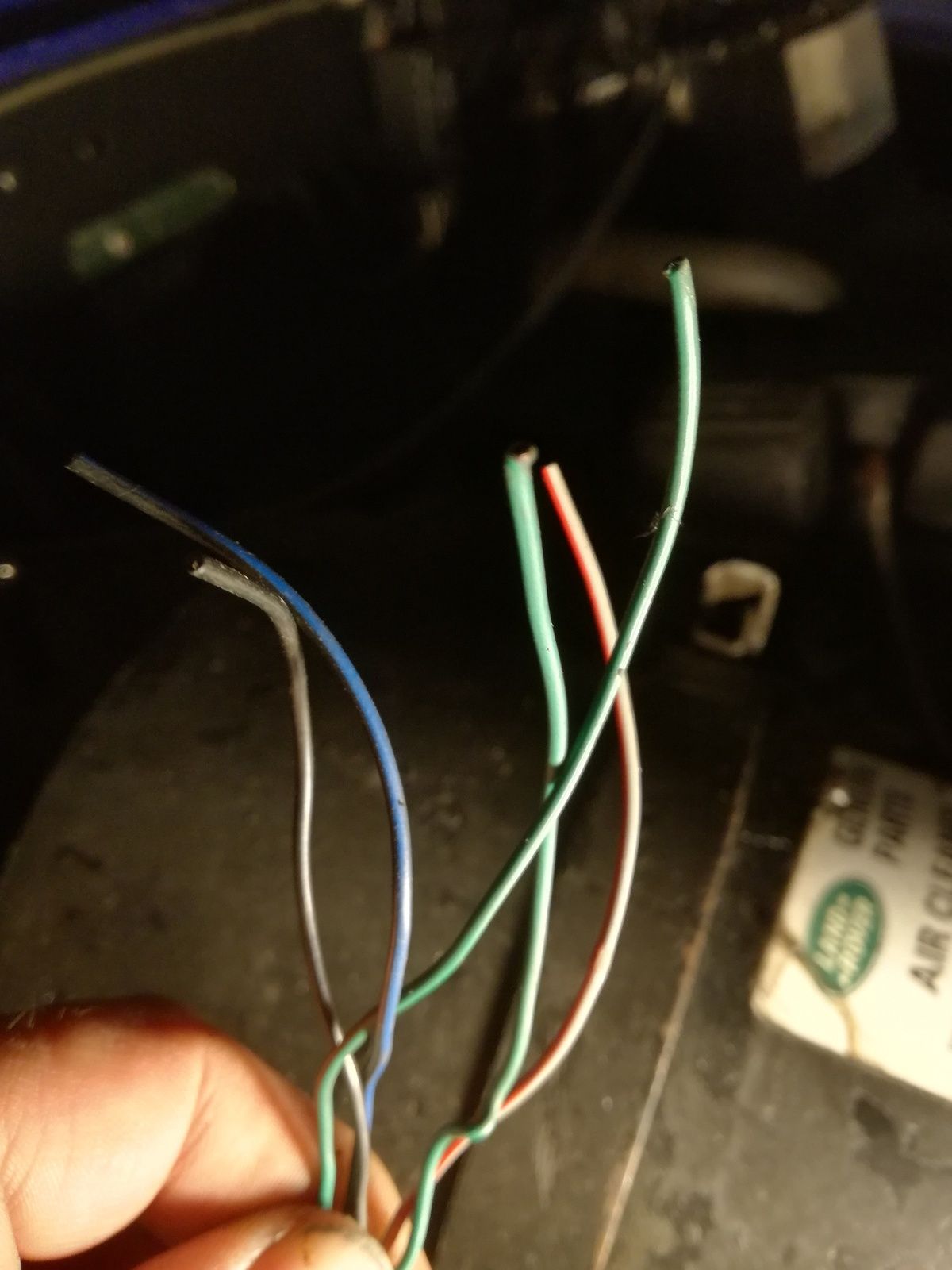

90 rebuild an up to the wiring part and have these wire not sure where they go
blue/black
green/brown
green
gray/red
black they come out just below air filter on the engine loom
its a 300 tdi
parts not wired up are rev-light diff lock switch hand brake switch
are these the wires can any on help am lost and dizzy chasing my tail for 2 days
90 rebuild an up to the wiring part and have these wire not sure where they go
blue/black
green/brown
green
gray/red
black they come out just below air filter on the engine loom
its a 300 tdi
parts not wired up are rev-light diff lock switch hand brake switch
are these the wires can any on help am lost and dizzy chasing my tail for 2 days
jamesmartin
Well-Known Member
blue black is diff lock,white yellow is hand brake switch,grey red is trans temp not used ,green brown rev switch, green is a live from fuse box, all blacks are just earthssorry had some cans picture above
90 rebuild an up to the wiring part and have these wire not sure where they go
blue/black
green/brown
green
gray/red
black they come out just below air filter on the engine loom
its a 300 tdi
parts not wired up are rev-light diff lock switch hand brake switch
are these the wires can any on help am lost and dizzy chasing my tail for 2 days
bethell5702
Member
thank you so much now i can finish the project i will get a picture of her on line 2 morro
