F

forever

Active Member

• Jan 17, 2014

• #1

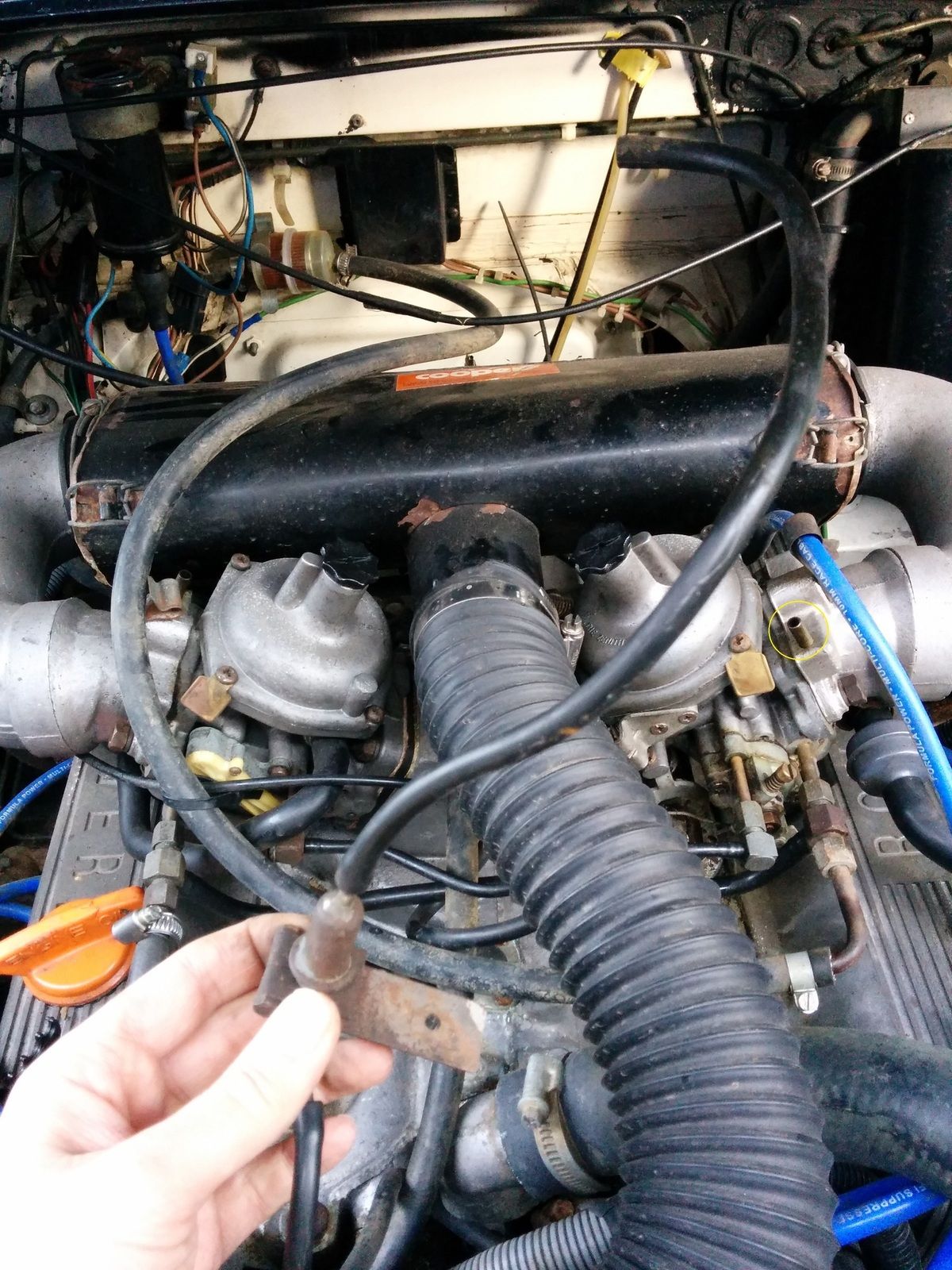

Adjusting the choke today and found this, any clues as to what it is and should one end be attached to anything??
thx



Attachments

•

  339.9 KB · Views: 211

MattMatt

Active Member

• Jan 17, 2014

• #2

Flame trap maybe? Where do the pipes go to/from?



F

forever

Active Member

• Jan 17, 2014

• #3

one end just seems to rest on the engine block the other i will trace, goes down past the dissy...



discool

Well-Known Member

• Jan 17, 2014

• #4

MattMatt said:

Flame trap maybe? Where do the pipes go to/from?

Click to expand...

If he knew that he wouldn't be asking



discool

Well-Known Member

• Jan 17, 2014

• #5

forever said:

Adjusting the choke today and found this, any clues as to what it is and should one end be attached to anything??
thx

Click to expand...

What u have your hand on is a Fuel Trap and mounted vertically on the block via the bracket, I don't know that matters but IIRC the right angle end is up the top, and as for the hoses IIRC one goes to the dizzy the other to the left hand carb (N/S when it left the factory.).
But if things are running ok with out it fitted etc etc but u may have to plug a couple of holes.

Don't think I'm wrong but I'm going back to when I fitted carb V8 into Capri



F

forever

Active Member

• Jan 17, 2014

• #6

thanks so i should be looking to plug the other end of the pipe in on the carb somewhere,



discool

Well-Known Member

• Jan 17, 2014

• #7

forever said:

thanks so i should be looking to plug the other end of the pipe in on the carb somewhere,

Click to expand...

I would think so, how about here LH carb circled in yellow



Attachments

•

  339.6 KB · Views: 170

Last edited: Jan 17, 2014

F

forever

Active Member

• Jan 17, 2014

• #8

Nice, thanks for the help, every day is a school day



F

forever

Active Member

• Jan 17, 2014

• #9

put it back on, what does it do/will it do now its attached??



discool

Well-Known Member

• Jan 18, 2014

• #10

forever said:

put it back on, what does it do/will it do now its attached??

Click to expand...

No doubt something to do with emissions then, and what it do? not a lot now



S

sid90

Member

• Jan 31, 2014

• #11

ive got one fitted on my v8 90, I will have a look in the day light and report back !
