kooky_guy · Jul 8, 2010

I'm going to have a go at doing mine this weekend. Not looking forward to it, but it's got to be done.

I've found a few walk throughs on this subject, but they all seem to be slightly different.

Anyone got any tips and/or suggestions of things to get before I start?
Anything else worth looking at while I'm in there apart from Cruise Control pipe? I need it working again by Monday so I'd hate to find out I've forgotten something once I'm halfway through.

Guy

klf400 · Jul 8, 2010

kooky_guy said:
I'm going to have a go at doing mine this weekend. Not looking forward to it, but it's got to be done.

I've found a few walk throughs on this subject, but they all seem to be slightly different.

Anyone got any tips and/or suggestions of things to get before I start?
Anything else worth looking at while I'm in there apart from Cruise Control pipe? I need it working again by Monday so I'd hate to find out I've forgotten something once I'm halfway through.

Guy

done both my rangies , and a few others -make sure you use the correct screwdriver to undo the clamp on the pipes if you round it of you are in trouble , i replaced mine with a allen screw so you can use a ball socket allen key , and also make sure the pipes are in squarely before you tighten up the screw .
all the rest is a fiddle but can be done without removing the dash

kooky_guy · Jul 8, 2010

Yi, I got the allen screw with the o rings.

It sounds like all the fiddly stuff is just to gain access to the screw. That right?

Ah well, fingers crossed...

klf400 · Jul 8, 2010

kooky_guy said:
Yi, I got the allen screw with the o rings.

It sounds like all the fiddly stuff is just to gain access to the screw. That right?

Ah well, fingers crossed...

correct

after you have done it you will think, ohh wasnt that bad after all

SpudH · Jul 8, 2010

While its all apart, it mighht be worth replacing the bulbs in the HEVAC control panel and spray a bit of pfte lubricant into the blend doors.

Oh yeah re the retaining bolt, when you're tightening it back don't over do it either. A member on RR.net did and it snapped the housing. Result - dash out job to replace matrix.

Willos · Jul 8, 2010

whatr size thread is the screw as I need to get one in the morning. The main stealers gave me a self tapper thge dip stick

Stufer · Jul 9, 2010

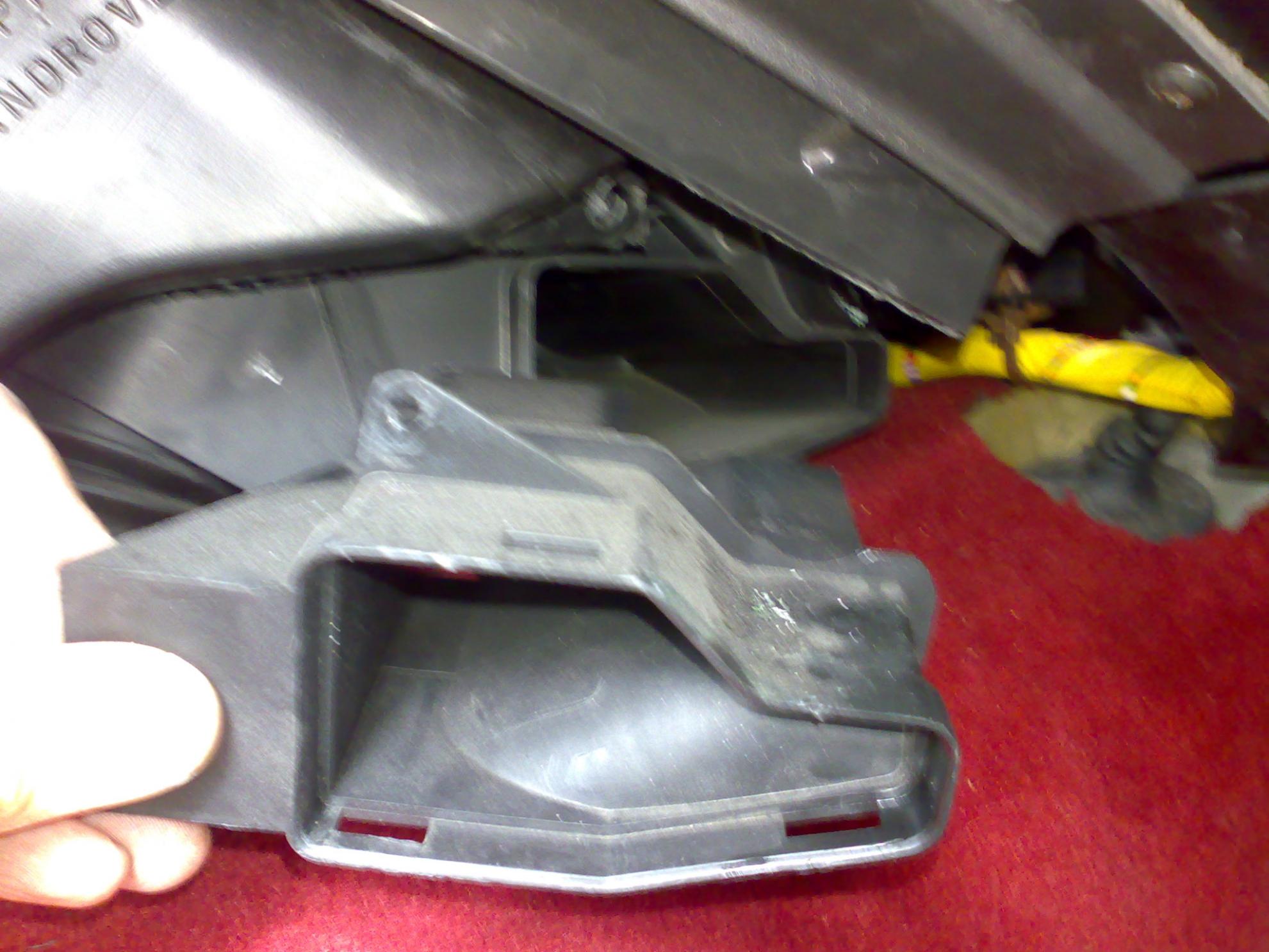

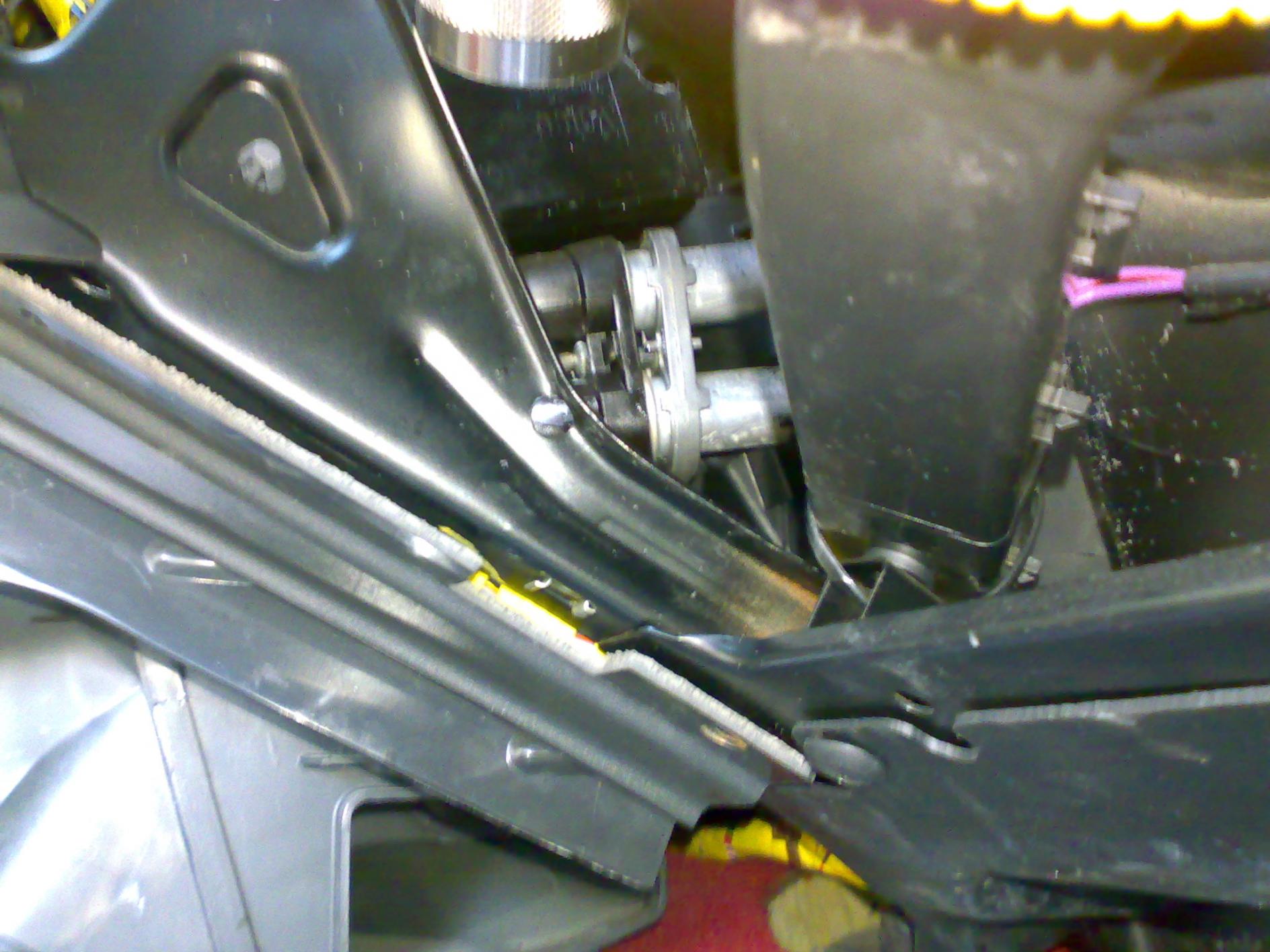

Pictures of my recent strip process for o-ring replacement, hope they help.

Stu

Stufer · Jul 9, 2010

some more....

Stufer · Jul 9, 2010

and more....

kooky_guy · Jul 9, 2010

Cheers for the pics Stufer.

Not sure what size the screw is - I got it in a 'kit' with the o rings on fleabag. I assume it's the right size.

Bit late to do the bulbs as I don't have any and probably can't get any, but I'm sure I'll enjoy doing it all again when they go!!!

Guy

Stufer · Jul 9, 2010

...anyone got some camera batteries?....

Refit is the reverse of removal....

So what's at the end of the rainbow? Gold? No, a Rangey with new heater matrix o-rings.

Willos · Jul 9, 2010

great pics. Tried to get the screw out again this morning but it looks like the chop for the air vent that goes down so I can get to it.
Have we a how to do section on this forum as those pics are just what the doctor ordered.
Now wheres my duct tape to put that thing together ?

rewmer · Jul 9, 2010

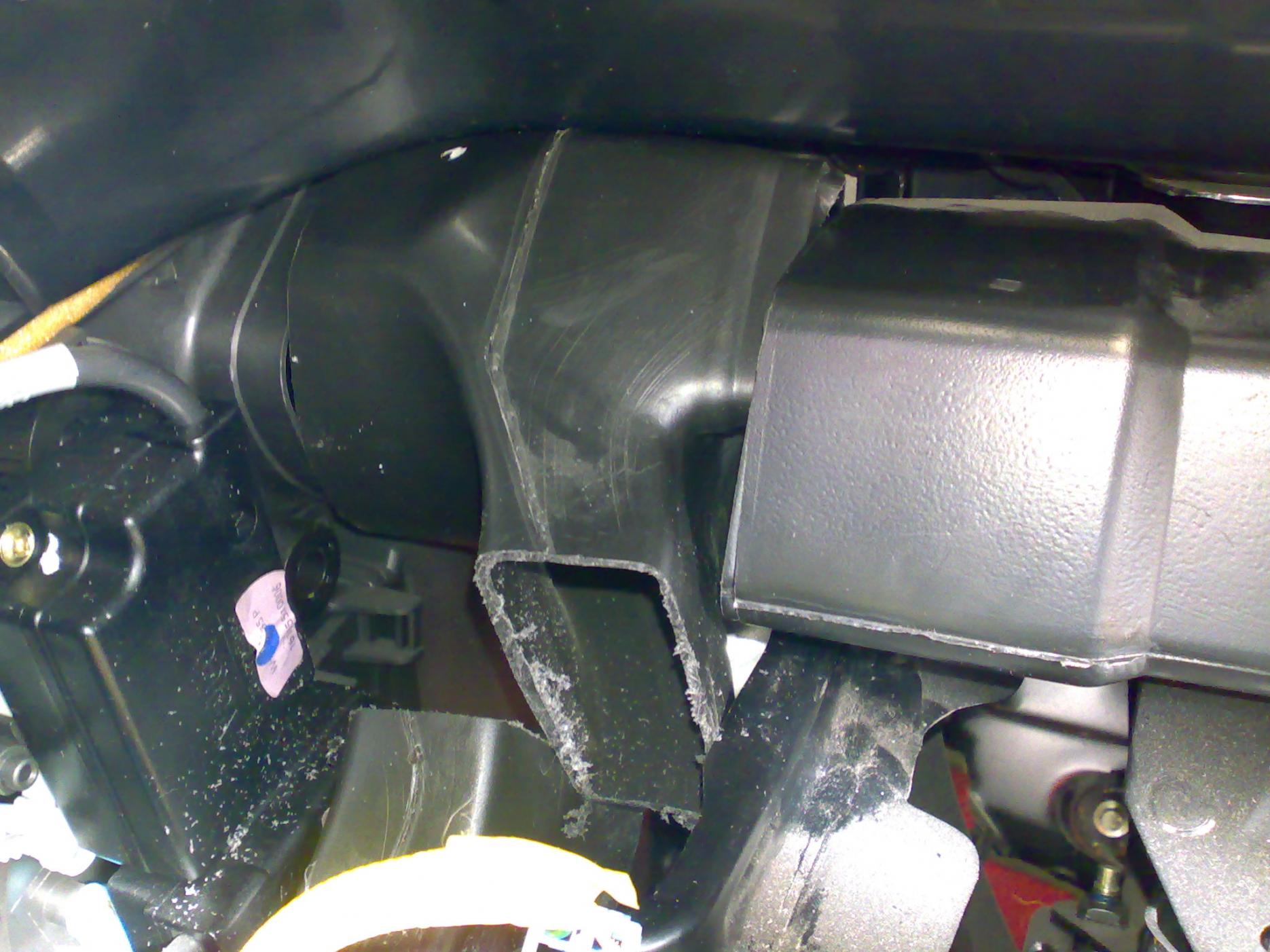

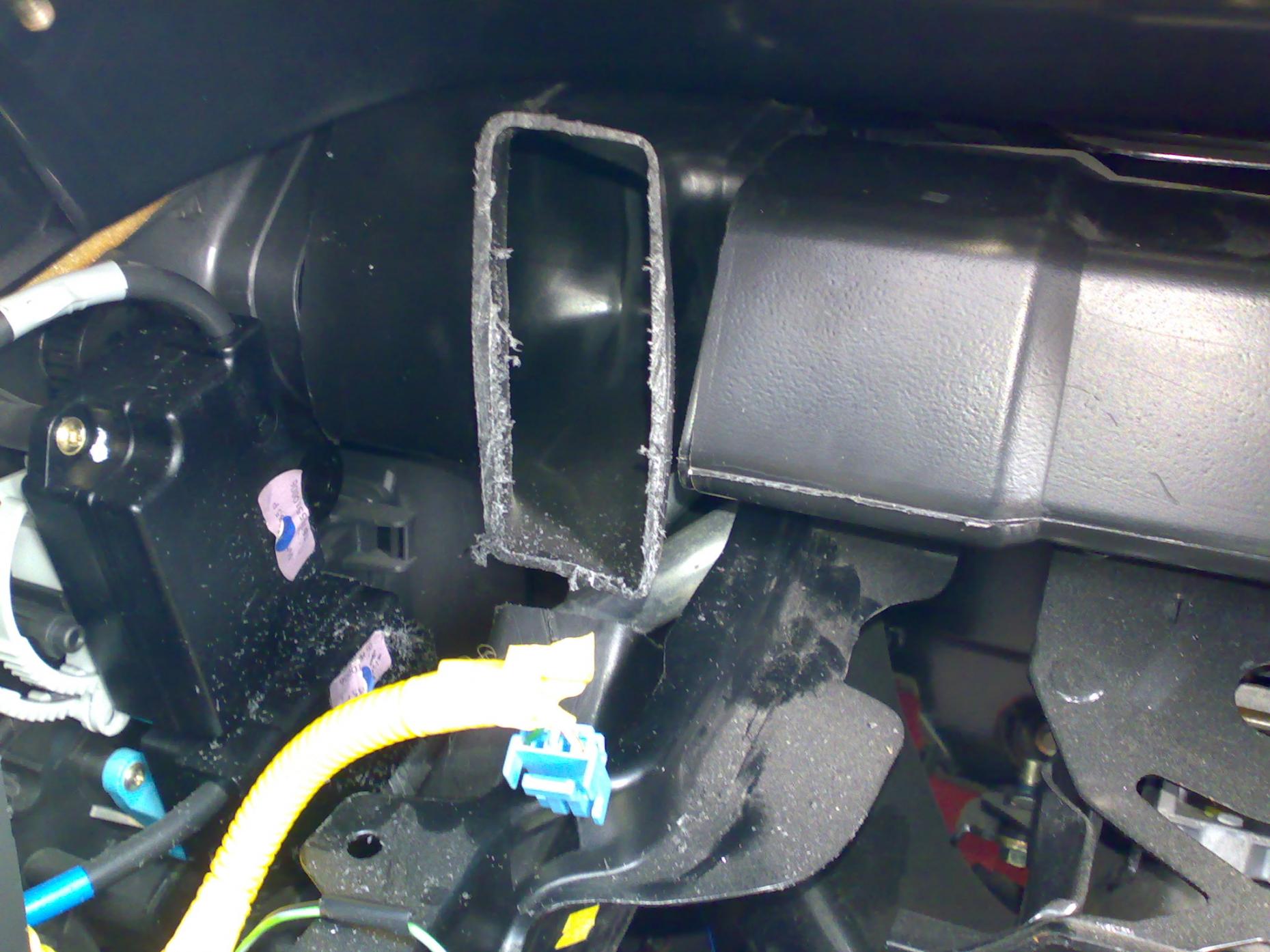

I found a drywall saw was just right for cutting the vent, but be warned - dont go to mad with it..

The screw is an M5. My other tip is to make sure everything is clean and the O rings are lubricated with a little vaseline and dont overtighten the screw on re-assembly.

niloc1200 · Jul 9, 2010

i did mine with that vent pipe still in there just disconnected .

frosty2008 · Jul 10, 2010

stufer

did you disconnect the battery before removing the instrument panel??

Irishrover · Jul 10, 2010

The screw is M5 , about 30 mm long...need a 4mm A/F ball ended allen key

Andyp38 · Jul 10, 2010

Nice set of pics Stufer :clap2:

Do you have any more in that series for those of us (me !) who will probably end up doing this at a later date please ?

Andy..

Edited to say that i didnt see half the photo's first time round, as my pre war computer didnt load them,doh !!!

kooky_guy · Jul 11, 2010

Just want to say a big THANK YOU to Stufer for his photos. They were probably the most helpful thing that I had for this job.

All the best.

Guy

frosty2008 · Jul 11, 2010

i will second Kooky's sentiment. the pics were invaluable helped me no end.

o rings replaced all ok

cheers

kooky_guy · Jul 12, 2010

Duh. Guess which div forgot to reconnect the fuel filler flap button...:doh:
