2004 HSE 122k

Hello to all.
Fom all the things i got to bring my FL to Portugal the only thing i didnt predict was the headlights.~
In my country there arent many face lift around . And the ones we find they ask the earth for the headlights around £300 per headlight.
I need them to go throught the Inspection (MOT) here so i can make it legal. I know that the focus of the head light is the mirror part inside.
Some said that if we low the headlights down it will do the job...but i dont think it will.
Any ideas?
For now im with the eurolits stickersi have at least 6 months to find a solution.

Any ideas or headlights LHD ?
Many Thanks



Snaggapuss

Active Member

• Jul 31, 2021

• #2

don't know if this helps but here in sweden you can get them slightly cheaper but then there is the postage.
https://www.reservdelar24.se/bildelar/land-rover/stralkastare/freelander-2-fa.html
https://www.trodo.se/huvudstralkast...BcJD3cvmHqEFbmQtS2fB8TEPX5suKdywaAn1XEALw_wcB
goes you'll have to use google to translate. Have you tried other european countries such as Holland and Germany for spares.



anubis757

Active Member

• Jul 31, 2021

• #3

Thank you Sanggapuss i saw those one too , but they only make for the Freelander 2.
Germany they are even more expensive, didnt look in Holland dough



J

Jayridium

Well-Known Member

• Jul 31, 2021

• #4

@anubis757 Seeing as you are quite creative with your engineering, why not retrofit projector modules with a LHD beam pattern into the existing RHD halogen housings? For $45 these have to be worth a shot?

https://www.ebay.com/itm/324586125328

Those use a H1 halogen bulb, so wouldn't even fall fowl of any legislation regarding Xenon conversions.



anubis757

Active Member

• Aug 1, 2021

• #5

Thanks Jay i guess this is a very good solution specially i can fit a H7 and in a way not changing anything legal on the Headlights.
Do you think this will do?
https://www.ebay.co.uk/itm/25462072...var=554368102022&_trksid=p2060353.m1438.l2649
Many thanks



anubis757

Active Member

• Sep 15, 2021

• #6

Hello help for this projectors...
I bought them.
https://www.ebay.co.uk/itm/383548157906?ssPageName=STRK:MEBIDX:IT&_trksid=p2060353.m2749.l2649

It say its for h1 bulb so that means ....Fl low beam is H7 and high is H1 how can i do it?
so that means ony the H1 will work as low and hig beam?
Many Thanks



Nodge68

Well-Known Member

• Sep 16, 2021

• #7

anubis757 said:

It say its for h1 bulb so that means ....Fl low beam is H7 and high is H1 how can i do it?
so that means ony the H1 will work as low and hig beam?

Click to expand...

The bulb is a different shape, but it will still light up, once the wiring is corrected.
The only differences between the H7 and H1 are the physical dimensions, electrical connections and light output, the H1 being about 30% less.
The new projectors hold the H1, so you don't need to worry about the physical fitting, however if fitting a different bulb seems difficult, then you'll struggle to install projectors, as you need to take the lamp unit apart, and cut the reflector to install the new lamps, which takes skill and understanding.



anubis757

Active Member

• Sep 16, 2021

• #8

Thank you for your reply.
Follow my thoughts to see if Im right
The back part of the headlight needs triming so it fits flat for the projector.
Then I install the H1 bulb. On headligh the wiring i take the positive to the connector on the bulb and the negative can go on the ring around the bulb so i have ground, will it work?
Another thing if i connect the selenoid to the + and - on the high beam both will do high beam?

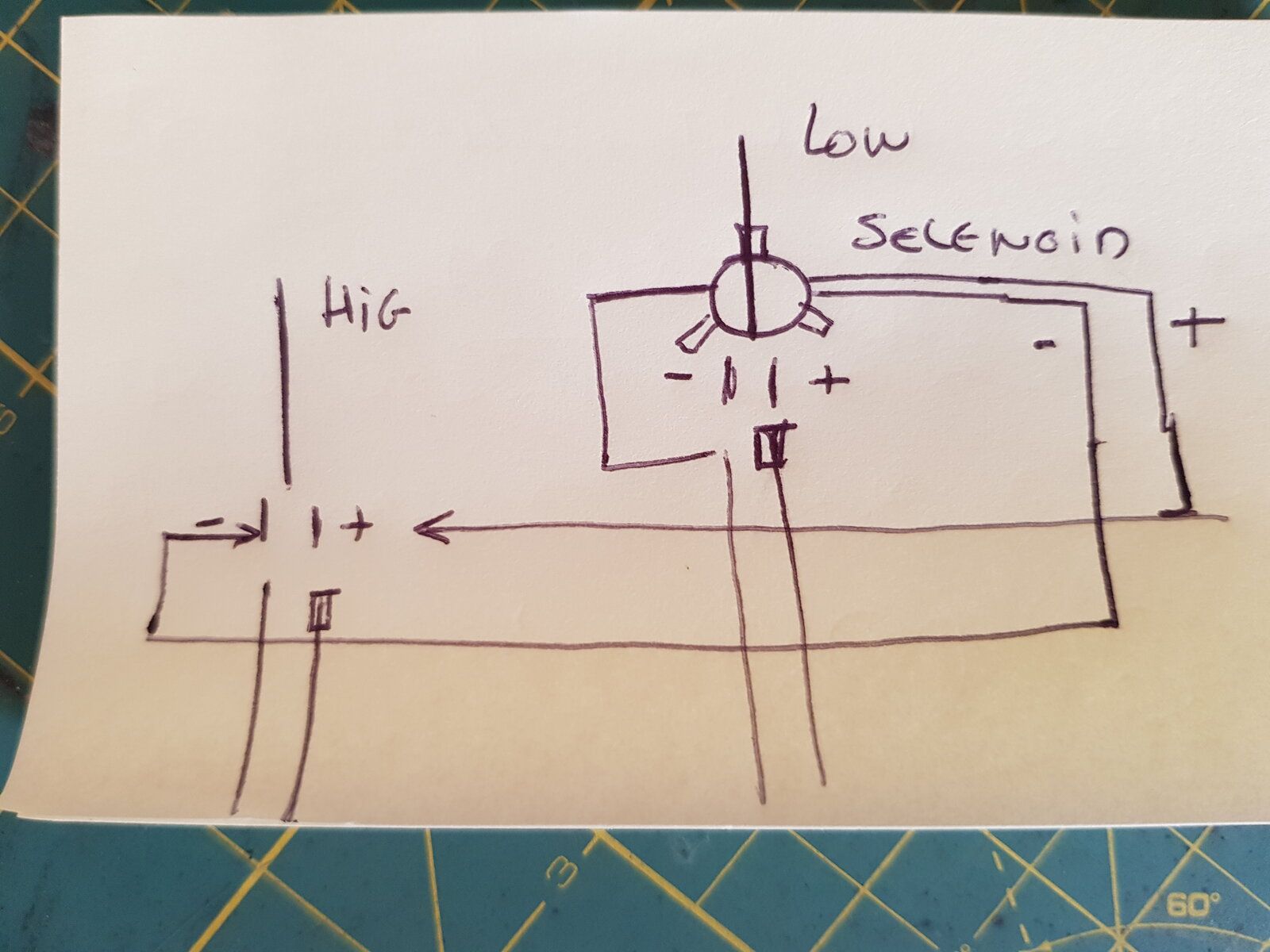

i mad a rough drawing ......
Many Thanks



Attachments

•

  156.1 KB · Views: 93
