Lazydave

Well-Known Member

• Jan 27, 2018

• #1

Believe it or not i removed the rear step from the Disco 2 and left it out for the scrapman. It had rotted away where the strut fits.
When looking for an alternative i did not realise how expensive they are. I ran outside and rescued the step.
Anyway today i have managed to repair it.
What i need is the screw on end off the strut that fits on the rod end. This has disappeared with the rotten bit.
Perhaps someone has replaced a faulty strut and still have the old one knocking about?
Thanks in advance.



brian47

Well-Known Member

• Jan 27, 2018

• #2

I take it you're looking for the top bolt, the one on the plate which fits to the chassis.

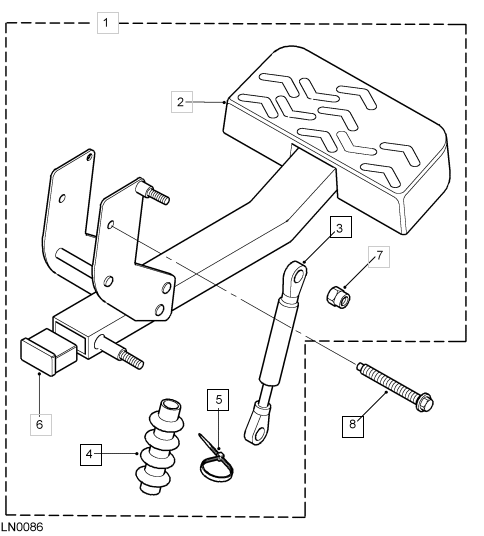

As you can see from the diagram, both of the bolts which fasten the ends of the gas strut are permanently fixed in their locations so it looks like you're going to have to fashion your own method of securing the strut.
Yeah, the rear step assembly ain't cheap at 200 plus quid.



Lazydave

Well-Known Member

• Jan 27, 2018

• #3

It's the actual screw on end that goes on the strut. The lower one in the picture. And maybe the rubber boot.



brian47

Well-Known Member

• Jan 27, 2018

• #4

I doubt that you'll get hold of one of those bottom screw on eyes, but the gas strut is available from a number of suppliers, part number KVL100040 prices range from 16 to 60 quid depending on supplier and quality.

Check out https://www.google.co.uk/search?sou.......0...1c..64.psy-ab..0.0.0....0.oV1ZHqOaXck
The part number for the boot or gaiter is KVM100000 and it's held in place with an ordinary cable tie.



Lazydave

Well-Known Member

• Jan 27, 2018

• #5

Many thanks for your help. Didnt want to spend on a strut if i could help it as mine is ok. She who must be obeyed says i cannot spend anymore on it yet hence trying to get just the screw on end.



brian47

Well-Known Member

• Jan 27, 2018

• #6

Looks like a short bit of bungee cord then.



Jamiegreen

Well-Known Member

• Jan 27, 2018

• #7

Sorry couldn't quite understand what part you was talking about, is it one of the numbers listed on that diagram, or maybe circle it



dieseldog69

Well-Known Member

LZIR Despatch Agent

• Jan 27, 2018

• #8

A guy I worked with had a bit of 5mm plate with two holes in it, bolted at the top and he has drilled the stud on the step to accept an R clip, just move the bar to upright position and slide it over the stud and push the clip in, ok it's manual, but it works.



Jamiegreen

Well-Known Member

• Jan 27, 2018

• #9

In that case maybe just a new strut



Last edited: Jan 27, 2018

Lazydave

Well-Known Member

• Jan 27, 2018

• #10

Jamiegreen said:

Sorry couldn't quite understand what part you was talking about, is it one of the numbers listed on that diagram, or maybe circle it




Its the eyelet on the end of the strut.

Click to expand...



Lazydave

Well-Known Member

• Jan 27, 2018

• #11

Just pinched one off our lift up bed. Alas it is the wrong thread.
