Hi All!

Just wondering if anyone can help!

I want to put a hand throttle in my 2.25 Petrol Ninety. I've managed to get all the bits accept for the assembly ERC9708.

Does anyone know where I might find one or got one in the garage they don't want and I can buy?

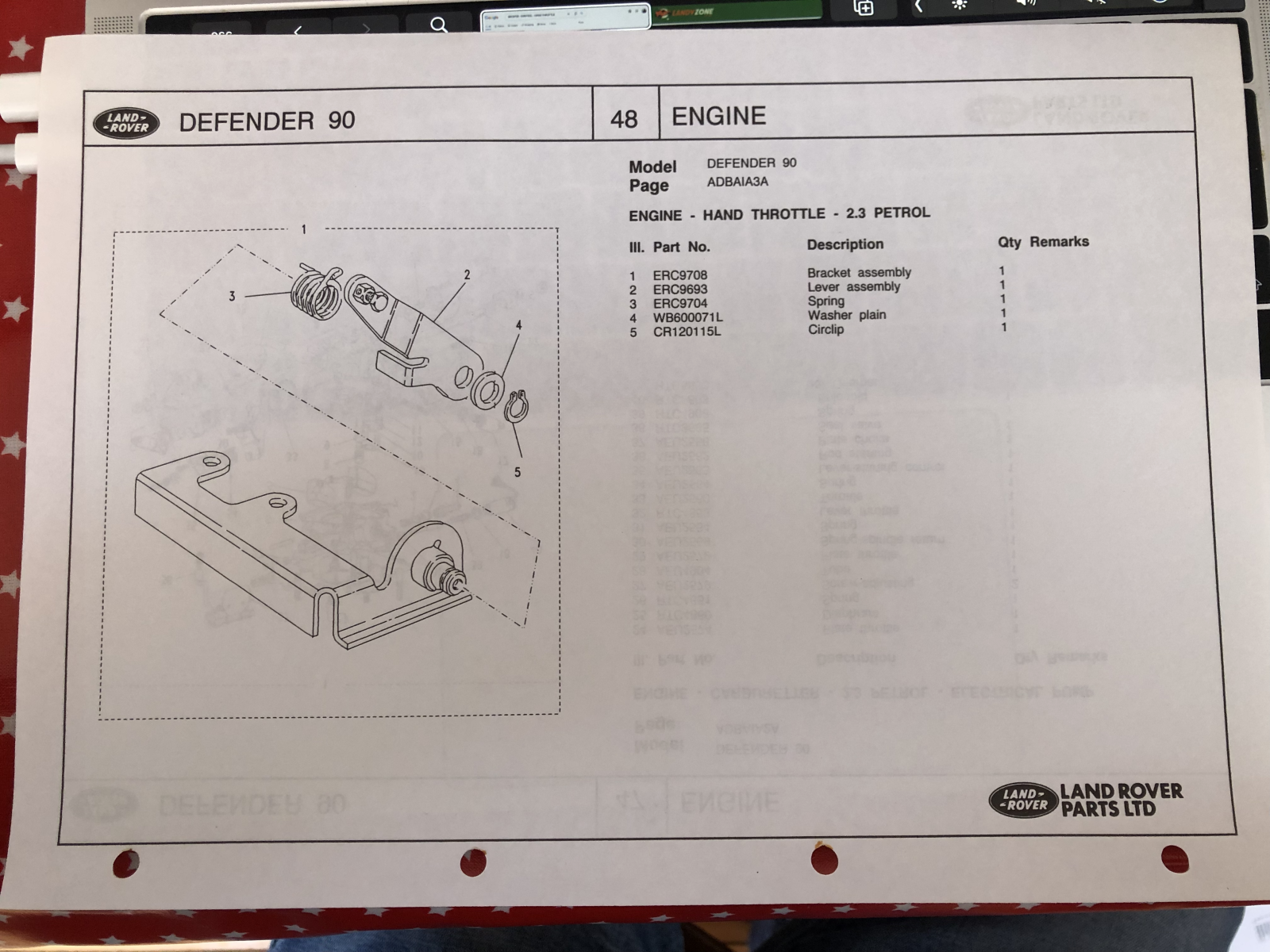

See diagram for pics.

Also, and more importantly does anyone know where this bracket and bits actually goes?

Does it fit on the webber carb somehow?

If anyone has got one fitted I would be very grateful of some photos.

Any info at all would be amazing.......

Many thanks,

Paul.

Hi Paul, I was just thinking exactly the same for my new installation! I've a hand throttle in my 2a, and it's very useful so want one for my 110.
Could this fitting bolt on to the carb mounting studs? and the little tab activates the quadrant shaped part where the throttle cable fits?
Andrew

Hi Andrew
Sorry for the delay…..
Yes I think you might be right. The lever catches the existing spring loaded cable attachment.
It looks like I’m going to have to make something, but that won’t be until winter now as I’m busy with work. If you figure it out keep me posted! Anything I find out I’ll post here
Cheers for the reply it’s clearly not a popular subject!!!!
Paul
