May help get an answer if people knew year of vehicle and engine.

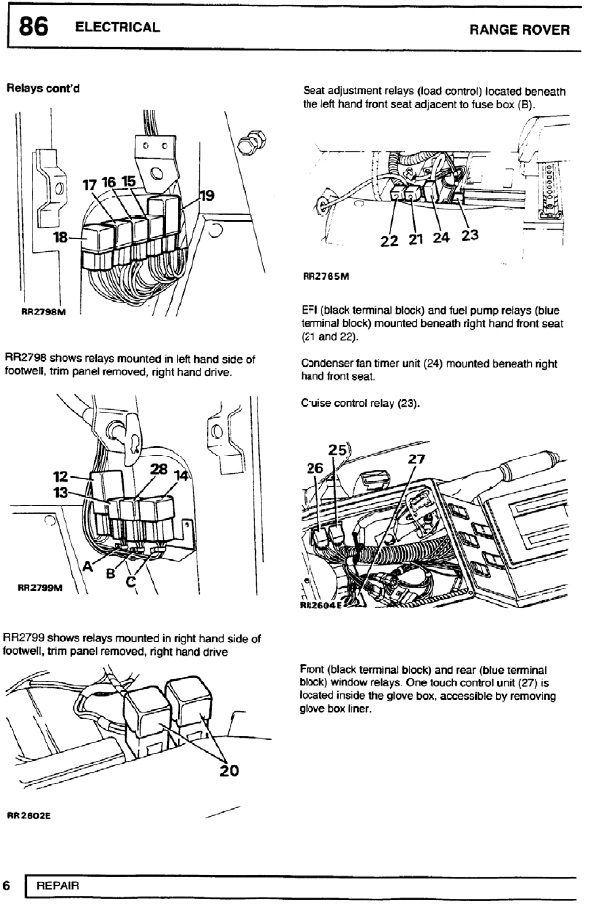

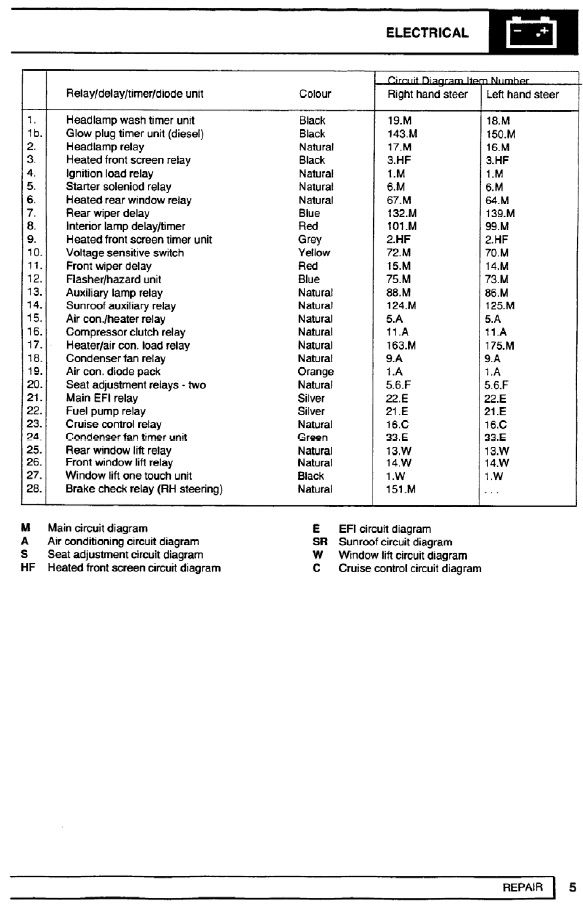

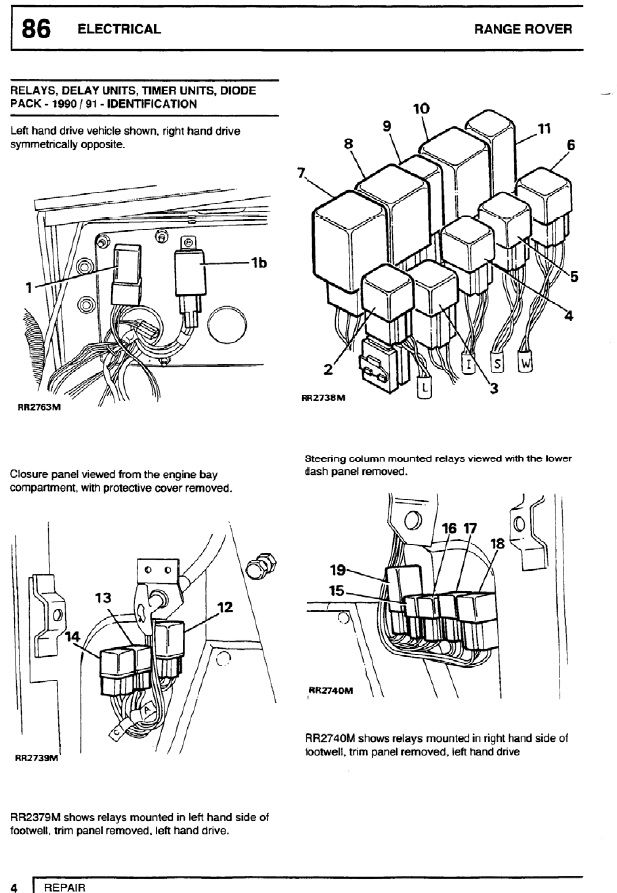

As Attached....

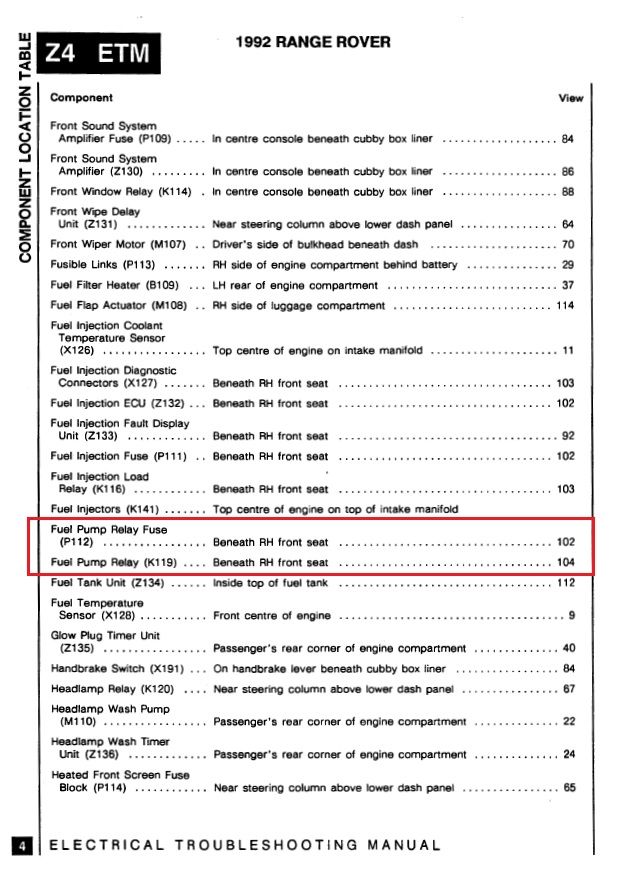

Your Profile say 1992 - this is from the 1990-94 Manual

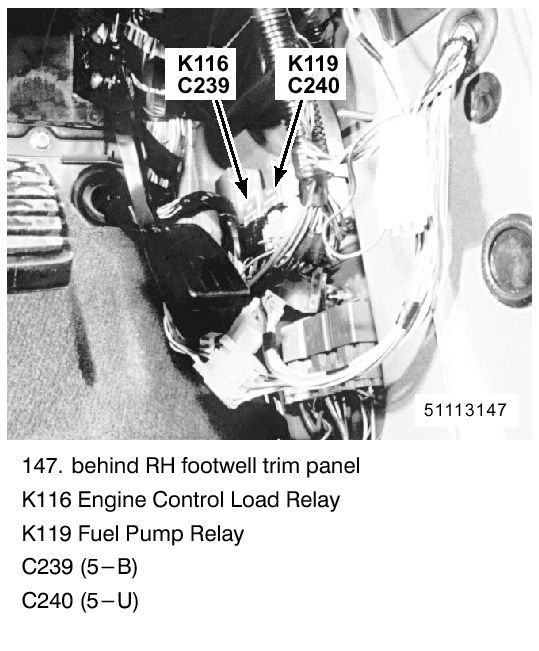

Relay 12 main fuse box under the bonnet.Where is my fuel pump relay on my 95 p38 in fuse box or under seat
It should be shown on the underside of the fuse box lid. Just be aware that there are different versions of the fuse box, I hope I have chosen the right one.Relay 12 main fuse box under the bonnet.
