Morning Folks,

Fuel Leak Freelander 2004

Elderly neighbour was round yesterday saying he could smell diesel from his vehicle, on closer inspection I noticed a small puddle where he had it parked on the drive.

Started the vehicle and turned it off and droplets of diesel were landing behind the driver passengers rear wheel area, just in front of the wheel.

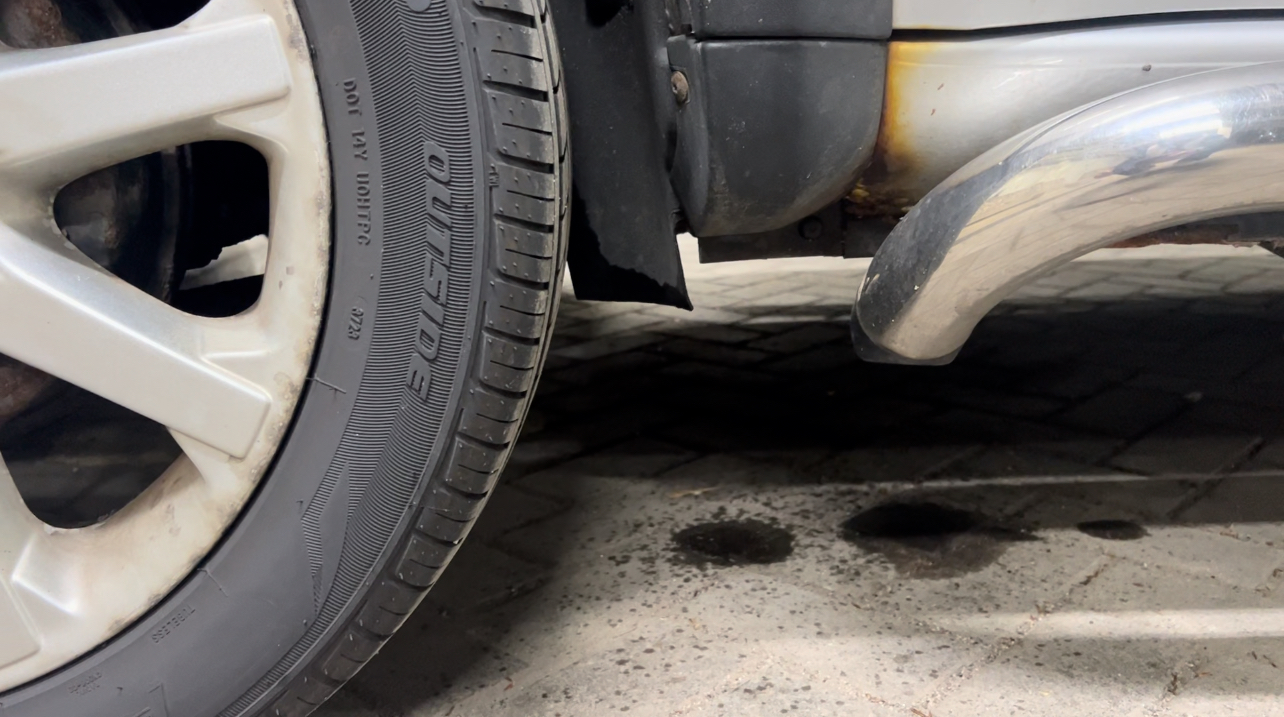

Have attached an image of where the drops were landing .

Will take a look for him over the weekend but a heads up on what it possibly could be would be much appreciated.



damian46

Well-Known Member

• May 31, 2024

• #2

Fuel pump is located in that area behind plastic housing



GrumpyGel

Well-Known Member

• May 31, 2024

• #3

Is that rust on the sill?

Remove the plastic covering and there might not be much metal behind it!



Arctic2

Well-Known Member

• May 31, 2024

• #4

damian46 said:

Fuel pump is located in that area behind plastic housing

Click to expand...

Has above fuel pump and fuel filter, but it could be the water pot which catches any water in the fuel it needs draining ever now then maybe three times a year, i doubt many do the job to be honest.

Peel back the wheel arch liner.

1

Note the catch tank can be drained with out removing the wheel arch liner.

2

3

Check all the fuel line including the hoses.

4

5



R

RizzleKicks

Active Member

• May 31, 2024

• #5

Damian , where is the water pot located and how is it drained ?



R

RizzleKicks

Active Member

• May 31, 2024

• #6

Grumpy , surface rust



damian46

Well-Known Member

• May 31, 2024

• #7

RizzleKicks said:

Damian , where is the water pot located and how is it drained ?

Click to expand...

As Arctic2 said behind the plastic arch (see pics)



damian46

Well-Known Member

• May 31, 2024

• #8

Arctic2 said:

Has above fuel pump and fuel filter, but it could be the water pot which catches any water in the fuel it needs draining ever now then maybe three times a year, i doubt many do the job to be honest.

Peel back the wheel arch liner.

1

Note the catch tank can be drained with out removing the wheel arch liner.

2

3

Check all the fuel line including the hoses.

4

5

Click to expand...

Top job @ Arctic2 I didn't even know they had a catch tank I will check mine at the weekend



R

RizzleKicks

Active Member

• May 31, 2024

• #9

See the unit , an arrow pointing to the pot would be helpful , any tool required to drain it ?



damian46

Well-Known Member

• May 31, 2024

• #10

RizzleKicks said:

See the unit , an arrow pointing to the pot would be helpful , any tool required to drain it ?

Click to expand...

Third pic round thingy bit like a tap looks like you just unscrew it but not 100%sure on that



Attachments

•

  62.4 KB · Views: 16

Freddie17

Can’t re Member

Full Member

• May 31, 2024

• #11

damian46 said:

Third pic round thingy bit like a tap looks like you just unscrew it but not 100%sure on that

Click to expand...

It just unscrews with fingers (might be tight).
As said by Arctic, behind that wheel arch is a fuel filter and LP fuel pump, so you really want to be taking the arch off and checking all the connections both in and out and the state of the pipes



Arctic2

Well-Known Member

• Jun 1, 2024

• #12

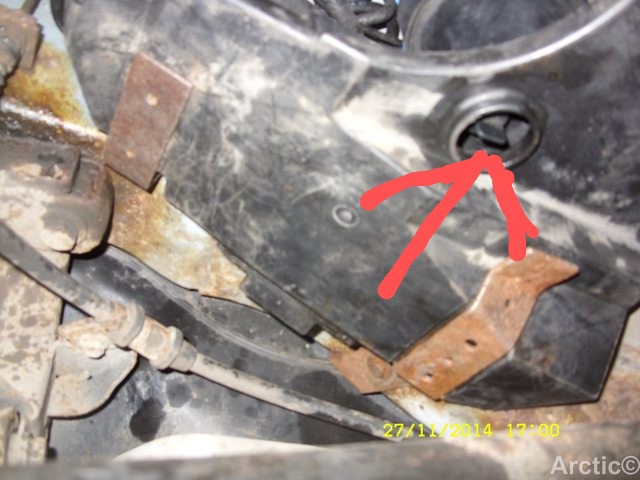

The catch tank can be accessed from under the car use container to catch the fluid.

1

The outlet screw is just that it unscrews, to loose out any water within the tank or any other debris,

2

3

I used to remove it and give it a clean out once a year.

4

5
