Karlos the jackal

Karlos the jackal

Well-Known Member
hi folks me again has anyone replaced the O rings on a injector pump before while it been insitu on a motor before as mine is leaking she been neglected for a year with all thats been going on

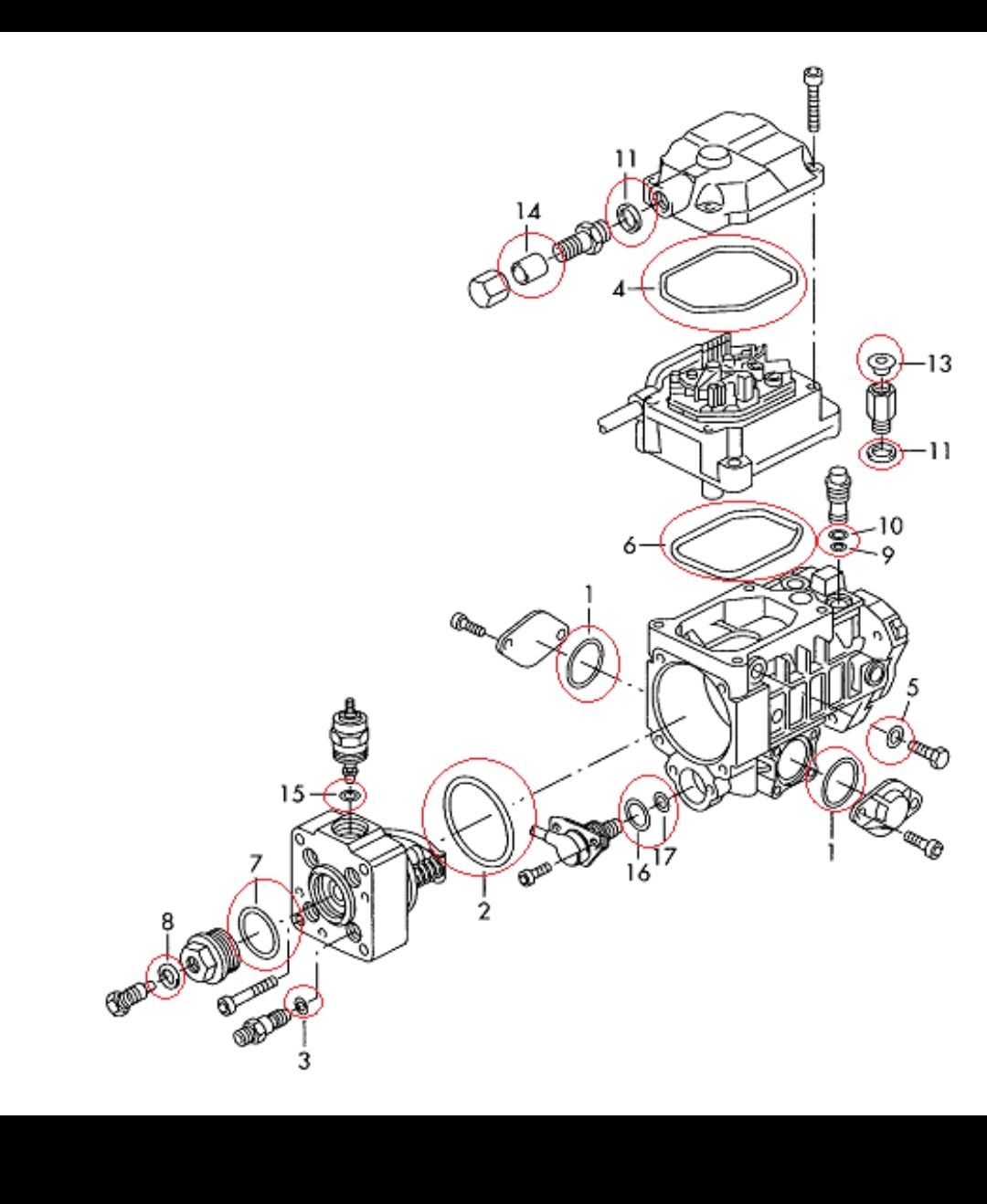

had a look with camera suspect ot O ring no2 leaking
thanks folks

Pretty easy to change but you have to know what you are doing. Pump MUST be on full cam to replace o'ring 2.

wammers said:
Pretty easy to change but you have to know what you are doing. Pump MUST be on full cam to replace o'ring 2.
Click to expand...
got neighbour who has all the timing kit to keep it on full cam
have you done one before I been told you don't have to remove the whole unit just loosen nuts to access the o ring don't know how true this is have you changed one before

Last edited:
wammers said:
Pretty easy to change but you have to know what you are doing. Pump MUST be on full cam to replace o'ring 2.
Click to expand...

That the ones either side? Back one by the block is a PITA to access? Seem to recall a spring flies out too?

Grrrrrr said:
That the ones either side? Back one by the block is a PITA to access? Seem to recall a spring flies out too?
Click to expand...
reading the write up you don't undo the head block totally just the 2 opposite screws to stop springs flying out? or could be wrong
I know when neighbour undone his old one a lot of screws and bits flew out

Just follow my guide its fool proof apart from the markings on the top cover not showing up on the photos I took. It must be fitted exactly where it came from.
Mark it at all corners just to be sure it goes back exactly.
If your just doing the injection head then nothing g to worry about just loosen the retai ing bolts only just enuff.
Good luck with it
