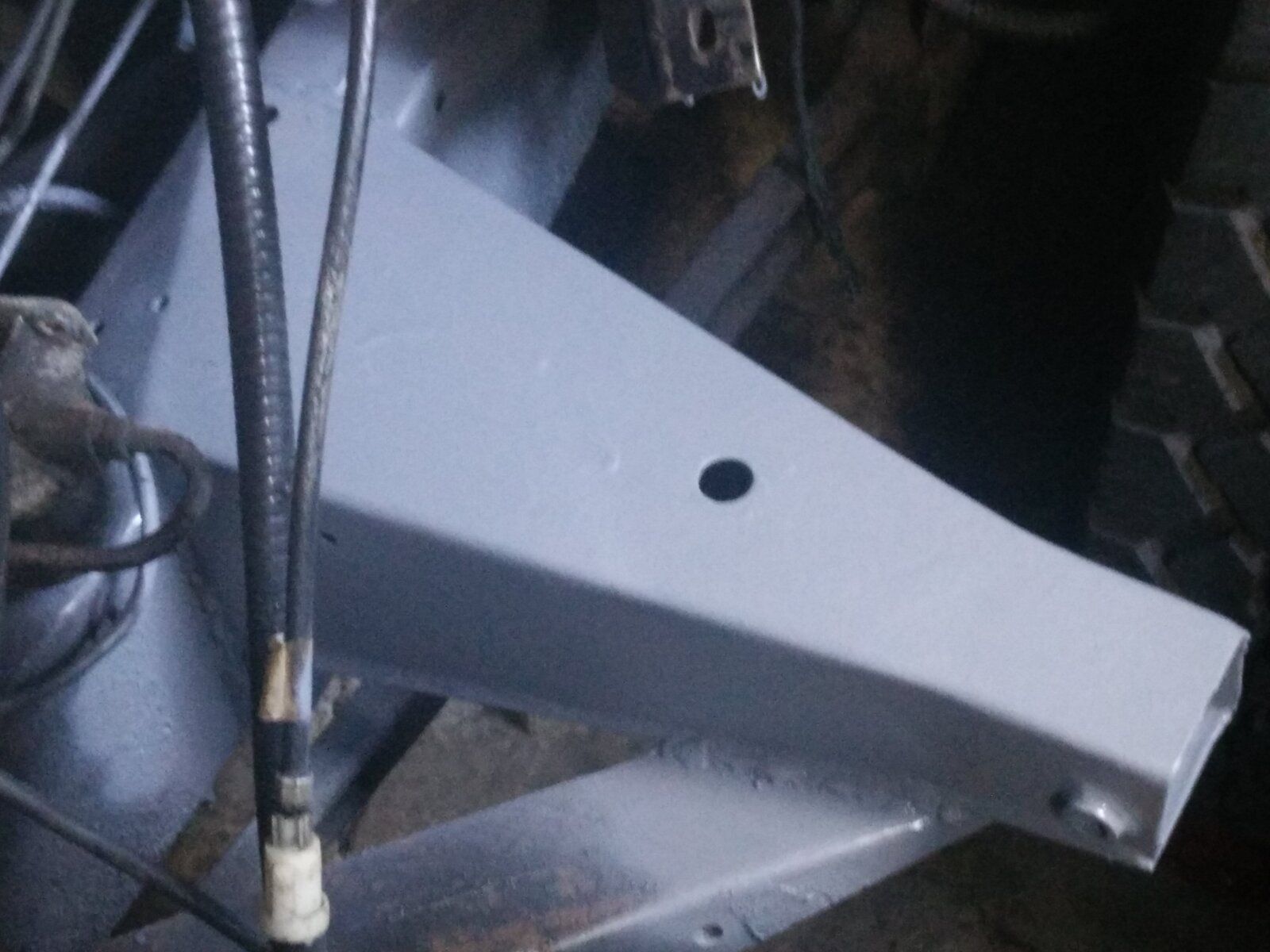

Have no bulkhead,doors wings etc fitted and had to replace a outrigger.

I did take a load of measurements but replacement part was not lining up.

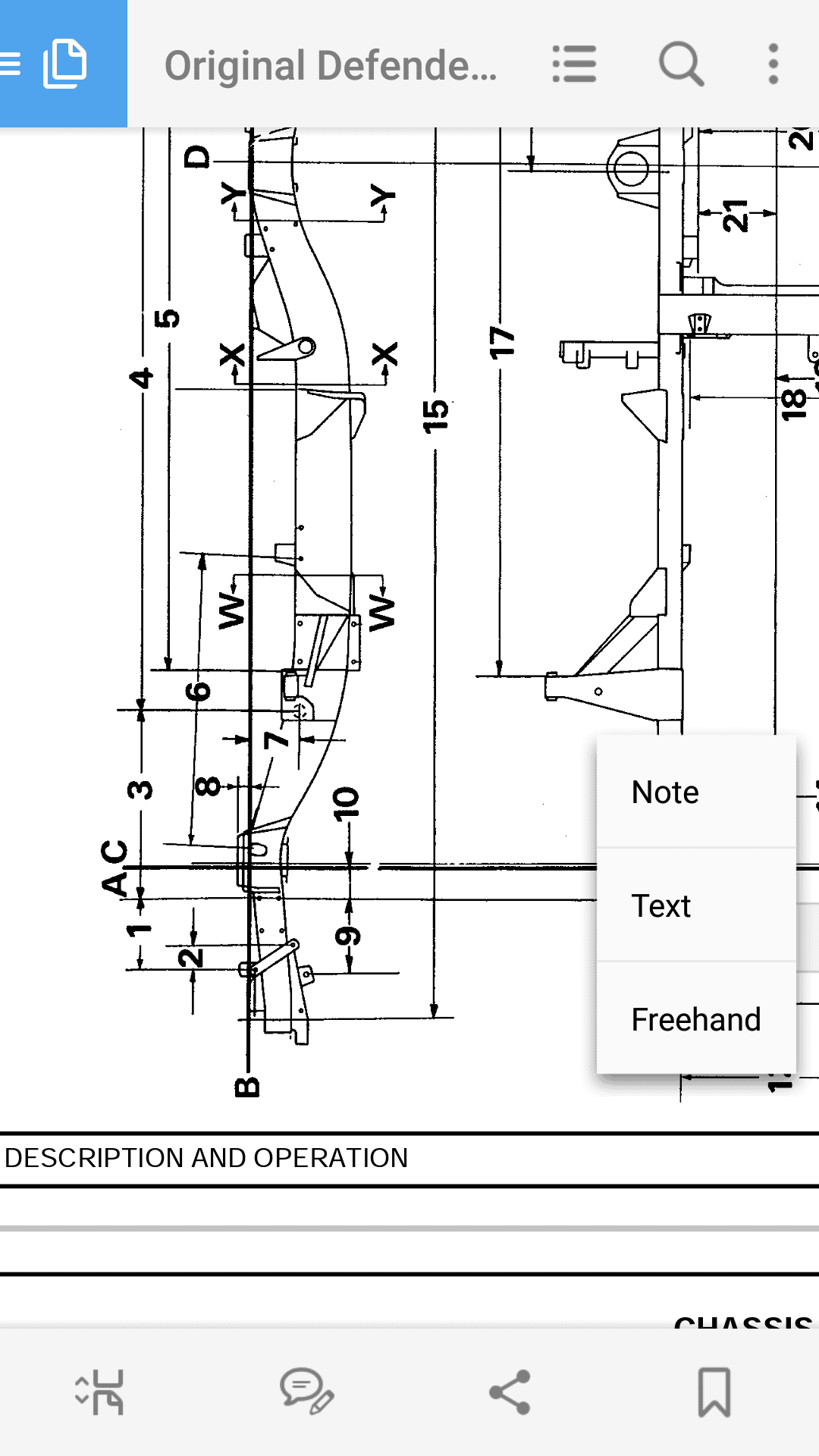

Had a look at the manual and measurement 7 looked like the bolt just forward of the outrigger.

But the measurement to the datum is completely out. Anyone know what that is then?

Only way I had was to match the other side height. So I used a spirit level on the bolt over to the chassis rail and measured the vertical distance from the rail which would make the spirit - level.

Then I think/hope I can use this same delta and the spirit level on the new side to get it at right/same level?

Bit late now as its welded on anyway but any other suggestions?

I guess I have to wait to I put it back together find out if it worked!
