S

sprie

Active Member

• Mar 4, 2025

• #1

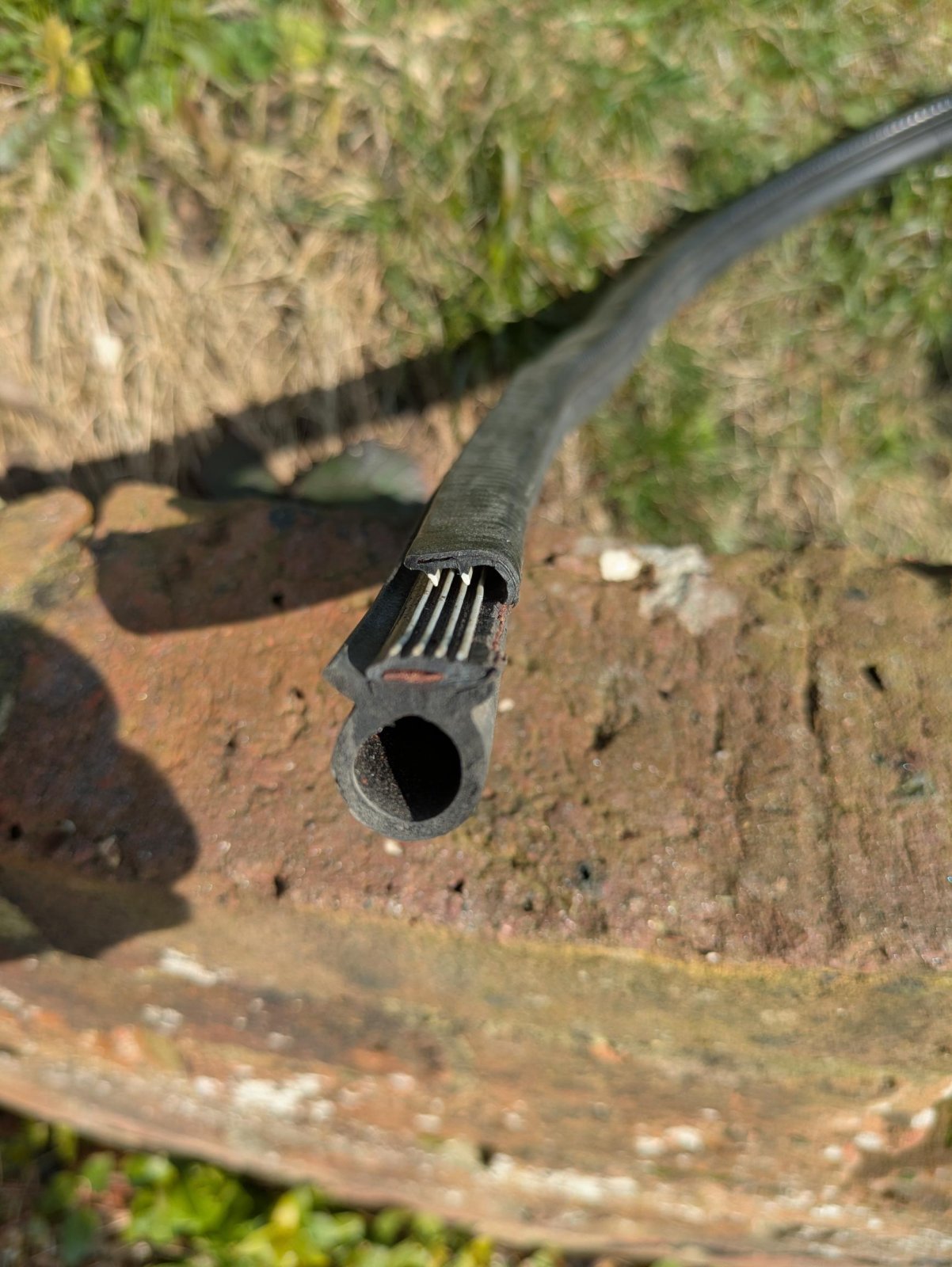

A while back i ordered doorseals (lr077686/7) for the doors on my series 3. I now have come to the point where i want to fit them. All the other seals i have fitted so far have had a flat metal backing strip, and i have fitted these by drilling holes in the relevant places and using pop rivets.
The doorseals however have a plastic backing strip and it is of different width. Whilst i could try riveting, it looks like it would make a mess of the seal and just doesn't feel right.
Have i the wrong part, is there another way to fit these etc?



Attachments

•

  252.3 KB · Views: 31
•

  718.4 KB · Views: 30

L

lynall

Well-Known Member

Full Member

• Mar 4, 2025

• #2

That is a push on type seal, no rivets needed, but might not fit your series without mods.



S

sprie

Active Member

• Mar 4, 2025

• #3

That's a right pain. Looks a look more costly to go buy all the individual seals.
but i suspect the "mods" would involve cutting the seal frames i have in place, so losing a bit of originality.
Oh well.



T

TheQ

Well-Known Member

• Mar 4, 2025

• #4

Ive an early 110, and got the later seals , I fitted them by gluing them on with " sticks like sh*t" or something similar. They've been on for over 10 years now without problems.

Apply glue to seal ,
apply seal to door,
Shut door.
Come back 24 hours later..
Seals stuck to door.



Fatrover

Well-Known Member

• Mar 5, 2025

• #5

Had the same problem, had to cut them a bit to fit them stuck em in with Tigerseal. Never coming off.
Did the front vent seals the same way, nae leaks and I live in the wettest part of the known universe.



codfather79

Well-Known Member

• Saturday at 10:49

• #6

That's a really good idea, using tigerseal
