G

garygledhill

Member
iam doing conversion from a 2.5na is a D reg to a 300tdi N reg disco, just want a few things clearing up some questions might be daft :p,

i am leaving the lt77 box in, but took the plate off the na to put on to then 300tdi, what clutch should buy for a 2.5 na or a 300tdi ?
what exhaust should i buy for it, or do i have to mix and match,
and as any one done this if so what did you do about then air box as iam wanting to fit a snorkel,
and i think that all for now,
i did a search and all come up with hasten told me what i need to no, any help would be appreciated

thanks gary :D:D:D

I fitted a 300tdi HD clutch last time and it seems to work.
Exhaust is a bit tricky, a standard 300tdi won't fit because the engine sits further back than normal. You can use the normal exhaust but it is very restrictive so it may be better off using the 300 downpipe and fabricating one yourself if you can weld.
You may as well use a 300tdi air filter can, it's nice and big but easy to waterproof.

boris113 said:
i fitted a 300tdi hd clutch last time and it seems to work.
Exhaust is a bit tricky, a standard 300tdi won't fit because the engine sits further back than normal. You can use the normal exhaust but it is very restrictive so it may be better off using the 300 downpipe and fabricating one yourself if you can weld.
You may as well use a 300tdi air filter can, it's nice and big but easy to waterproof.
Click to expand...

+1.

Ok cheers for that fellas. I bought 300tdi de cat down pipe. So I will have to try make one up then it think and what accelerator cable do I need buy does anyone know :D

garygledhill said:
Ok mate nice one :D . Will try get a bit more done in week if not will have to wait till weekend:([/QUOTE

I'll be doing this swap soon hopefully so get some pictures up.

What about engine mountings are you using 300's if so they sit further back and you will have to weld some on.

You can use 2.5 ones as the bolt on but the drivers side has to be modified and then strengthened to accommodate the oil filter. And then the downpipe has to be modified to miss the nearside mounting so lots of work either way you go.

I'm using the disco gearbox so mine will be easy with all pipes coupling up without modification, just the gearlever comes up behind the transfer box lever instead of in front.

Not sure if the 2.5 Temp sender will fit 300, I know it fits 200

Plenty of info on here about it anyway;):)
Click to expand...

landowner said:
garygledhill said:
Ok mate nice one :D . Will try get a bit more done in week if not will have to wait till weekend:([/QUOTE

I'll be doing this swap soon hopefully so get some pictures up.

What about engine mountings are you using 300's if so they sit further back and you will have to weld some on.

You can use 2.5 ones as the bolt on but the drivers side has to be modified and then strengthened to accommodate the oil filter. And then the downpipe has to be modified to miss the nearside mounting so lots of work either way you go.

I'm using the disco gearbox so mine will be easy with all pipes coupling up without modification, just the gearlever comes up behind the transfer box lever instead of in front.

Not sure if the 2.5 Temp sender will fit 300, I know it fits 200

Plenty of info on here about it anyway;):)
Click to expand...
i have seen some mounts that just bolts on but not sure if they work as easy as they say, :confused::confused:
here what it reads
'made to order' engine mount.
Designed for the conversion when installing a 300 tdi engine into a landrover LR90 defender 200tdi engine bay, including earlier td's and na's.
The mount is designed to bolt to the existing 300tdi engine mount but fit the standard LT77 200 tdi defender 90 gearbox and chassis mount.
Please allow around 5 days for a standard order from manufacture to shipping.
No need for any welding just simply bolt in place.
The mount comes painted black,with a fitting kit and a free oil filter.Reason for requiring just one mount is that during the conversion you need to remove the nearside/passenger side engine mount from your old engine and bolt to the new engine, and the new mount on the offside/drivers side. the engine can then be fitted,

thats what i was thinking about any ways but not sure yet its me littel project so long as its on road again for winter, and yer i should get some pics up soon
Click to expand...

garygledhill said:
landowner said:
i have seen some mounts that just bolts on but not sure if they work as easy as they say, :confused::confused:
here what it reads
'made to order' engine mount.
Designed for the conversion when installing a 300 tdi engine into a landrover LR90 defender 200tdi engine bay, including earlier td's and na's.
The mount is designed to bolt to the existing 300tdi engine mount but fit the standard LT77 200 tdi defender 90 gearbox and chassis mount.
Please allow around 5 days for a standard order from manufacture to shipping.
No need for any welding just simply bolt in place.
The mount comes painted black,with a fitting kit and a free oil filter.Reason for requiring just one mount is that during the conversion you need to remove the nearside/passenger side engine mount from your old engine and bolt to the new engine, and the new mount on the offside/drivers side. the engine can then be fitted,

thats what i was thinking about any ways but not sure yet its me littel project so long as its on road again for winter, and yer i should get some pics up soon
Click to expand...

if you are fitting the 300 to the lt77 box all you need to do is take the engine mounts off the TD engine and bolt them onto the 300.
i put a 200disco in my TD fender and it fitted perfect as for the exhaust you should be able to get a conversation pipe on fleabay
Click to expand...

buckshot said:
garygledhill said:
if you are fitting the 300 to the lt77 box all you need to do is take the engine mounts off the TD engine and bolt them onto the 300.
i put a 200disco in my TD fender and it fitted perfect as for the exhaust you should be able to get a conversation pipe on fleabay
Click to expand...

I thought the mounts of the na engine was different to to 300tdi I thought it sat back to the bulk head more. I have all the engine mounts from the 300tid and the 2.5 na. I see some brackets people make that just bolts on ut not sure it anyone has used them they on ebay says for fitting 200 tdi and 300tdi in to a 2.5 and td engine bay
Click to expand...

garygledhill said:
buckshot said:
I thought the mounts of the na engine was different to to 300tdi I thought it sat back to the bulk head more. I have all the engine mounts from the 300tid and the 2.5 na. I see some brackets people make that just bolts on ut not sure it anyone has used them they on ebay says for fitting 200 tdi and 300tdi in to a 2.5 and td engine bay
Click to expand...

not sure about the 300 but all you need do is measure it ie; from bell house plate to mounting bolt holes on the 300 and TD blocks
Click to expand...

garygledhill said:
buckshot said:
ok mate cheers will get the tape out tomorrow and see what that difference is if any
Click to expand...

If you use TD mounts on nearside of 300 they do bolt to the block same as TD but the exhaust will not fit as it is directly above the mount.
They suit 200 ok because the exhaust comes out different.

Offside one bolts straight on to block in same place as TD but on 300 it fouls the oil filter and you will have to modify the mount and strengthen it.

The 300 has provision for both sets of mounts on the block, TD bolts on near front and 300 mounts more to the middle of block.

Hope that helps:)
Click to expand...

landowner said:
garygledhill said:
If you use TD mounts on nearside of 300 they do bolt to the block same as TD but the exhaust will not fit as it is directly above the mount.
They suit 200 ok because the exhaust comes out different.

Offside one bolts straight on to block in same place as TD but on 300 it fouls the oil filter and you will have to modify the mount and strengthen it.

The 300 has provision for both sets of mounts on the block, TD bolts on near front and 300 mounts more to the middle of block.

Hope that helps:)
Click to expand...

Like the man said. I got mine off eblag, was about £50. The engine block is the same on all of them. You could make your own as I have a drawing somewhere for it. I used a 300 downpipe & just cut into wedges to get the right angle.
Click to expand...

666 george said:
landowner said:
Like the man said. I got mine off eblag, was about £50. The engine block is the same on all of them. You could make your own as I have a drawing somewhere for it. I used a 300 downpipe & just cut into wedges to get the right angle.
Click to expand...
Didyou the them of eBay that someone had made for the conversion or did u mean 300tdi mounts and yeh if you still got plans will be good am just trying to find out whats best way and easy and to get everything elc fitted onnlce engine is in
Click to expand...

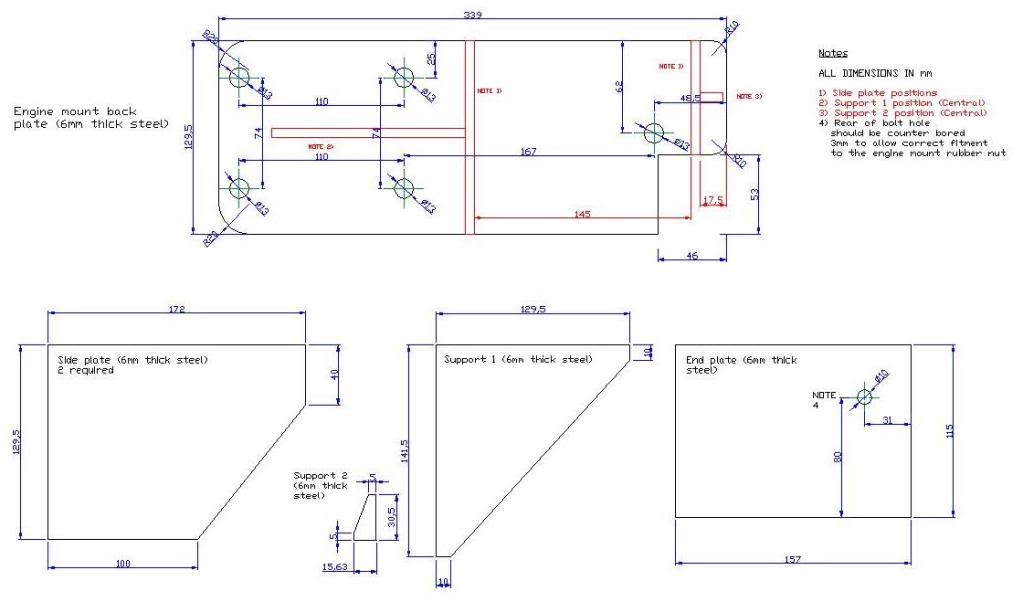

Here you go. ;)


Attachments

  • Untitled-2.jpg
    47.2 KB · Views: 171

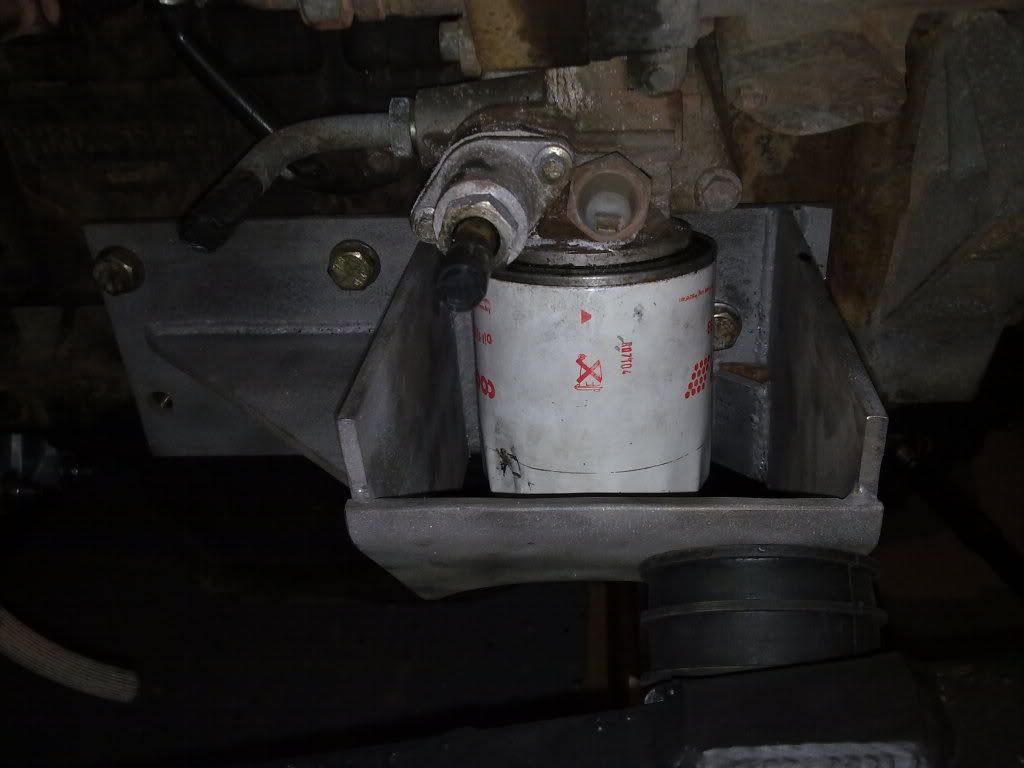

This is what it should look like by the time your done.
The easiest way is with this mount, I did mine in a day with 1/2 day making the exhaust fit.


Attachments

  • Image765.jpg
    54.3 KB · Views: 243
Last edited:
666 george said:
This is what it should look like by the time your done.
The easiest way is with this mount, I did mine in a day with 1/2 day making the exhaust fit.
Click to expand...

Thanks for that pal I will print that out and will give it ago mate. Where's best place to get steel from would anyone know thanks for the plan will be a great help :):)
