Hi All,

One of the rear side lights on the mrs disco 2 isn't working and it's not the bulb. The other side is working fine. I can see three wires going into the top bulb holder which is brake/side light but need a wiring diagram or some information to identify the wires used for the side light so that I can trace the fault as I believe it's potential a break in a wire.

Thanks



neilly

Well-Known Member

• Nov 14, 2017

• #2

HI ,

Suggest you download the Rave manual as it has all the wiring diagrams you would need.

Cheers



brian47

Well-Known Member

• Nov 14, 2017

• #3

There are two fuses to check first, fuse F11 and fuse F33 on the fuseboard in the passenger's compartment; behind the panel below the steering wheel. both are 10 Amp.

I agree with @neilly in that you should download a copy of RAVE from:-

http://www.green-oval.com/data/lr/rave01.iso

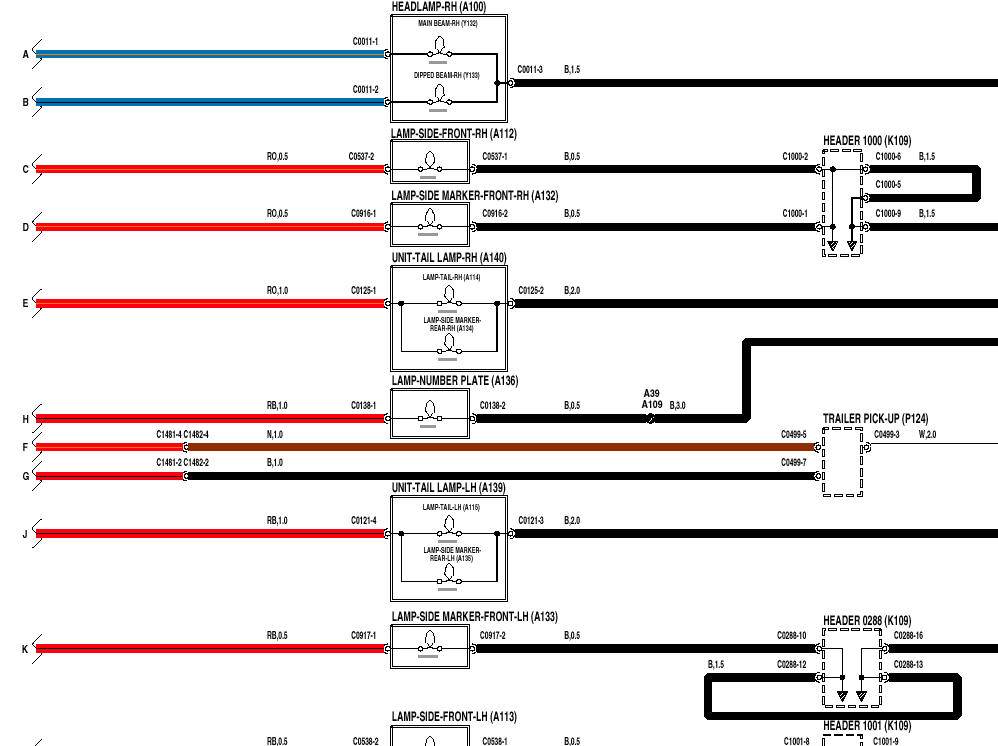

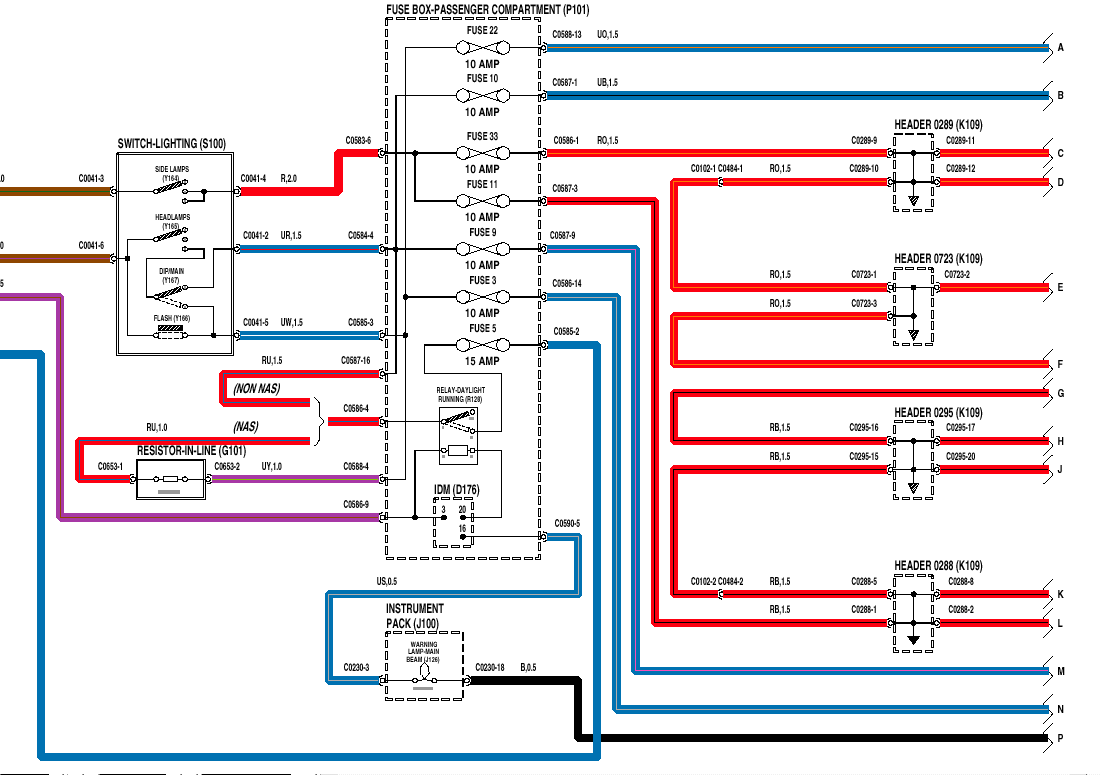

In the meantime, here are the wiring diagrams which might help.
