The speedo drive (FRC3310) fits in the drive housing (FRC3286) which has an O ring and a pinion seal and is all held in with the retaining plate (533765) which clamped into the LT230 case with a set screw/bolt.

What is the part number of this bolt ? (i've looked everywhere)

Thats deffo for the series and you get 3 of them, the speedo drive was off the gearbox rather than the transfercase .... The question is ... is it the same set screw for the Defenders LT230 ?

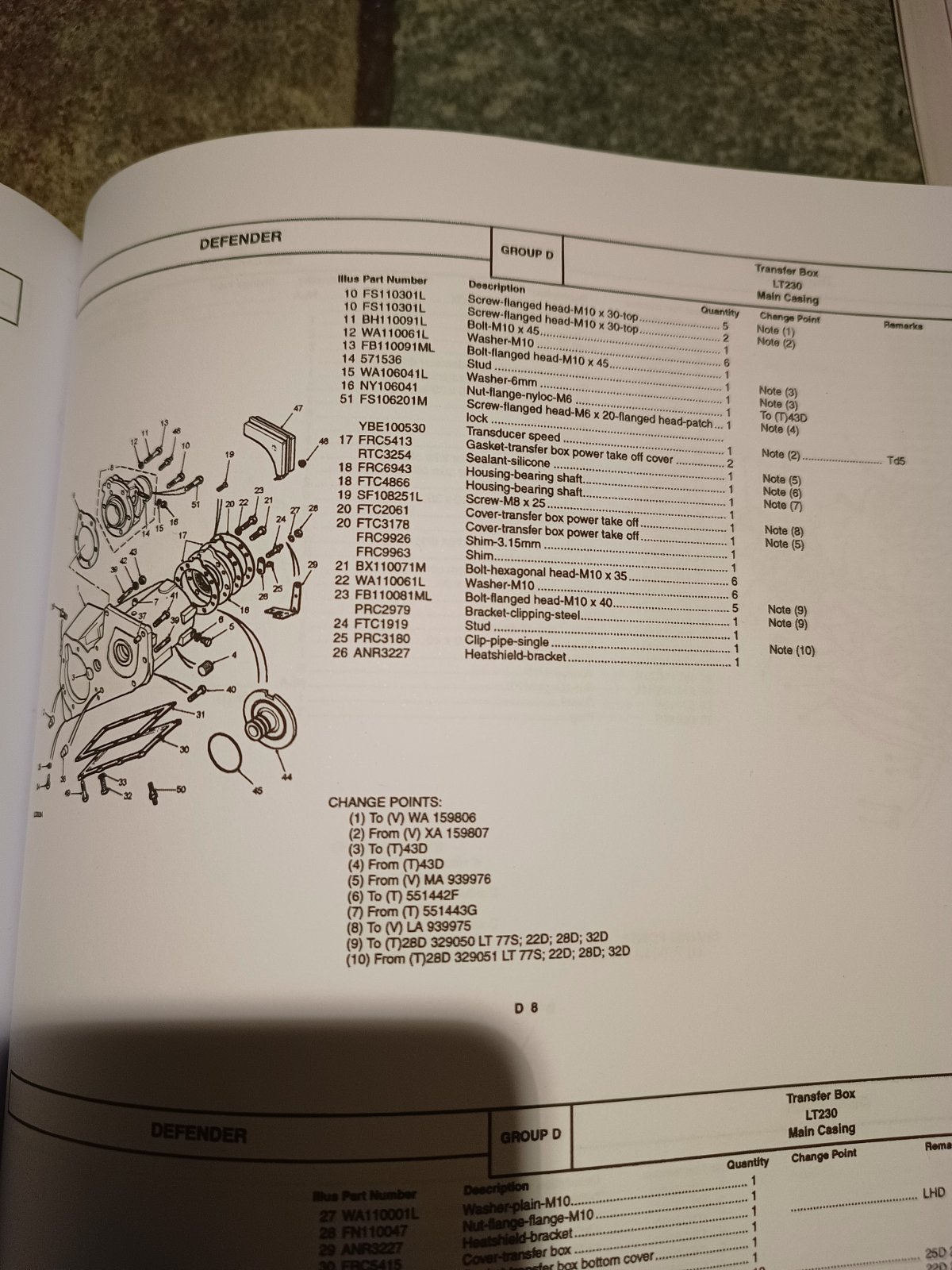

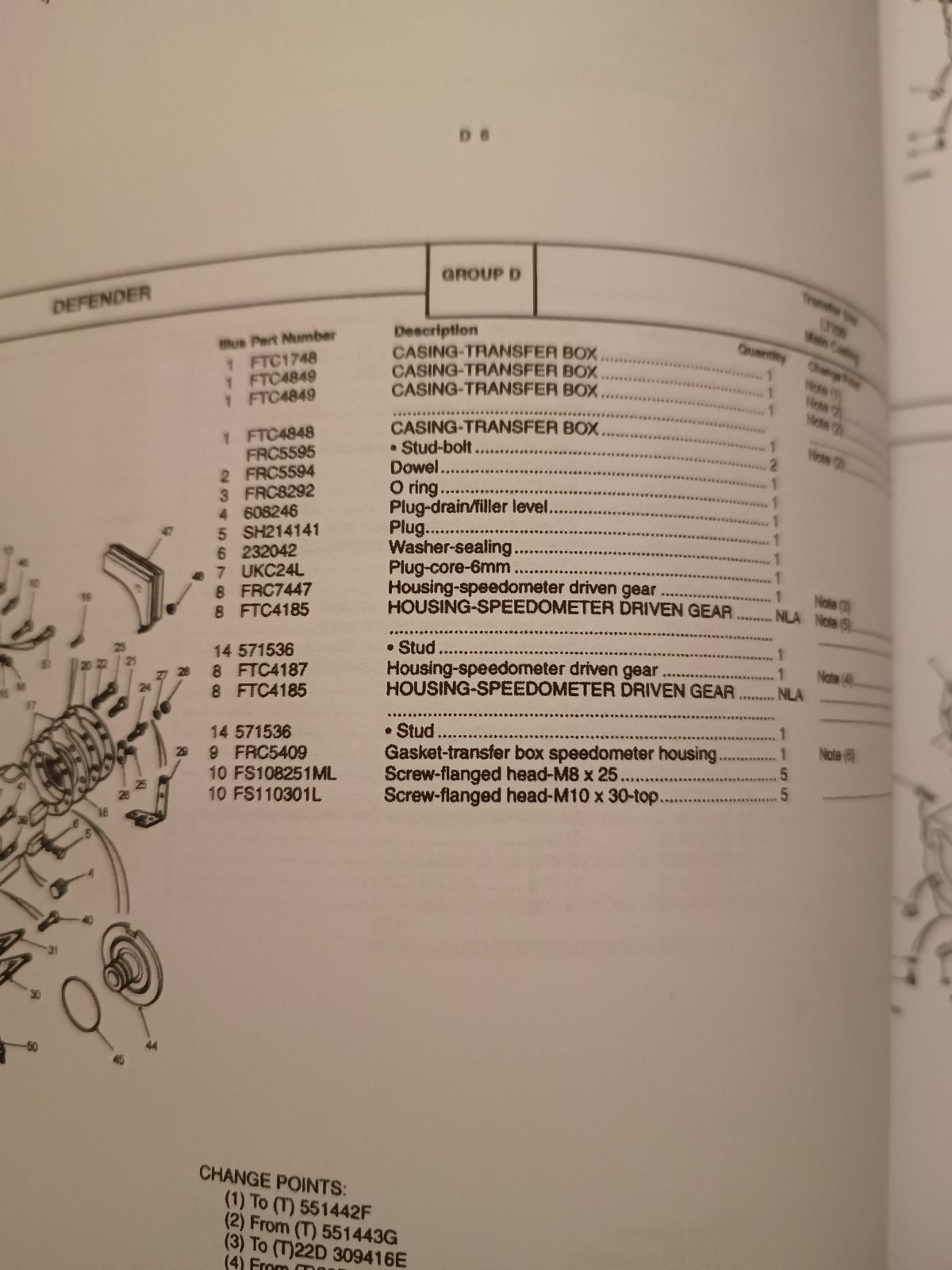

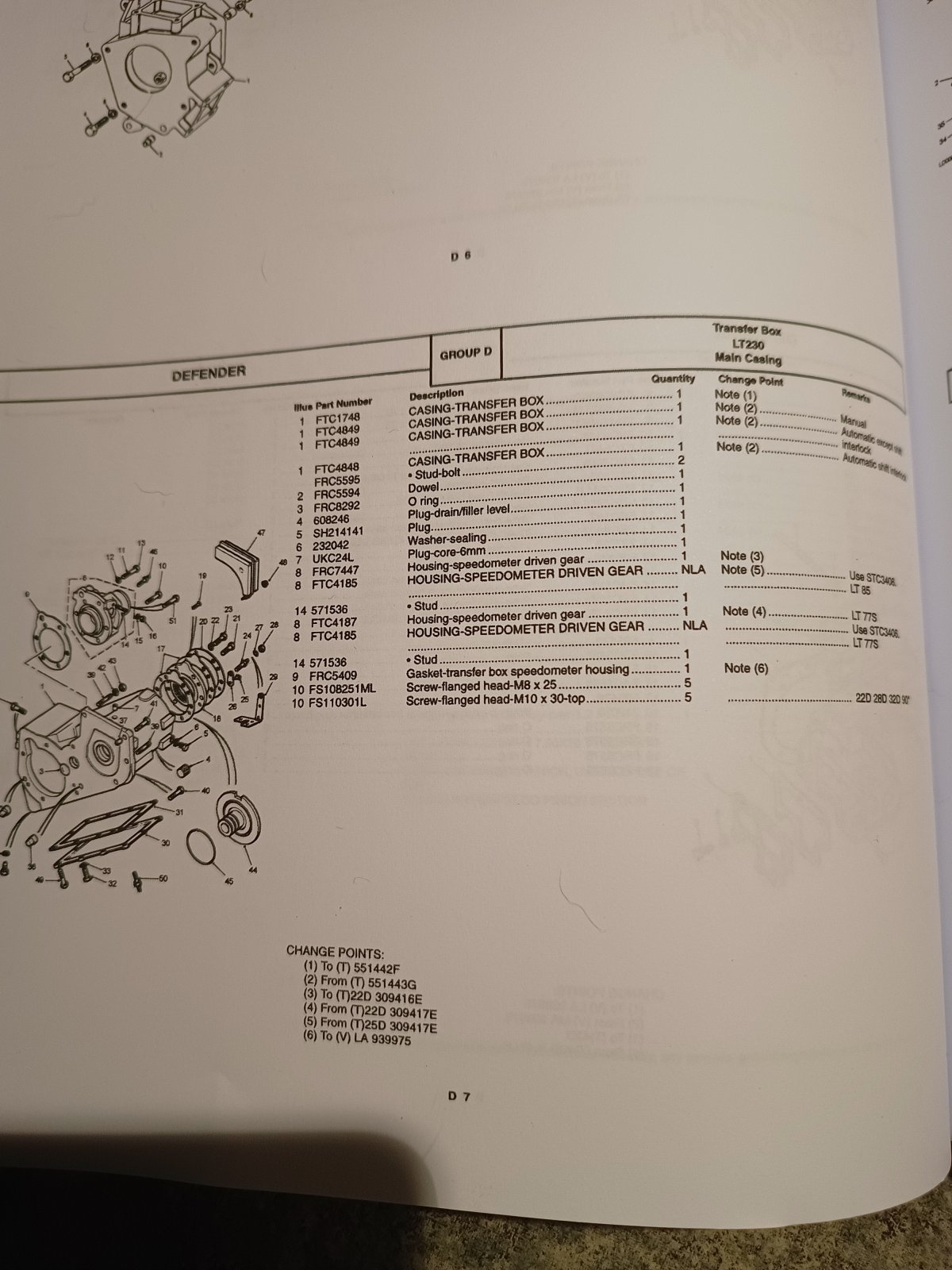

Could it be part 14, No 571536 ?

Galladog said:
Could it be part 14, No 571536 ?
Click to expand...

Hi Matey ...
I hope not as that's £19.61 + vat and p&p ....

Now then, hang on - that could be where i've been going wrong, looking for a set screw not a stud ...
50p from Blanchards - more my sort of price :p

Squire - you have hit the nail on tut head.

It seems this stud "Suits all LT230 and LT95 transfer cases with mechanical speedo cables. Suits speedo cable clamp 533765." which is zacktly what I was stuck on ....
