tonyt37

Active Member

• Jan 9, 2011

• #1

Hi

My TD4 HSE has electric folding mirrors (or did have until today). When I came back yo the car today and switched the switch nothing happened. I had a quick look at fuses but couldn't find which one it was. Also are the heaters in the mirrors repairable. One of those stopped working a few weeks ago. Any body got any clues.

Thanks in advance.

Tony



I

ianda12

Active Member

• Jan 9, 2011

• #2

Fuse 14 passenger compartment (10 Amp)



I

ianda12

Active Member

• Jan 9, 2011

• #3

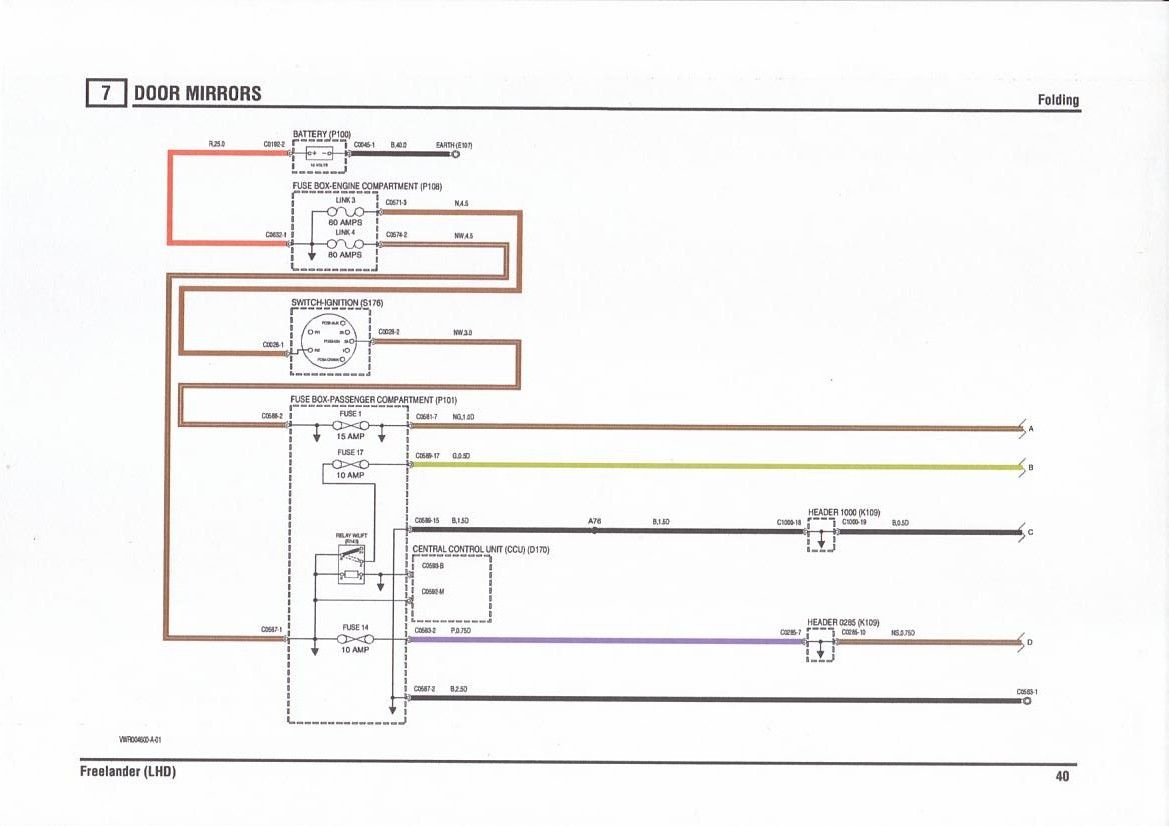

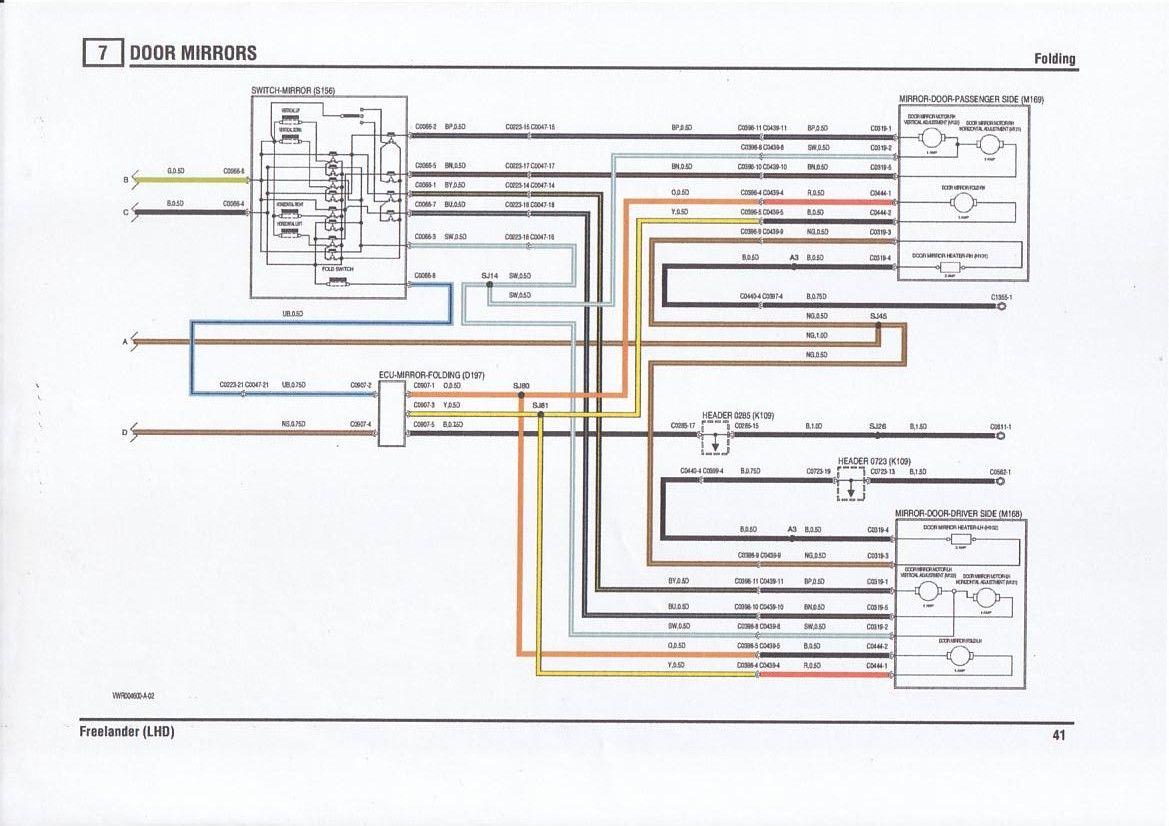

Or Fuse 17 see attached diagrams



Attachments

•

  65 KB · Views: 290
•

  114.8 KB · Views: 286

tonyt37

Active Member

• Jan 9, 2011

• #4

Thanks for that ianda. I will have a look tommorrow.

Cheers

Tony



rossitigerr

New Member

• Jan 9, 2011

• #5

Might be daft but are you sure the white marker on the switch is in the middle when you push it down for mirrors to fold???



Skynet

Well-Known Member

• Jan 10, 2011

• #6

Mine can be intermittment, dirty switch perhaps?



tonyt37

Active Member

• Jan 27, 2011

• #7

It fixed itself! Thanks for the wiring diagrams, I still need to look at the heater on the drivers side.
