Does anyone have an early 90 or 110 with the bonnet that has two square pad instead of rubber cone buffers?
I have one of these type and need to know what safety catch was fitted to stop the bonnet flying up if not shut correctly. It has a bracket with two holes where the modern three bolt safety catch would be.
Photos and or part numbers would be a great help.
Thanks



SpaceDawg

Active Member

• Mar 15, 2016

• #2

I do, what do you need a picture of which parts?



B

bigjak

Active Member

• Mar 15, 2016

• #3

I need to see if you have a safety catch and what does it look like.
Thanks



bluehaze

Well-Known Member

• Mar 15, 2016

• #4

It's the same as the later model.



B

bigjak

Active Member

• Mar 15, 2016

• #5

There doesn't seem to be the bolt holes for a later one or I am really missing something.



G

GATSO

Well-Known Member

• Mar 15, 2016

• #6

was the safety catch not part of the bonnet release catch on early 90s ie leaver to release bonnet second ,catch then move leaver over again to lift bonnet all done through front grill like series lanny s



zeaphod

Well-Known Member

• Mar 16, 2016

• #7

GATSO said:

was the safety catch not part of the bonnet release catch on early 90s ie leaver to release bonnet second ,catch then move leaver over again to lift bonnet all done through front grill like series lanny s

Click to expand...

Exactly right.



zeaphod

Well-Known Member

• Mar 16, 2016

• #8

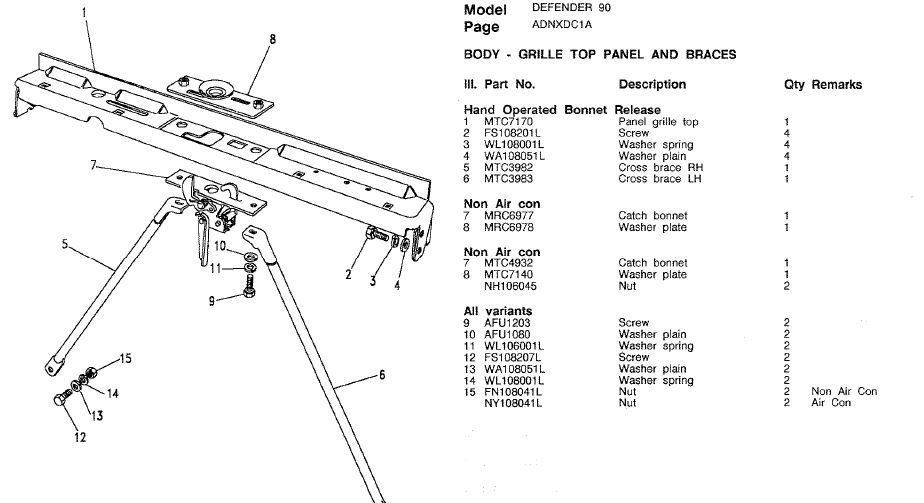

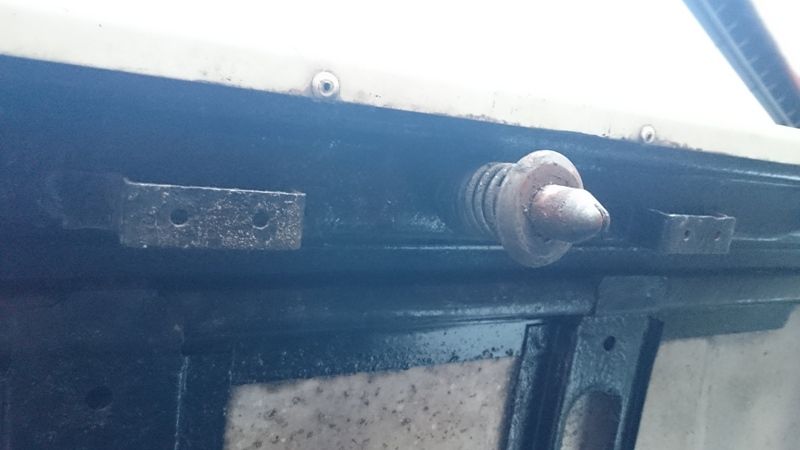

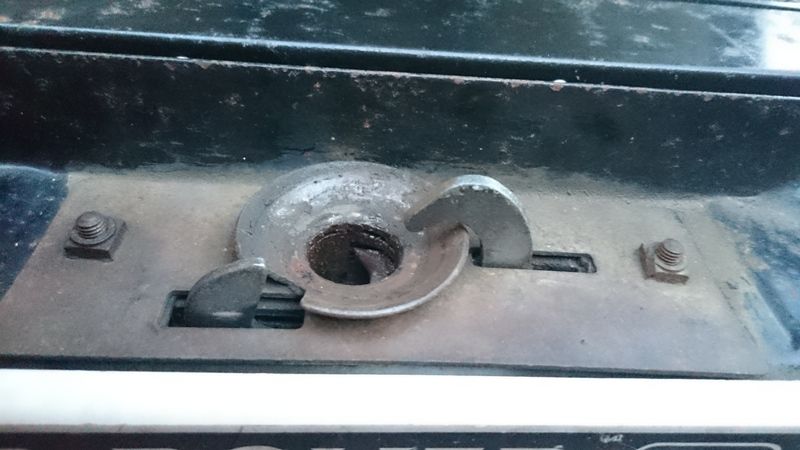

Like this:



T

TheQ

Well-Known Member

• Mar 16, 2016

• #9

That looks familiar



zeaphod

Well-Known Member

• Mar 16, 2016

• #10



B

bigjak

Active Member

• Mar 17, 2016

• #11

Looks like I will have to come up with a safety catch
