talbotracer · 2024-07-16T12:36:53+0100

i have the problem with the drivers window not working can anybody tell me where the relays are for this as i have them both sides of the vehicle.

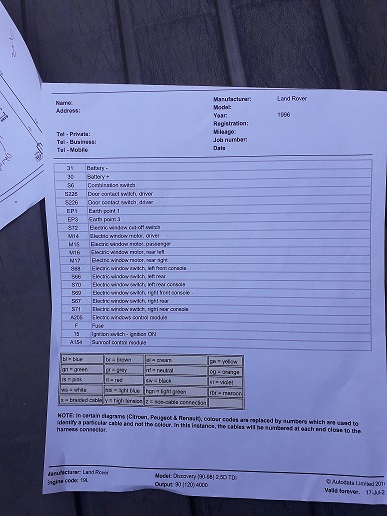

would like a wiring diagram that i can actually read if someone has one, if i touch an earth to the white switch the window works but not on the green switch could just be an earth problem?
pete

Anaconda · 2024-07-16T13:12:47+0100

Oops, didn't read it properly!

discool · 2024-07-16T22:45:53+0100

talbotracer said:
i have the problem with the drivers window not working can anybody tell me where the relays are for this as i have them both sides of the vehicle.
would like a wiring diagram that i can actually read if someone has one, if i touch an earth to the white switch the window works but not on the green switch could just be an earth problem?
pete

No relays involved in the window operation, just switches plus an ecu.

Link to D1 manual which will have the wiring diagram you require.

https://www.fuddymuckers.co.uk/rtfm/Discovery/D1/Discovery_1_LRL-0077-ENX-5-1998-04_Electrical_Troubleshooting_Manual_5th_Edition.pdf
