Hi to everyone
Just noticed but not sure if it's right or not that the angle of the drag link
looks not correct
it's seems to be pointing fowards but i'm not sure if this is right or not
I replaced this complete with ball joints in less than one year ago
can someone have a look under there and tell me if it's ok or not?

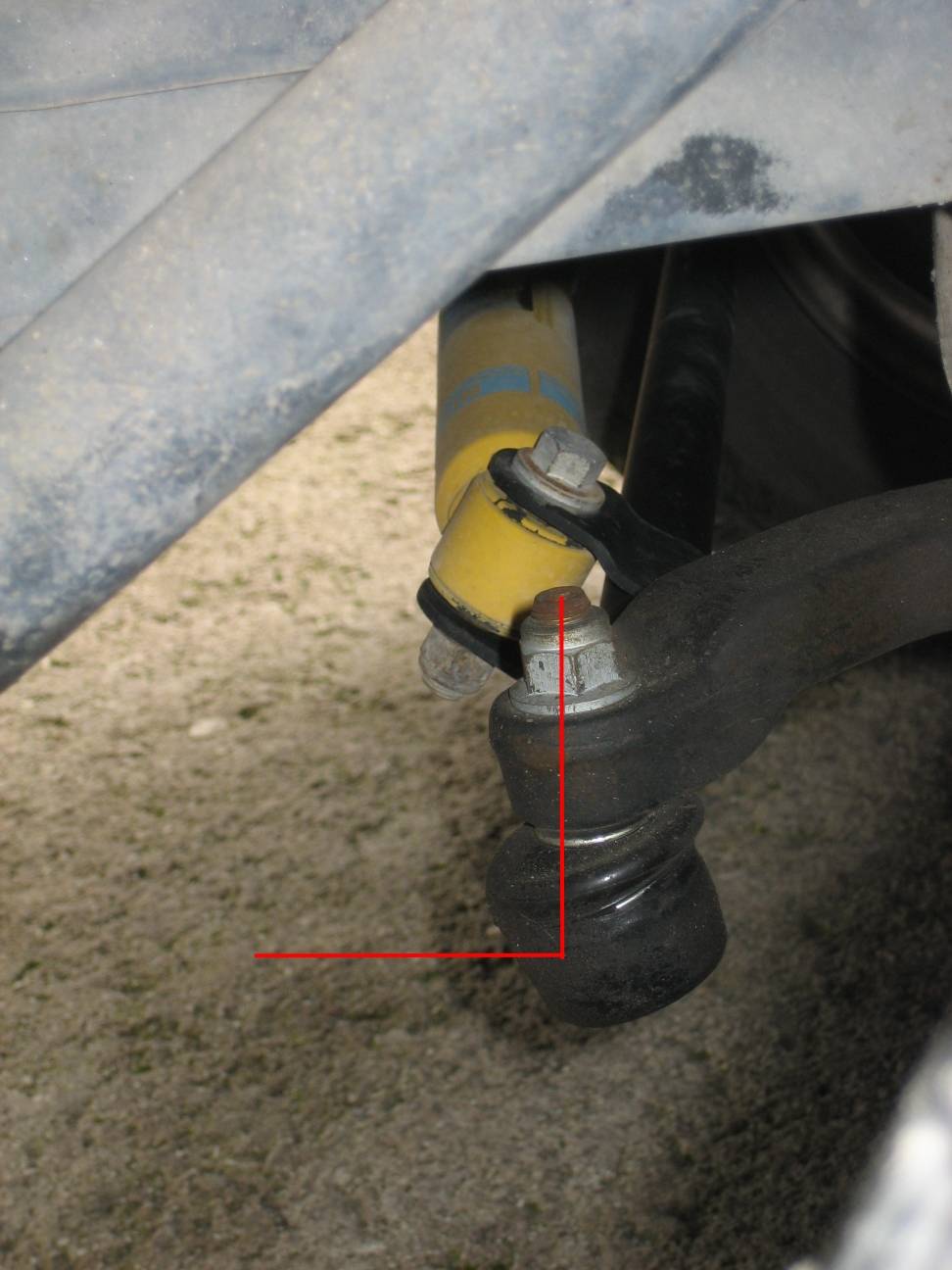

Attached a picture of mine
With thanks
Vince



Attachments

•

  90.5 KB · Views: 215

Last edited: Jan 21, 2011

jamesmartin

Well-Known Member

• Jan 21, 2011

• #2

drop arm points forward drag link goes to opposite swivel housing



bluerazor

Member

• Jan 21, 2011

• #3

Hi James
Can you explain a little more please ?
Note that mine is LHD version
Thanks



jamesmartin

Well-Known Member

• Jan 21, 2011

• #4

its the same but on other side drop arm on pas box points forward when wheels are straight drag link goes from there to swivel housing steering arm , some drop arms have a slot in rear which locates to pas box you can line up with a driil bit this should be central position for wheels and steering wheel drag link is adjustable to correct if out a bit ,otherwise you have to remove steering linkage and refit,drop arms can come loose and may need tightening up they are on master spline so should only go in right place



bluerazor

Member

• Jan 21, 2011

• #5

Cheers james
