S

smokeyone

Member

• Jan 12, 2013

• #1

I have finally managed to remove the drivers door handle and have the STC3064G door handle cam kit. I know this has been discussed before but how do you actually remove the old cam from the handle - it's seems to be held in place by a hollow pin but how do you slide the pin out.
My best idea so far is very carefully with a dremel - cut away the old parts but there must be a better way.
Thanks very much



zzr1200

Well-Known Member

• Jan 12, 2013

• #2

I cut the plastic cam away and then carefully removed the pin with side cutters, as I could only access the pin from one end of the hole.



S

smokeyone

Member

• Jan 12, 2013

• #3

Thanks for the info - so if the dremmel does not work I'll try some cutters instead....cheers



Parisien

New Member

• Nov 27, 2013

• #4

My own door handle is pretty stiff, can someone point me in the direction of the up-grade repair item mentioned in first post?

Thanks

P



wammers

No longer with us, RIP

Donater

• Nov 27, 2013

• #5

Parisien said:

My own door handle is pretty stiff, can someone point me in the direction of the up-grade repair item mentioned in first post?

Thanks

P

Click to expand...

Kit - Door Safety Lock - Genuine Land Rover at www.rimmerbros.co.uk



Parisien

New Member

• Nov 27, 2013

• #6

This is the only part that fails when handle gets stiff or?

Thanks Wammers

P



wammers

No longer with us, RIP

Donater

• Nov 27, 2013

• #7

smokeyone said:

I have finally managed to remove the drivers door handle and have the STC3064G door handle cam kit. I know this has been discussed before but how do you actually remove the old cam from the handle - it's seems to be held in place by a hollow pin but how do you slide the pin out.
My best idea so far is very carefully with a dremel - cut away the old parts but there must be a better way.
Thanks very much

Click to expand...

Screw in a suitable tap and carefully pull it out.



Datatek

Well-Known Member

• Nov 27, 2013

• #8

Go look on WWW.range rovers.net full description of door handle fixes there.



Parisien

New Member

• Nov 27, 2013

• #9

Thanks datatek, Rimmer have them on back order

P



Parisien

New Member

• Nov 27, 2013

• #10

The definitive fix for stiff P38A door handles.

Rather excellent thread!

P



Datatek

Well-Known Member

• Nov 27, 2013

• #11

Parisien said:

The definitive fix for stiff P38A door handles.

Rather excellent thread!

P

Click to expand...

That's the one



Parisien

New Member

• Nov 27, 2013

• #12

Parisien said:

This is the only part that fails when handle gets stiff or?

Thanks Wammers

P

Click to expand...

Again, guys, any other parts I might need upon dismantling, prefer to get it fixed in one evening


P



wammers

No longer with us, RIP

Donater

• Nov 27, 2013

• #13

Parisien said:

Again, guys, any other parts I might need upon dismantling, prefer to get it fixed in one evening


P

Click to expand...

Depends what you break, door card studs can be a problem if you don't have a proper removal tool.



Parisien

New Member

• Nov 27, 2013

• #14

Ok, but within the handle mechanism itself?


P



wammers

No longer with us, RIP

Donater

• Nov 27, 2013

• #15

Parisien said:

Ok, but within the handle mechanism itself?


P

Click to expand...

As far as i am aware only thing that wears is the cam latch. If you have the kit to replace that, it should be fairly straight forward as long as you don't break anything.



Parisien

New Member

• Nov 27, 2013

• #16

Cheers Wammers.....


P



mgmayo

Active Member

• Apr 6, 2014

• #17

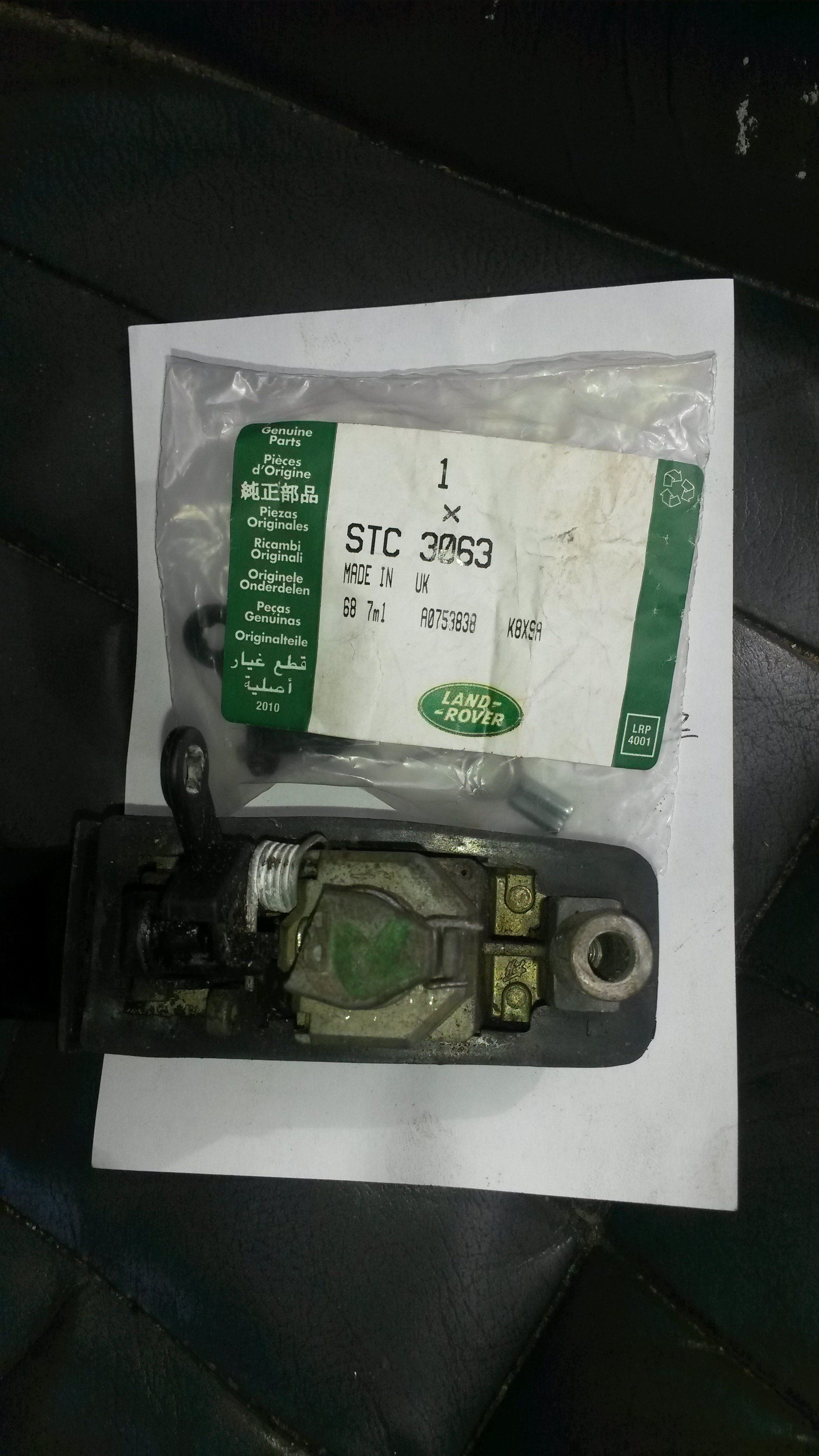

I went about doing the cam kit fitting. However on removing the door handle I snapped off the door lock tab. This part is not available as a spare and as replacement handles are scarce and expensive - sh or new.
I set about making a replacement part,

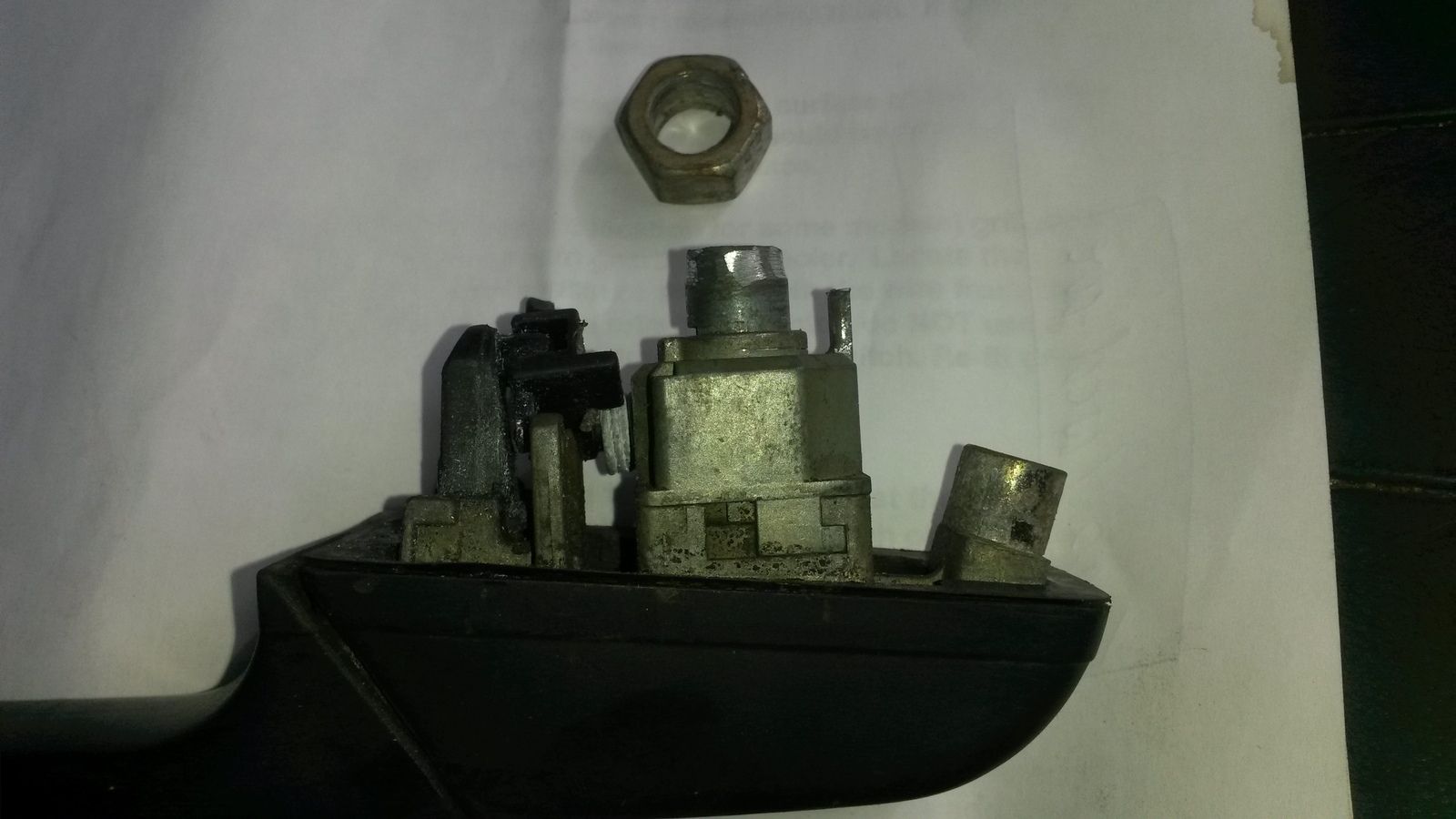

I rounded the end of the barrel stem where the tab was, Then I drilled an M12 nut with a 12mm drill. I then welded a a steel tab to the nut. This fits over the rounded stem and is cross drilled to take a roll pin or steel pin.
It worked OK for me anyway.



mgmayo

Active Member

• Apr 7, 2014

• #18

mgmayo said:

I went about doing the cam kit fitting. However on removing the door handle I snapped off the door lock tab. This part is not available as a spare and as replacement handles are scarce and expensive - sh or new.
I set about making a replacement part,
I rounded the end of the barrel stem where the tab was, Then I drilled an M12 nut with a 12mm drill. I then welded a a steel tab to the nut. This fits over the rounded stem and is cross drilled to take a roll pin or steel pin.
It worked OK for me anyway.

Click to expand...

Photos added, to make it easier understood.
