Which is the best crankshaft rear oil seal to use and is it fitted flush to the front or to the back thanks



Europa486

Well-Known Member

• Feb 16, 2021

• #2

I personally would use an OEM like Cortico, it’s a lot of work taking out the box to replace a dodgy pattern part,
The original seal was EER1535 superseded to EER2532,
https://www.turnerengineering.co.uk/err-2532-rear-oil-seal-c2x21124150



Europa486

Well-Known Member

• Feb 16, 2021

• #3

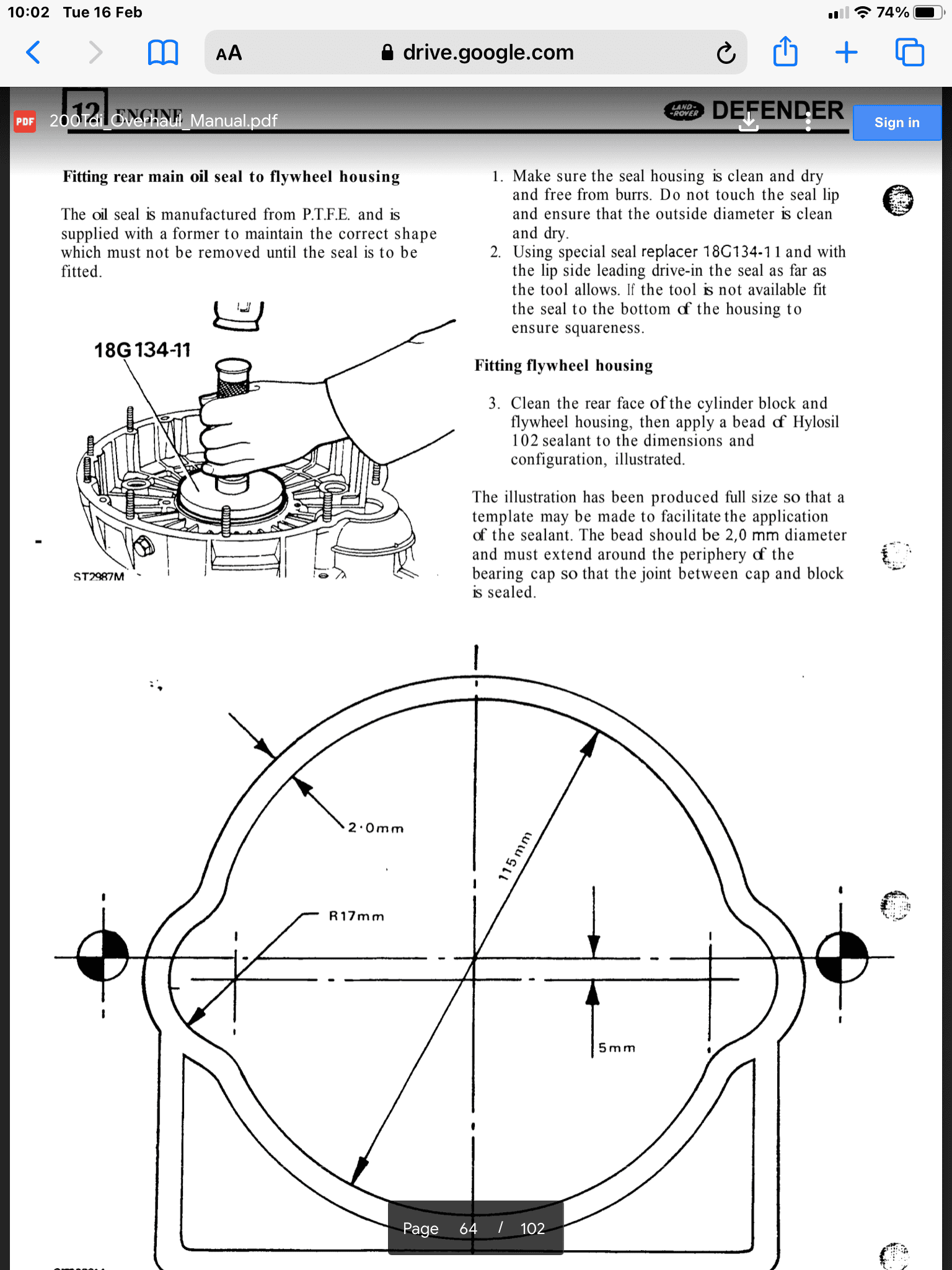

It would appear to need 18G134-11 seal replacing tool to do the job without damaging the seal,



Europa486

Well-Known Member

• Feb 16, 2021

• #4

The tool size is

Approximate dimensions: Outside diameter 126mm(5"), inside diameter 22mm(0.9"), thickness 23.5mm(0.9")

Old tool number: 18G.134-11

so shouldn’t present any problem with getting one turned up,



L

lynall

Well-Known Member

Full Member

• Feb 16, 2021

• #5

Use quality seal, about 15/20 quid Iirc
Apply a thin smear of loctite to the outside of the seal housing
Do not grease the seal face/crank land or it will leak
I fitted mine with a blunt soft drift and a hammer
Iirc flush with the front of the housing, but pls confim before hand, as like said above its a ton of work for a silly seal!
Seal comes with install sleeve to protect seal face from damage on crankshaft

ERR2532G



Europa486

Well-Known Member

• Feb 16, 2021

• #6

This is a good video guide on fitting the seal without using the correct tool,
Very informative,
