H

HaslemereLandy

Member

• Aug 4, 2021

• #1

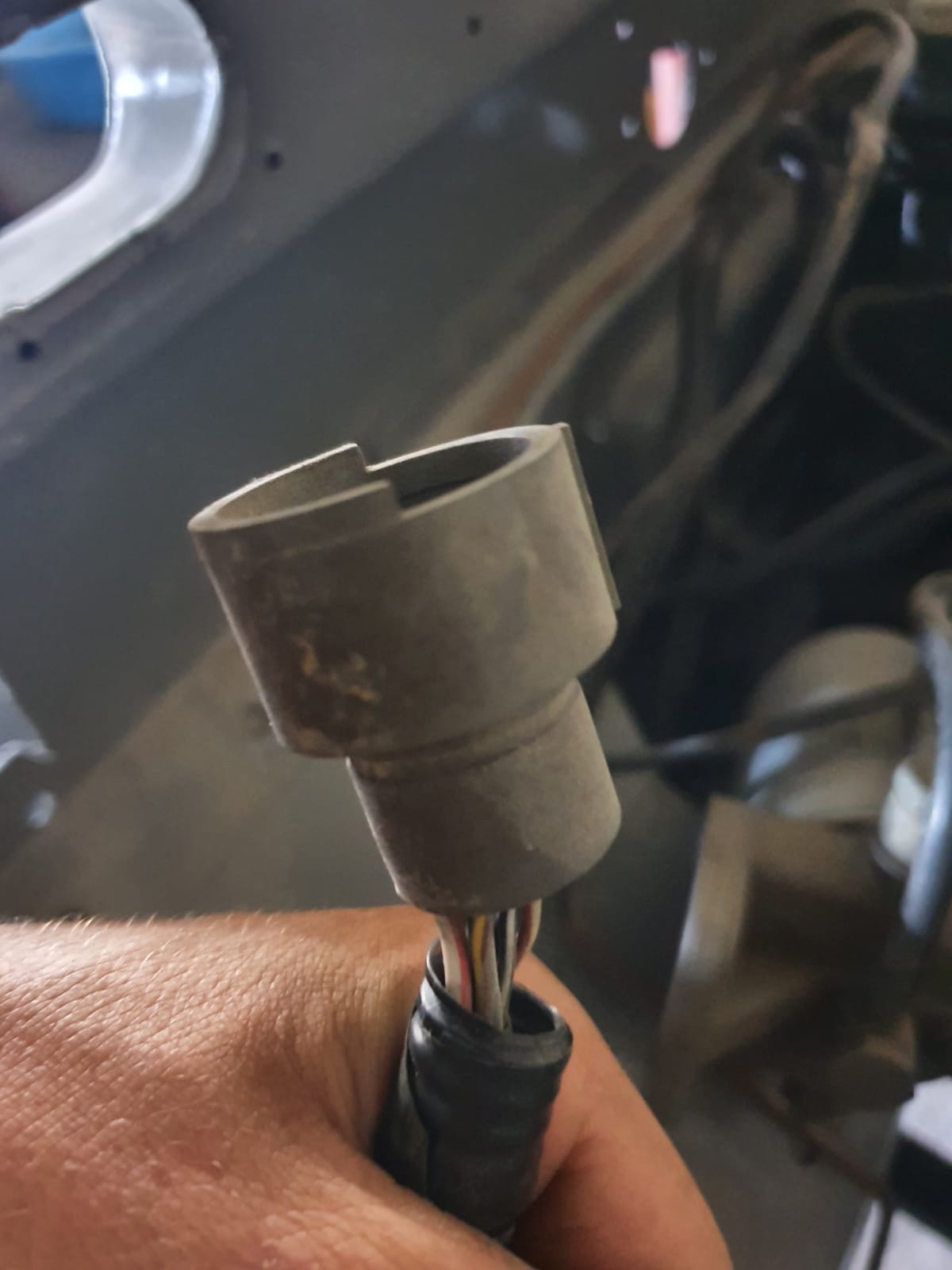

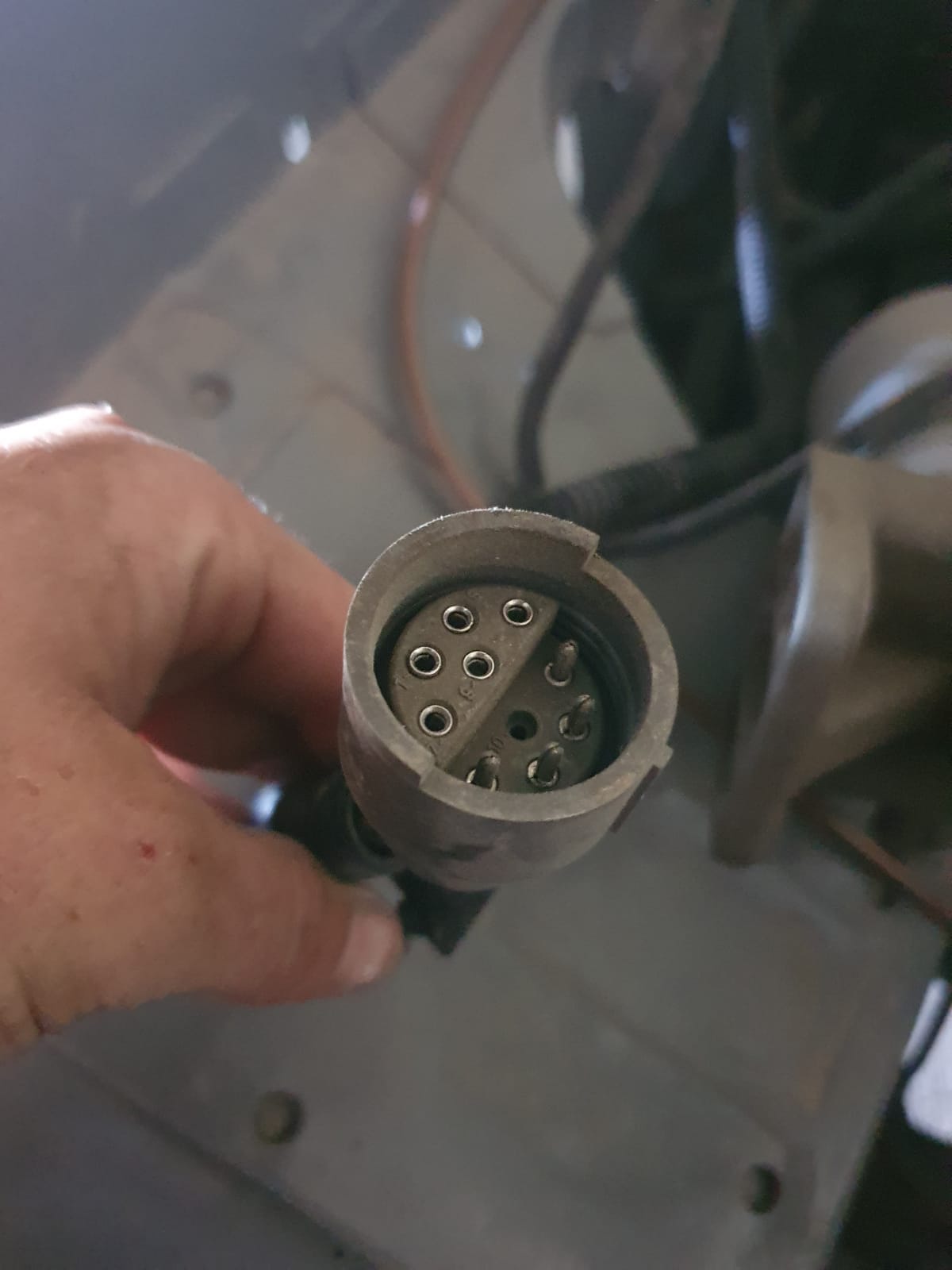

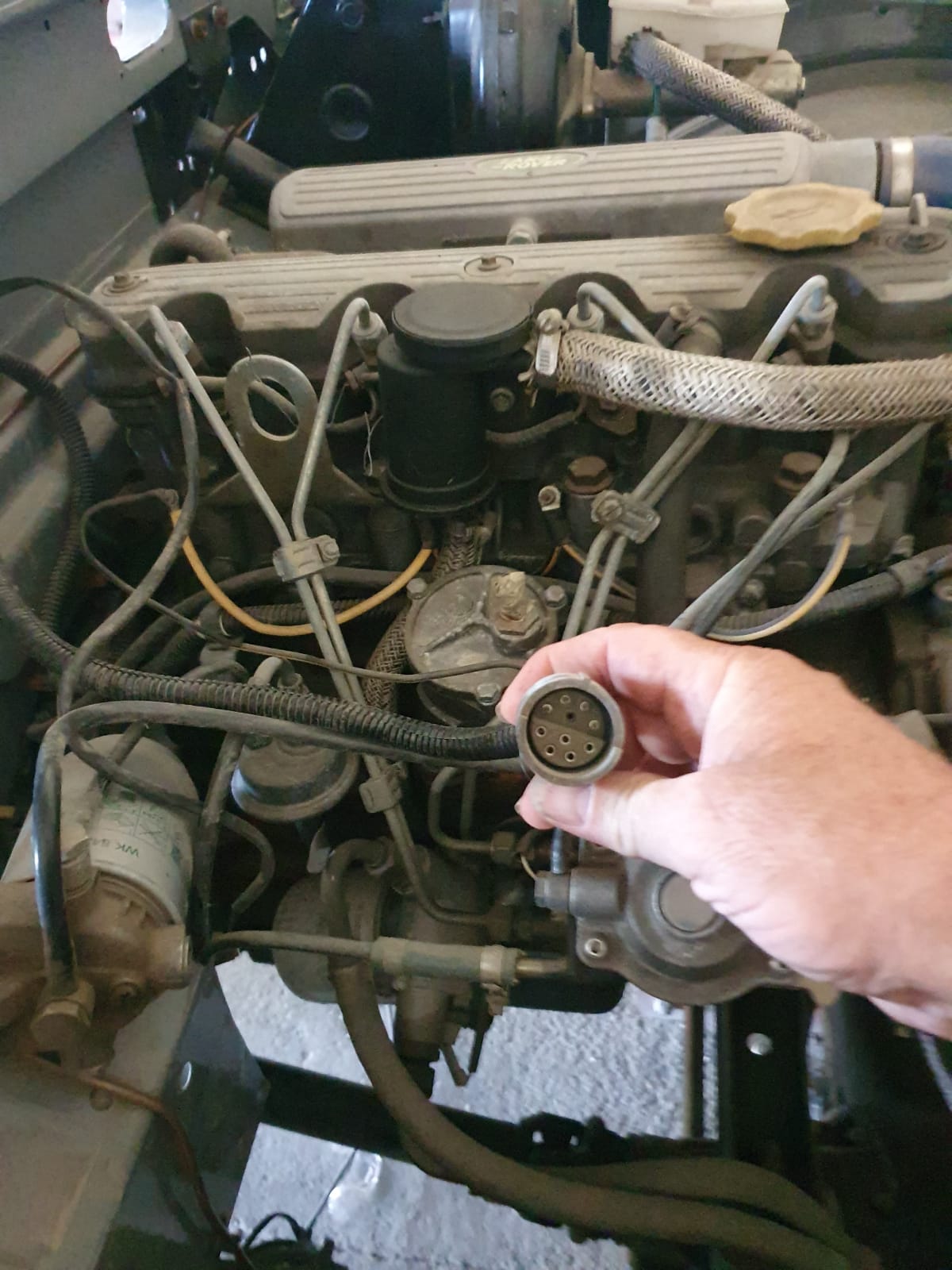

I've recently put a 200tdi from a Disco into my 1984 90. I've been speaking to autosparks to try and find the right wiring harness/loom to connect from the engine into my dash but I'm really struggling to find anything that uses this connector.

Any ideas?

Cheers!



the_wolf

Well-Known Member

• Aug 4, 2021

• #2

What's it connected to? It most likely wouldn't have any function in a defender, the loom is pretty simple and you don't need many wires



miktdish

Guns n Chainsaws

Full Member

• Aug 5, 2021

• #3

Like @the_wolf said ... what does it connect to on the engine ?



H

Hicap phill

Well-Known Member

• Aug 5, 2021

• #4

That looks like a disco plug.
Is that on the engine ?

have you still got a loom off the previous engine in the 90?



H

HaslemereLandy

Member

• Aug 5, 2021

• #5

Hicap phill said:

That looks like a disco plug.
Is that on the engine ?

have you still got a loom off the previous engine in the 90?

Click to expand...

That makes sense. No, the old TD loom was shot.



H

Hicap phill

Well-Known Member

• Aug 5, 2021

• #6

HaslemereLandy said:

That makes sense. No, the old TD loom was shot.

Click to expand...

Take the plug off the old TD loom and solder it to the disco loom.
There are only
Water temp
Alternator
Exciter cable
Starter solinoid cable
HP fuel power
