Descapri

Member

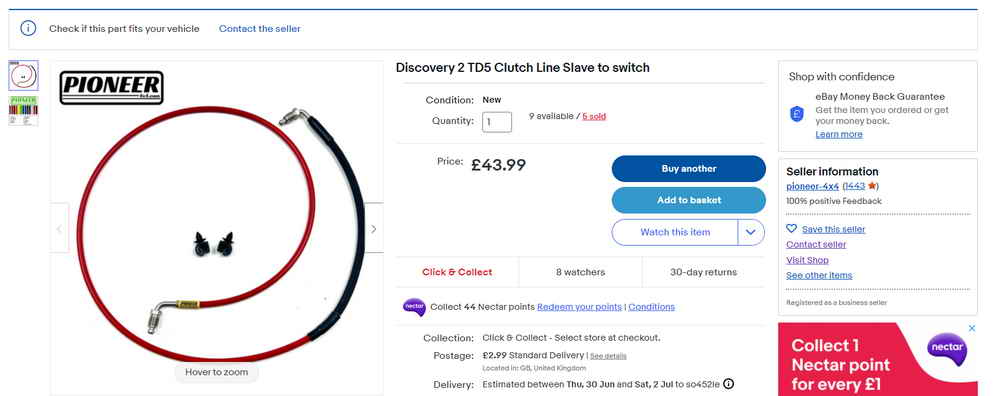

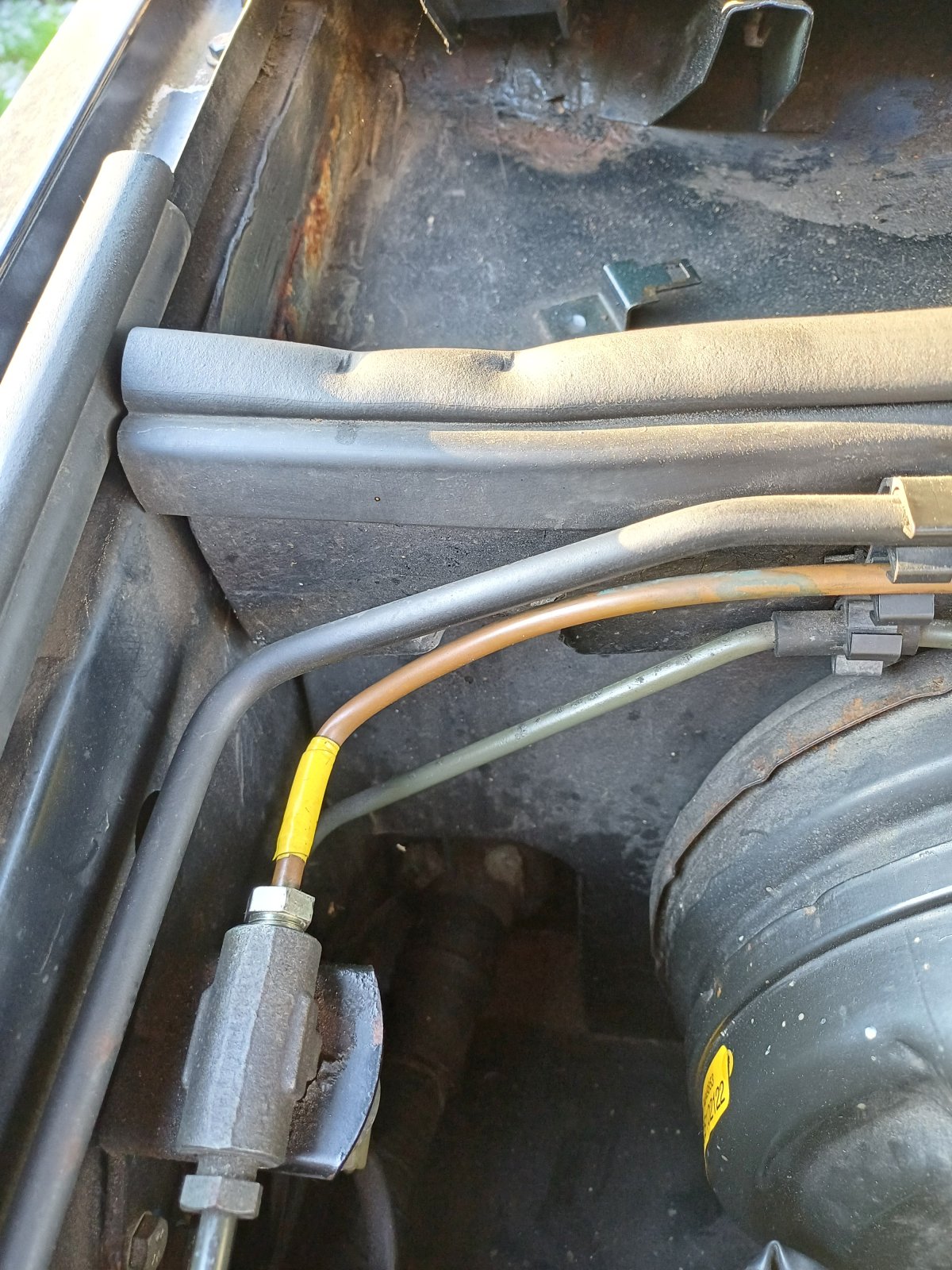

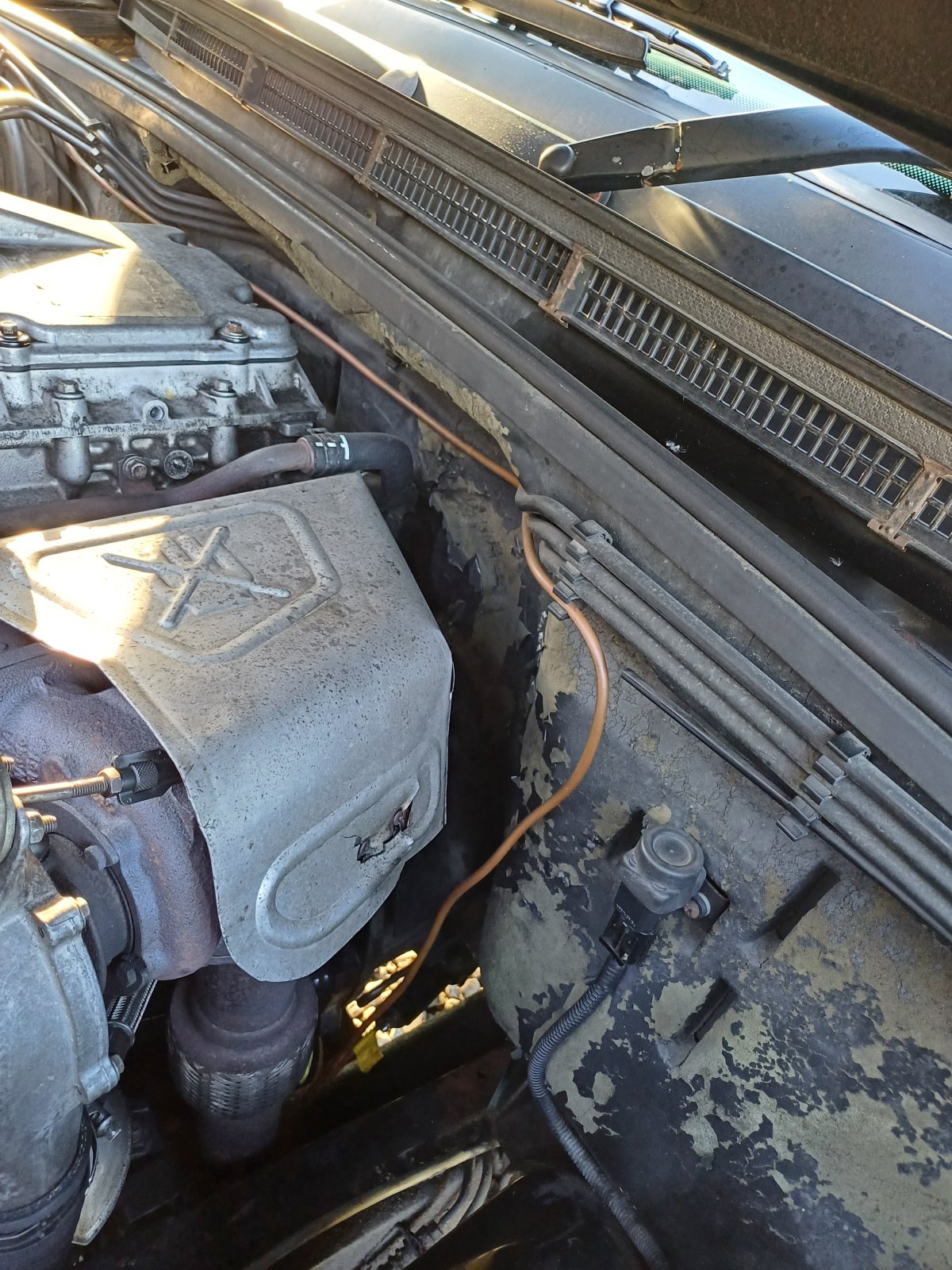

I've enclosed a couple of pics of the pipe which at some point has been replaced and made up using brake pipe etc. I have a leak at the slave cylinder end which is causing the obvious issues so have ordered a slave cylinder as the master is new I won't be replacing that. Could someone kindly post a couple of pictures of an original pipe please and has anyone fitted braded ones that are apparently available? Thanks.


Attachments

  • 20240918_173346.jpg
    381.7 KB · Views: 17
  • 20240918_173435.jpg
    421.6 KB · Views: 15

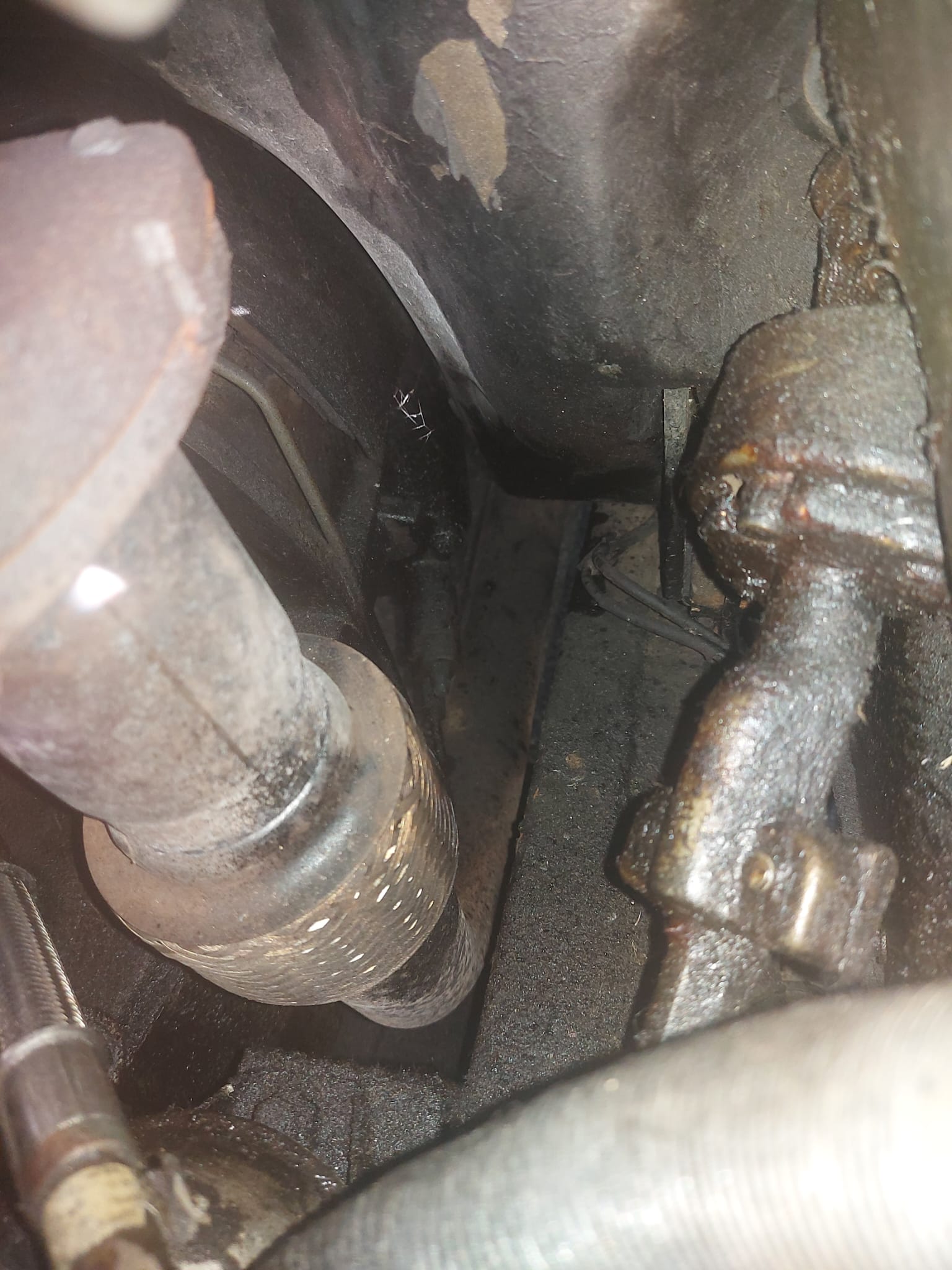

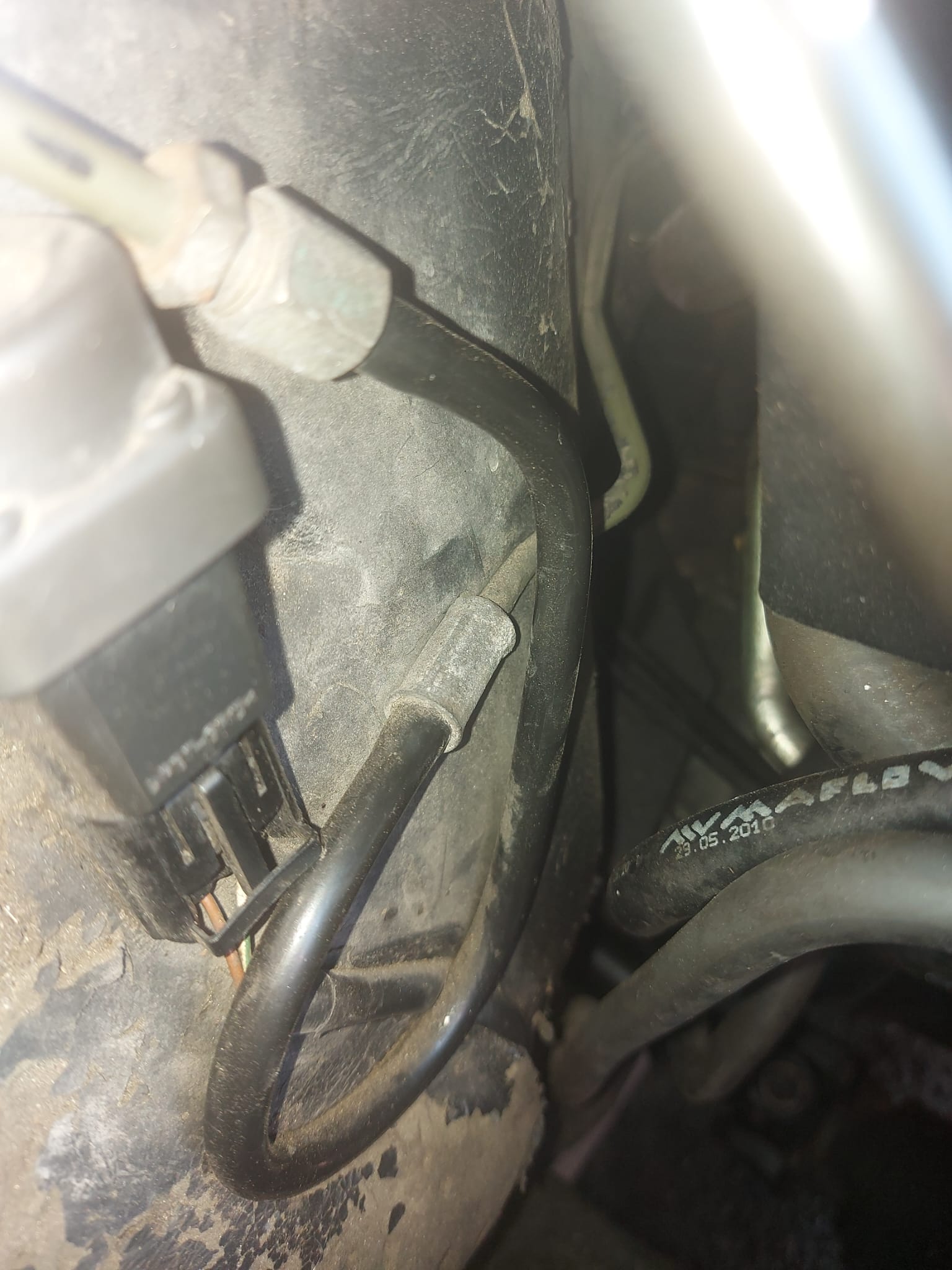

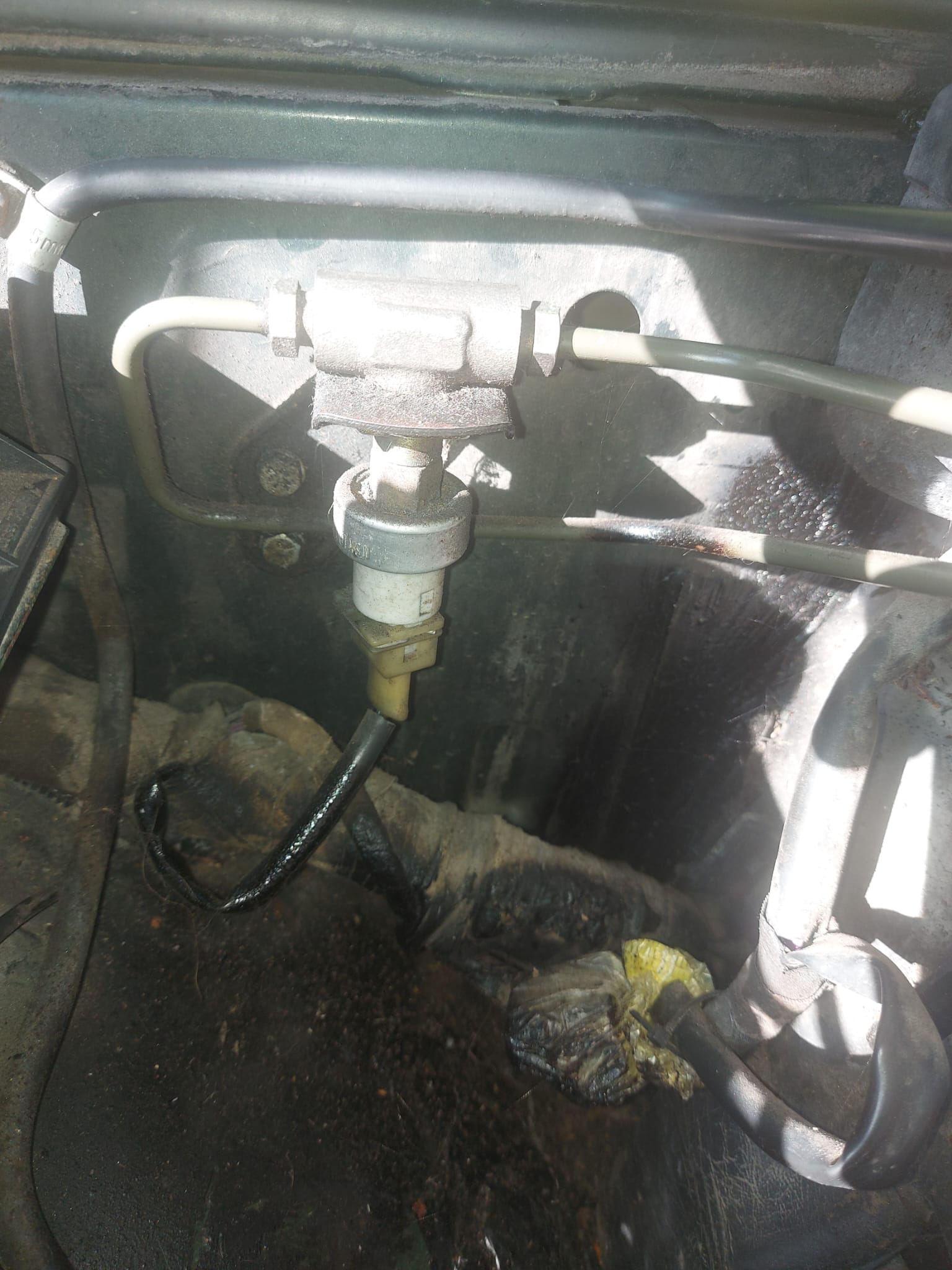

Hi, these pics are for a 1999 D2 LHD. Similar to yours except of course for the location of the master cylinder and the reservoir. Note the plastic loop section before the pipe is routed behind the engine to reach the slave. The OD of the entire circuit is 6mm.


Attachments

  • C3.jpeg
    256.8 KB · Views: 8
  • C2.jpeg
    281.9 KB · Views: 10
  • C1.jpeg
    245.7 KB · Views: 10
