Thomo1927

Active Member

• Apr 20, 2016

• #1

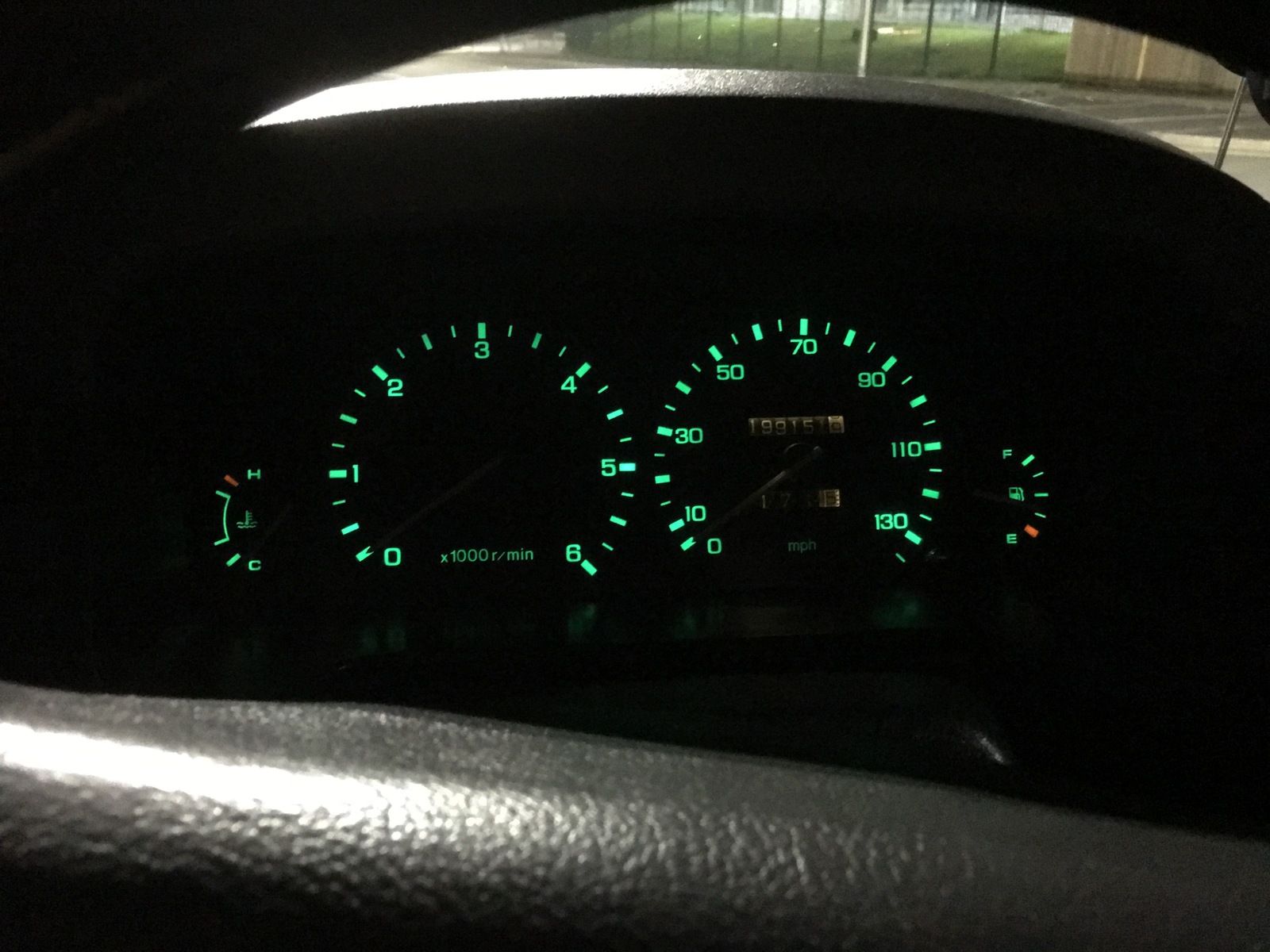

Just noticed my 300 tdi 95 disco dashboard lights on my needles don't work. Everything else lights up. A bit of a pain driving in the dark and can't see the needles,Any ideas. Cheers



Attachments

•

  169.9 KB · Views: 264

Thomo1927

Active Member

• Apr 21, 2016

• #2

Any ideas ? Not the best driving in the dark ,Cheers for any help.



discool

Well-Known Member

• Apr 21, 2016

• #3

Perhaps the needles are lit via a fibre optic, if so the source illuminating bulb could have failed or both fibres have become detached. It's not unheard of as that's how the needle its illuminated on the RRc as I found out many years ago.
Remove the pod and have a look see.



Dippypud

Never Knowingly Understood

Full Member

• Apr 21, 2016

• #4

Check fuse 8 ...



Thomo1927

Active Member

• Apr 21, 2016

• #5

Cheers guys ,Will check it out.



Thomo1927

Active Member

• Apr 22, 2016

• #6

Ok checked fuse 8 and it's good ,None of my needles light up anymore. Are the clusters easy to get at ? Cheers



Thomo1927

Active Member

• Apr 29, 2016

• #7

All done now ,It was the bulbs. I changed them all for LED. Very easy job



DiscoPol

Well-Known Member

• Apr 30, 2016

• #8

so there arent any needle lights then? just dial lights?

i look at mine every day and cant remember whats there, how odd.



Thomo1927

Active Member

• Apr 30, 2016

• #9

It's unbelievable how many bulbs there are ,Well worth it though as its that easy.



Disco1BFG

Well-Known Member

Full Member

• Apr 30, 2016

• #10

@Thomo1927 ; Out of interest, and because I have a bulb gone on the LHS in my pod, which LED's did you use please?

This might get urgent, as, when i am doing 130, I can't see the needles, Officer,

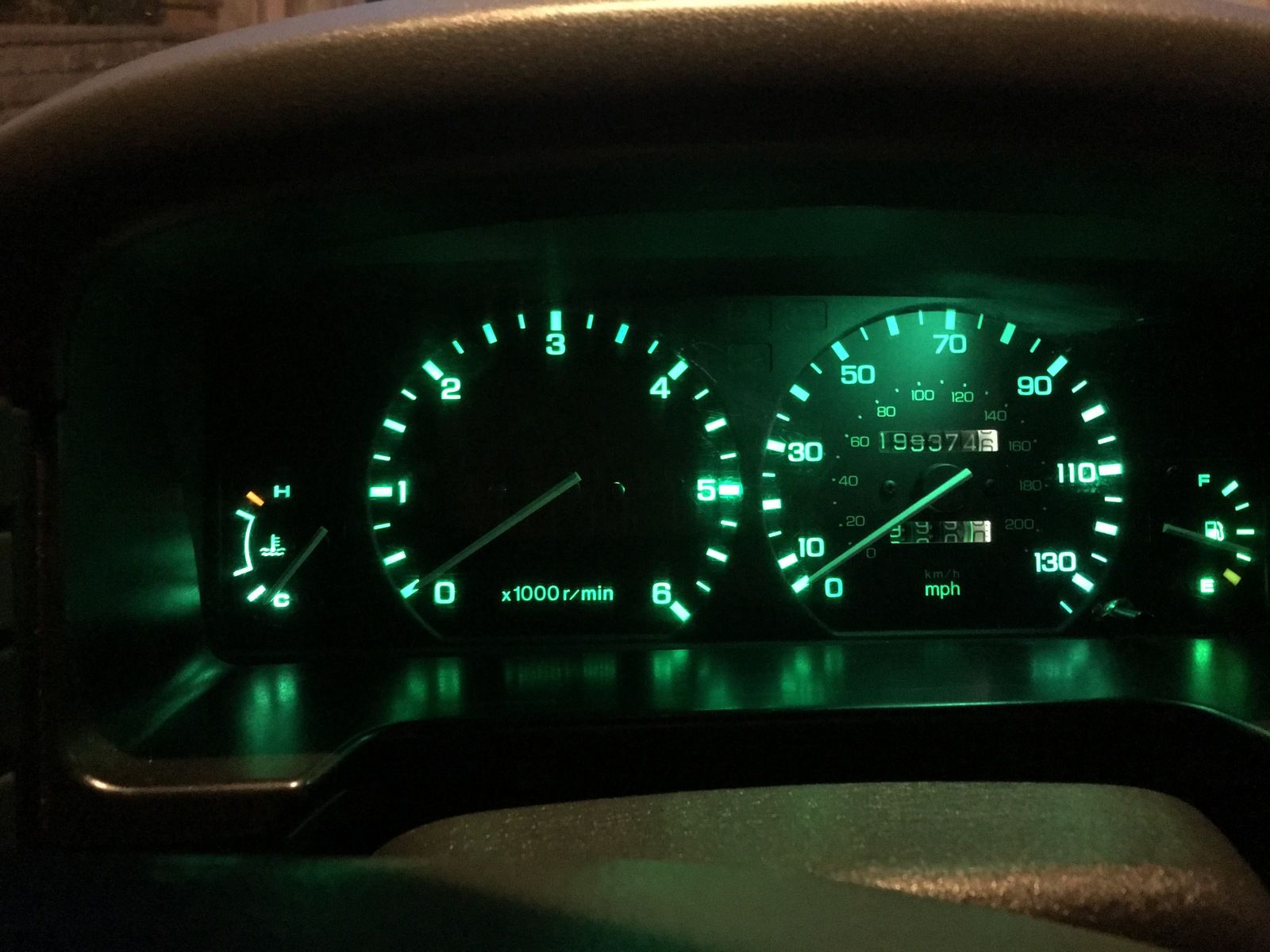

BTW, they look really good....



Thomo1927

Active Member

• Apr 30, 2016

• #11

Here you go ,Very quick delivery.


https://www.ebay.co.uk/ulk/itm/271839899718

Land Rover Discovery 1 LED Green ALL Dash Dial Instrument Bulbs 200tdi/300tdi/V8



Disco1BFG

Well-Known Member

Full Member

• Apr 30, 2016

• #12

Thanks very much



discool

Well-Known Member

• Apr 30, 2016

• #13

DiscoPol said:

so there arent any needle lights then? just dial lights?

i look at mine every day and cant remember whats there, how odd.

Click to expand...

I had a look at mine also and was supprise to see the needles are white, I thought they were red, as fitted to the RRC, just shows how much attention I have paid to my disco



brian47

Well-Known Member

• Apr 30, 2016

• #14

discool said:

I had a look at mine also and was supprise to see the needles are white, I thought they were red, as fitted to the RRC, just shows how much attention I have paid to my speedo

Click to expand...

Edited for accuracy



discool

Well-Known Member

• Apr 30, 2016

• #15

brian47 said:

Edited for accuracy

Click to expand...

You could be right, my speedo display only gets my attention below 40mph and then again
over 100mph when it gets more interesting, so thanks for your correction



mephitic

Active Member

• May 1, 2016

• #16

At the top of the cluster there are a couple of bulbs (one each side) which illuminate the needles via fiber optics, while not difficult to change getting at them was a bit of a pain in the ass, having to remove the steering wheel & disconnect the switches from the binnacle. Mine have failed twice, EBay Chinese LED's i guess.



Thomo1927

Active Member

• May 1, 2016

• #17

mephitic said:

At the top of the cluster there are a couple of bulbs (one each side) which illuminate the needles via fiber optics, while not difficult to change getting at them was a bit of a pain in the ass, having to remove the steering wheel & disconnect the switches from the binnacle. Mine have failed twice, EBay Chinese LED's i guess.

Click to expand...

That's correct , Almost missed those bulbs



discool

Well-Known Member

• May 1, 2016

• #18

Thomo1927 said:

That's correct , Almost missed those bulbs

Click to expand...

As u were told in post #3, that's experience for you.
