GRATCH
HUGE MEMBER
I can adapt it. So long as it clamps around a round filter box it'll be fine.
Hicap phill
Well-Known Member
Are the filter cylinders the same diameter?
(I know the filters are different sizes)

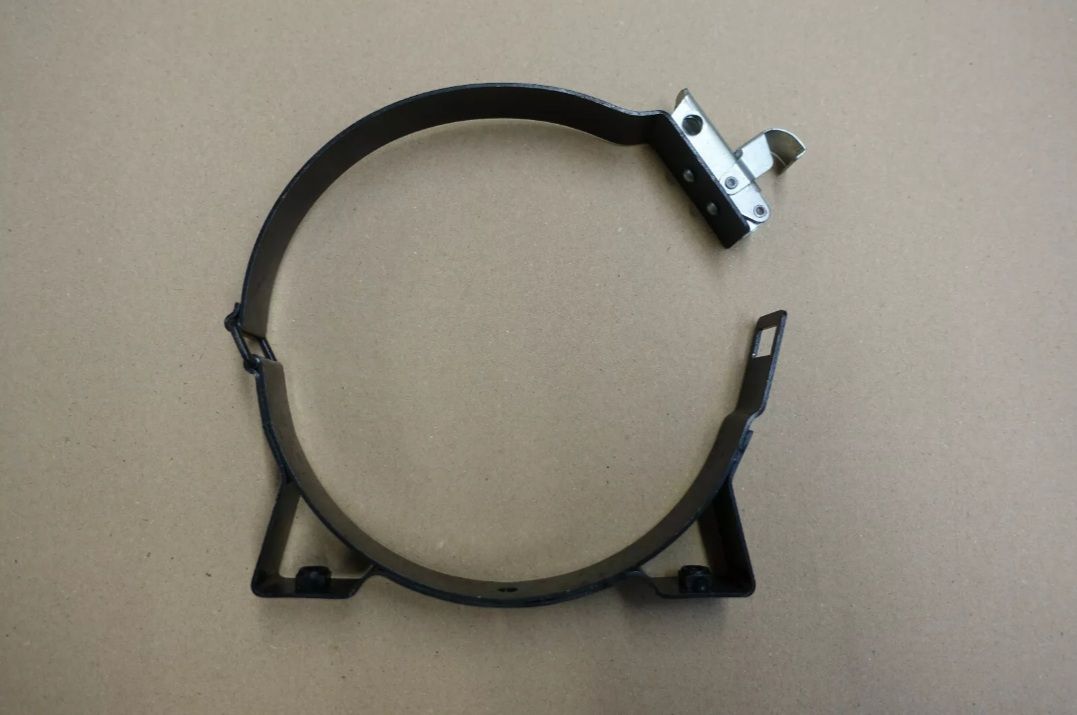

The clamp your showing is a 300tdi version.has brackets on the filter housing to suit mount
julianf
Well-Known Member

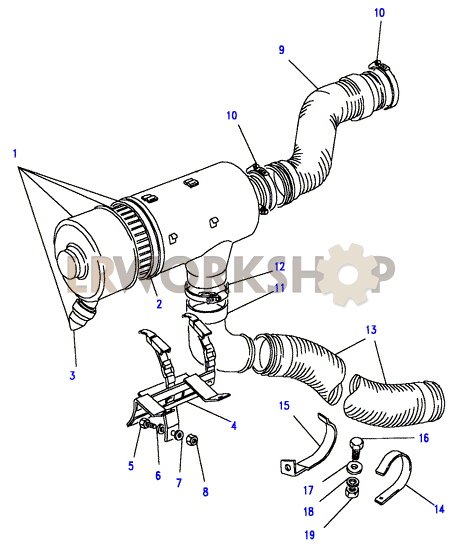

I believe this is the disco 200 style -
So the diameter is not really in play on that one. I cant tell from the photo, and have never had my hands on a 200 disco, but it looks like it claws onto the side only. Im sure it would be possible to cut and extend the strap to go around a 300 unit, but it would obviously need something to hook onto on the base.
Its possibly getting to the point then where you may have wished you just spent them money on a 300 one! : )
So the diameter is not really in play on that one. I cant tell from the photo, and have never had my hands on a 200 disco, but it looks like it claws onto the side only. Im sure it would be possible to cut and extend the strap to go around a 300 unit, but it would obviously need something to hook onto on the base.
Its possibly getting to the point then where you may have wished you just spent them money on a 300 one! : )
Hicap phill
Well-Known Member

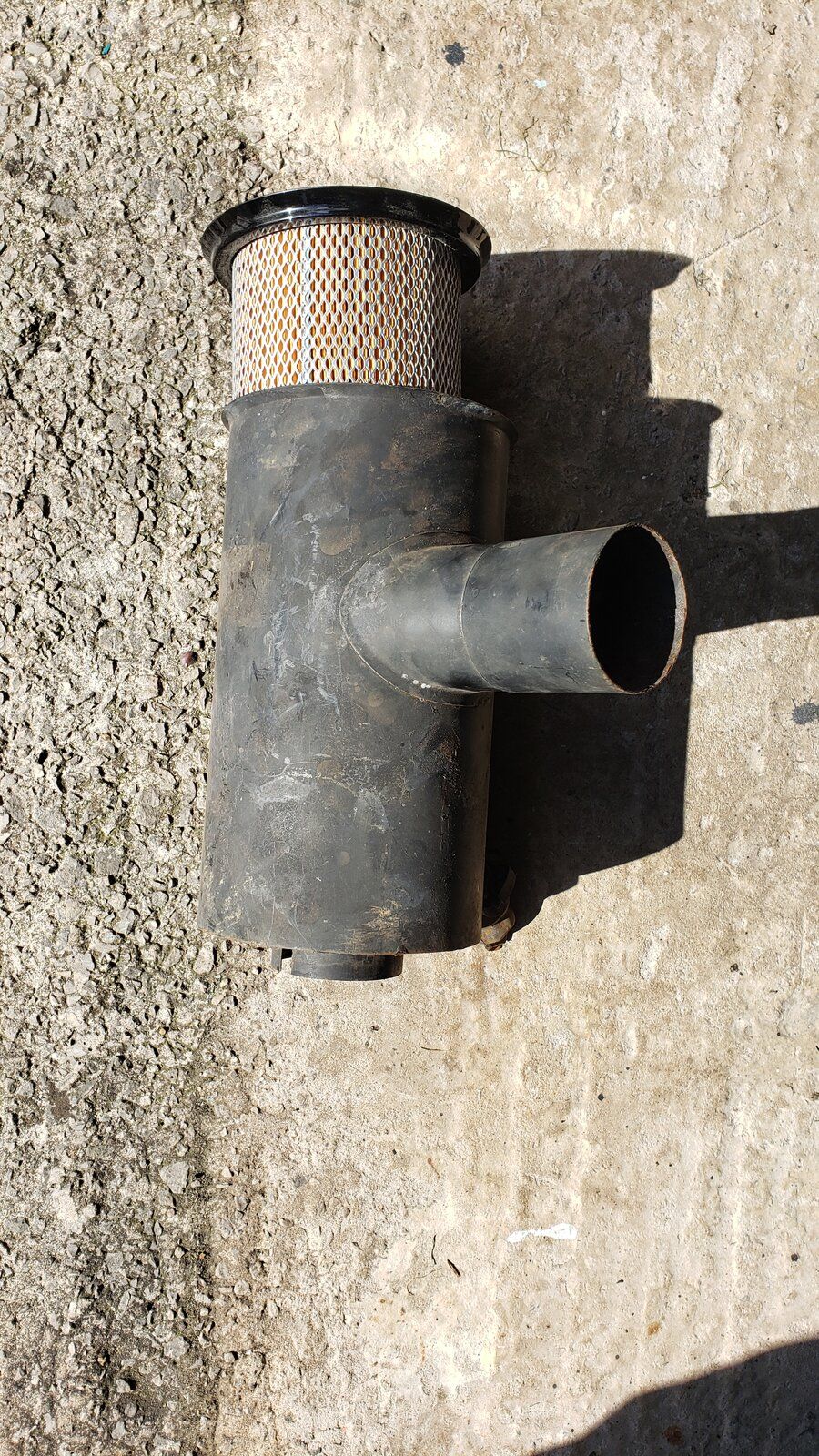

Any part number on the air filter? Will be able to cross ref designNope. See pics.
View attachment 274676 View attachment 274677
Smooth round body- no hooks or stuff.

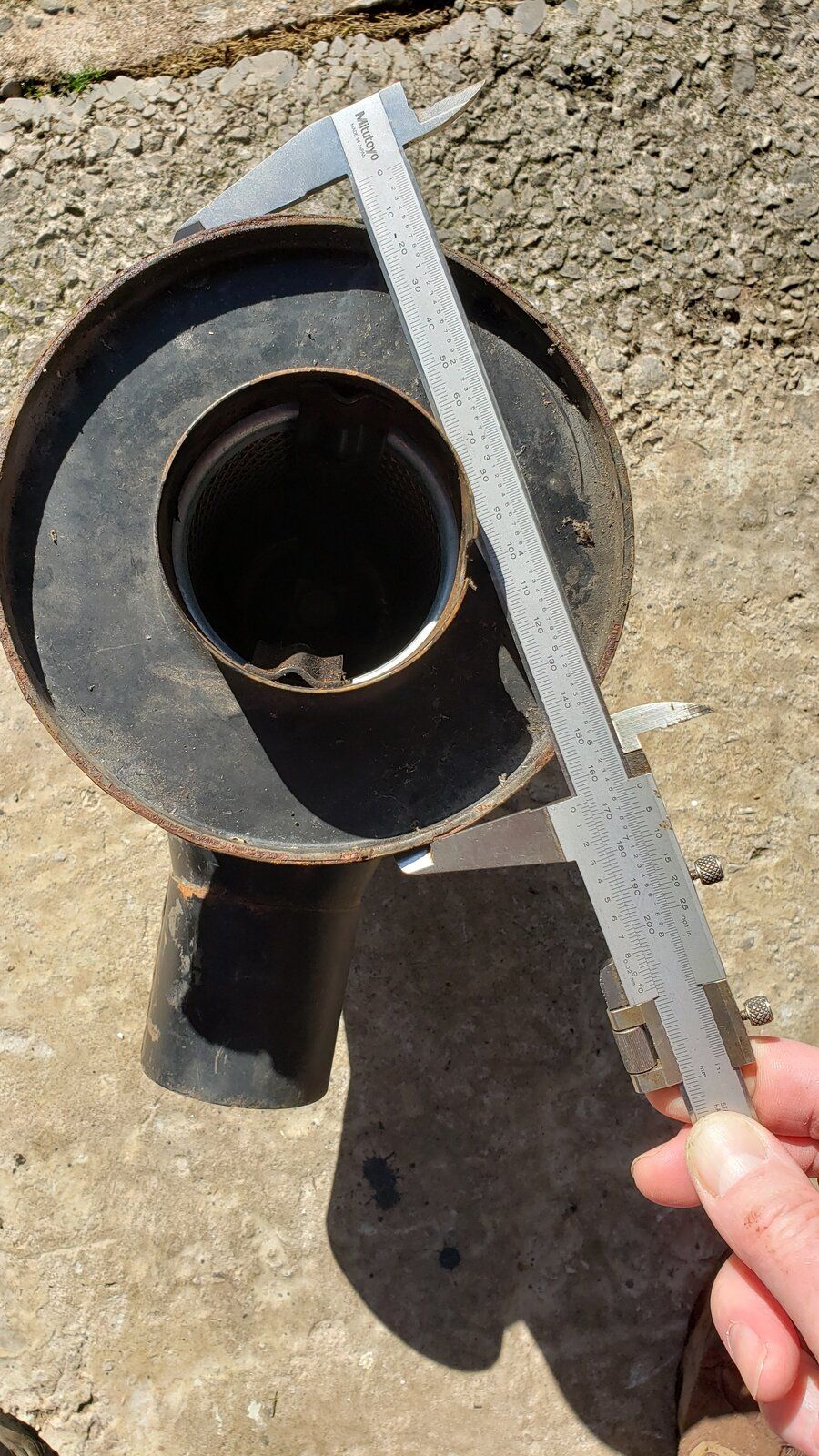

Just over 6 1/2" or 166mm in dia.
Why would I want to buy a 300tdi one, when this came free with the £100 engine donor vehicle?
(Not seen like that)
GRATCH
HUGE MEMBER
Wix WA6629.
Hicap phill
Well-Known Member
So just found it’s a discovery 1 air box..
Look at the link & ask @Flossie
https://www.landyzone.co.uk/land-rover/discovery-1-200tdi-air-filter-box.376254/
Look at the link & ask @Flossie
https://www.landyzone.co.uk/land-rover/discovery-1-200tdi-air-filter-box.376254/
Hicap phill
Well-Known Member
In the linky earlier you can see how he has set this upSorry, did I not mention it came from a '93 Disco.
Has @Flossie got a spare strap- is that why I need to ask him?
GRATCH
HUGE MEMBER
Yep, that's how I'm thinking.In the linky earlier you can see how he has set this up
Flossie
Well-Known Member
Haven't got a spare strap sorry.
I mounted a steel plate where the ac pump goes then bolted the aircleaner to that on rubber bobbins.
Turned the aircleaner 180 deg and welded up the dust franger hole. Intake to aircleaner then faces the os, can be extended with duct hose to a snorkel. Steel tube pipework with 90 deg silicone straights and elbow into the turbo.
I mounted a steel plate where the ac pump goes then bolted the aircleaner to that on rubber bobbins.
Turned the aircleaner 180 deg and welded up the dust franger hole. Intake to aircleaner then faces the os, can be extended with duct hose to a snorkel. Steel tube pipework with 90 deg silicone straights and elbow into the turbo.
GRATCH
HUGE MEMBER
Yep, that's the plan. I've got a bit of 4mm thick ally plate that will do to mount on.
