Mi Tasol · Dec 13, 2011

Just for info pay attention to your front drive shaft rear universal joints

I just bought a D2 with a roadworthy that is supposed to inspect universal joints. 2200 Km & 15 days later a very load bang at 85 kmh under acceleration with a trailer on and the front shaft failed destroying the auto transmission housing, cooling lines and shift cable in the process.
!@#$%^ expensive tho I have a good chance of restitution as they will loose their roadworthy licence if I report it to VicRoads

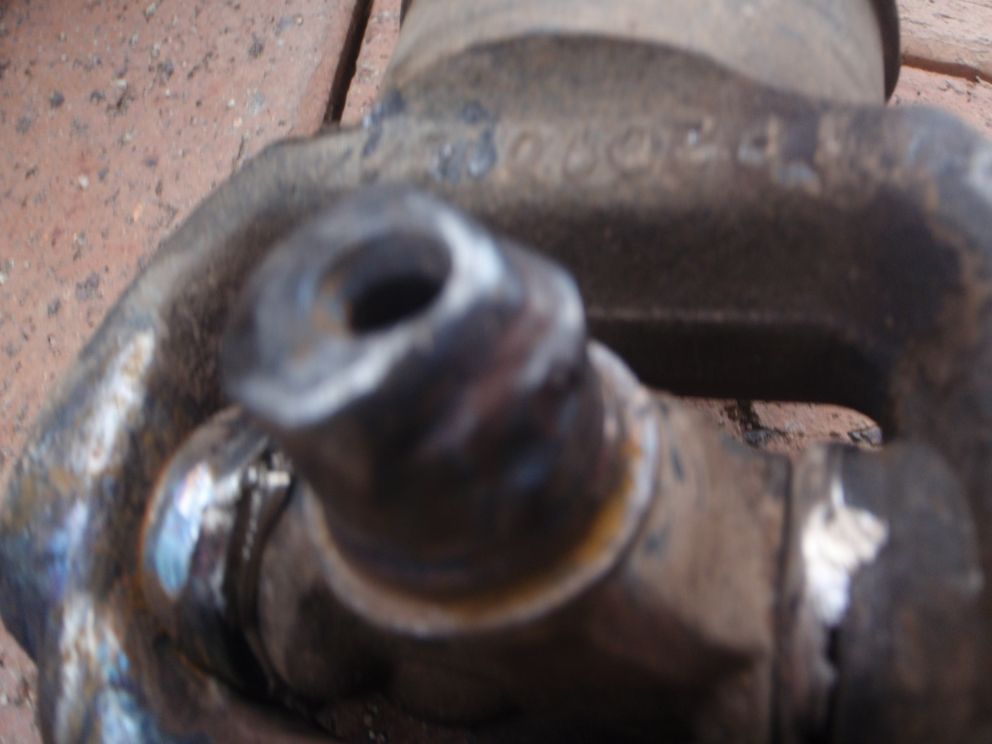

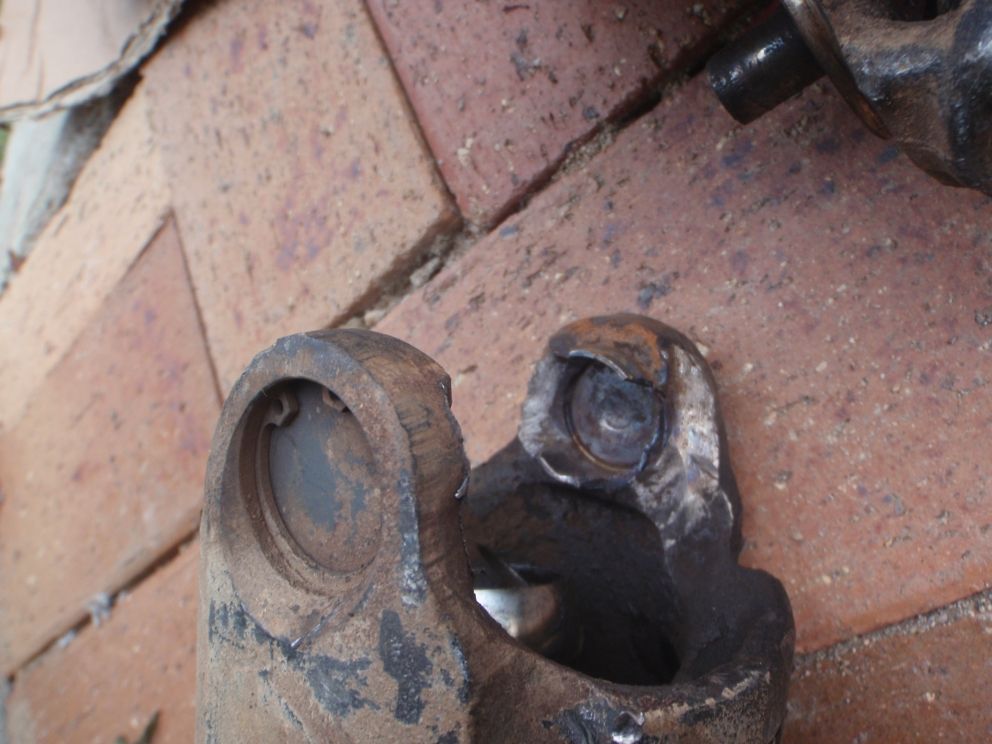

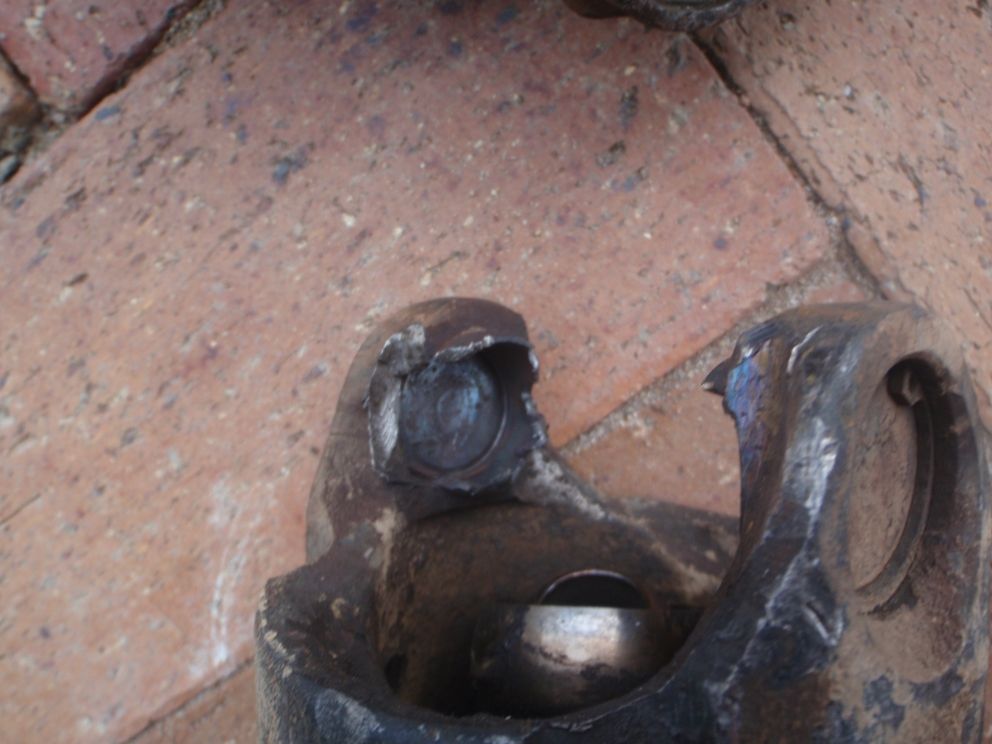

See photos of failed universal

jamesmartin · Dec 13, 2011

it can be quite common to destroy box case but pipes and cable seems strange

defcrazy · Dec 13, 2011

jamesmartin said:
it can be quite common to destroy box case but pipes and cable seems strange

ive seen the pipes ,oil sump,trans housing,range selector cable ,chassis and the floor of the body get damaged with a prop that broke .

jamesmartin · Dec 13, 2011

so have i ,ive recased quite a few but cooler pipes and auto shift cable are on the other side

defcrazy · Dec 13, 2011

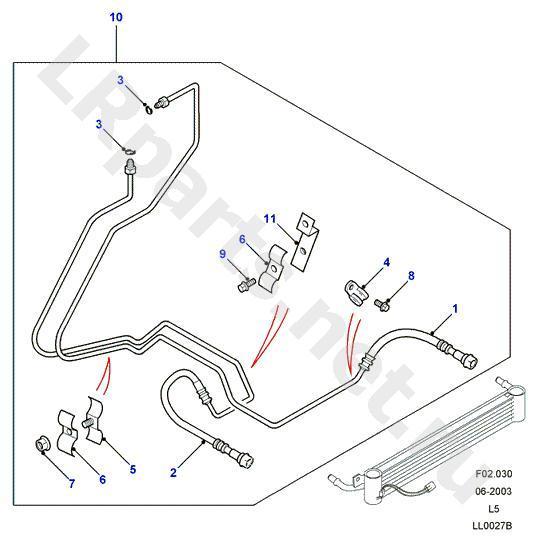

auto shift is on the other side but the cooler pipes are on the same side

murphn · Apr 17, 2012

I've just had the pleasure of puncturing the auto trans case with a broken prop shaft. Mine happened when just taking off from the traffic lights. Doesn't appear to have damaged anything else though. The case has broken just above the sump pan at the gasket/seal. Does anyone know if this can be welded so as to fit the seal and sump pan back again? I think/hope the broken piece is lying in the sump and can be retrieved and welded back. Also will the propshaft breaking have damaged the gears?

jamesmartin · Apr 17, 2012

ive swapped the cases on a few and havent had one were internals were damaged yet due to same thing

Paul D · Apr 17, 2012

Mi Tasol said:
Just for info pay attention to your front drive shaft rear universal joints

I just bought a D2 with a roadworthy that is supposed to inspect universal joints. 2200 Km & 15 days later a very load bang at 85 kmh under acceleration with a trailer on and the front shaft failed destroying the auto transmission housing, cooling lines and shift cable in the process.
!@#$%^ expensive tho I have a good chance of restitution as they will loose their roadworthy licence if I report it to VicRoads

See photos of failed universal

To be honest, they inspected them and deemed them roadworthy 2200 k and 15 days ago .. I think you're complaining about nothing!

What it takes out when it goes isn't their fault at all.

DiscoPol · Apr 17, 2012

Paul D said:
To be honest, they inspected them and deemed them roadworthy 2200 k and 15 days ago .. I think you're complaining about nothing!

What it takes out when it goes isn't their fault at all.

:5biagree::5biamwithstupid:
