bankz5152

Well-Known Member

• Mar 9, 2015

• #1

Hey chaps,

Hopefully someone can help me out. Recently took the heater control panel off and in doing so the hot/cold cable came off, which I reinstalled but went for a drive and no heat!

Temp gauge was where it should be, was doing 60 on the motorway. The air was luke warm. Luckily we are heading out of winter so it isnt all bad but still a pain.

Theres no gook or junk in the intake, water wouldnt have gotten in either. I checked the cables in the engine bay all still moving as the should, the arm on top of the box is also moving. Fan speed hasnt changed.

Any ideas on whats happend?



Last edited: Mar 9, 2015

zeaphod

Well-Known Member

• Mar 9, 2015

• #2

Sounds like the valve that controls the water flow is stuck closed.



bankz5152

Well-Known Member

• Mar 9, 2015

• #3

Where would i find such a valve?



zeaphod

Well-Known Member

• Mar 9, 2015

• #4

Its the bit that the cable connects to. Take the cable off and move it, you should feel a bit of resistance. Run the engine and make sure the heater hose is hot, then try moving the lever to either end of its range of movement and see if there's any difference in the temperature of the heater output.



bankz5152

Well-Known Member

• Mar 9, 2015

• #5

Ok cheers mate. Should have time to look on Friday



sierrafery

Well-Known Member

• Mar 10, 2015

• #6

AFAIK the Td5 has no valve on the coolant, it's permannent flow there, the cables are only for flap control(my apologies if i'm wrong)...IMO bleed well the system before you do anything else cos air lock in the matrix is very common.



bankz5152

Well-Known Member

• Mar 10, 2015

• #7

Cheers dude, now how do I do that ?



Last edited: Mar 10, 2015

Buz

Active Member

• Mar 10, 2015

• #8

Changed the thermostat on my 200 and that worked a treat



trax

.

Events Planner

• Mar 10, 2015

• #9

if you only fiddled with the dash control, then haven't you just put it back on without adjustment?

move heater control until max heat. go in engine bay unclip the wire cable and manually move the lever fully over. clip it back on in that position.



bankz5152

Well-Known Member

• Mar 10, 2015

• #10

Recently I did pop off the top hose on the header tank to move some wires, would that make any odds?

Ok ill check that tonight, im off work early

Cheers guys



bankz5152

Well-Known Member

• Mar 10, 2015

• #11

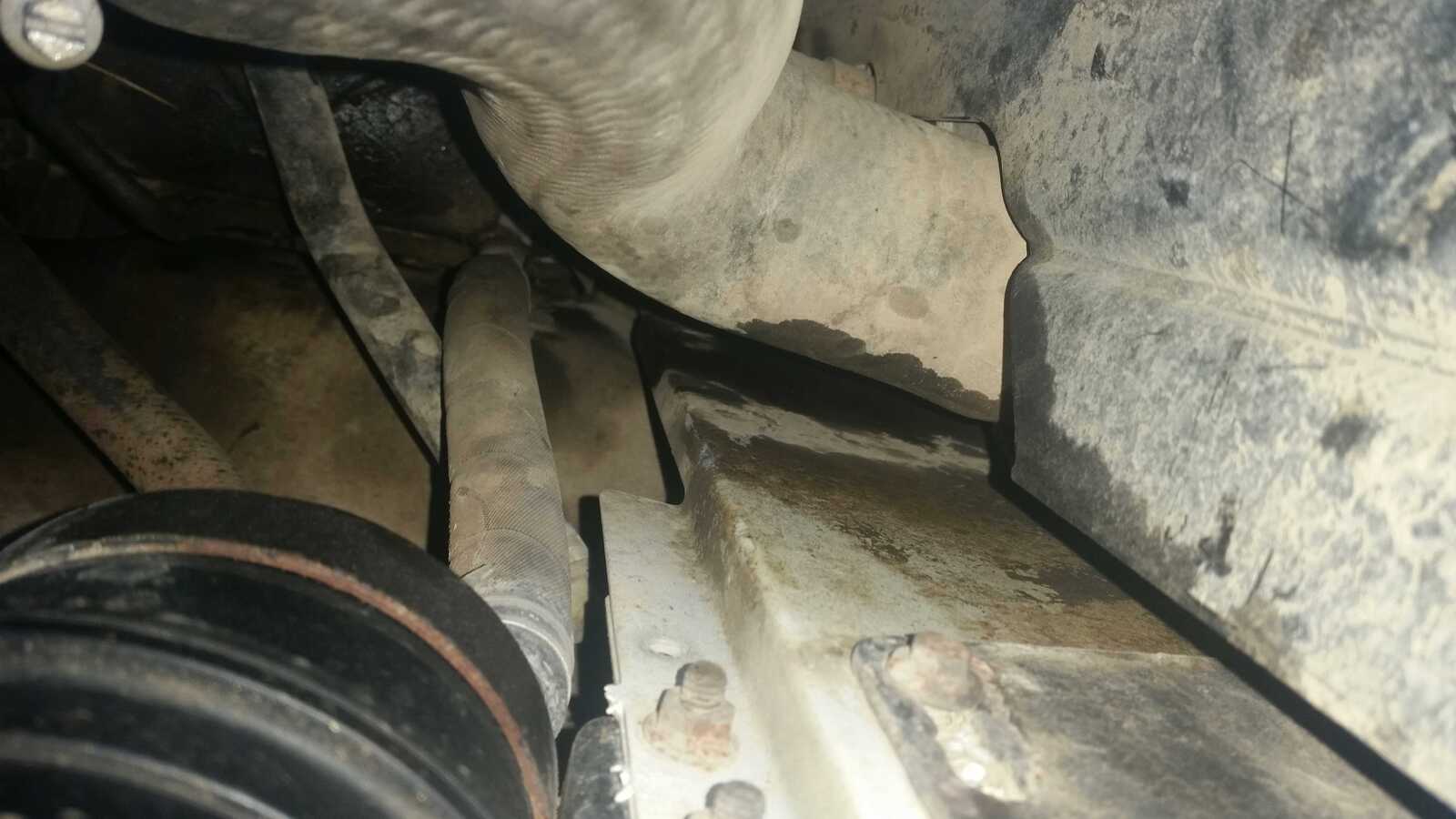

Just checking around the engine bay. The drivers side intercooler hose was VERY loose, pulled it off with almost no effort. Surrounded by a medium amount of liquid or oil



Attachments

•

  84.4 KB · Views: 232

bankz5152

Well-Known Member

• Mar 10, 2015

• #12

Looks like the adjustment cable was ####ed. I believe ive fixed it.

Edit - I have fixed it! Even made it a slightly bit better. Cable was indeed fooked.



Last edited: Mar 10, 2015
