nobber

Well-Known Member
Are they inline on the wire from switch to accessory, or, are they fed from switch accessory feed then to earth?

They are hanging by the insulation to a point you bang your knuckles when selecting first. The copper wire inside is just green dust and the bulbs ain’t worked since 1973.

Hope that helps.

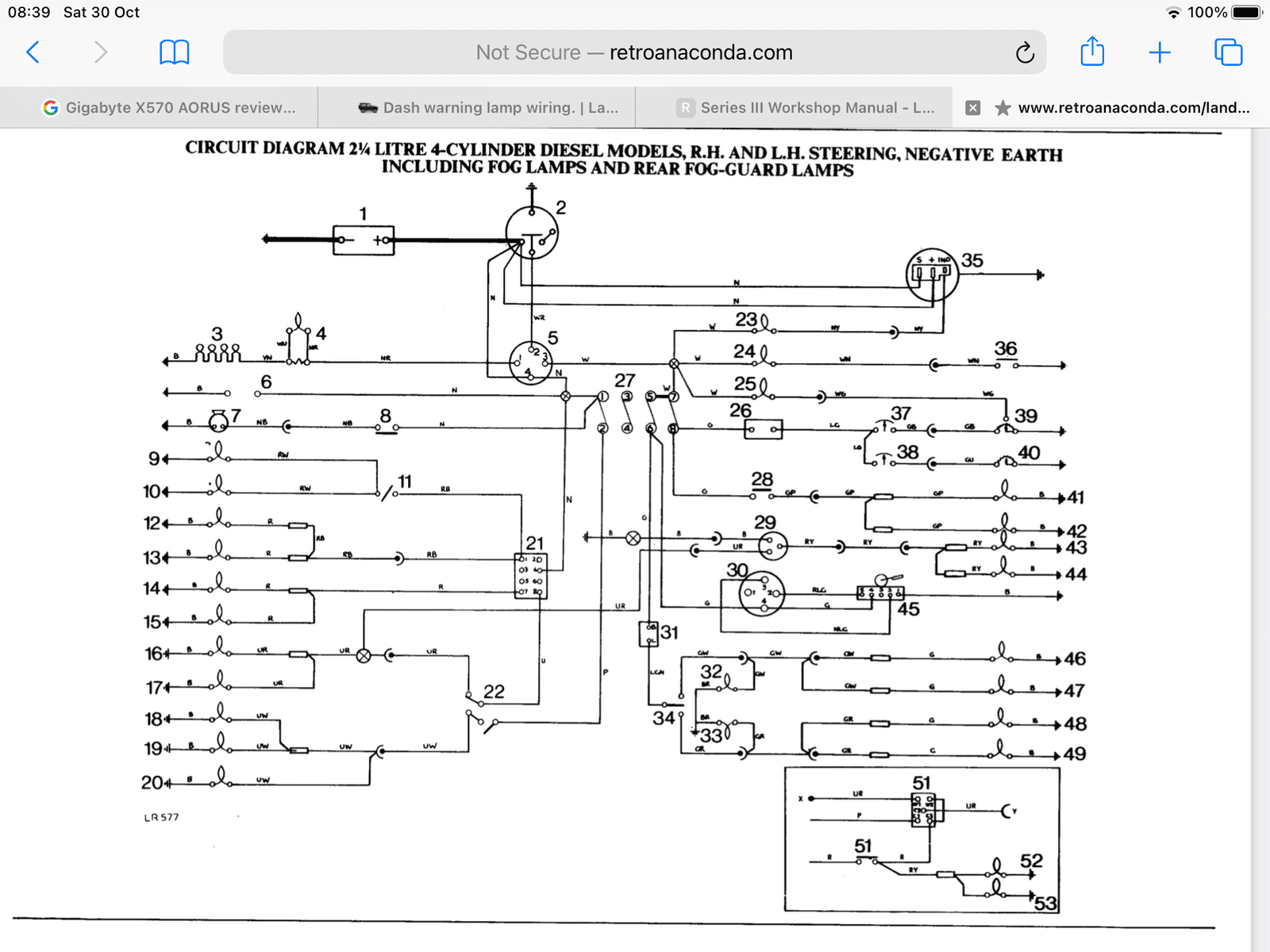

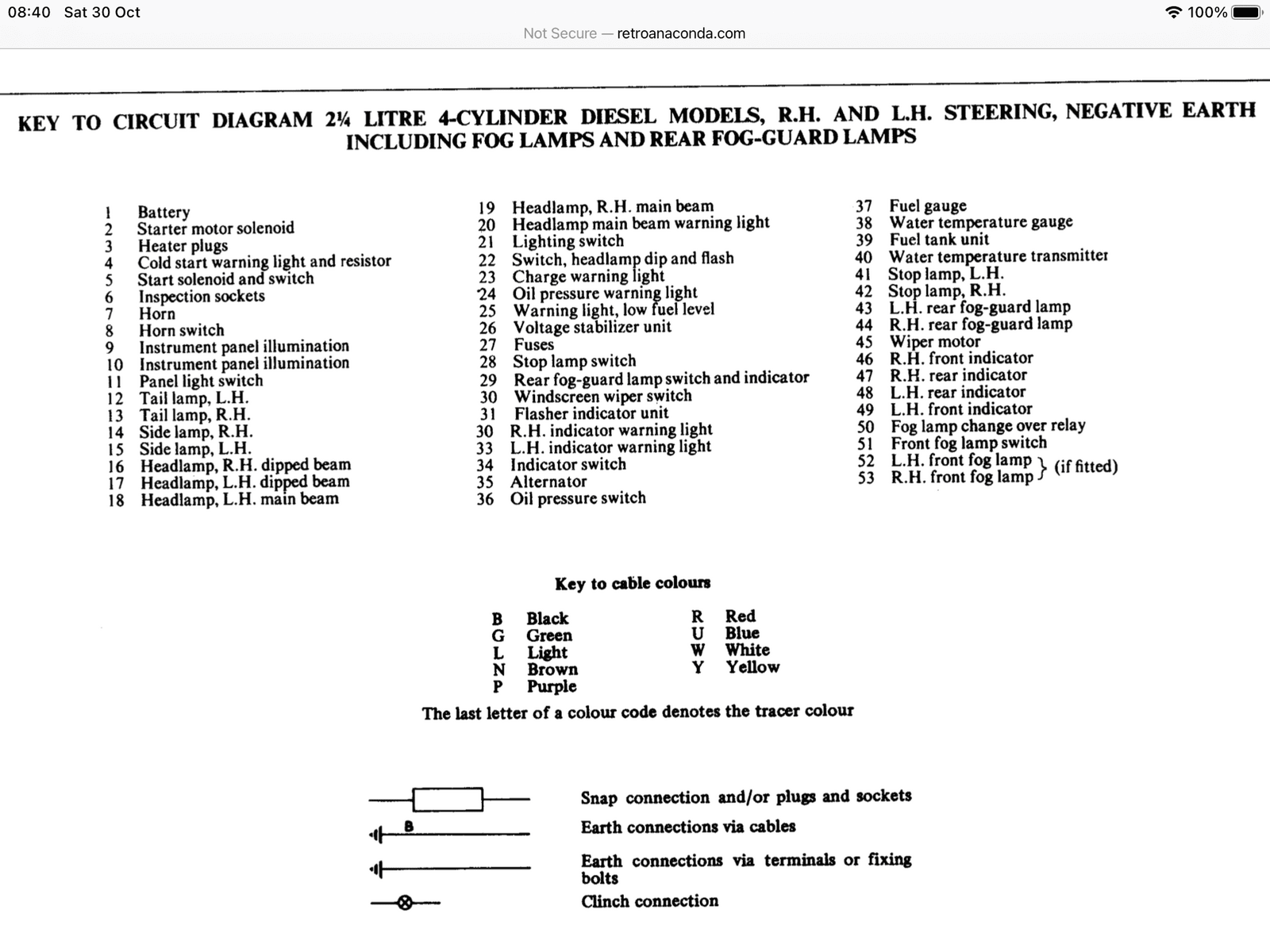

Have a look at 23 to 25, so they’re just 12v bulbs ( normally or 6v for the heater plug light) and just need connecting live one side to the item you want a warning light for and then to earth
