Lej · May 24, 2021

Hi everyone,

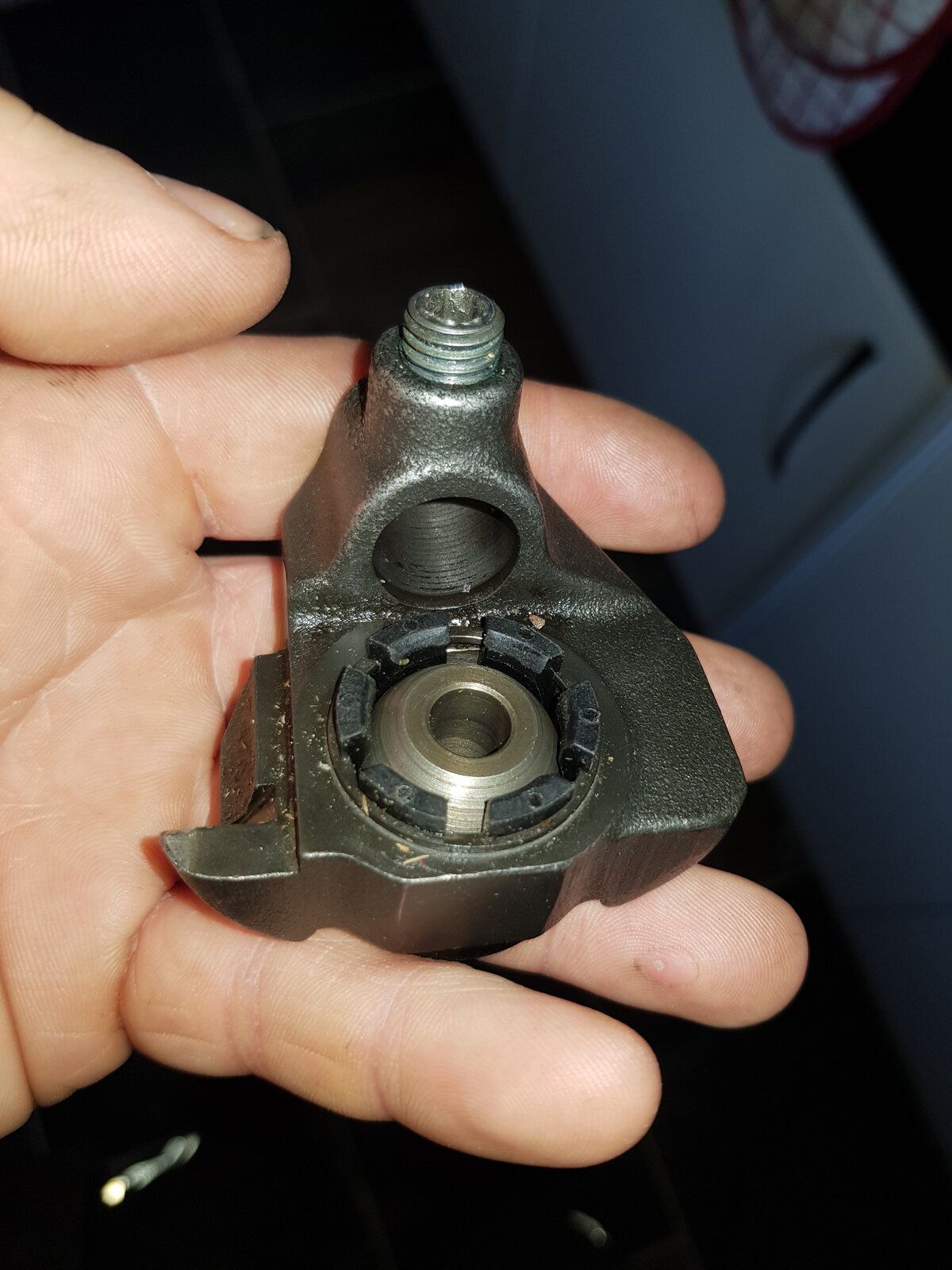

After stripping the turret down on my R380 Disco 2 box following problems getting into 1st, I decided to investigate the piece in the image attached.

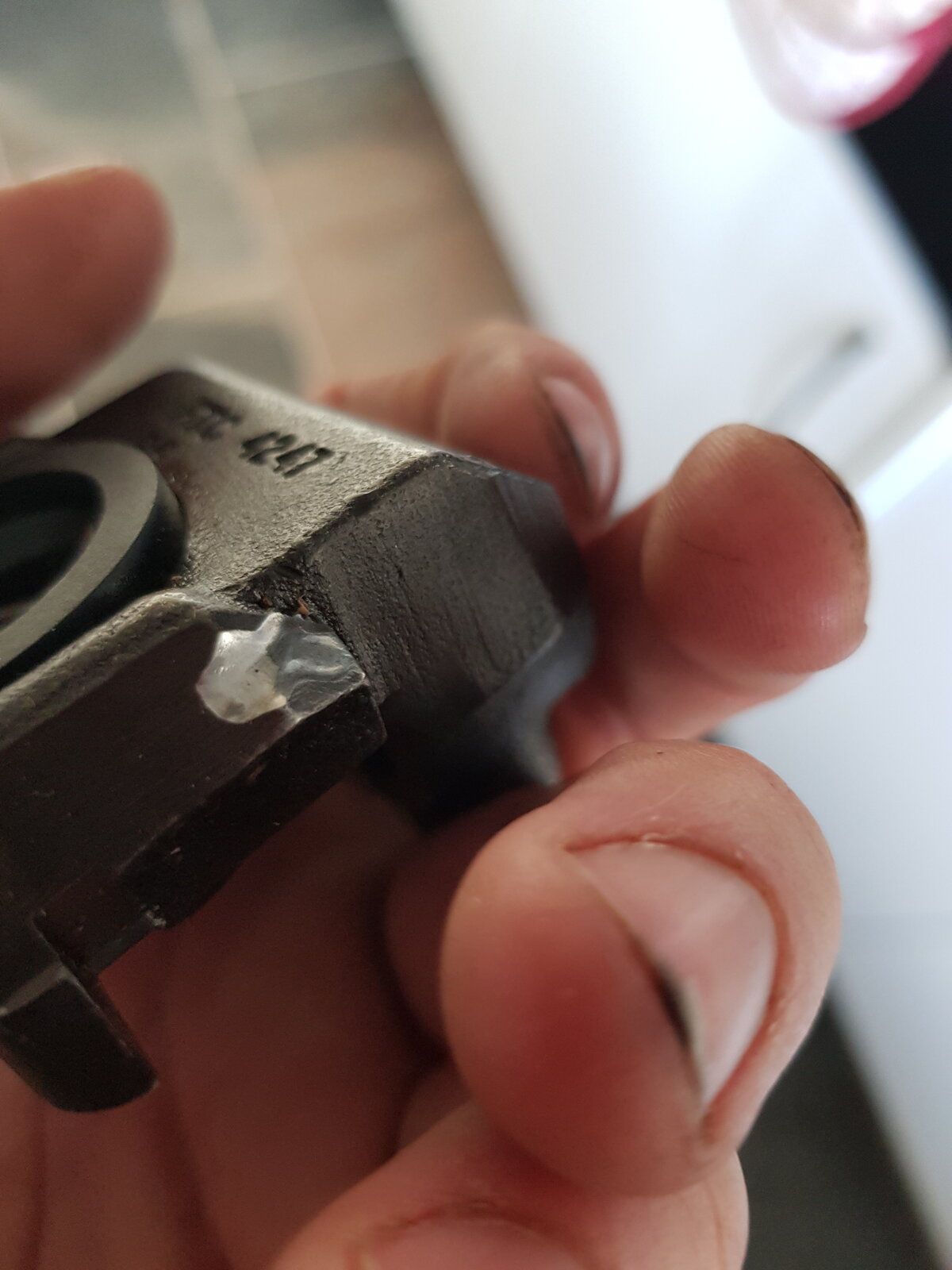

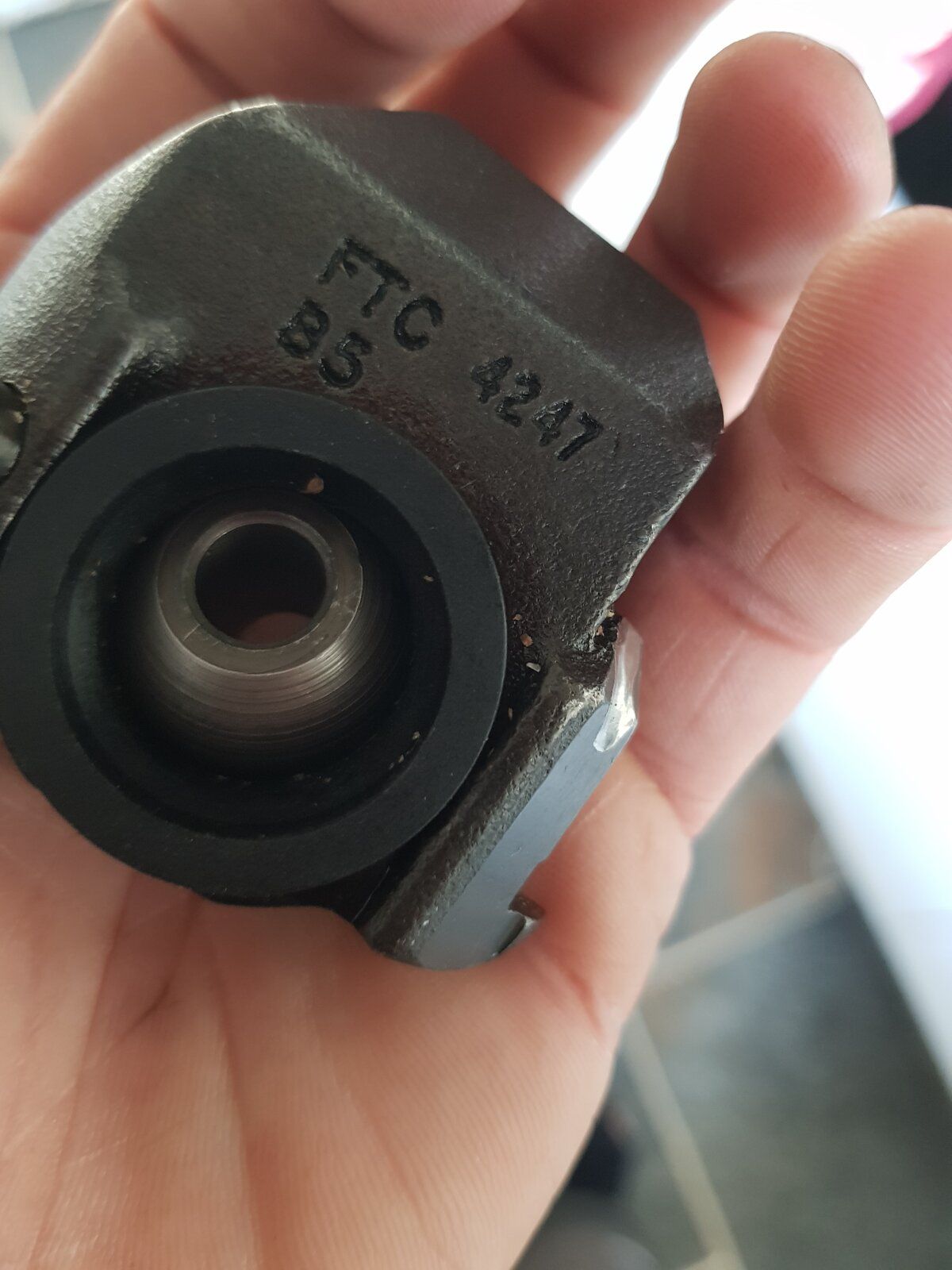

As you can see it's pretty worn and the ball has a lot of play in the cup. I want to replace the whole assembly but can't find the part despite having the part number...

Can anyone suggest anything?

Thank you!

sierrafery · May 24, 2021

Hi. That part number is not for the whole assy, if you want it all search FTC4622 but it's expensive, for separate parts open the numbers within 7 here https://parts.jaguarlandroverclassic.com/parts/index/part/id/L5.L5J.L5J01.L5J01060/brand/land-rover/ for other parts go "Back" untill the proper section

Lej · May 25, 2021

sierrafery said:
Hi. That part number is not for the whole assy, if you want it all search FTC4622 but it's expensive, for separate parts open the numbers within 7 here https://parts.jaguarlandroverclassic.com/parts/index/part/id/L5.L5J.L5J01.L5J01060/brand/land-rover/ for other parts go "Back" untill the proper section

Thank you so much for that, it's good to see the whole assembly. It appears that the issues with the selector although worn doesn't appear to be the culprit...

Lej · May 25, 2021

Lej said:
Thank you so much for that, it's good to see the whole assembly. It appears that the issues with the selector although worn doesn't appear to be the culprit...

I've ordered a second hand one and hopefully it's a bit better. I'll replace the cup and ball as standard.

Thank you for your time, I really appreciate it!
