Rubins4

Well-Known Member

• Apr 2, 2018

• #1

On rebuilding my SIII I've run into wiper issues. The arms should travel in opposite directions (divers side anti clockwise, passenger clockwise) but mine both go clockwise. They do however park in the right place.

I think this means I need to invert the wheel box on drivers side but before I remove the dash can any one confirm?

Cheers.



Extreedoc

Well-Known Member

• Apr 2, 2018

• #2

Workshop manual shows the left side wheelbox is below the rack while the right side one is above the rack. Picture on page 84-3 of the repair operations manual.



wwwfc666

Active Member

• Apr 2, 2018

• #3

Just redone my wiperbox etc
Yes that's right
Not the best photos but may help , that's if I done it right!!!



Extreedoc

Well-Known Member

• Apr 3, 2018

• #4

wwwfc666 said:

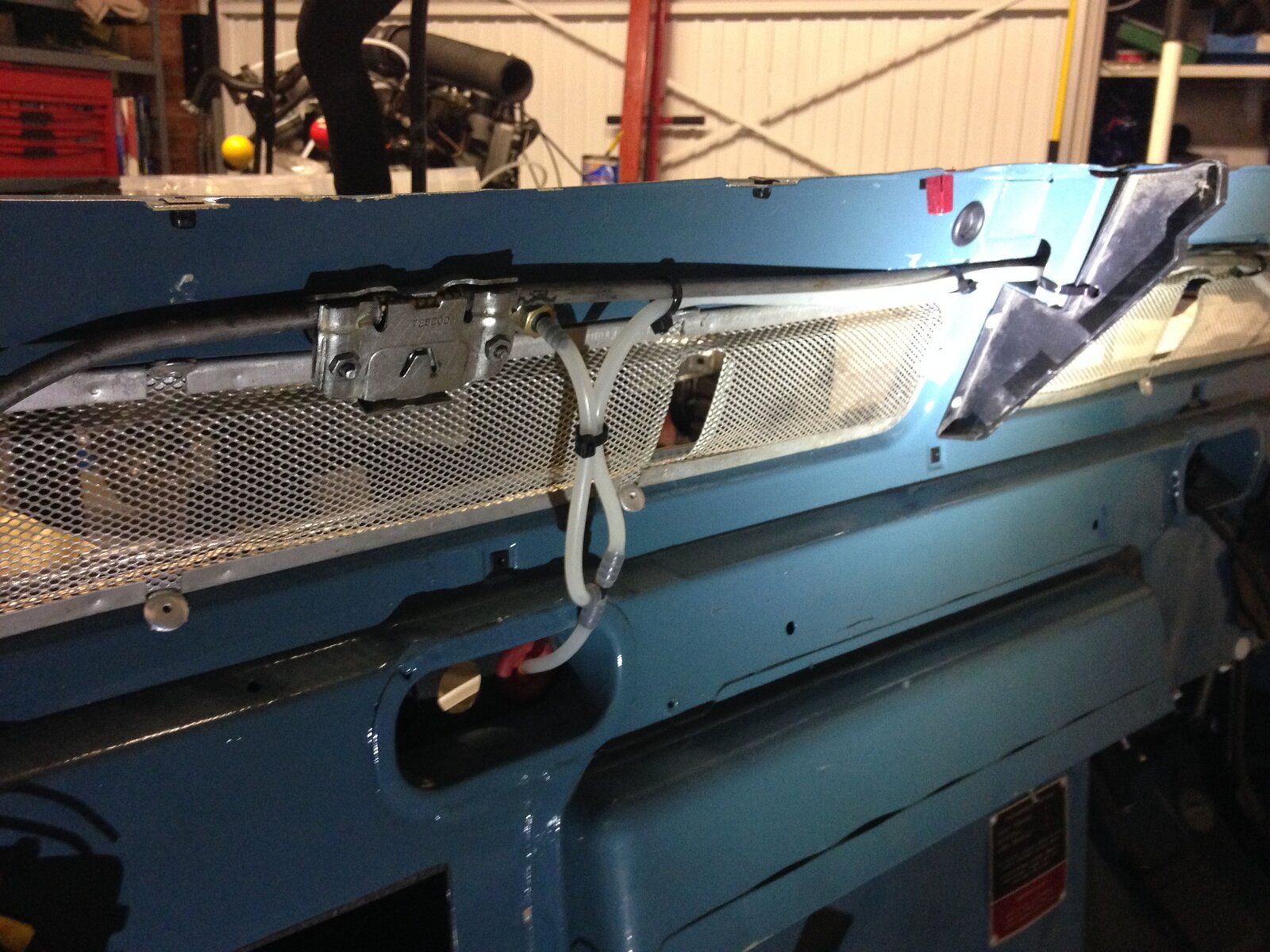

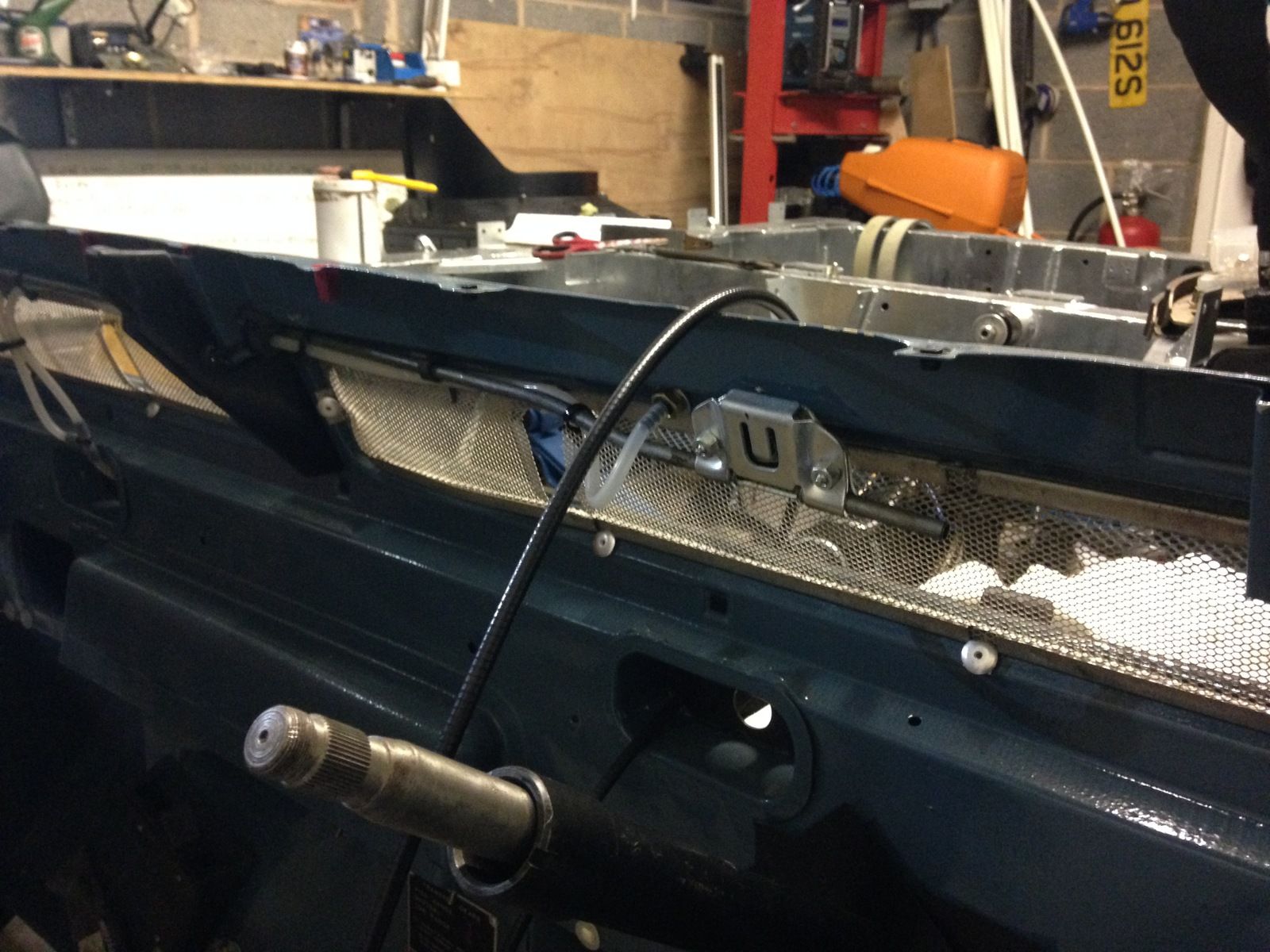

View attachment 145967 View attachment 145966 Just redone my wiperbox etc
Yes that's right
Not the best photos but may help , that's if I done it right!!!

Click to expand...

Looking good...



Rubins4

Well-Known Member

• Apr 3, 2018

• #5

Thank you chaps, at least I can tear back into the dash with some confidence. Hopefully I can go straight through the binnacle but we will see.

@wwwfc666 you appear to be making an absolute minter, good work.



wwwfc666

Active Member

• Apr 3, 2018

• #6

Rubins4 said:

Thank you chaps, at least I can tear back into the dash with some confidence. Hopefully I can go straight through the binnacle but we will see.

@wwwfc666 you appear to be making an absolute minter, good work.

Click to expand...

Took years to get this far but will be worth it in end!



tottot

Well-Known Member

• Apr 3, 2018

• #7

Looking good,nice job on the bulkhead.
