R

Rorie

Active Member
300tdi
I have a leak from behind the camshaft crank gear. Is the seal I need ERR3356? Along with a new gear LHH100660?

Looking at the belt cover, there is a bearing in it, but all I can see online is seals (ERR4576 and ERR4575?). What do I need for here? See photo.

Also, when I took off the damper pulley, it had a rubber seal on the back. Is that part of another seal?


Anybody help? I need to order up parts. This bearing in place of the seal is confusing me....

I cant see it being a bearing as it would serve no purpose, take it out and take it to bits to see whats what.
Could be a stemco seal

Rorie said:
300tdi
I have a leak from behind the camshaft crank gear. Is the seal I need ERR3356? Along with a new gear LHH100660?

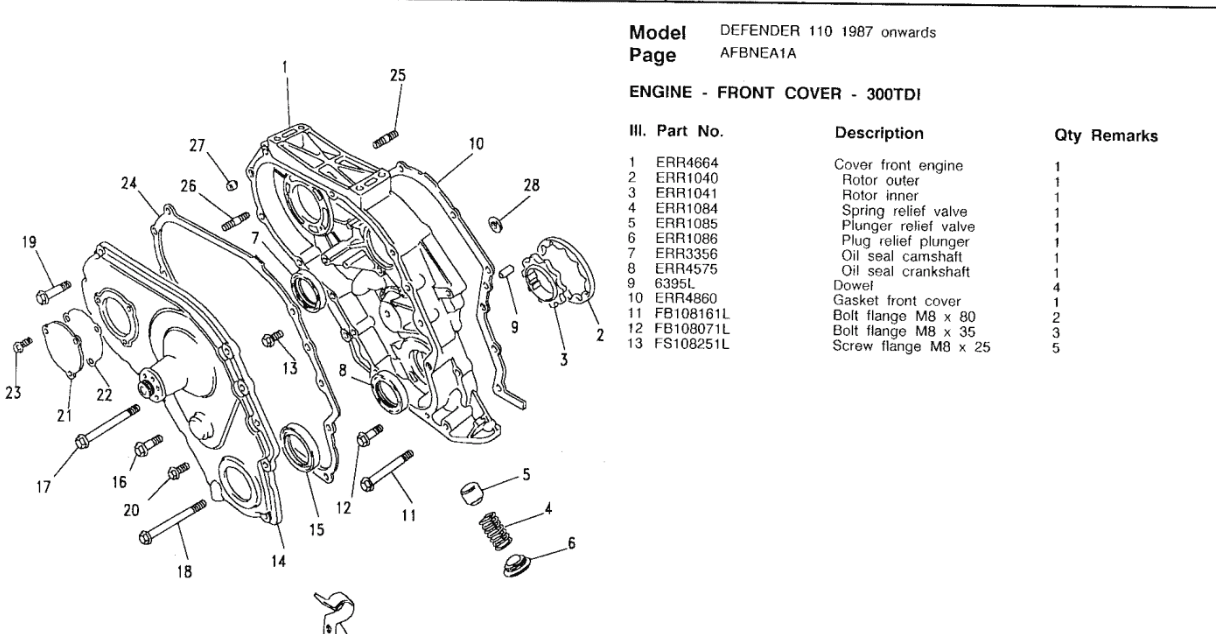

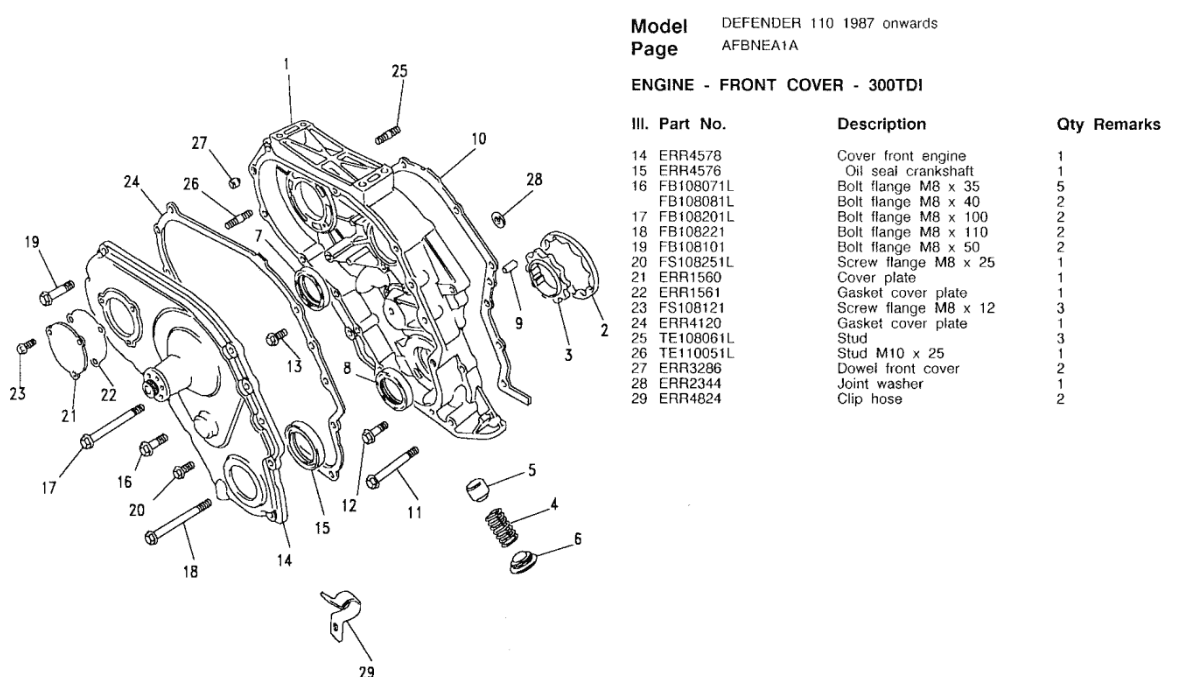

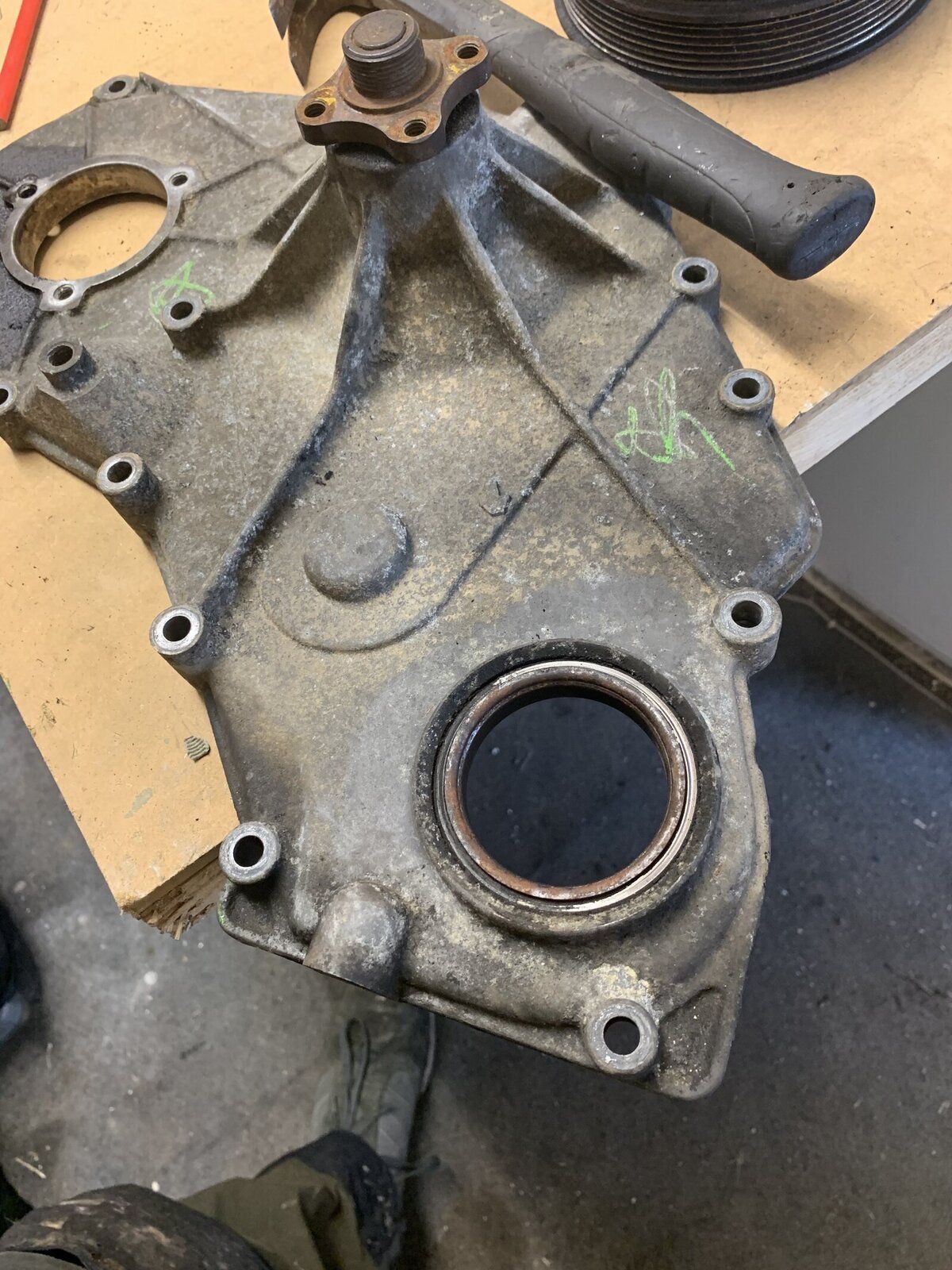

Looking at the belt cover, there is a bearing in it, but all I can see online is seals (ERR4576 and ERR4575?). What do I need for here? See photo.

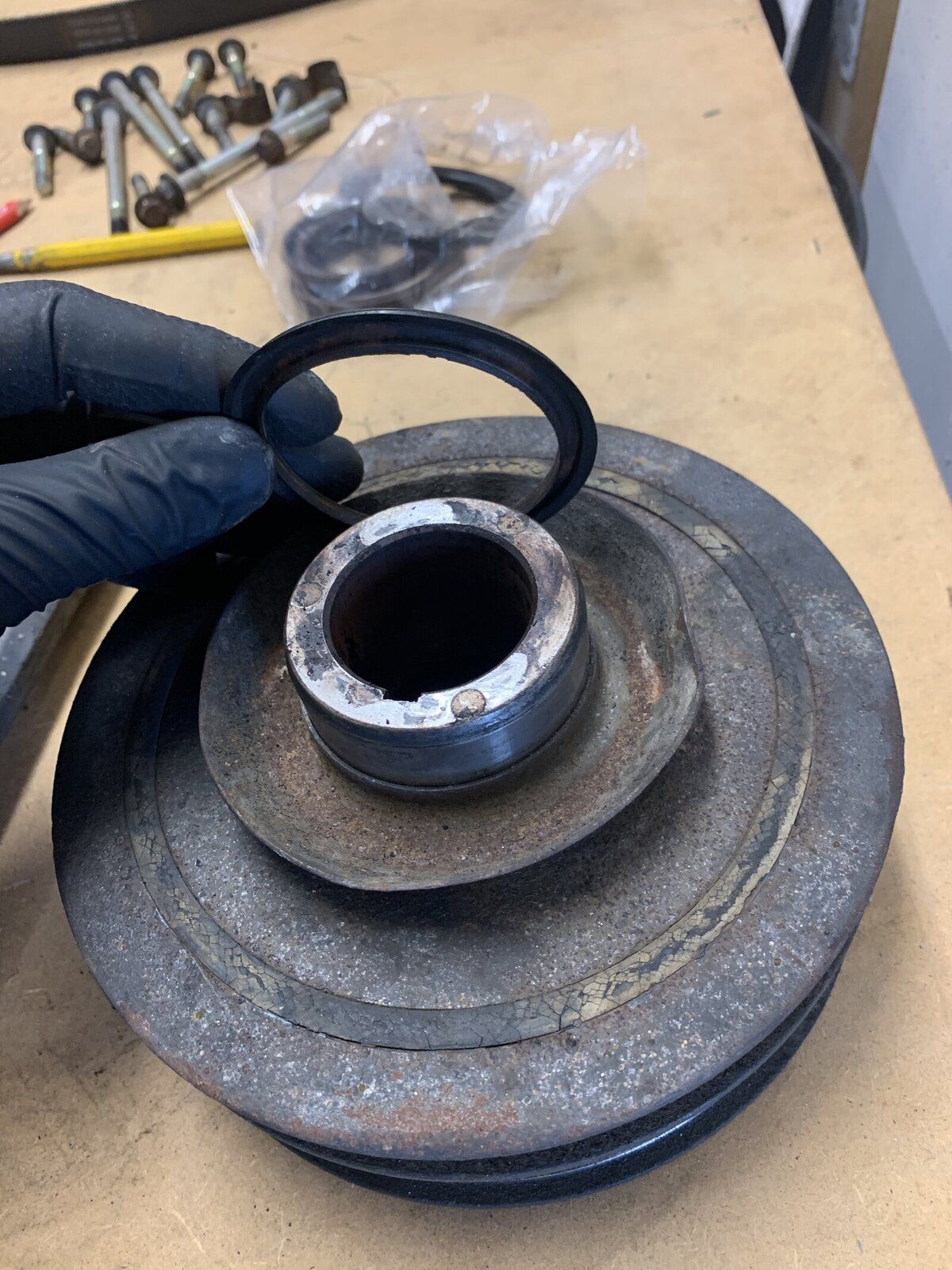

Also, when I took off the damper pulley, it had a rubber seal on the back. Is that part of another seal?

View attachment 180302 View attachment 180303
Click to expand...
When I did mine it didn't have a rubber seal on the back of the slinger as shown in your picture. It looks like that has split off something else.
If you look somewhere like Turners HERE who group all the parts for one engine together, it makes it easy to get the correct parts you need. You need an O ring behind the crank pulley too and I don't think you have mentioned that yet?
