Hello!

It looks like the crankshaft position sensor on my 2007 Freelander 2 2.2 diesel has started acting up, the the car jerking and on occasion cutting out completely.

I rang my local Land Rover dealer and ordered a new one at a cost of £107 plus VAT, however looking on motor factor websites and eBay there are some for as little as £20.

Now I know this is probably a silly question, but are the £20 ones simply a waste of money? It seems too good to be true to be less than a fifth of the price.

Cheers,

Steve

This company gives a 5yr warranty on the ones they sell, don't forget that the sensor also fits other makes, so no need to pay stealer prices.

I am informed the one below should be avoided, as it can fail within 12 months.
Crankshaft Crank Angle Sensor Fits Land Rover Freelander (Mk2) 2.2 eD4 | eBay

I wonder if they honour the warranty ?

VehicleShapeYearEngineEngine Code(s)Citroen Berlingo4/ 2008 - / 2016Diesel: 1.6 HDI9HT, 9HXCitroen BerlingoM_7/ 2005 - / 2016Diesel: 1.6 HDI9HW, 9HXCitroen C1PM_, PN_6/ 2005 - / 2016Diesel: 1.4 HDI8HTCitroen C2JM_9/ 2003 - / 2016Diesel: 1.4 HDI, 1.6 HDI8HX, 8HZ, 9HZCitroen C24/ 2009 - / 2016Diesel: 1.4 HDI8HXCitroen C3MK II11/ 2009 - / 2016Diesel: 1.4 HDI8HRCitroen C3HB_4/ 2004 - / 2016Diesel: 1.4 HDI8HXCitroen C4MK I11/ 2004 - 7/ 2011Diesel: 1.6 HDI9HX, 9HYCitroen C47/ 2006 - 7/ 2011Diesel: 1.6 HDI9HY, 9HZCitroen C5RE_9/ 2004 - / 2016Diesel: 1.6 HDI4HT, 9HY, 9HZCitroen C5TD_2/ 2008 - / 2016Diesel: 1.6 HDI4HT, 9HZCitroen C6TD_6/ 2006 - / 2016Diesel: 2.2 HDI4HTCitroen C-CrosserEP_2/ 2007 - / 2016Diesel: 2.2 HDI4HNCitroen XsaraN21/ 2003 - 8/ 2005Diesel: 1.4 HDI8HXCitroen Xsara PicassoN685/ 2004 - / 2016Diesel: 1.6 HDI9HXFiat Scudo270_1/ 2007 - / 2016Diesel: 1.6 D9HUFord C-MaxDM22/ 2007 - 9/ 2010Diesel: 1.6 TDCIG8DA, G8DB, G8DC, G8DDFord FiestaMK V11/ 2001 - 12/ 2010Diesel: 1.4 TDCIF6JA, F6JBFord FocusMK II11/ 2004 - 9/ 2012Diesel: 1.6 TDCIG8DA, G8DB, G8DD, G8DE, G8DF, GPDA, GPDB, GPDCFord Focus C-Max10/ 2003 - 3/ 2007Diesel: 1.6 TDCIG8DA, G8DB, HHDA, HHDBFord FusionJU_8/ 2002 - 12/ 2012Diesel: 1.4 TDCI, 1.6 TDCIF6JA, F6JB, HHJA, HHJBFord GalaxyWA63/ 2008 - 12/ 2015Diesel: 2.2 TDCIKNWAFord MondeoMK IV3/ 2008 - 10/ 2010Diesel: 2.2 TDCIQ4BAFord S-MaxWA63/ 2008 - / 2014Diesel: 2.2 TDCIQ4WALand Rover FreelanderFA_8/ 2006 - 10/ 2014Diesel: 2.2 eD4, 2.2 SD4, 2.2 TD4224DTMazda 2DE1/ 2008 - 6/ 2015Diesel: 1.4 MZR-CDY404Mazda 2DY4/ 2003 - / 2016Diesel: 1.4 CDF6JA, F6JBMazda 3BK6/ 2004 - 6/ 2009Diesel: 1.6 Di TurboY601Mazda Mazda3BK6/ 2004 - / 2009Diesel: 1.6 Di TurboY601Mini MiniR5611/ 2006 - 9/ 2010Diesel: Cooper D9HZ, W16 D16Peugeot 1007KM_4/ 2005 - / 2009Diesel: 1.4 HDI, 1.6 HDI8HX, 8HZ, 9HZPeugeot 1076/ 2005 - / 2016Diesel: 1.4 HDI8HTPeugeot 2069/ 2008 - / 2010Diesel: 1.4 HDI8HZPeugeot 2062E/K7/ 2002 - / 2015Diesel: 1.4 HDI, 1.6 HDI8HX, 8HZ, 9HY, 9HZPeugeot 2072/ 2006 - / 2016Diesel: 1.4 HDI, 1.6 HDI8HR, 8HZ, 9HV, 9HXPeugeot 3073A/C10/ 2001 - / 2016Diesel: 1.4 HDI, 1.6 HDI8HX, 8HZ, 9HV, 9HX, 9HY, 9HZPeugeot 3073H3/ 2002 - / 2016Diesel: 1.4 HDI, 1.6 HDI8HZ, 9HV, 9HXPeugeot 3084A_, 4C_9/ 2007 - / 2016Diesel: 1.6 HDI9HZPeugeot 3089/ 2007 - / 2016Diesel: 1.6 HDI9HRPeugeot 4007GP_2/ 2007 - / 2016Diesel: 2.2 HDI4HKPeugeot 4076E_5/ 2004 - / 2016Diesel: 1.6 HDI, 2.2 HDI4HP, 4HTPeugeot 807E6/ 2002 - / 2016Diesel: 2.2 HDI4HWPeugeot Partner52/ 2006 - / 2016Diesel: 1.6 HDI9HW, 9HXPeugeot Partnerspace5F2/ 2006 - / 2016Diesel: 1.6 HDI9HW, 9HXVolvo C3010/ 2006 - 12/ 2012Diesel: 1.6 DD 4164 TVolvo S40MK II1/ 2005 - / 2012Diesel: 1.6 DD 4164 TVolvo S80MK II1/ 2010 - / 2016Diesel: 1.6 DD 4164 TVolvo V50MW1/ 2005 - / 2012Diesel: 1.6 DD 4164 T


LAND ROVER: LR000681

Ford Mondeo MK IV 3/ 2008 - 10/ 2010 Diesel: 2.2 TDCI Q4BA

Arctic2 said:

This company gives a 5yr warranty on the ones they sell, don't forget that the sensor also fits other makes, so no need to pay stealer prices

Click to expand...

I fitted that one, it failed in 12 months, leaving me stranded at the roadside.

steve421 said:

Now I know this is probably a silly question, but are the £20 ones simply a waste of money? It seems too good to be true to be less than a fifth of the price.

Click to expand...

The factory fitment is Febi, and costs under £20. Avoid cheap no name makes, as the pins aren't thick enough to make good contact with the plug, which causes the sensor to fail. If the plug is at all suspect (they suffer from corrosion and contact spreading), then a replacement sensor will have a short life.
The plug bodies weren't available in the UK when I needed one, but the pins are available on Ebay, and the old plug can be pulled apart to fit new pins if needed.

Nodge68 said:

I fitted that one, it failed in 12 months, leaving me stranded at the roadside.

Click to expand...

Hi John.
Thank you for letting me/us know, they are off my list, the factory fitment Febi do you have the link, and how long as it been on your car now please, i am off to remove the link.

Arctic2 said:

Thank you for letting me/us know, they are off my list, the factory fitment Febi do you have the link, and how long as it been on your car now please, i am off to remove the link.

Click to expand...

https://www.ebay.co.uk/itm/31305167...bwIbE9OSGK&var=&widget_ver=artemis&media=COPY
Here's the ebay link.

It's been on the car since June. But I've done about 2k miles in that time, and so far so good. I replaced the plug at the same time, as the contacts had spread more than I liked. I bought a couple of plugs, as they cam from the US, so the shipping was more than the plugs themselves.

Nodge68 said:

https://www.ebay.co.uk/itm/31305167...bwIbE9OSGK&var=&widget_ver=artemis&media=COPY
Here's the ebay link.

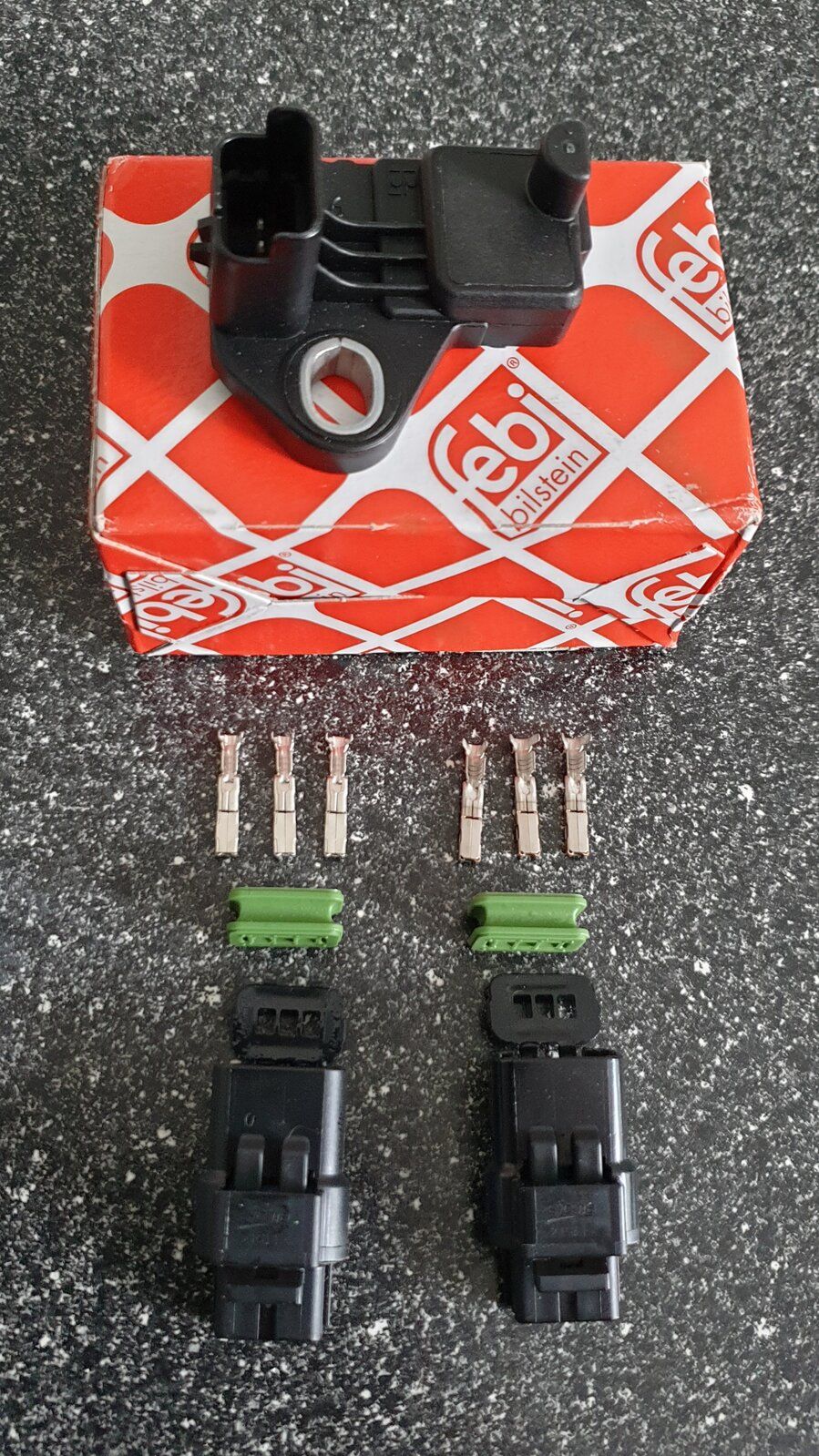

It's been on the car since June. But I've done about 2k miles in that time, and so far so good. I replaced the plug at the same time, as the contacts had spread more than I liked. I bought a couple of plugs, as they cam from the US, so the shipping was more than the plugs themselves. View attachment 276042

Click to expand...

Hi John.
Thanks for the links i am sure i purchased crankshaft sensor ages ago but cannot find ?
